Inspection

2GR-FE ENGINE CONTROL SYSTEM: ACTIVE CONTROL ENGINE MOUNT:

INSPECTION

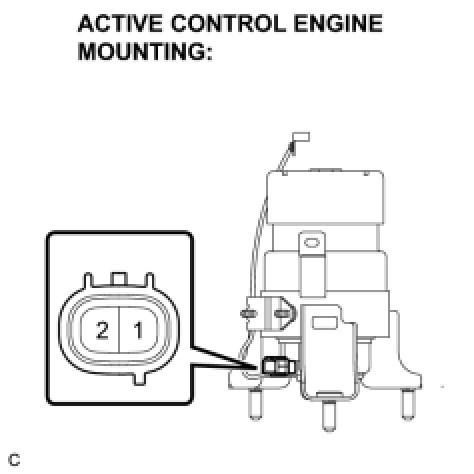

1. INSPECT ACTIVE CONTROL ENGINE MOUNTING






(a) Using an ohmmeter, measure the resistance between the terminals.
Standard resistance:
0.55 to 0.95Ohms
If the resistance is not as specified, replace the active control engine mounting.
