2GR-FE ENGINE CONTROL SYSTEM: ACTIVE CONTROL ENGINE MOUNT SYSTEM: ECU Power Source Circuit

ECU Power Source Circuit

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

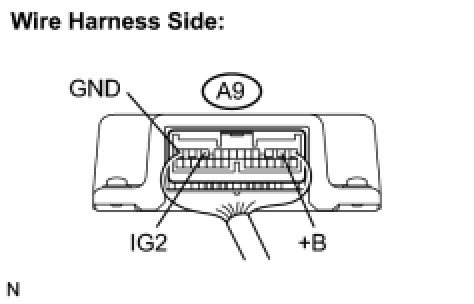

1. INSPECT ECU TERMINAL VOLTAGE (+B AND IG2 TERMINAL)





(a) Measure the voltage according to the value(s) in the table below.
Standard voltage:






OK -- CHECK FOR INTERMITTENT PROBLEMS
NG -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (ACTIVE CONTROL ENGINE MOUNT ECU - BODY GROUND)





(a) Disconnect the active control engine mount ECU connector.

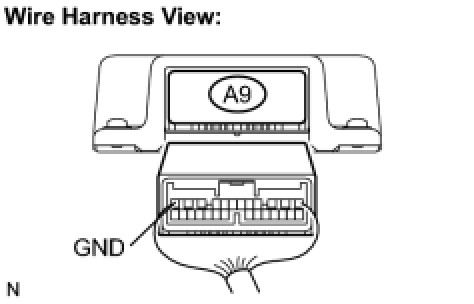

(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:





(c) Reconnect the active control engine mount ECU connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ACTIVE CONTROL ENGINE MOUNT ECU - BODY GROUND)
OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR (ACTIVE CONTROL ENGINE MOUNT ECU - BATTERY)
