Wiper and Washer [w/o Auto Wiper System]

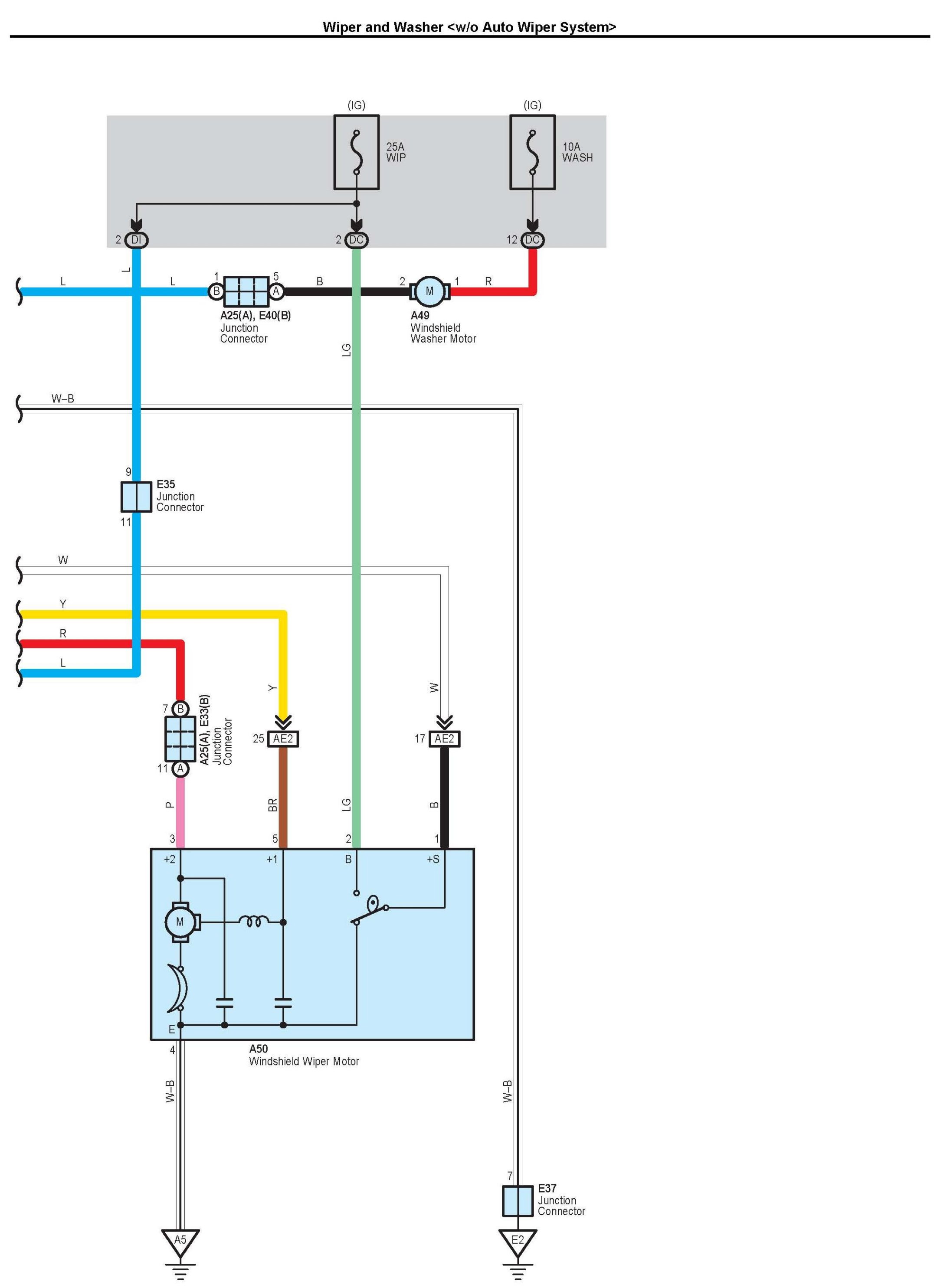

Wiper and Washer <w/o Auto Wiper System> Part 1:

Wiper and Washer <w/o Auto Wiper System> Part 2:

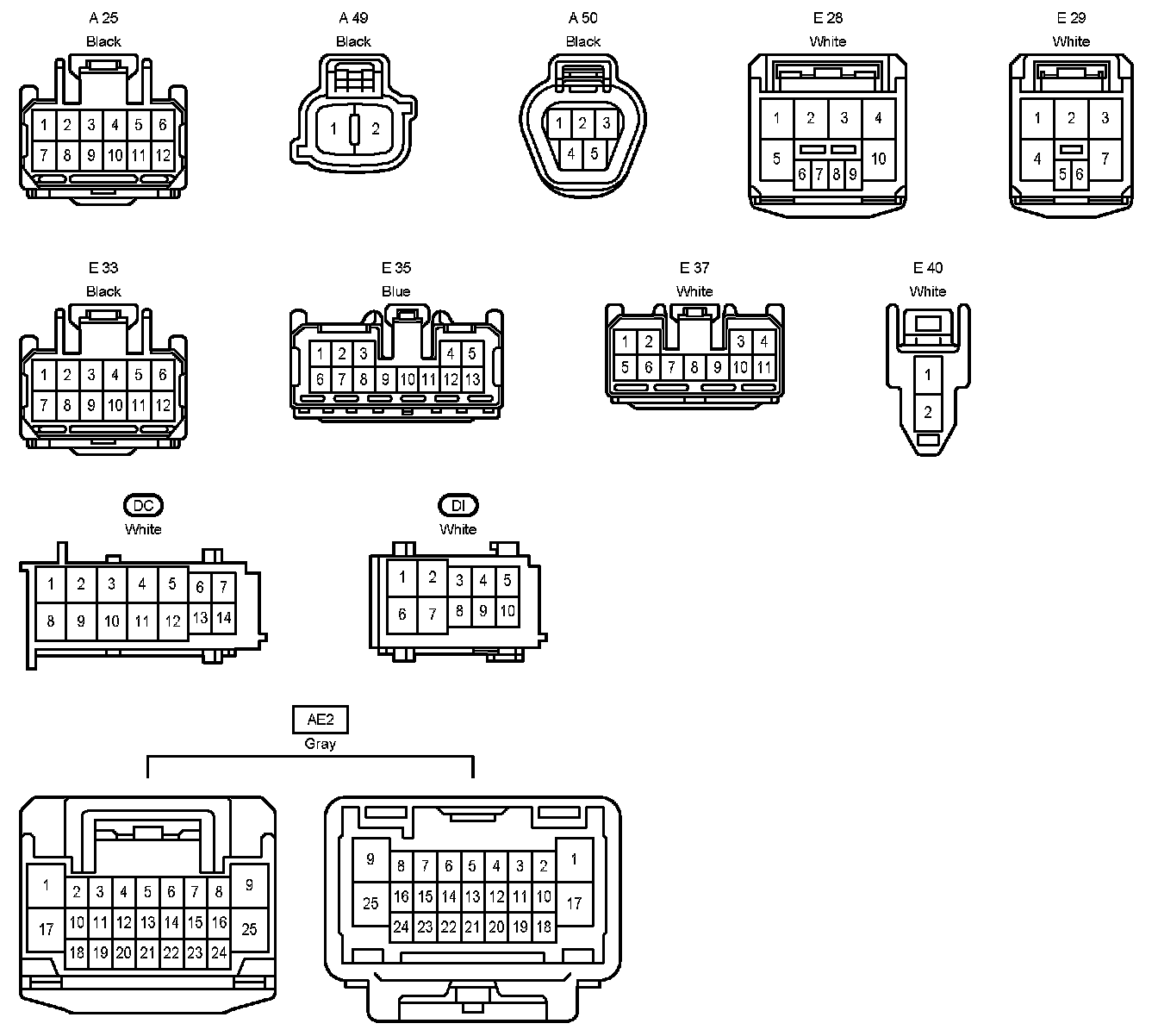

Connector Pin Outs:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
