Audio System , LEXUS Navigation System , Parking Assist [Rear View Monitor]

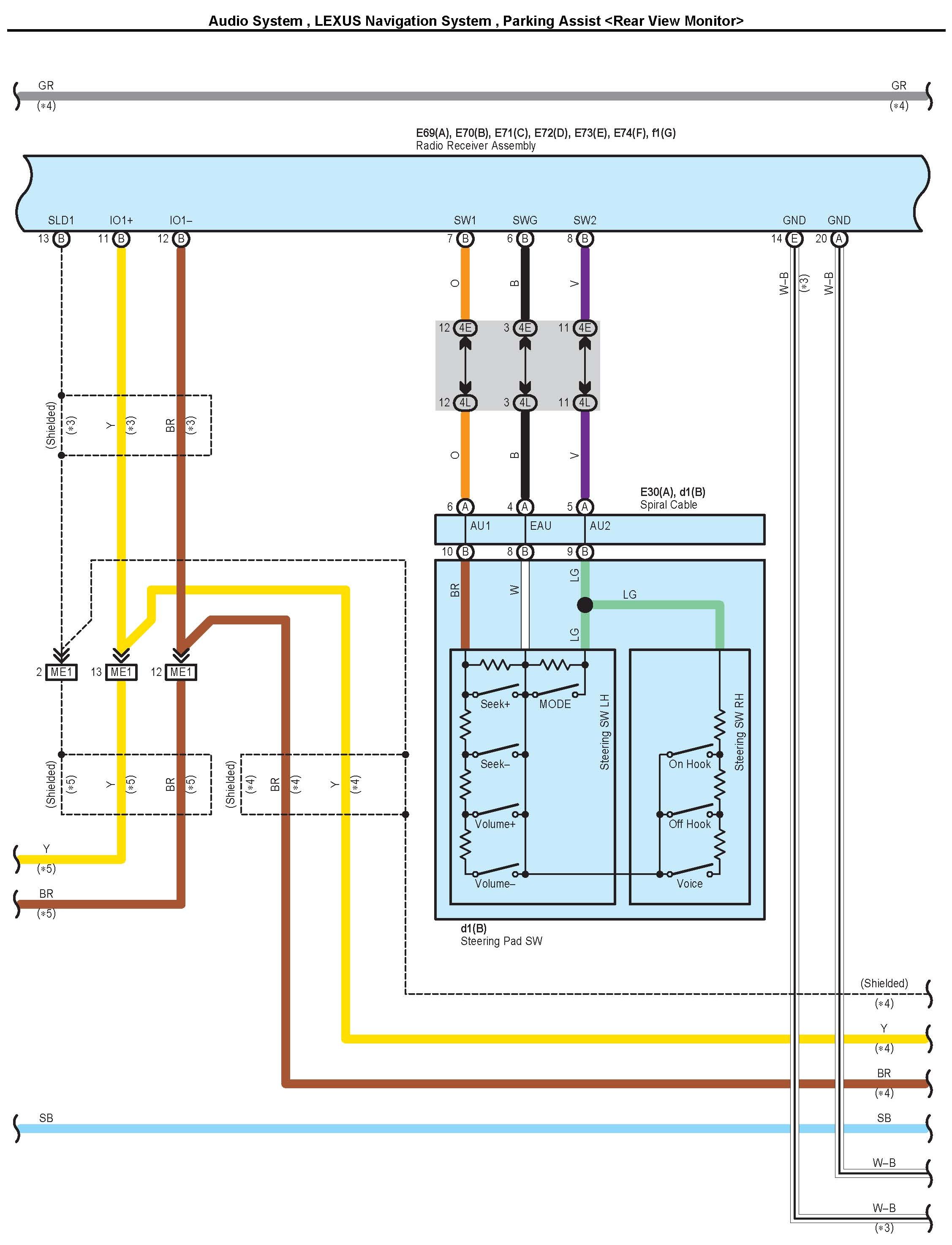

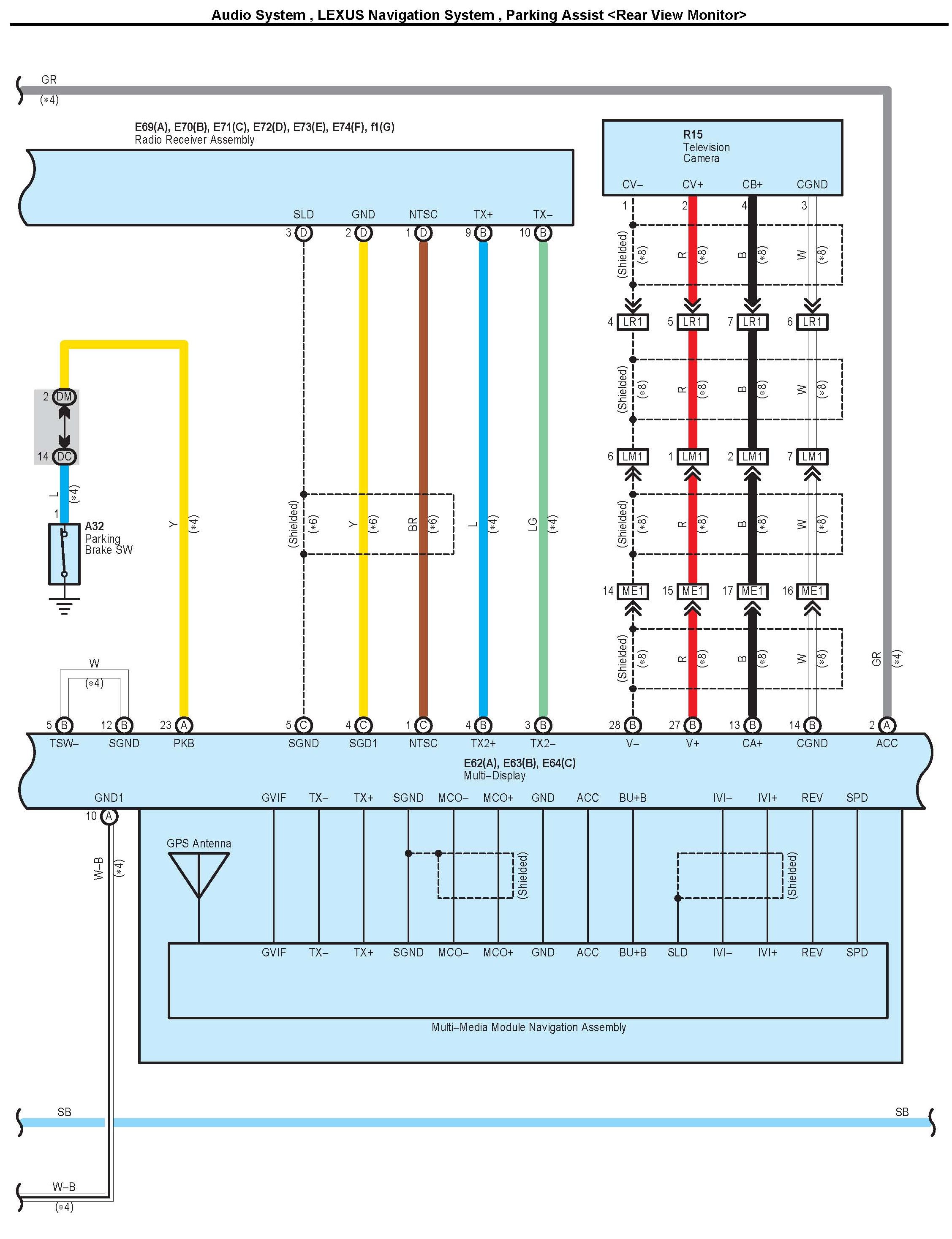

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 1:

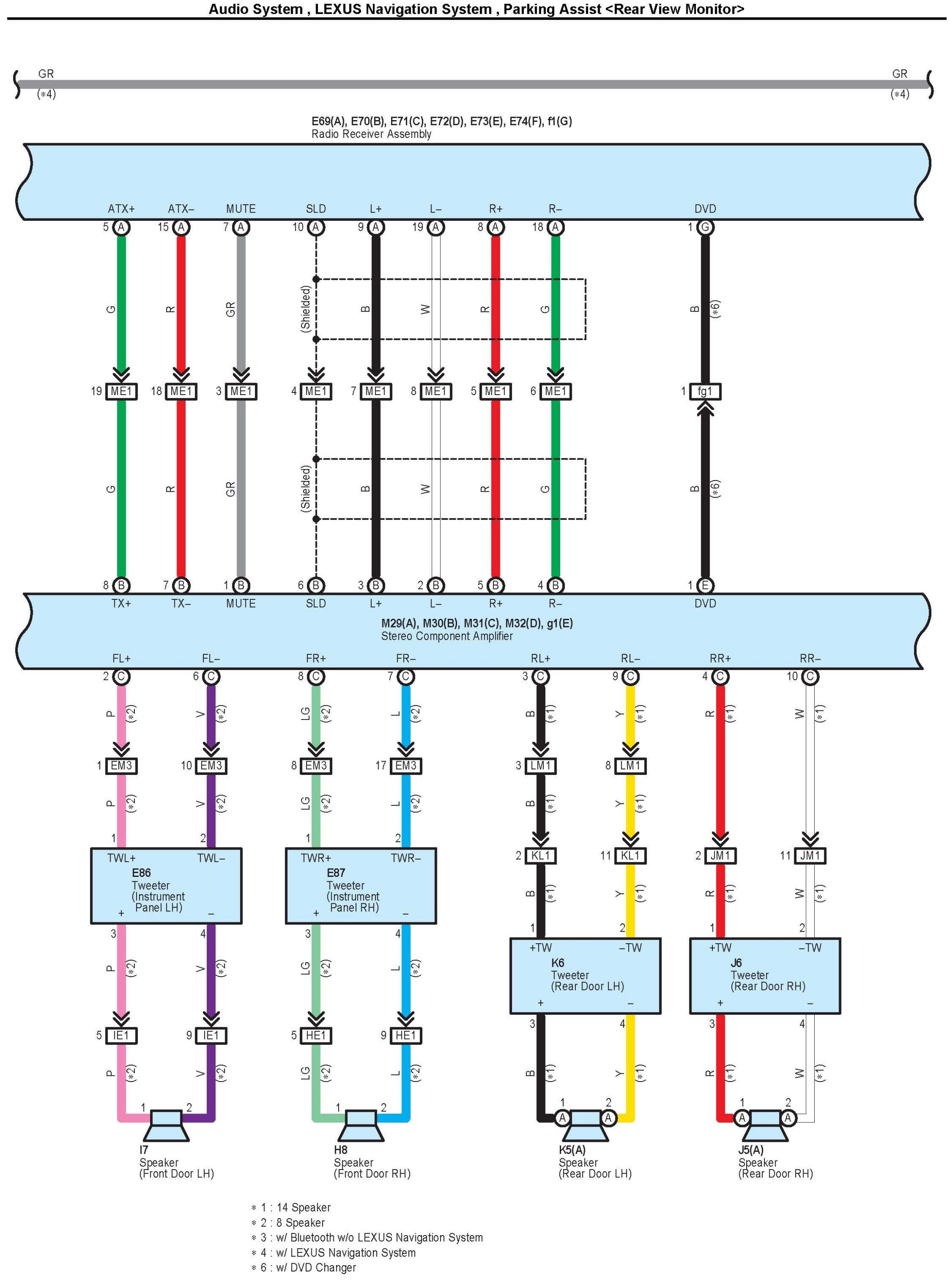

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 2:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 3:

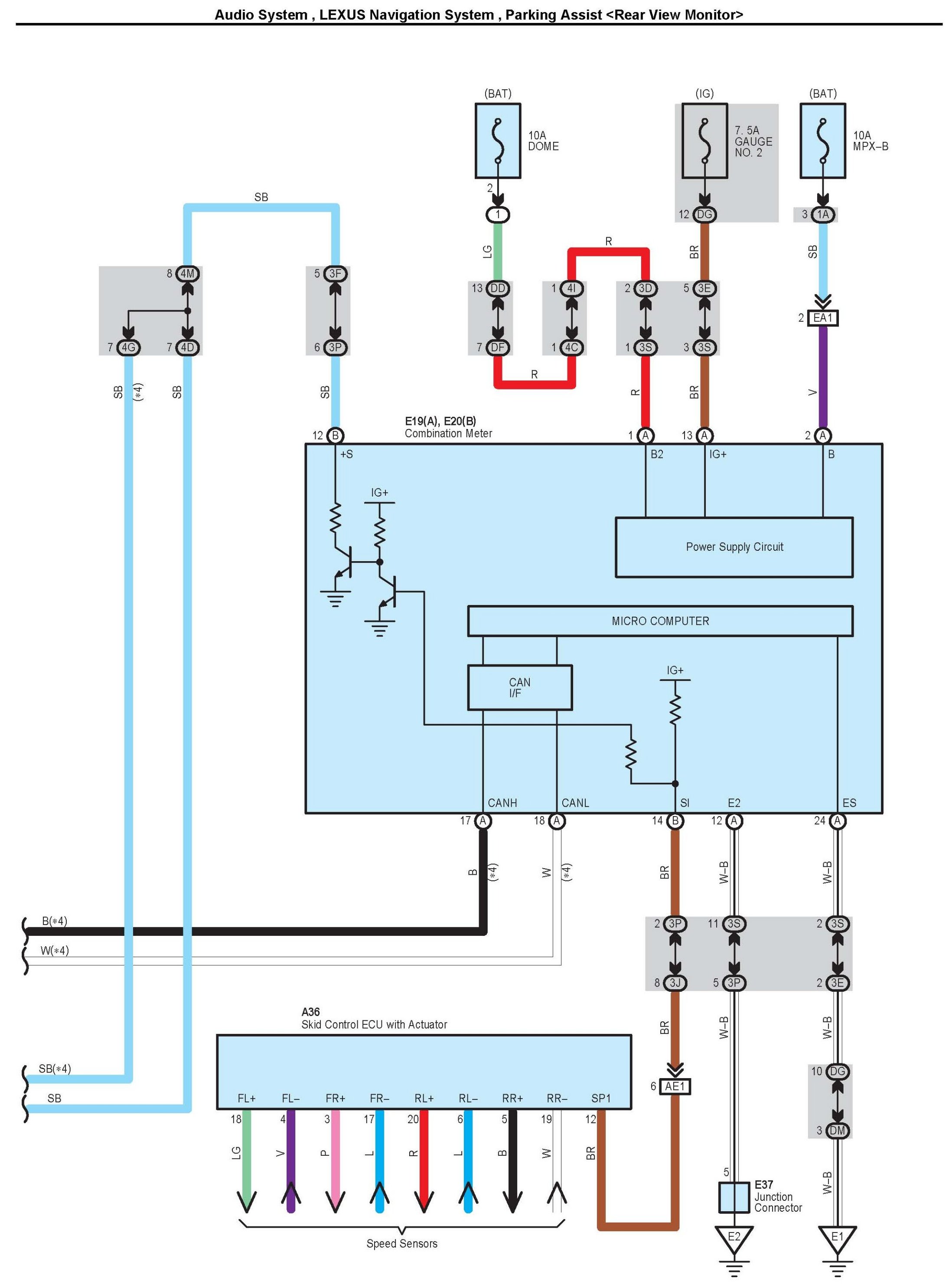

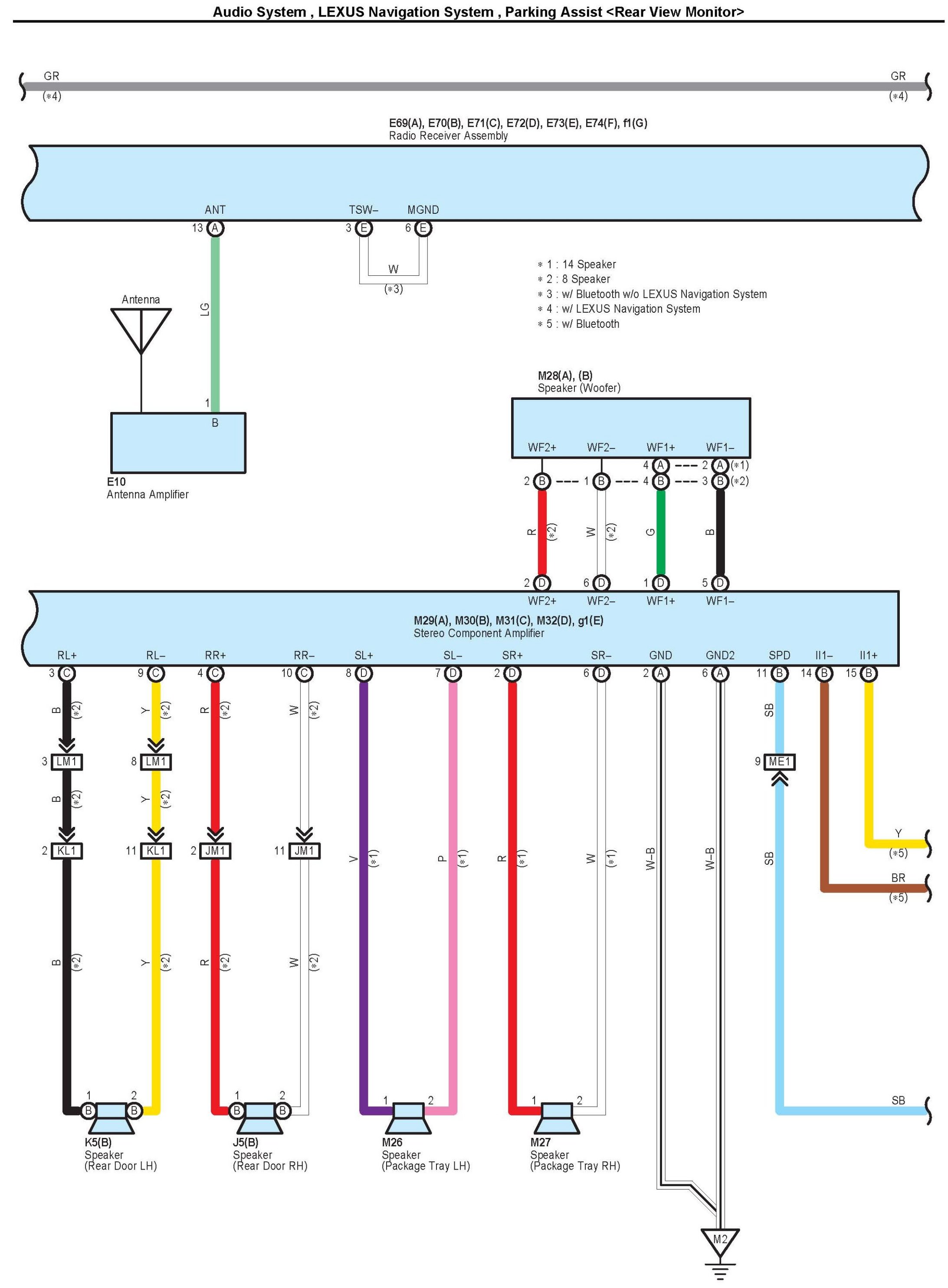

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 4:

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 5:

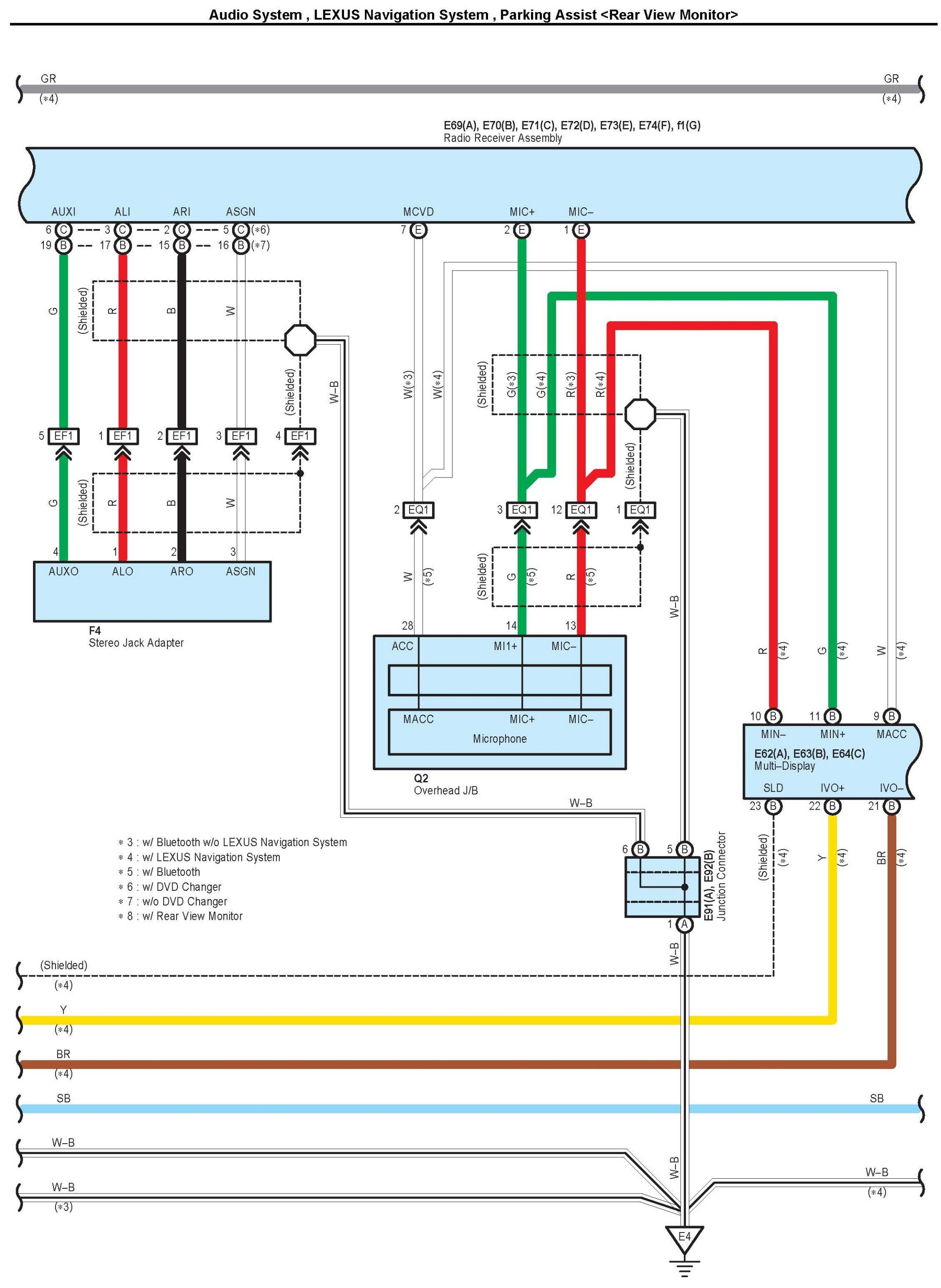

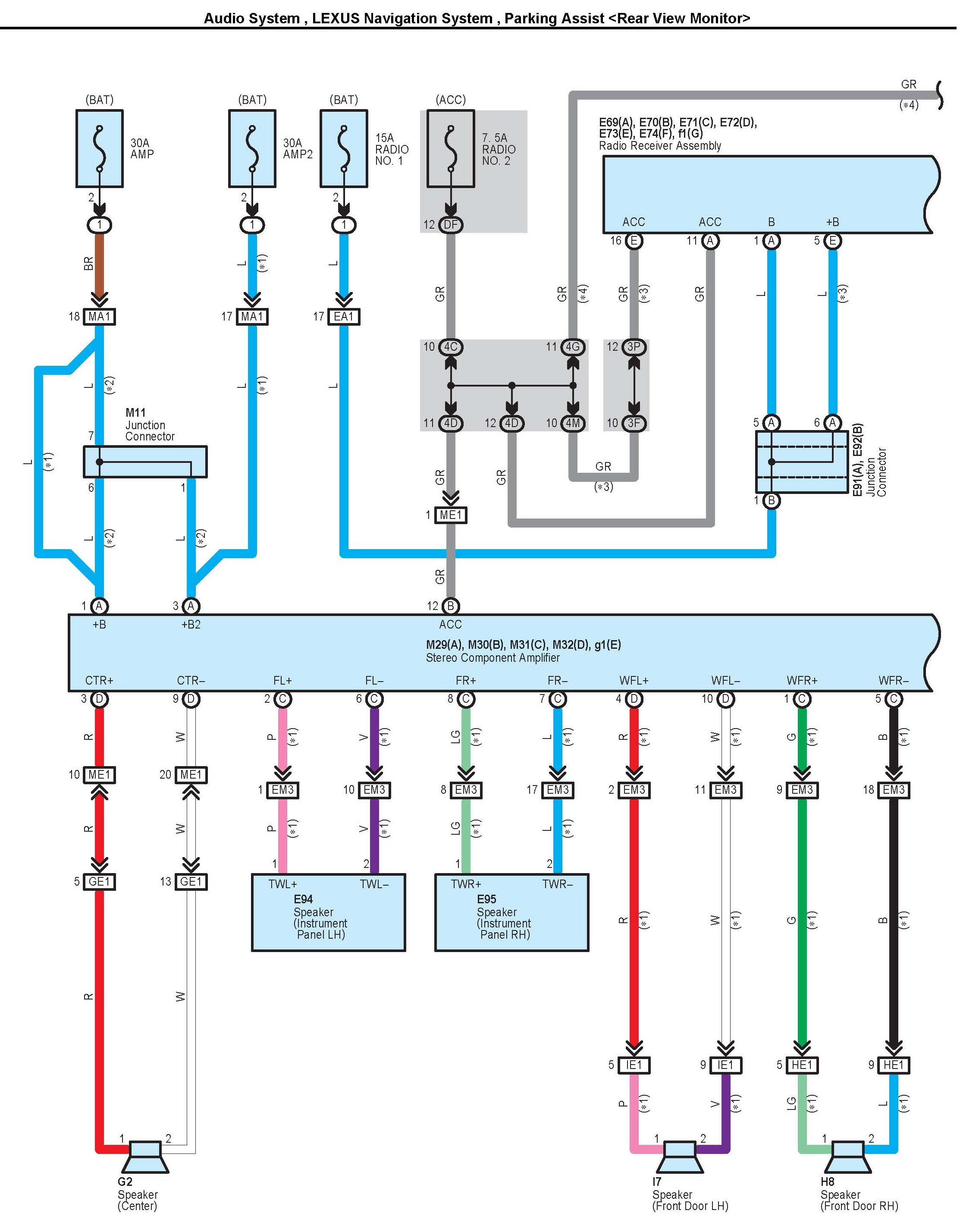

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 6:

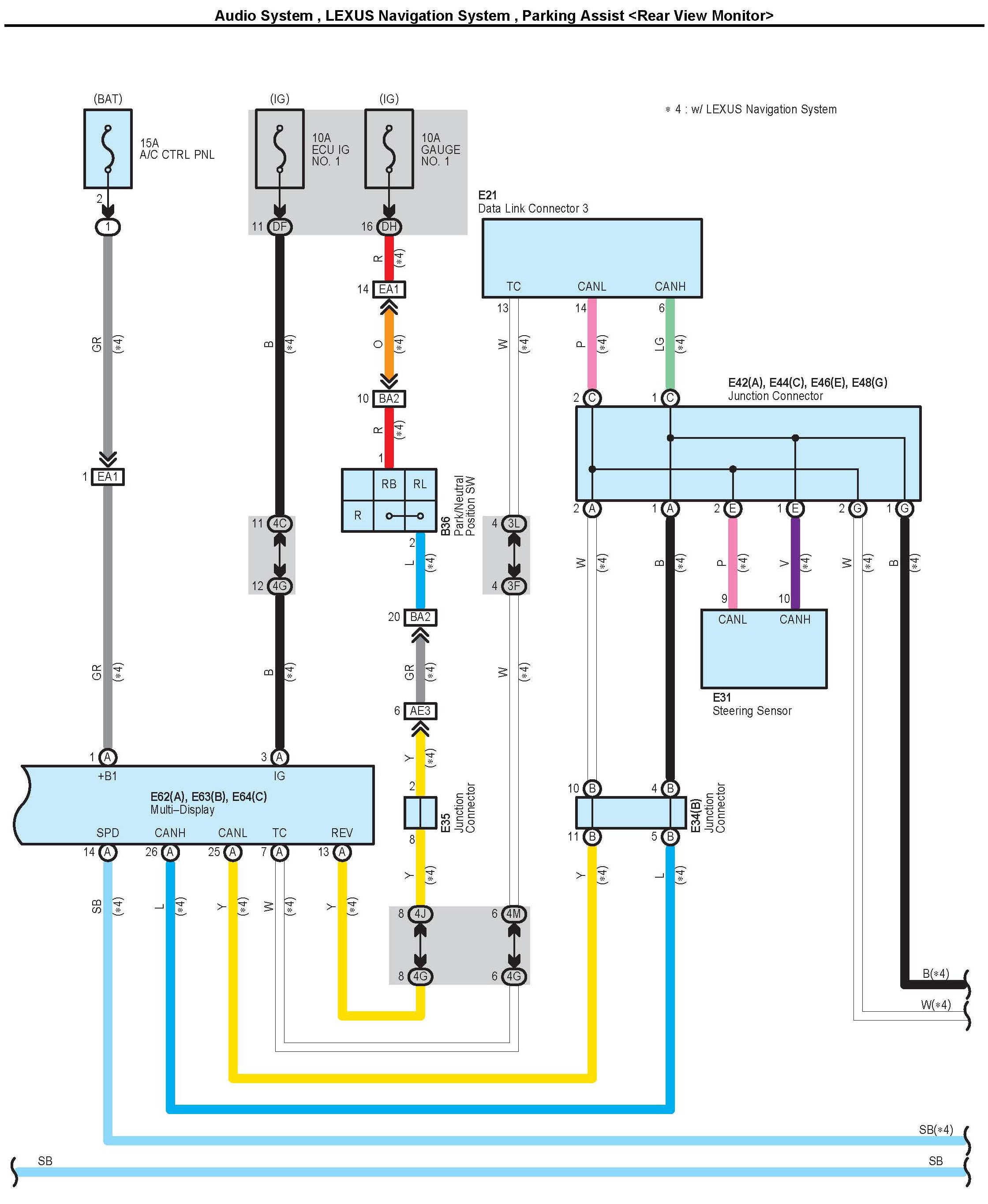

Audio System, LEXUS Navigation System, Parking Assist <Rear View Monitor> Part 7:

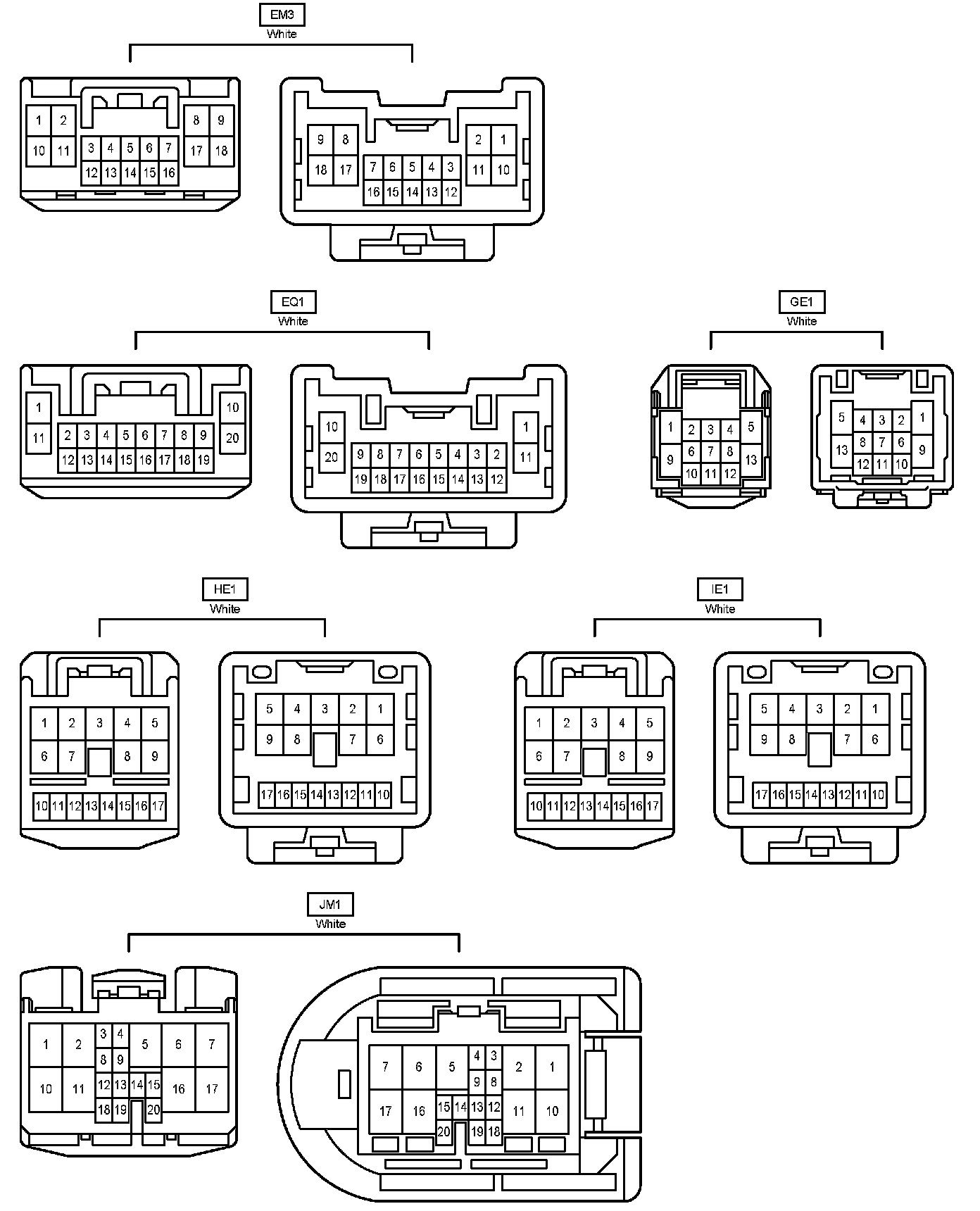

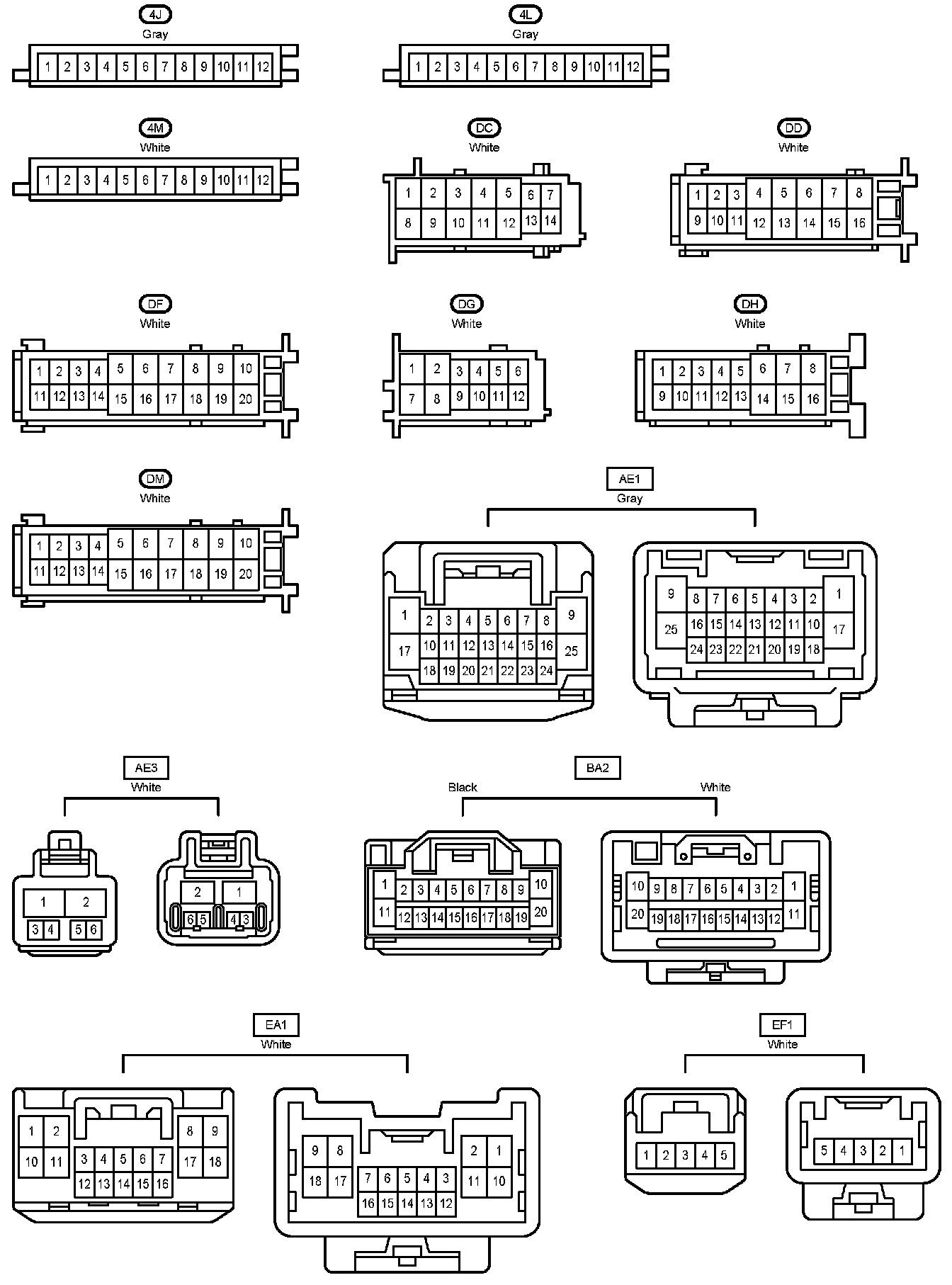

Connector Pin Outs Part 1:

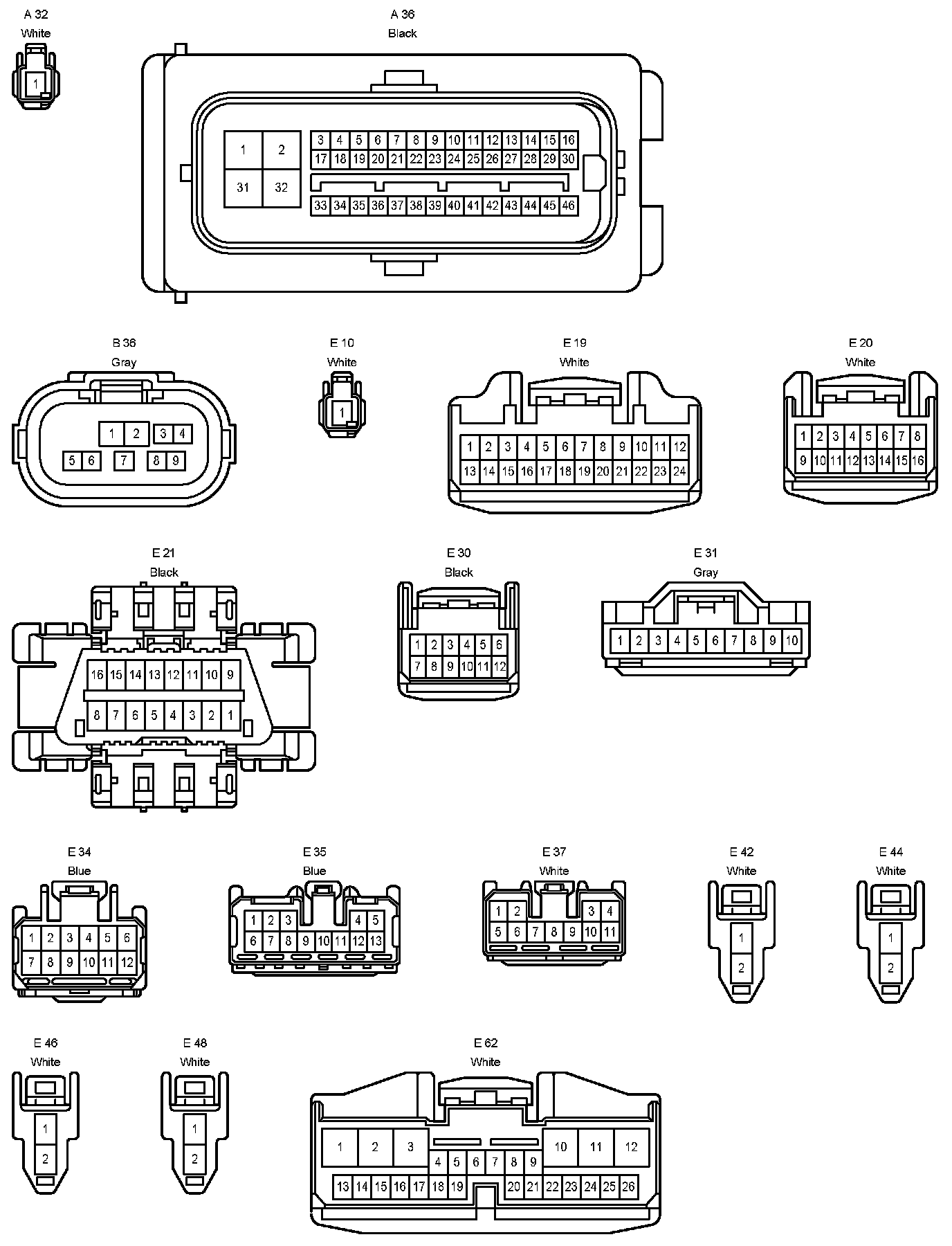

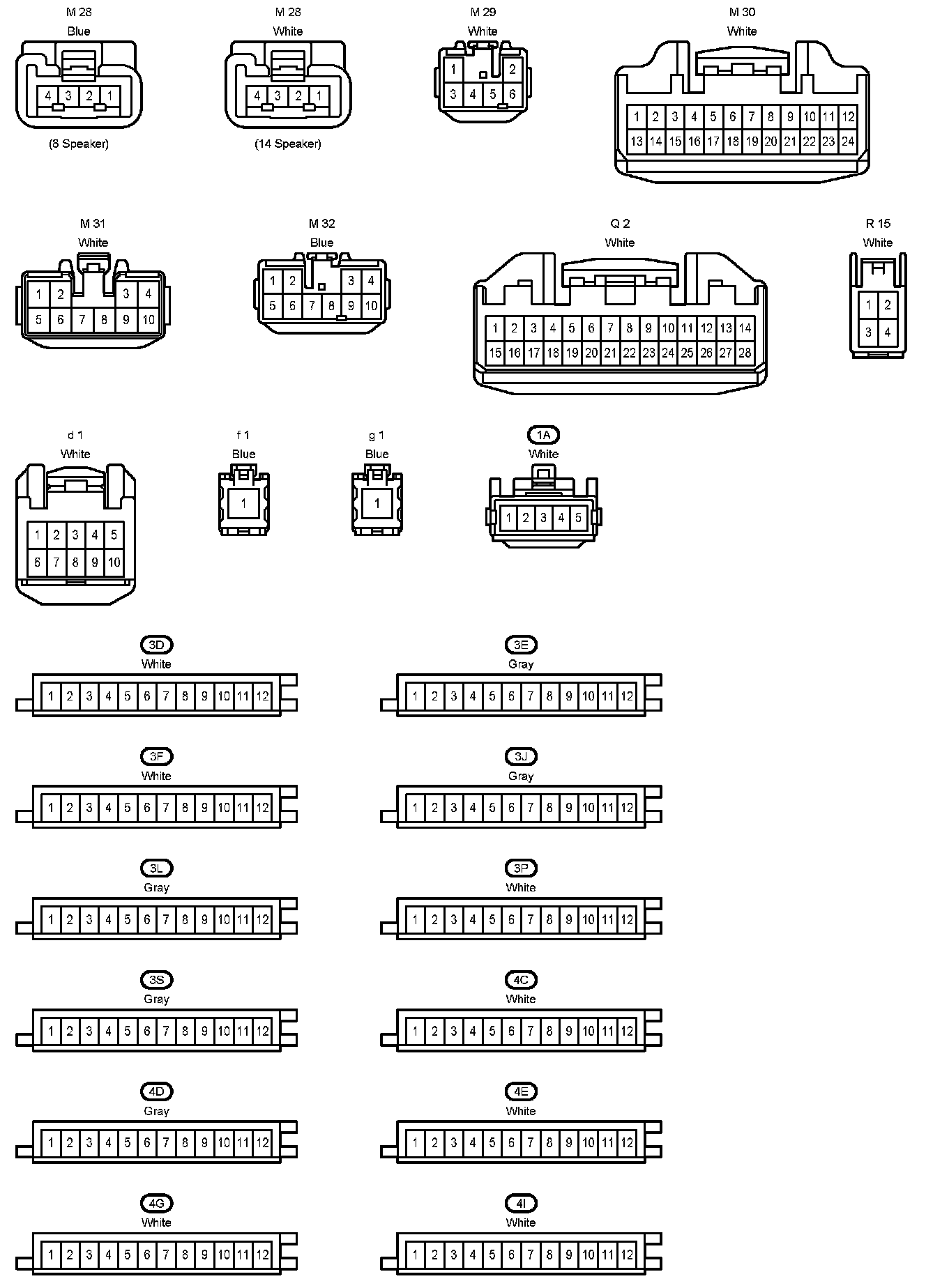

Connector Pin Outs Part 2:

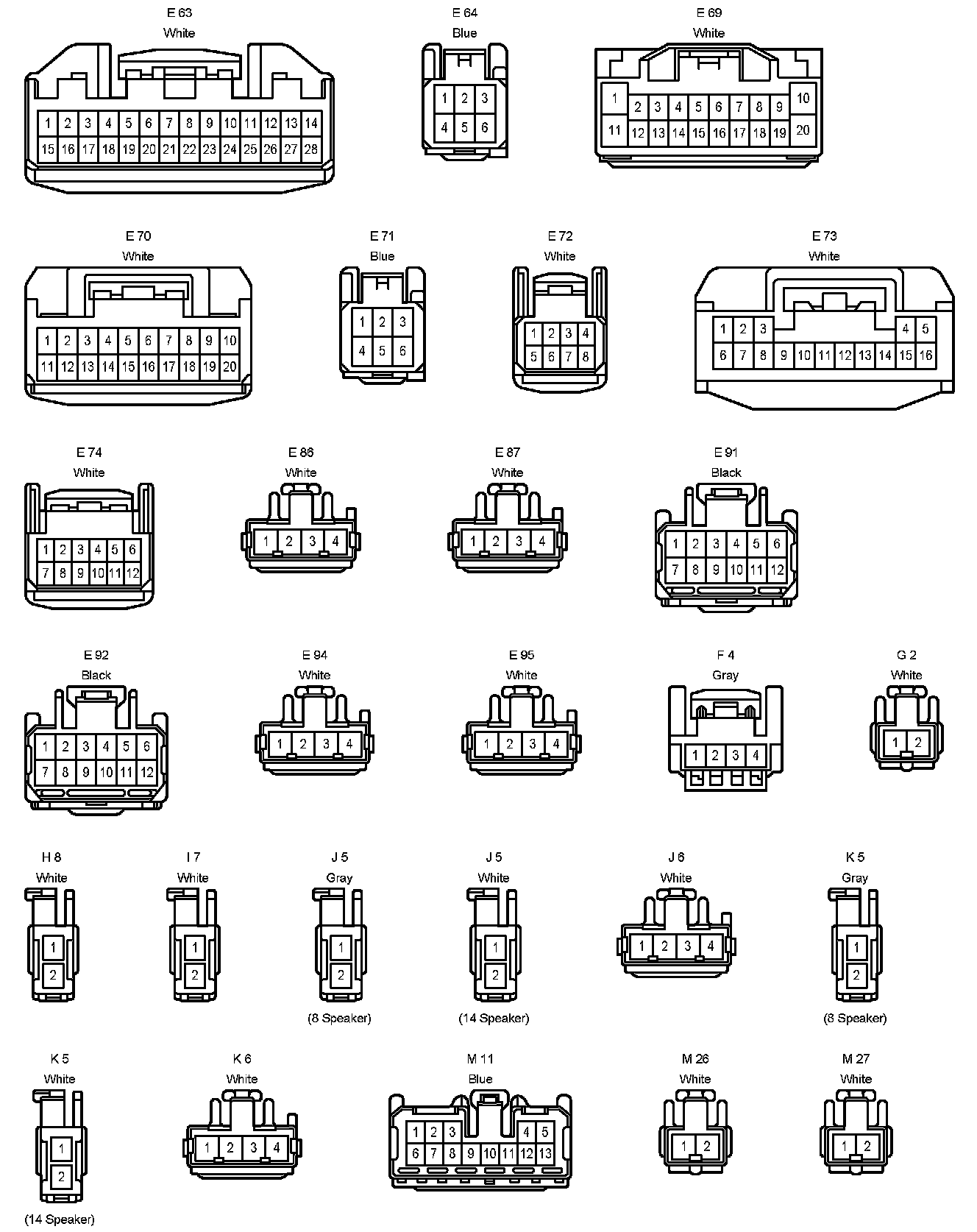

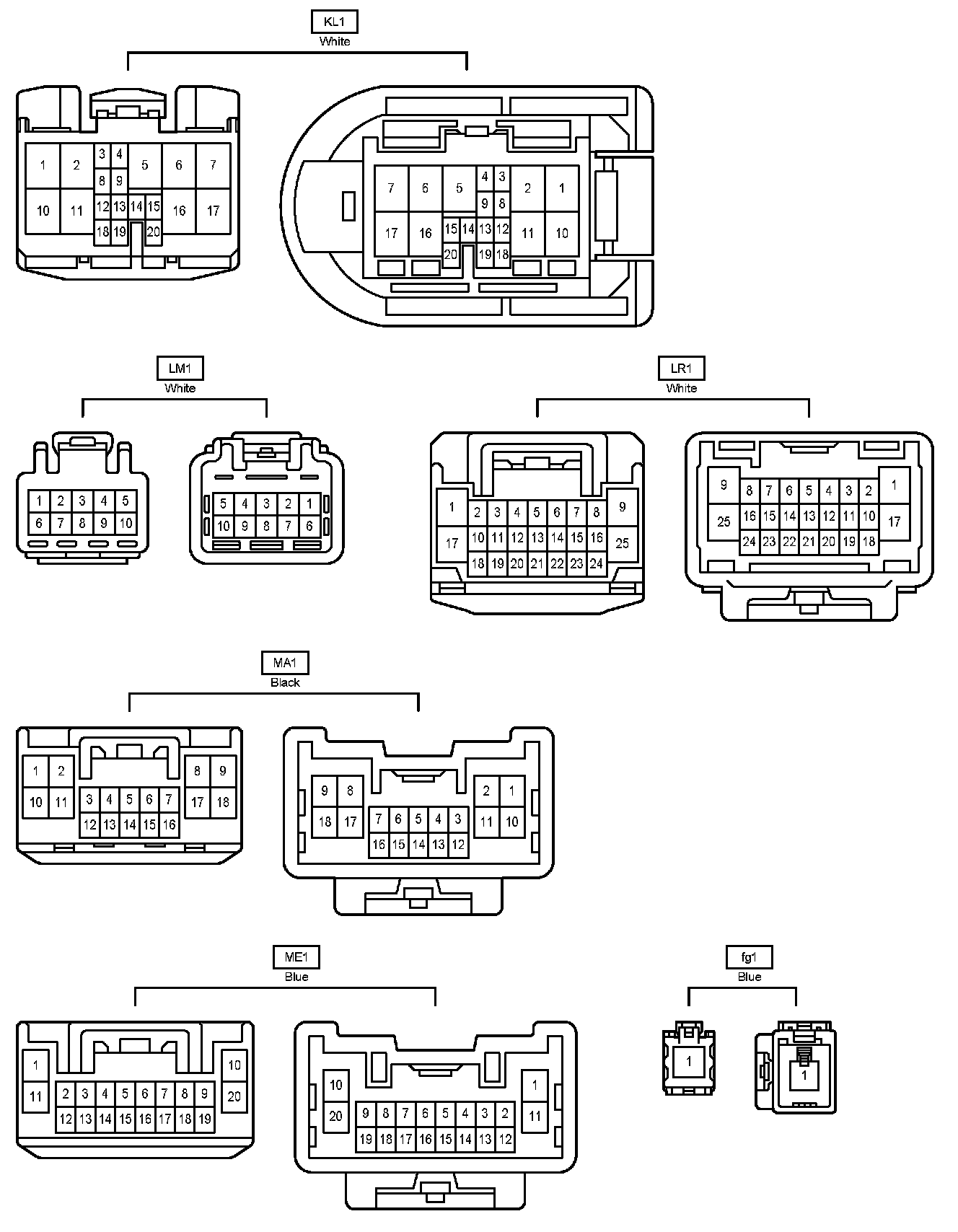

Connector Pin Outs Part 3:

Connector Pin Outs Part 4:

Connector Pin Outs Part 5:

Connector Pin Outs Part 6:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
