Installation

ENGINE HOOD / DOOR: LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCH:

INSTALLATION

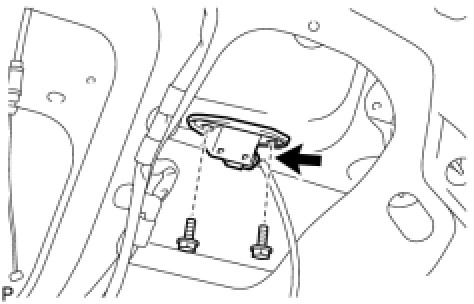

1. INSTALL LUGGAGE DOOR OPENING SWITCH ASSEMBLY






(a) Install the luggage door opening switch assembly with the 2 bolts.
(b) Connect the connector.
2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

3. INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

4. INSTALL LUGGAGE LOCK CONTROL CABLE PLATE

5. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP
