How To Proceed With Troubleshooting

SLIDING ROOF SYSTEM:

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use the following procedures to troubleshoot the sliding roof system.
- *: Use Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding to the next step.

NEXT -- Continue to next step.
3. INSPECT COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*
(a) Using Techstream, check if the CAN communication system is functioning normally.

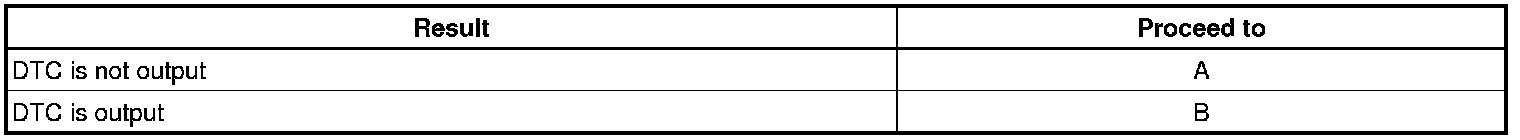

Result:






B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.
4. PROBLEM SYMPTOMS TABLE
Result:






B -- Go to step 6
A -- Continue to next step.
5. OVERALL ANALYSIS AND TROUBLESHOOTING*
1. DATA LIST / ACTIVE TEST Scan Tool Testing and Procedures
2. TERMINALS OF ECU Pinout Values and Diagnostic Parameters
3. ON-VEHICLE INSPECTION On-Vehicle Inspection

NEXT -- Continue to next step.
6. ADJUST, REPAIR OR REPLACE
NEXT -- Continue to next step.
7. CONFIRMATION TEST
NEXT -- END
