Removal

SLIDING ROOF HOUSING (for Standard):

REMOVAL

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY
3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY
4. REMOVE REAR SEATBACK ASSEMBLY Removal

5. REMOVE SEAT BELT ANCHOR COVER CAP LH Removal

6. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY LH Removal

7. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Driver Seat)
8. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER LH Removal

9. REMOVE FRONT SEAT INNER TRACK BRACKET COVER LH Removal

10. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER LH Removal

11. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER LH Removal

12. REMOVE FRONT SEAT ASSEMBLY LH Removal

13. REMOVE SEAT BELT ANCHOR COVER CAP RH Removal

14. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY RH Removal

15. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Front Passenger Seat)
16. REMOVE FRONT SEAT OUTER TRACK BRACKET COVER RH Removal

17. REMOVE FRONT SEAT INNER TRACK BRACKET COVER RH Removal

18. REMOVE FRONT SEAT REAR OUTER TRACK BRACKET COVER RH Removal

19. REMOVE FRONT SEAT REAR INNER TRACK BRACKET COVER RH Removal

20. REMOVE FRONT SEAT ASSEMBLY RH Removal

21. REMOVE FRONT DOOR SCUFF PLATE LH Removal

22. REMOVE FRONT DOOR OPENING TRIM COVER LH Removal

23. REMOVE SIDE INSTRUMENT PANEL LH Removal

24. REMOVE FRONT PILLAR GARNISH LH Removal

25. REMOVE REAR DOOR SCUFF PLATE LH Removal

26. REMOVE LOWER CENTER PILLAR GARNISH LH Removal

27. REMOVE UPPER CENTER PILLAR GARNISH LH Removal

28. REMOVE REAR SEAT SIDE GARNISH LH (w/o Rear Seat Side Airbag) Removal

29. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY LH (w/ Rear Seat Side Airbag) Removal

30. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal

31. REMOVE FRONT DOOR SCUFF PLATE RH Removal

32. REMOVE FRONT DOOR OPENING TRIM COVER RH Removal

33. REMOVE SIDE INSTRUMENT PANEL RH Removal

34. REMOVE FRONT PILLAR GARNISH RH Removal

35. REMOVE REAR DOOR SCUFF PLATE RH Removal

36. REMOVE LOWER CENTER PILLAR GARNISH RH Removal

37. REMOVE UPPER CENTER PILLAR GARNISH RH Removal

38. REMOVE REAR SEAT SIDE GARNISH RH (w/o Rear Seat Side Airbag) Removal

39. REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY RH (w/ Rear Seat Side Airbag) Removal

40. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH Removal

41. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

42. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

43. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

44. REMOVE UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE Removal

45. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System) Removal

46. REMOVE HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System) Removal

47. REMOVE CONSOLE BOX POCKET Removal

48. REMOVE CONSOLE BOX CARPET Removal

49. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY Removal

50. REMOVE REAR CONSOLE BOX ASSEMBLY Removal

51. REMOVE NO. 2 CONSOLE BOX DUCT Removal

52. REMOVE NO. 3 CONSOLE BOX DUCT Removal

53. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY Removal

54. REMOVE SHIFT LEVER ASSEMBLY Removal

55. REMOVE FLOOR CARPET BRACKET LH Removal

56. REMOVE FLOOR CARPET BRACKET RH Removal

57. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (w/ DVD Player)
58. REMOVE SPARE WHEEL COVER TRAY (w/ DVD Player)
59. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (w/ DVD Player) Disassembly

60. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK (w/ DVD Player) Disassembly

61. REMOVE REAR FLOOR FINISH PLATE (w/ DVD Player) Disassembly

62. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH (w/ DVD Player) Disassembly

63. DISCONNECT STEREO COMPONENT AMPLIFIER ASSEMBLY CONNECTOR (w/ DVD Player) Removal

64. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER Removal

65. REMOVE RAIN SENSOR COVER (w/ Rain Sensor) Removal

66. REMOVE ROOF CONSOLE BOX ASSEMBLY Removal

67. REMOVE VISOR BRACKET COVER Removal

68. REMOVE VISOR ASSEMBLY LH Removal

69. REMOVE VISOR ASSEMBLY RH Removal

70. REMOVE VISOR HOLDER Removal

71. REMOVE COAT HOOK Removal

72. REMOVE SPOT LIGHT ASSEMBLY Removal

73. REMOVE ASSIST GRIP SUB-ASSEMBLY Removal

74. REMOVE ROOF HEADLINING ASSEMBLY Removal

75. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH Removal

76. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH
HINT: Use the same procedure for the RH side and the LH side.

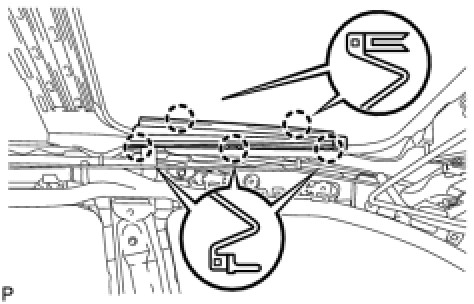

77. REMOVE SLIDING ROOF SIDE GARNISH LH






(a) Disengage the 5 claws and remove the sliding roof side garnish LH.
78. REMOVE SLIDING ROOF SIDE GARNISH RH
HINT: Use the same procedure for the RH side and the LH side.

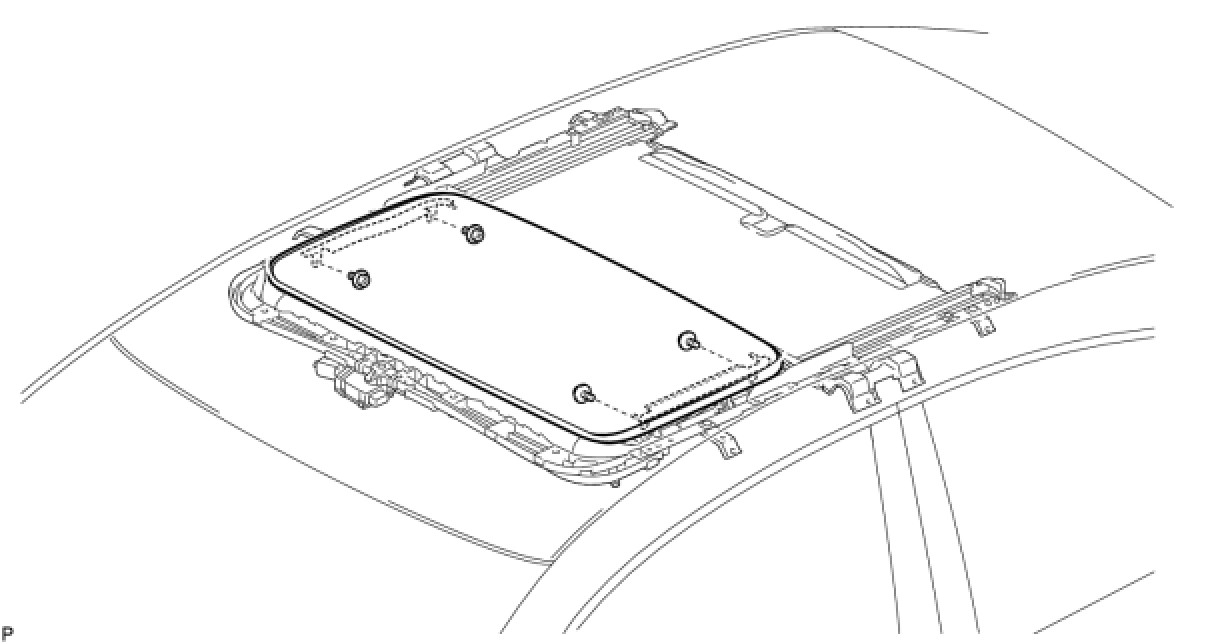

79. REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY
(a) Using a T25 "TORX" driver, remove the 4 screws and sliding roof glass sub-assembly.

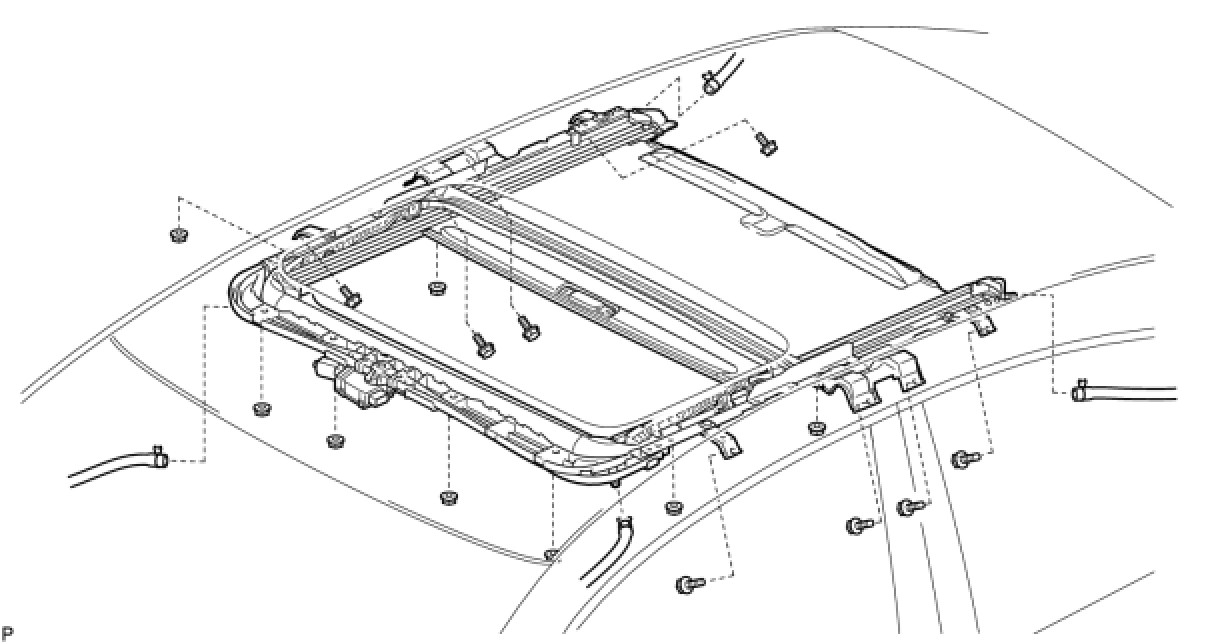

80. REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY
(a) Disconnect the 4 sliding roof drain hoses.
(b) Remove the 8 bolts, 8 nuts, and sliding roof housing sub-assembly.





81. REMOVE SLIDING ROOF WEATHERSTRIP
(a) Remove the sliding roof weatherstrip from the sliding roof glass sub-assembly.
