Removal

DOOR LOCK: REAR DOOR LOCK:

REMOVAL

1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG Disassembly

2. REMOVE REAR DOOR ARMREST BASE PANEL ASSEMBLY Disassembly

3. REMOVE COURTESY LIGHT ASSEMBLY Disassembly

4. REMOVE REAR DOOR ARMREST COVER Disassembly

5. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly

6. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP Disassembly

7. REMOVE REAR DOOR SERVICE HOLE COVER Disassembly

8. REMOVE REAR DOOR TRIM BRACKET Disassembly

9. REMOVE REAR DOOR GLASS RUN Disassembly

10. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY Disassembly

11. REMOVE REAR DOOR QUARTER WINDOW GLASS Disassembly

12. REMOVE REAR DOOR GLASS SUB-ASSEMBLY Disassembly

13. REMOVE REAR DOOR LOCK ASSEMBLY






(a) Using a "TORX" socket wrench (T30), remove the 3 screws.
(b) Move the rear door lock assembly downward and pull the release plate out of the rear door outside handle frame.

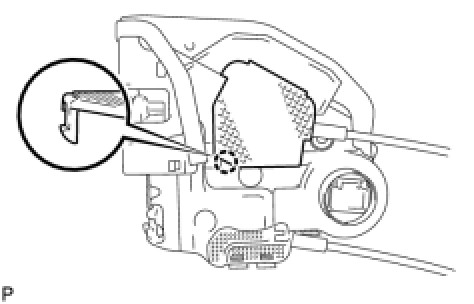

(c) Remove the door lock wiring harness seal from the rear door lock assembly.






(d) Using a screwdriver, disengage the claw.
HINT: Tape the screwdriver tip before use.





(e) Remove the rear door inside locking cable assembly.






(f) Using a screwdriver, disengage the 3 claws.
HINT: Tape the screwdriver tip before use.





(g) Remove the rear door inside locking cable assembly.
