Removal

DOOR LOCK: LUGGAGE COMPARTMENT DOOR LOCK:

REMOVAL

1. REMOVE LUGGAGE COMPARTMENT DOOR ASSIST GRIP

2. REMOVE LUGGAGE LOCK CONTROL CABLE PLATE

3. REMOVE LUGGAGE COMPARTMENT DOOR INSIDE HANDLE

4. REMOVE LUGGAGE COMPARTMENT DOOR COVER

5. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

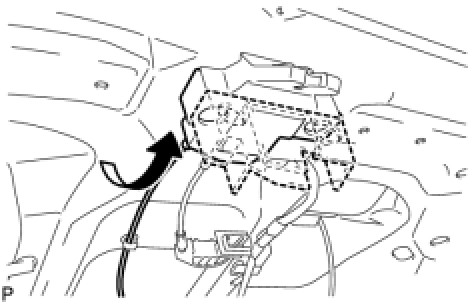

(a) Raise the cover of the luggage compartment door lock as shown in the illustration.
(b) Separate the luggage door lock control cable sub-assembly.
(c) Return the cover of the luggage compartment door lock to its original position.






(d) Disconnect the connector and cable.

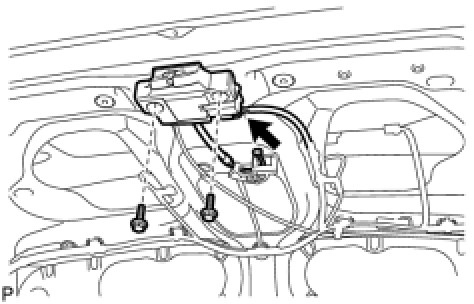

(e) Remove the 2 bolts and luggage compartment door lock assembly.
