Power Door Lock Actuator: Diagrams

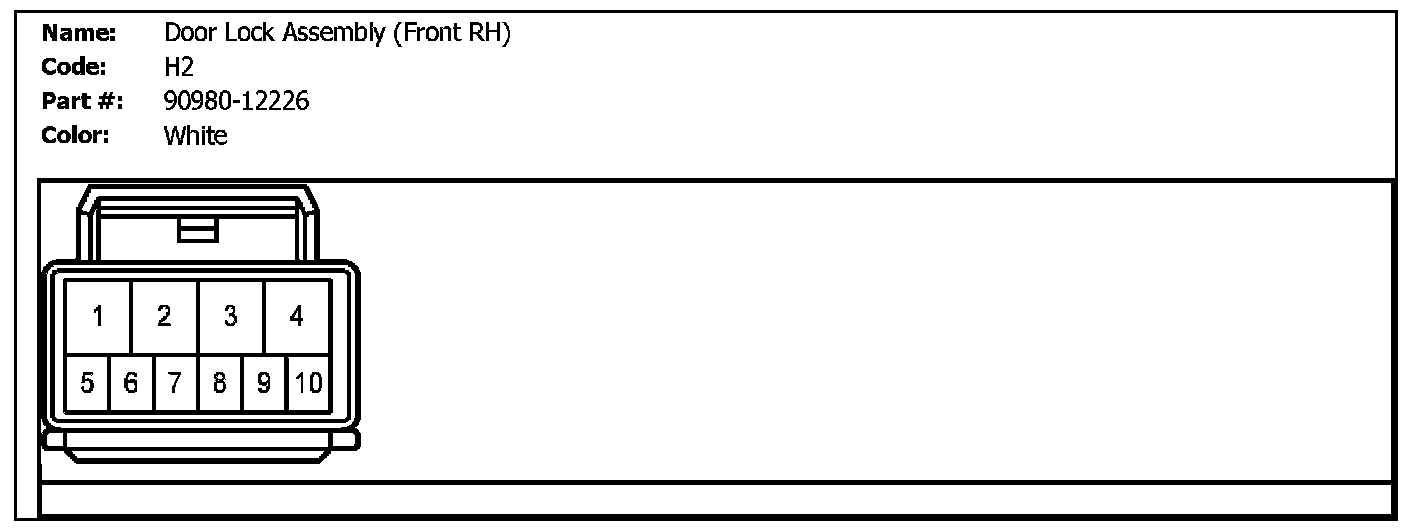

H2 (Door Lock Assembly (Front RH)):

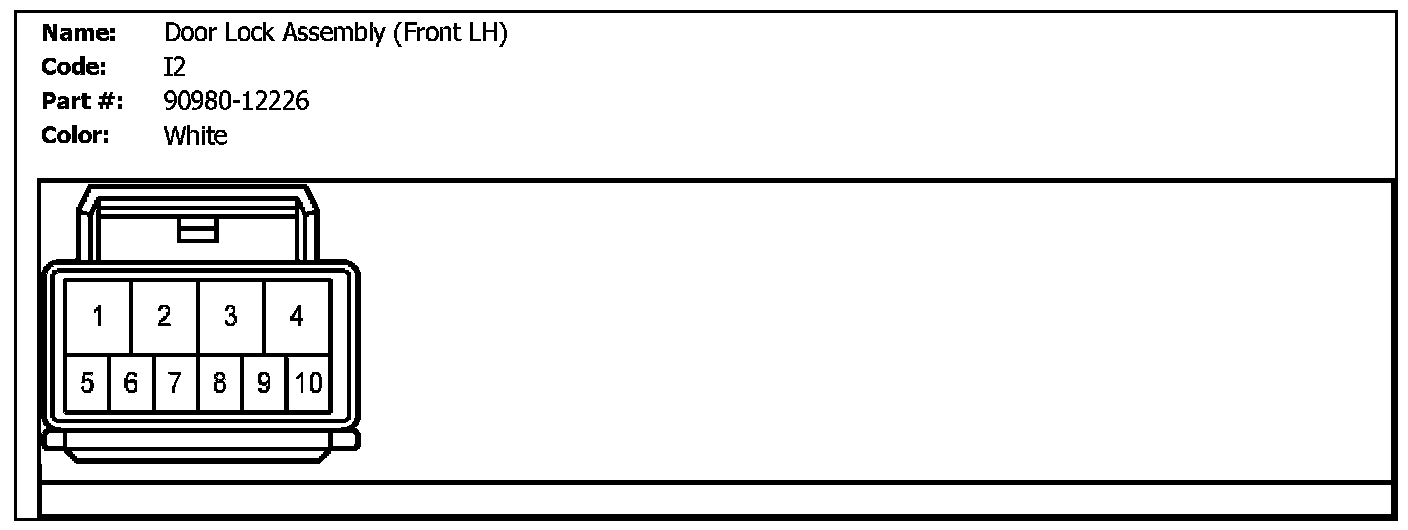

I2 (Door Lock Assembly (Front LH)):

J2 (Door Lock Assembly (Rear RH)):

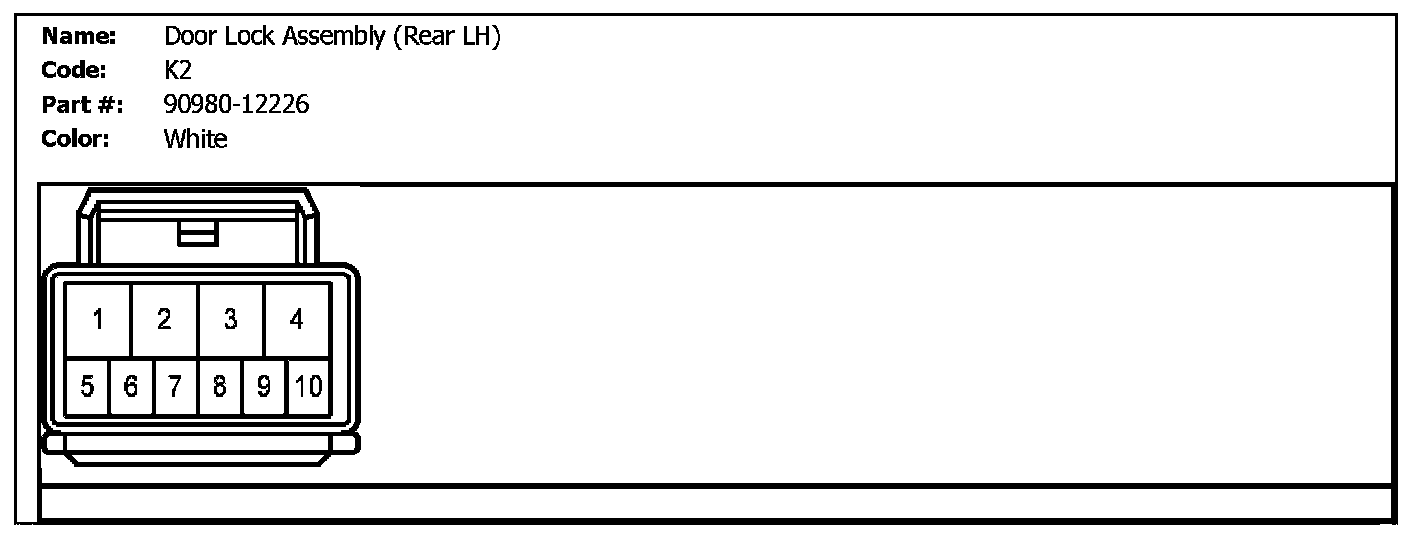

K2 (Door Lock Assembly (Rear LH)):

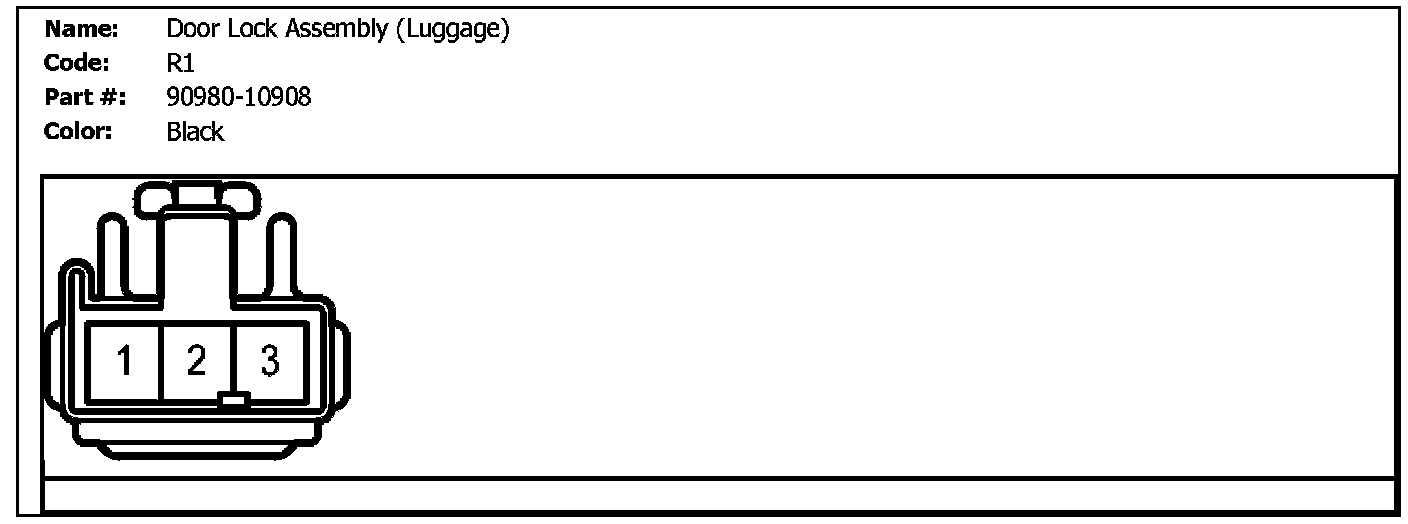

R1 (Door Lock Assembly (Luggage)):
