Installation

INTERIOR: REAR CONSOLE BOX:

INSTALLATION

1. INSTALL REAR CONSOLE BOX ASSEMBLY
(a) Connect each connector.

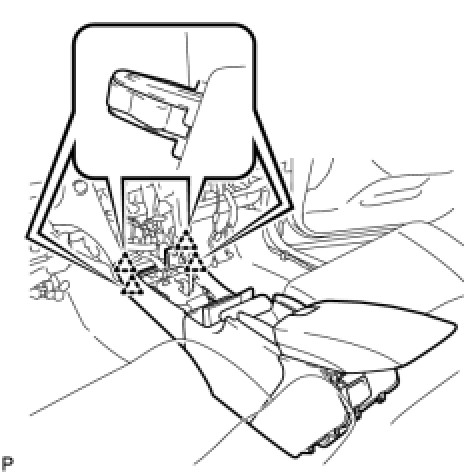

(b) Engage the 4 clips.

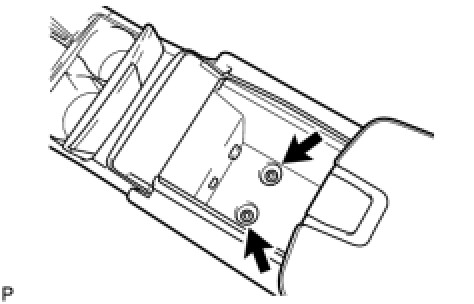

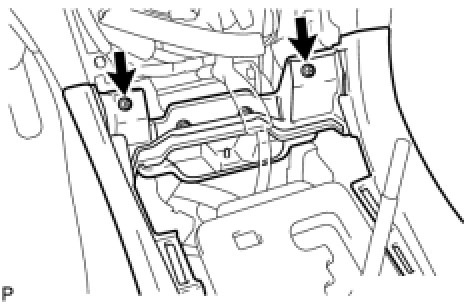

(d) Install the 2 bolts.

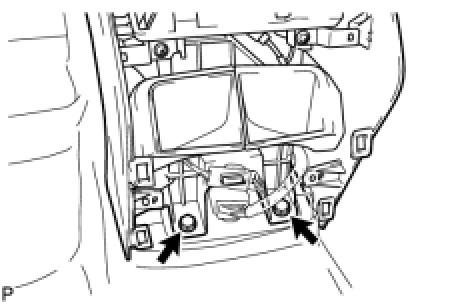

(e) Install the rear console box assembly with the 2 bolts.
2. INSTALL CONSOLE REAR END PANEL SUB-ASSEMBLY

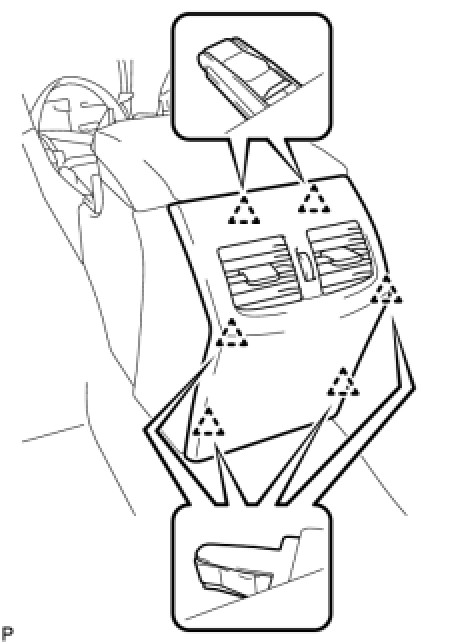

(a) Engage the 6 clips and install the console rear end panel sub-assembly.

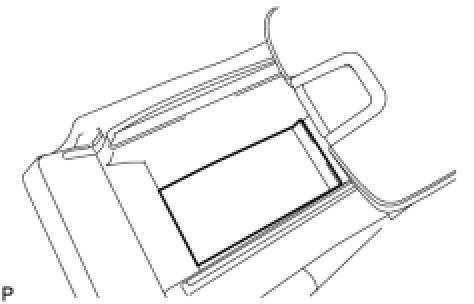

3. INSTALL CONSOLE BOX CARPET

(a) Install the console box carpet.

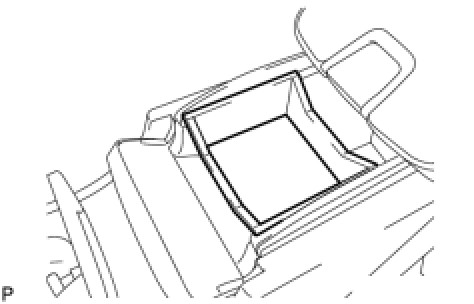

4. INSTALL CONSOLE BOX POCKET

(a) Install the console box pocket.
5. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/o Seat Heater System) Installation

6. INSTALL HEATER SEAT SWITCH CONSOLE BASE (w/ Seat Heater System) Installation

7. INSTALL UPPER CONSOLE PANEL ASSEMBLY WITH FRONT ASH RECEPTACLE Installation

8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY Installation

9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH Installation
