Problem Symptoms Table

NAVIGATION SYSTEM:

PROBLEM SYMPTOMS TABLE
HINT:
- Before inspecting the suspected areas listed in the table below, check the fuse and relay.
- Before inspecting the suspected areas listed in the table below, check the DTCs.
- Methods used to verify the cause of the problem are listed in order of probability in the suspected area column.

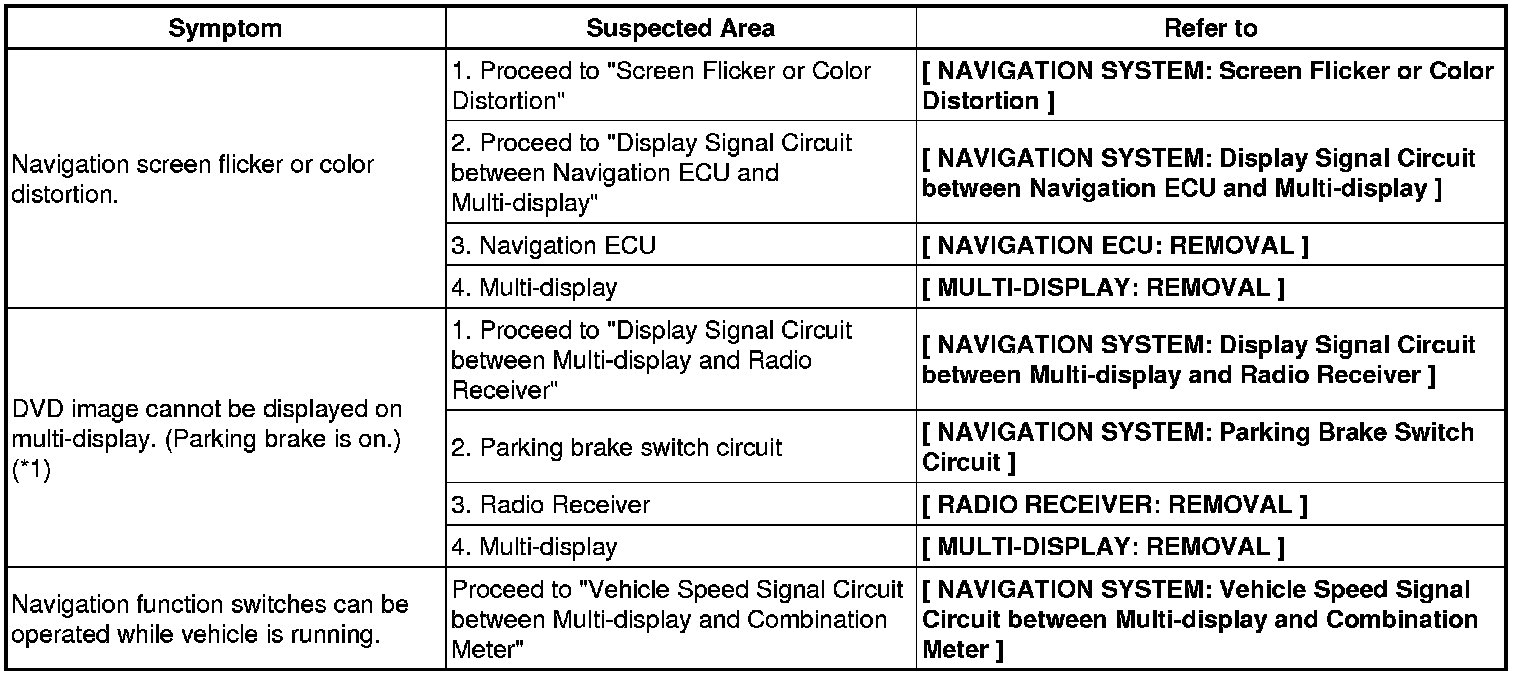

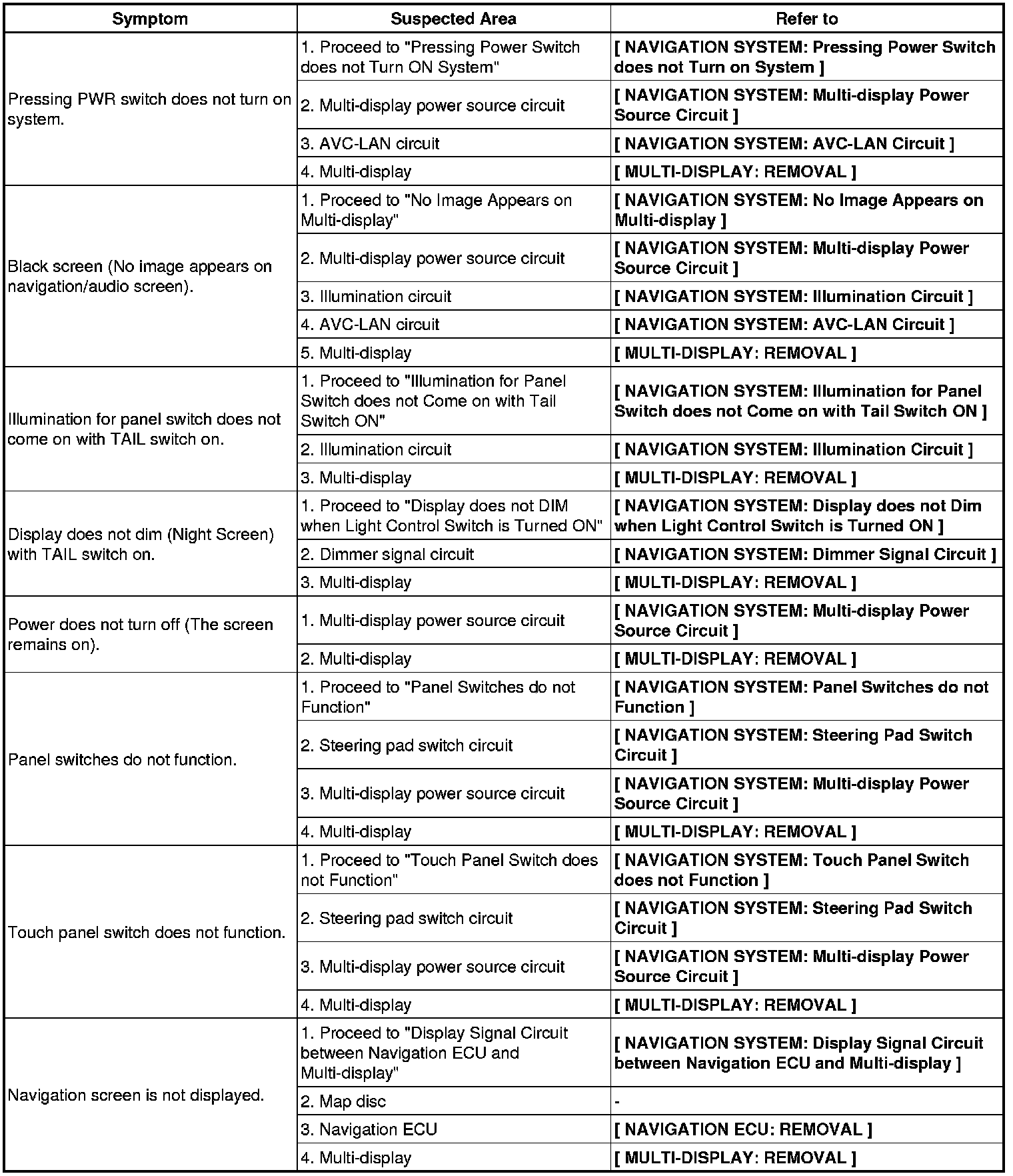

Display function:









*1: for Radio receiver with built-in DVD changer models.

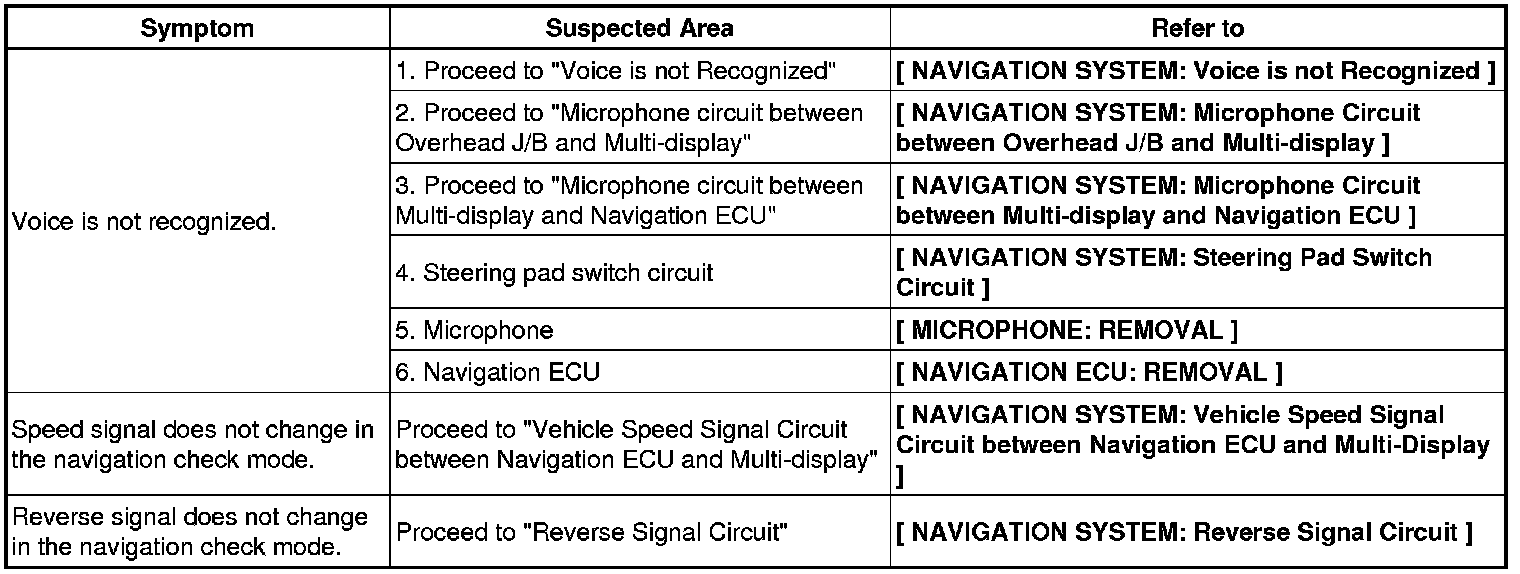

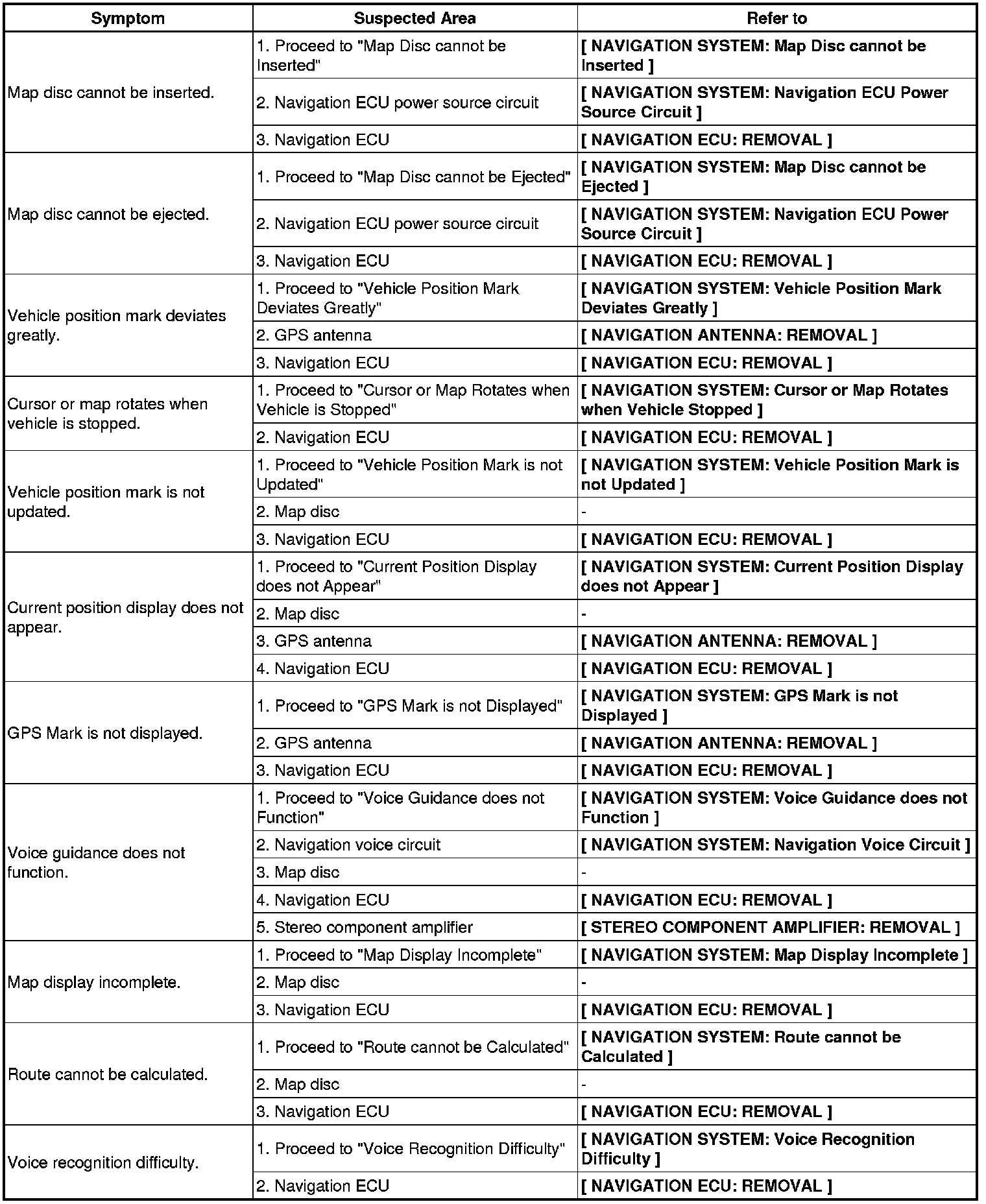

Navigation function:

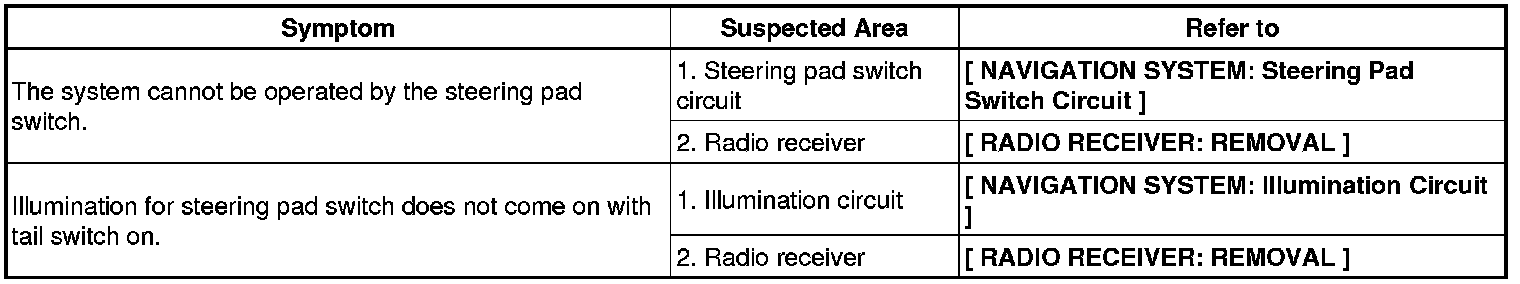

Steering pad switch function:

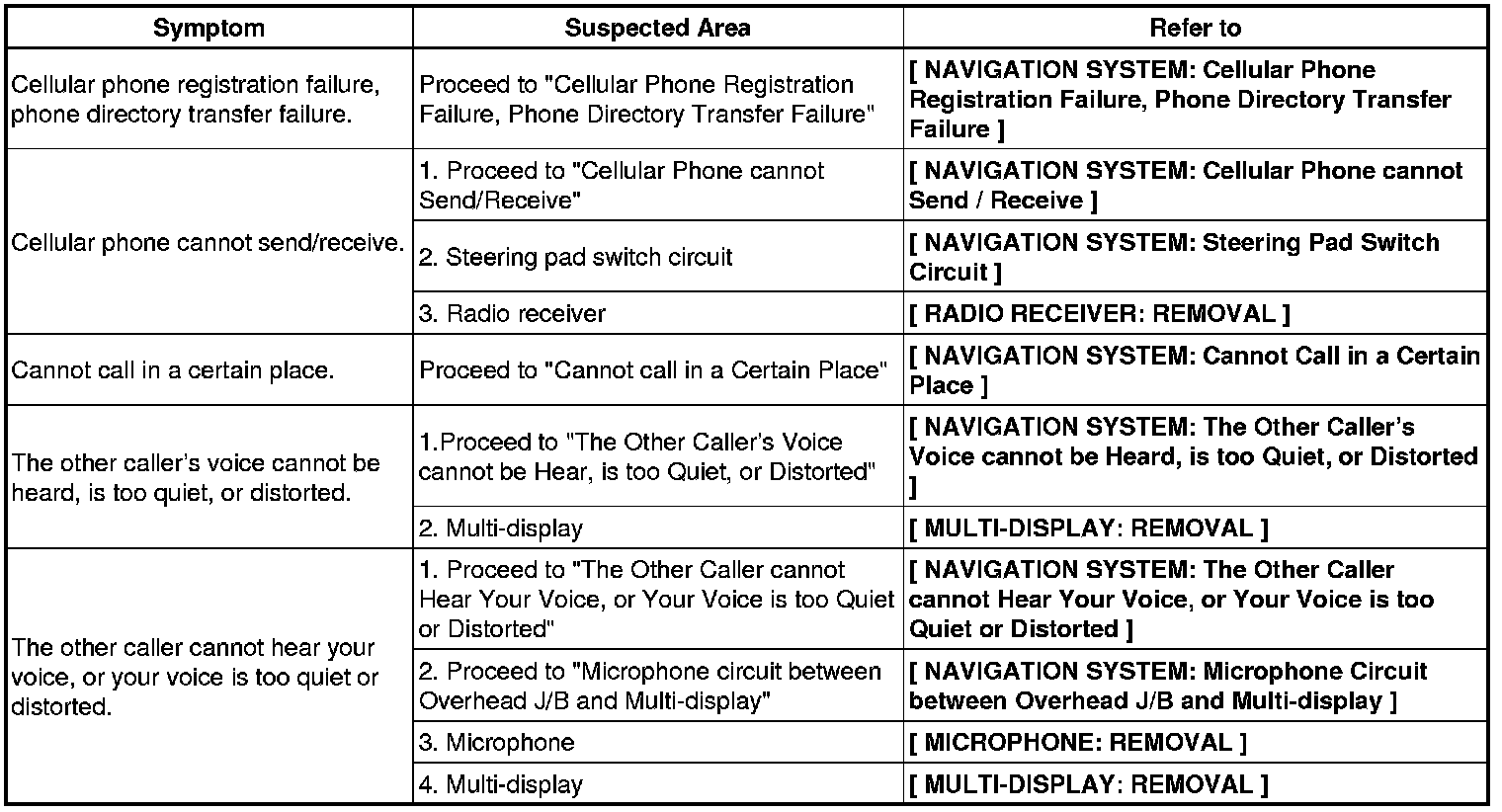

"Bluetooth" function:
