Pinout Values and Diagnostic Parameters

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

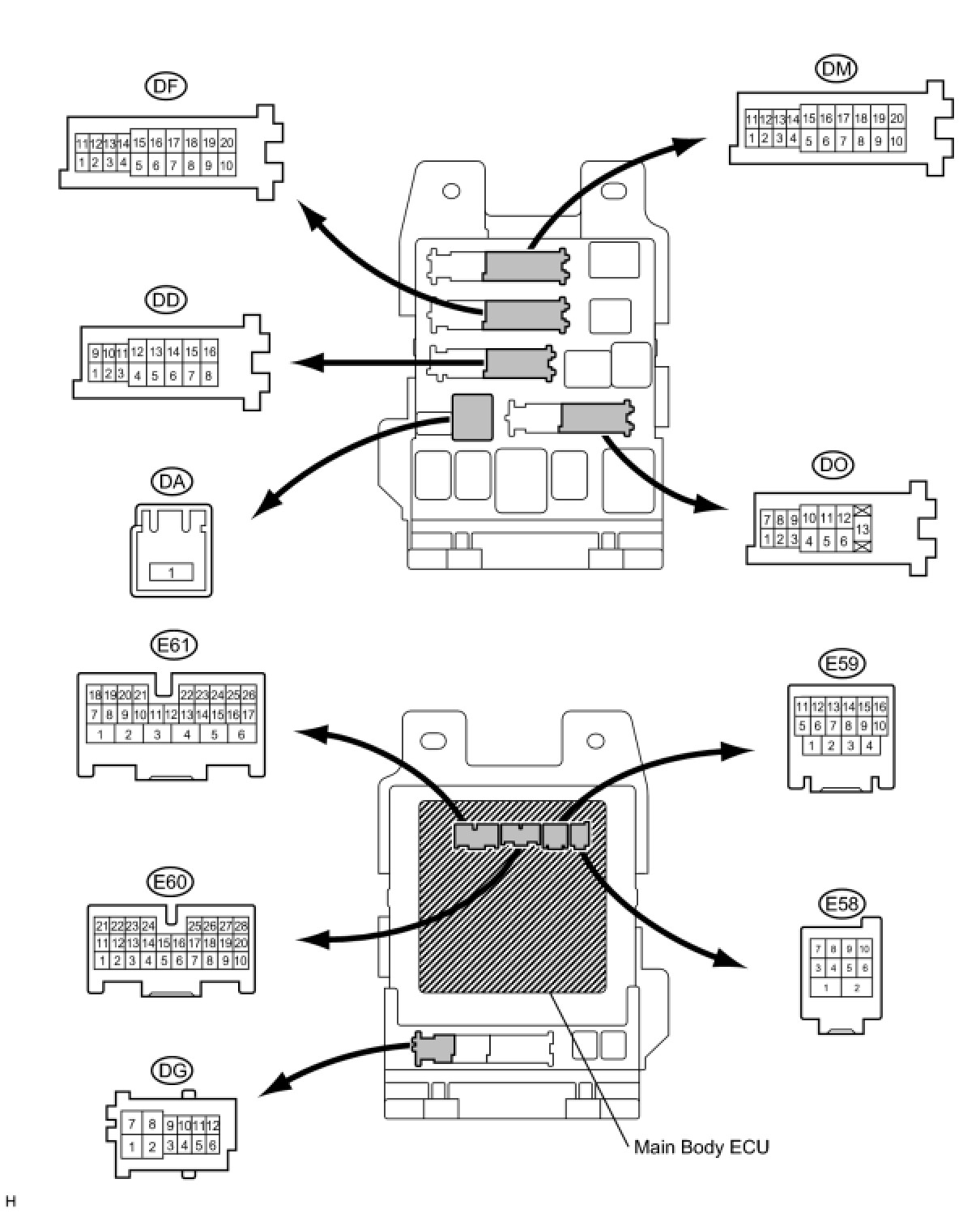

1. CHECK MAIN BODY ECU (INSTRUMENT PANEL J/B)
(a) Disconnect the main body ECU (instrument panel J/B) connectors.

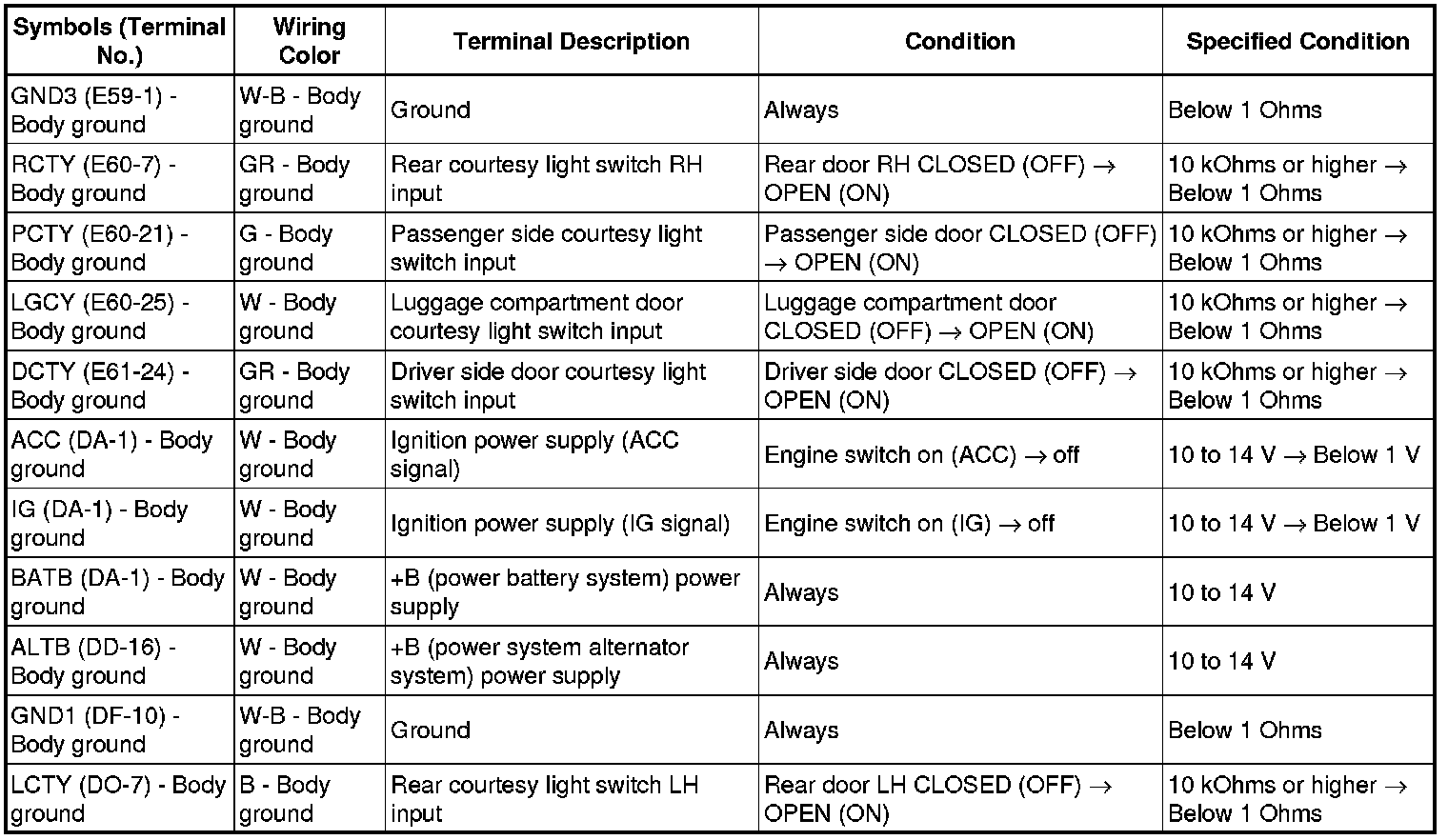

(b) Measure the resistance and voltage between each terminal of the wire harness side connectors and body ground.





If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the main body (instrument panel J/B) connectors.

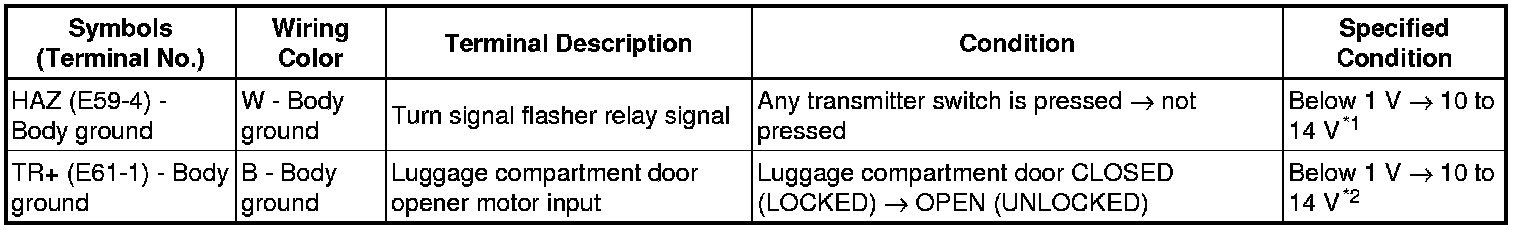

(d) Measure the voltage between each terminal of the wire harness side connectors and body ground.





HINT:
- *1: When operating the answer back function.
- *2: When operating the motor.

2. CHECK CERTIFICATION ECU ASSEMBLY

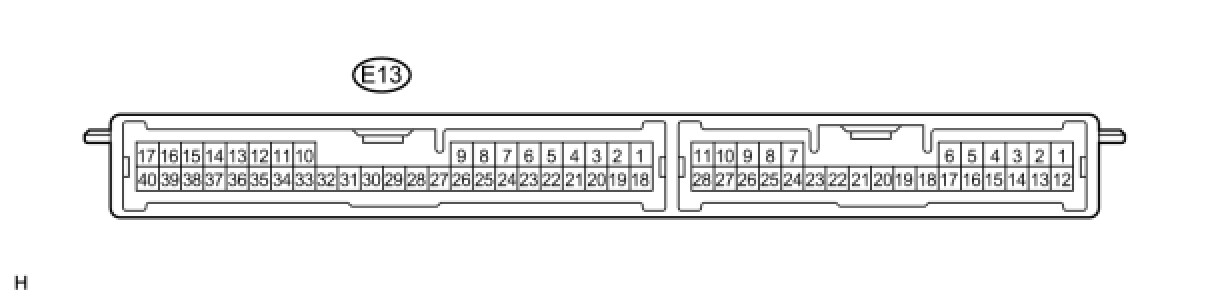

(a) Disconnect the E13 ECU connector.

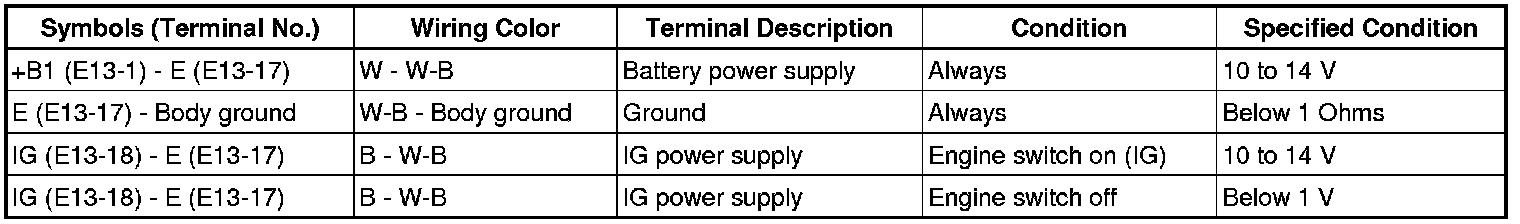

(b) Measure the voltage and resistance of the wire harness side connector.





If the result is not as specified, there may be a malfunction on the wire harness side.

(c) Reconnect the E13 ECU connector.

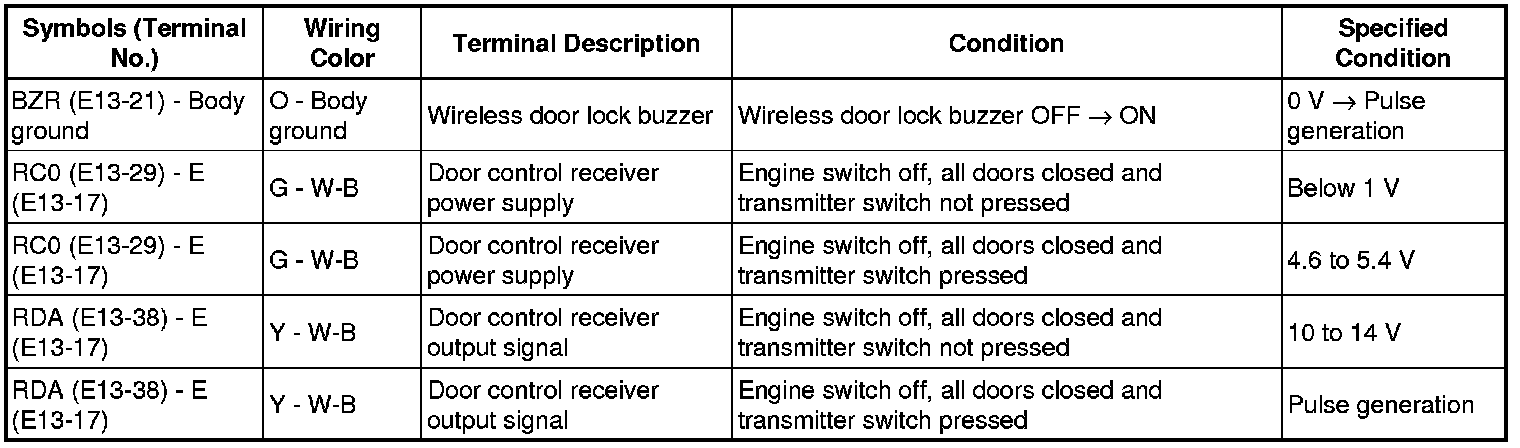

(d) Measure the voltage of the connector.





If the result is not as specified, the ECU may have a malfunction.
