Part 2
SUPPLEMENTAL RESTRAINT SYSTEM: AIRBAG SYSTEM: B1660/43: Passenger Airbag ON / OFF Indicator Circuit Malfunction (Continued)
17. CHECK CONNECTION OF CONNECTORS
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) with Navigation system:
Check that the connectors are properly connected to the center airbag sensor assembly and the multi-display assembly.
OK:
The connectors are properly connected.
(d) without Navigation system:
Check that the connectors are properly connected to the center airbag sensor assembly and the air conditioner panel sub-assembly.
OK:
The connectors are properly connected.
NG -- CONNECT CONNECTORS PROPERLY
OK -- Continue to next step.

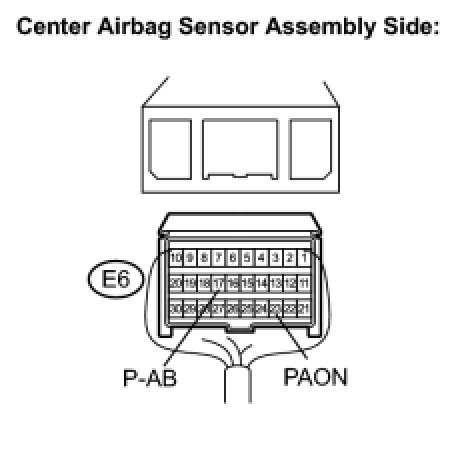

18. CHECK CONNECTORS
(a) with Navigation system:
(1) Disconnect the connectors from the center airbag sensor assembly and the multi-display assembly.
(2) Check that the connectors (on the center airbag sensor assembly side and multi-display assembly side) are not damaged.
OK:
The connectors are not deformed or damaged.
(b) without Navigation system:
(1) Disconnect the connectors from the center airbag sensor assembly and the air conditioner panel sub-assembly.
(2) Check that the connectors (on the center airbag sensor assembly side and air conditioner panel sub-assembly side) are not damaged.
OK:
The connectors are not deformed or damaged.
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
19. CHECK VEHICLE CONDITION
(a) Check whether or not the vehicle is equipped with the rear side airbag.
Result:
A
with the rear side airbag
B
without the rear side airbag
B -- CHECK INSTRUMENT PANEL WIRE (OPEN)
A -- Continue to next step.

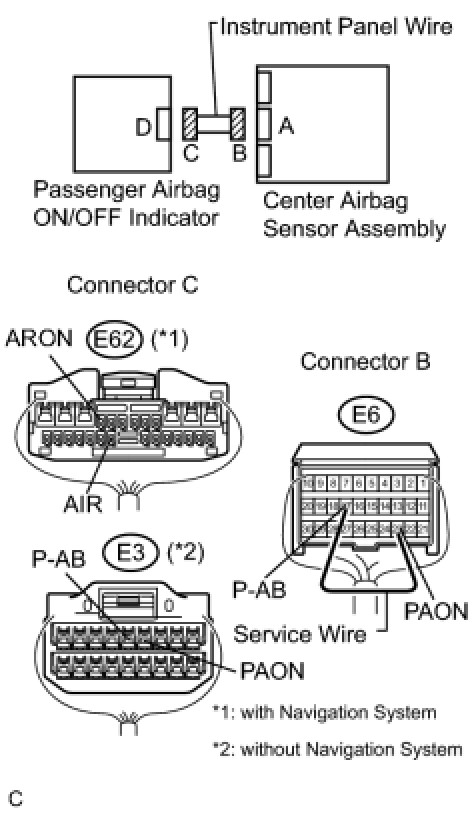

20. CHECK INSTRUMENT PANEL WIRE (OPEN)
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) with Navigation system:
Disconnect the connector from the multi-display assembly.
(d) without Navigation system:
Disconnect the connector from the air conditioner panel sub-assembly.

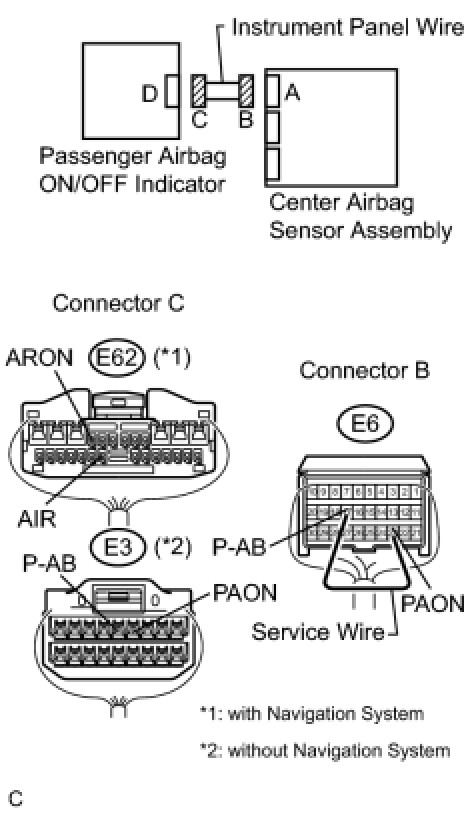

(e) Using a service wire, connect terminals 23 (PAON) and 17 (P-AB) of connector B.
NOTE: Do not forcibly insert a service wire into the terminals of the connector when connecting the wire.
(f) Measure the resistance according to the value(s) in the table below.
Standard resistance:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
21. CHECK INSTRUMENT PANEL WIRE (SHORT)
(a) Disconnect the service wire from connector B.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
22. CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)

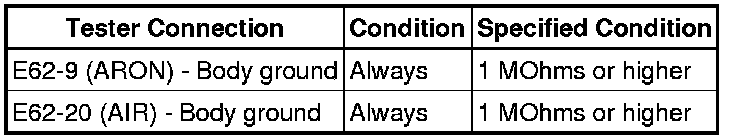

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
23. CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
(a) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(b) Turn the engine switch on (IG).
(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.

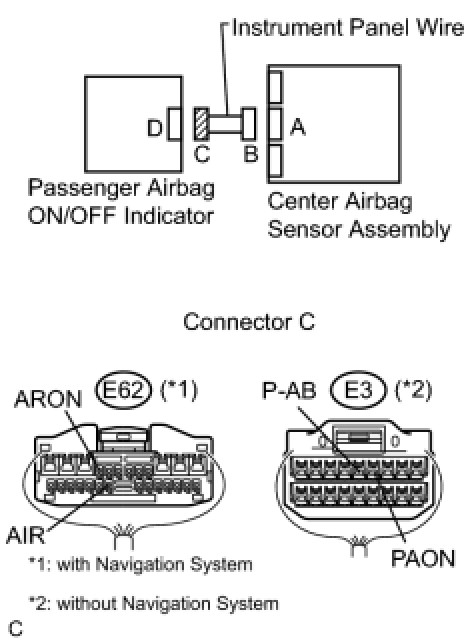

24. CHECK PASSENGER AIRBAG ON/OFF INDICATOR (SOURCE VOLTAGE)
(a) Connect the connectors to the center airbag sensor assembly.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the engine switch on (IG).
(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE WIRE HARNESS (PASSENGER AIRBAG ON/OFF INDICATOR - BATTERY) OR BATTERY
OK -- Continue to next step.
25. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.

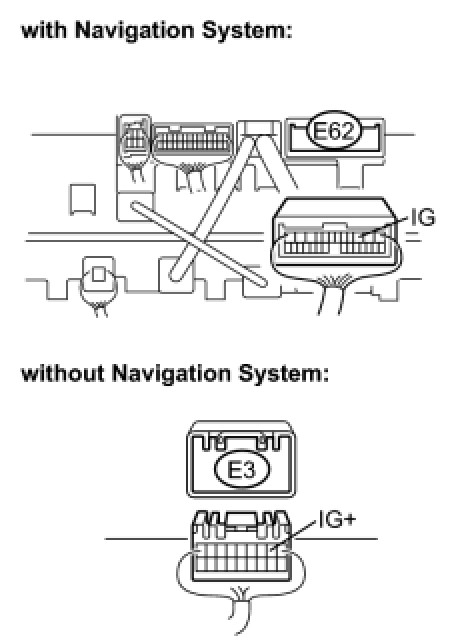

(c) with Navigation system
Connect the connector to the multi-display assembly.
(d) without Navigation system
Connect the connector to the clock assembly.
(e) Disconnect the connectors from the center airbag sensor assembly.
(f) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(g) Turn the engine switch on (IG).
(h) Check the indicator according to the conditions in the table below.
Standard:

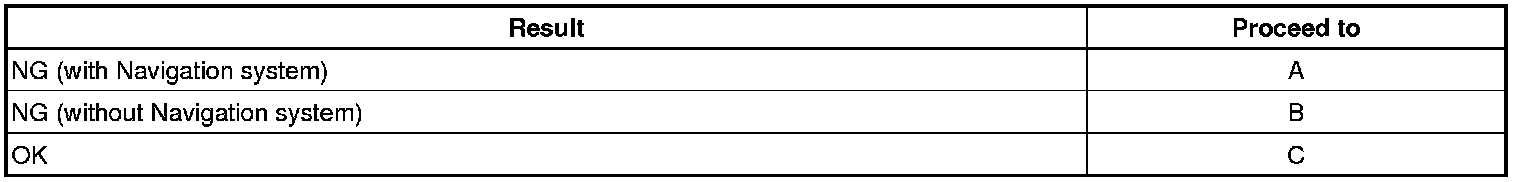

Result:
B -- REPLACE AIR CONDITIONER PANEL SUB-ASSEMBLY
A -- REPLACE MULTI-DISPLAY ASSEMBLY
C -- Continue to next step.

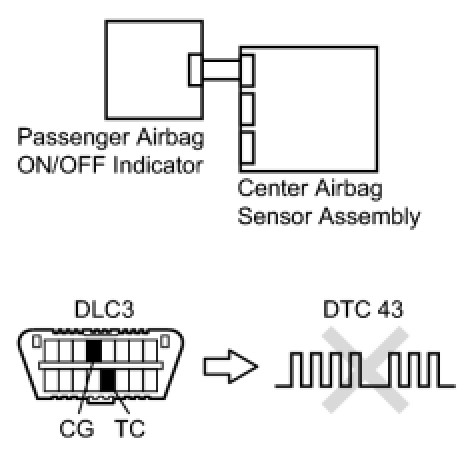

26. CHECK CENTER AIRBAG SENSOR ASSEMBLY
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Connect the connectors to the center airbag sensor assembly.
(d) Connect the negative (-) terminal cable to the battery and wait for at least 2 seconds.
(e) Turn the engine switch on (IG), and wait for at least 60 seconds.
(f) Clear the DTCs stored in the memory DTC Check / Clear.
(g) Turn the engine switch off.
(h) Turn the engine switch on (IG), and wait for at least 60 seconds.
(i) Check for DTCs DTC Check / Clear.
OK:
DTC B1660/43 is not output.
HINT: Codes other than DTC B1660/43 may be output at this time, but they are not related to this check.
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
27. CHECK INSTRUMENT PANEL WIRE (OPEN)
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) with Navigation system:
Disconnect the connector from the multi-display assembly.
(d) without Navigation system:
Disconnect the connector from the air conditioner panel sub-assembly.
(e) Using a service wire, connect terminals 23 (PAON) and 17 (P-AB) of connector B.
NOTE: Do not forcibly insert a service wire into the terminals of the connector when connecting the wire.
(f) Measure the resistance according to the value(s) in the table below.
Standard resistance:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
28. CHECK INSTRUMENT PANEL WIRE (SHORT)
(a) Disconnect the service wire from connector B.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
29. CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)

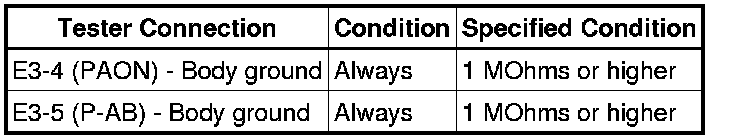

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
30. CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
(a) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(b) Turn the engine switch on (IG).

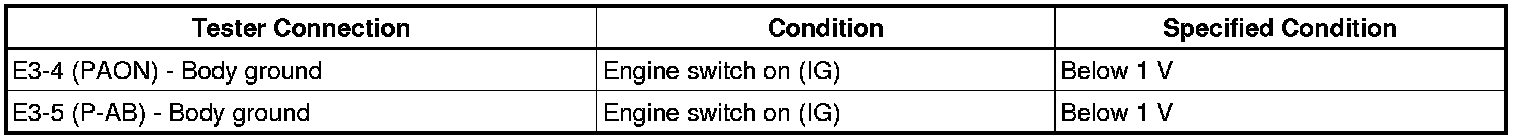

(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE INSTRUMENT PANEL WIRE
OK -- Continue to next step.
31. CHECK PASSENGER AIRBAG ON/OFF INDICATOR (SOURCE VOLTAGE)
(a) Connect the connectors to the center airbag sensor assembly.
(b) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(c) Turn the engine switch on (IG).

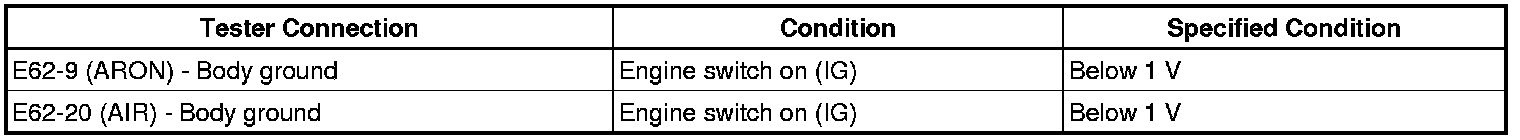

(d) Measure the voltage according to the value(s) in the table below.
Standard voltage:
with Navigation system
without Navigation system
NG -- REPAIR OR REPLACE WIRE HARNESS (PASSENGER AIRBAG ON/OFF INDICATOR - BATTERY) OR BATTERY
OK -- Continue to next step.
32. CHECK PASSENGER AIRBAG ON/OFF INDICATOR
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) with Navigation system
Connect the connector to the multi-display assembly.
(d) without Navigation system
Connect the connector to the clock assembly.
(e) Disconnect the connectors from the center airbag sensor assembly.
(f) Connect the negative (-) terminal cable to the battery, and wait for at least 2 seconds.
(g) Turn the engine switch on (IG).

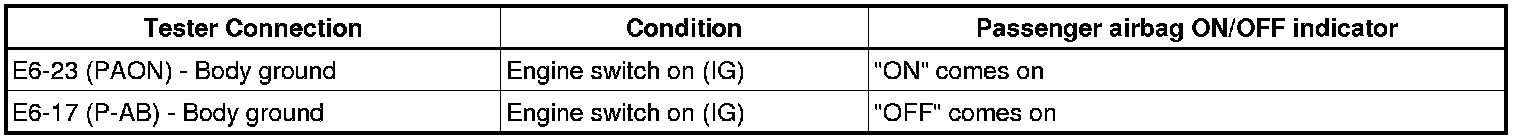

(h) Check the indicator according to the conditions in the table below.
Standard:
Result:
B -- REPLACE AIR CONDITIONER PANEL SUB-ASSEMBLY
A -- REPLACE MULTI-DISPLAY ASSEMBLY
C -- Continue to next step.

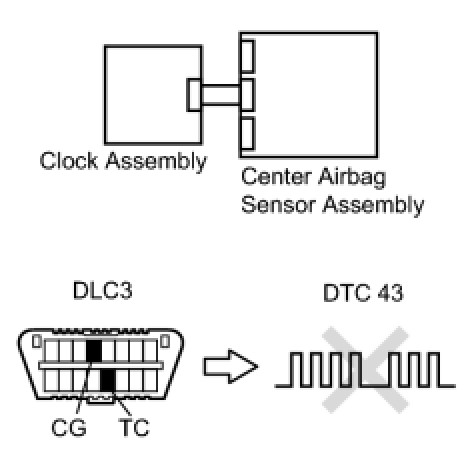

33. CHECK CENTER AIRBAG SENSOR ASSEMBLY
(a) Turn the engine switch off.
(b) Disconnect the negative (-) terminal cable from the battery, and wait for at least 90 seconds.
(c) Connect the connector to the center airbag sensor assembly.
(d) Connect the negative (-) terminal cable to the battery and wait for at least 2 seconds.
(e) Turn the engine switch on (IG), and wait for at least 60 seconds.
(f) Clear the DTCs stored in the memory DTC Check / Clear.
(g) Turn the engine switch off.
(h) Turn the engine switch on (IG), and wait for at least 60 seconds.
(i) Check for DTCs DTC Check / Clear.
OK:
DTC B1660/43 is not output.
HINT: Codes other than DTC B1660/43 may be output at this time, but they are not related to this check.
NG -- REPLACE CENTER AIRBAG SENSOR ASSEMBLY
OK -- USE SIMULATION METHOD TO CHECK
