Wiper Switch (HI Speed) Circuit
Wiper Switch (HI Speed) CircuitDESCRIPTION
The passenger side junction block ECU receives the wiper switch HI position signal and activates the wiper motor at HI speed.

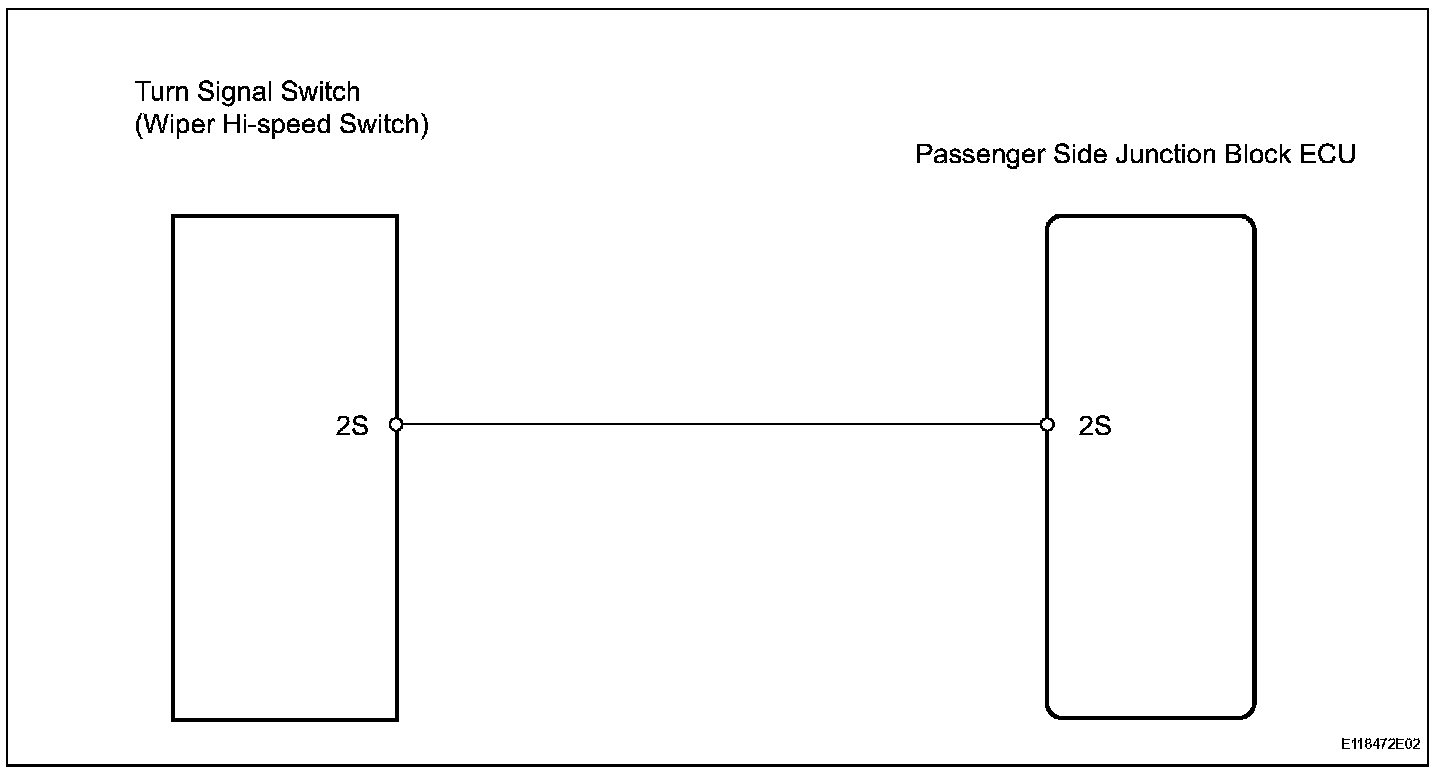

Wiring Diagram:
Step 1:

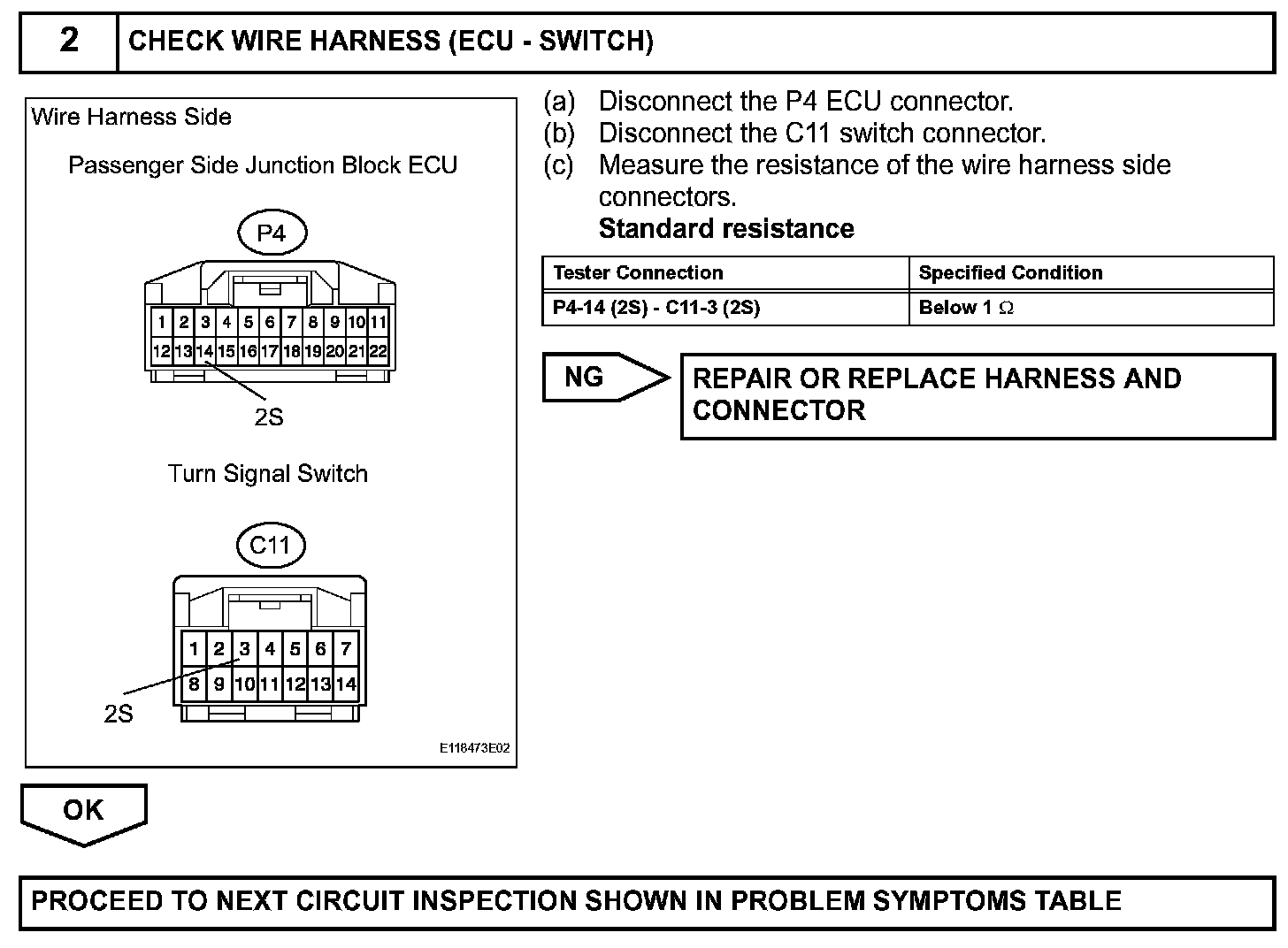

Step 2:
INSPECTION PROCEDURE
