Washer Motor Circuit
Washer Motor CircuitDESCRIPTION
The front light ECU receives washer switch information from the combination switch, and operates the washer motor.

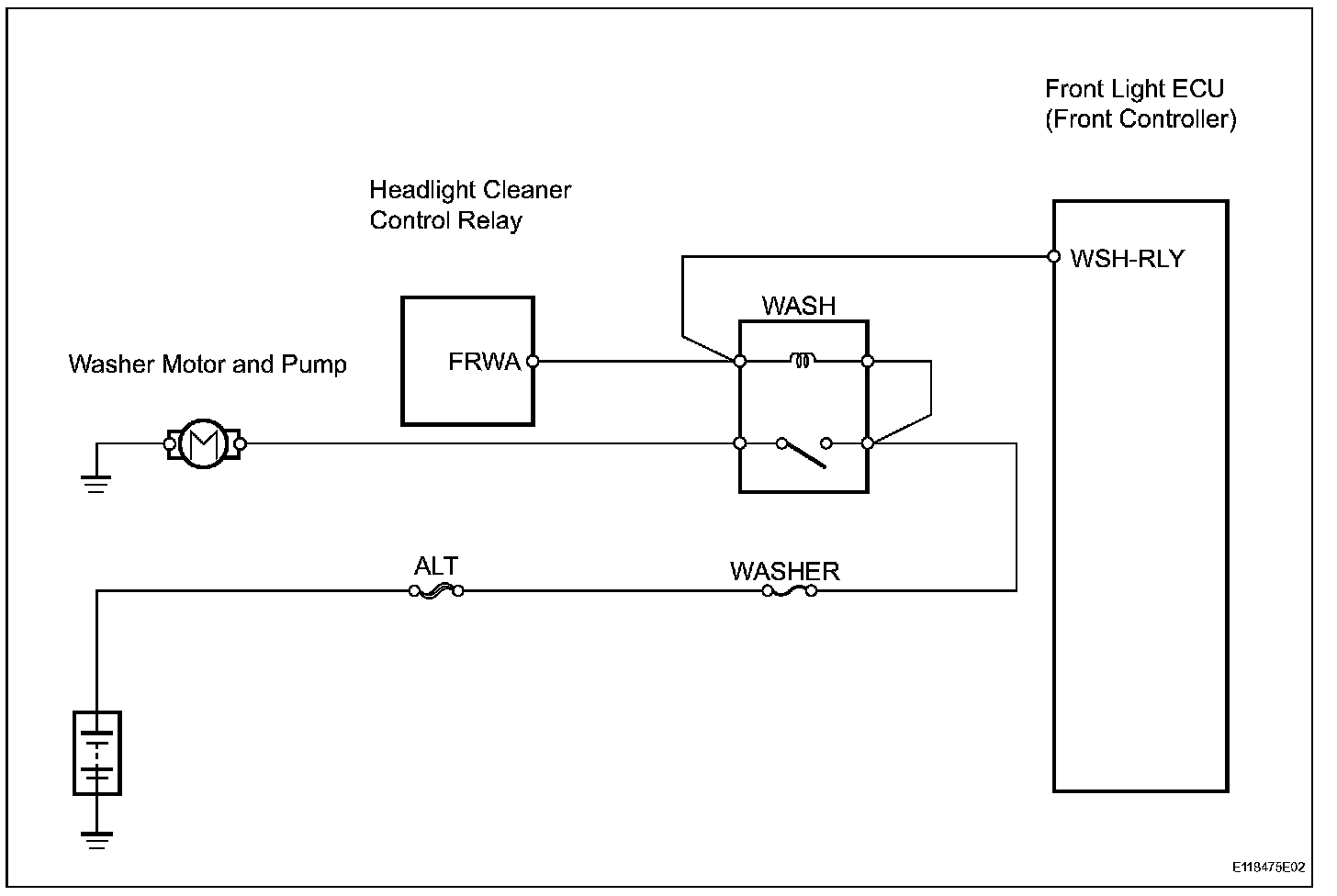

Wiring Diagram:
Step 1:

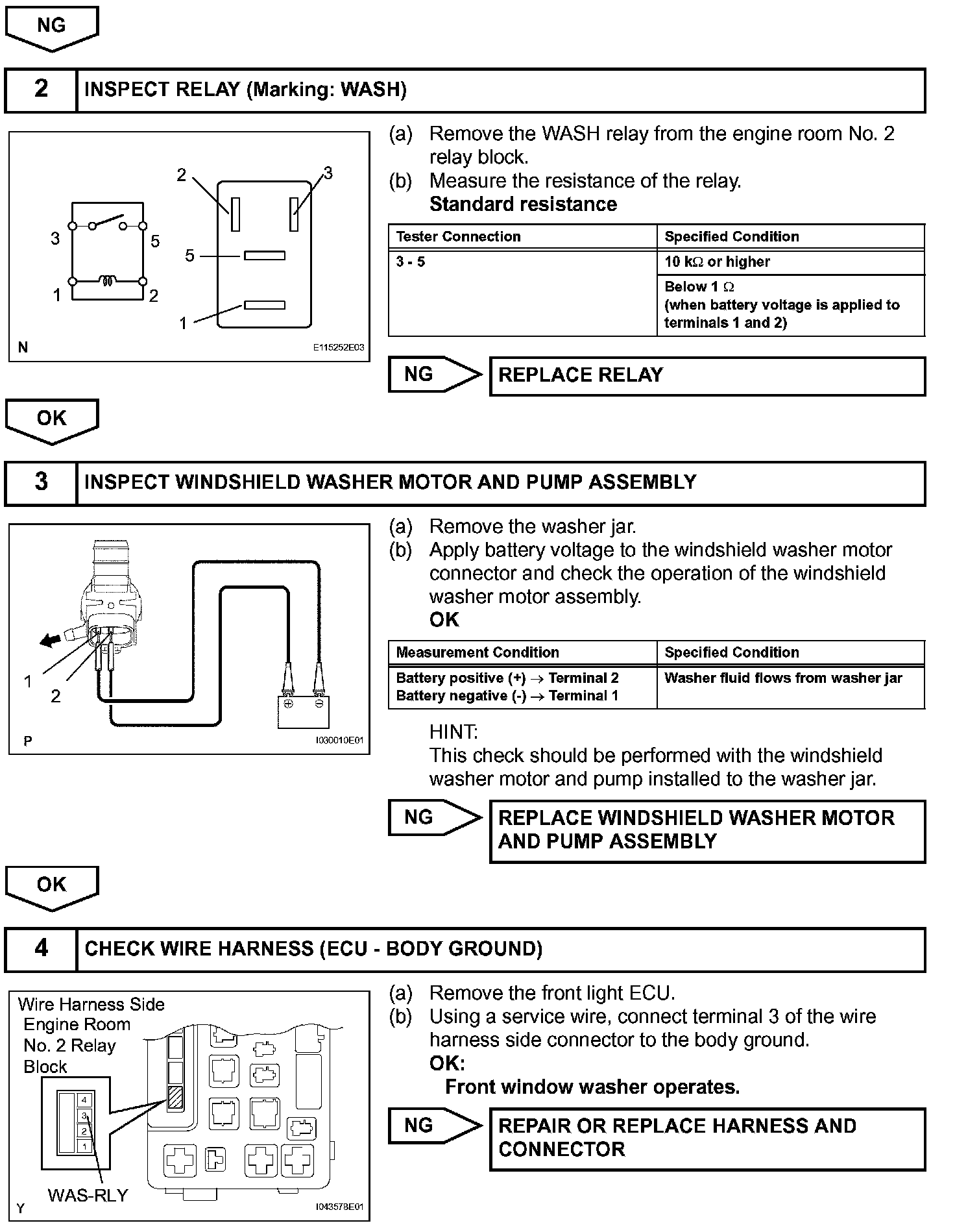

Step 1 (Continued)-4:

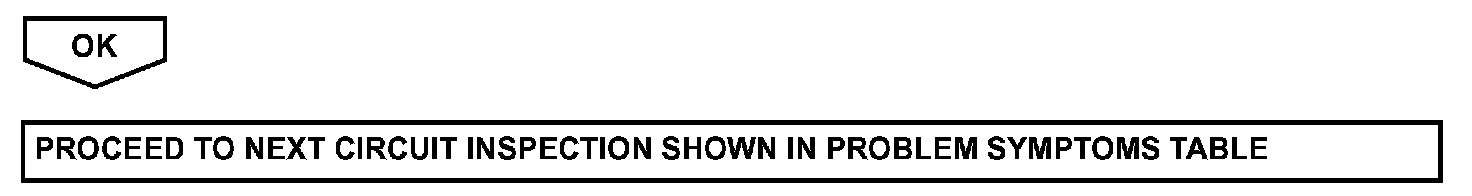

Step 4 (Continued):
INSPECTION PROCEDURE
