Washer Fluid Level Warning Switch Circuit
Washer Fluid Level Warning Switch CircuitDESCRIPTION
The front light ECU receives washer fluid level sensor information, and sends it through the multiplex communication system to the combination meter. The combination meter receives this information and illuminates the washer fluid level warning light when the washer fluid is less than a predetermined value.

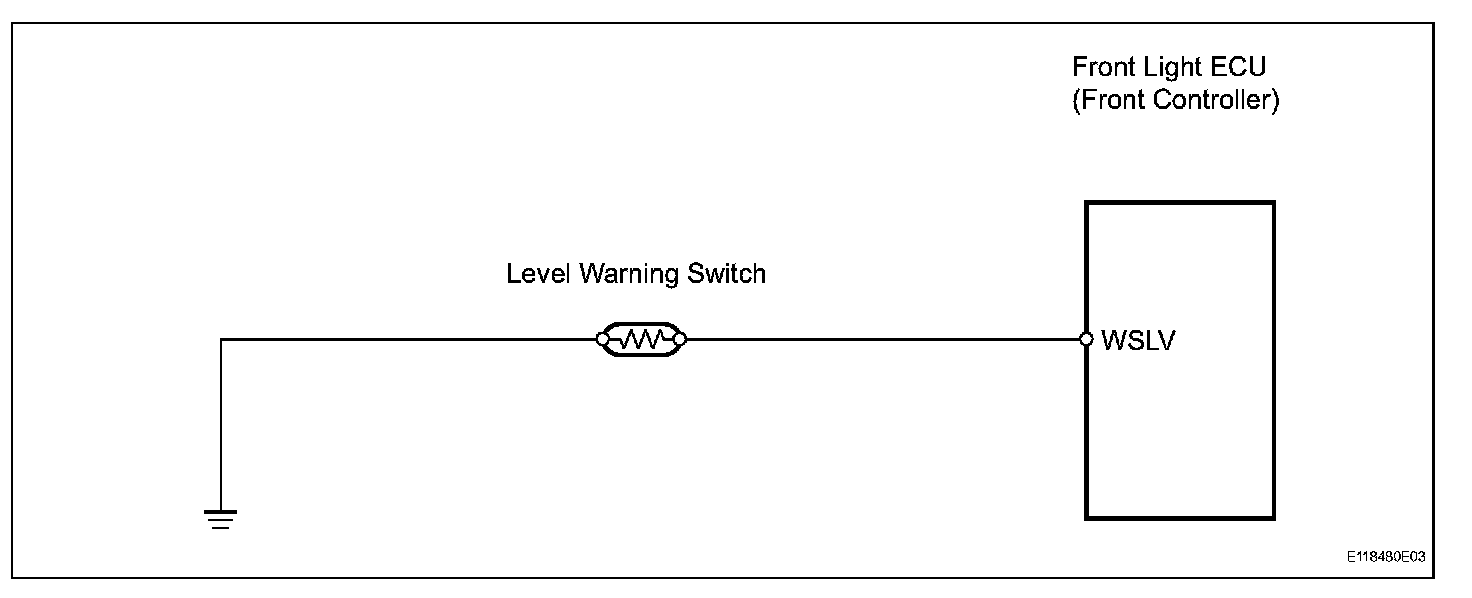

Wiring Diagram:

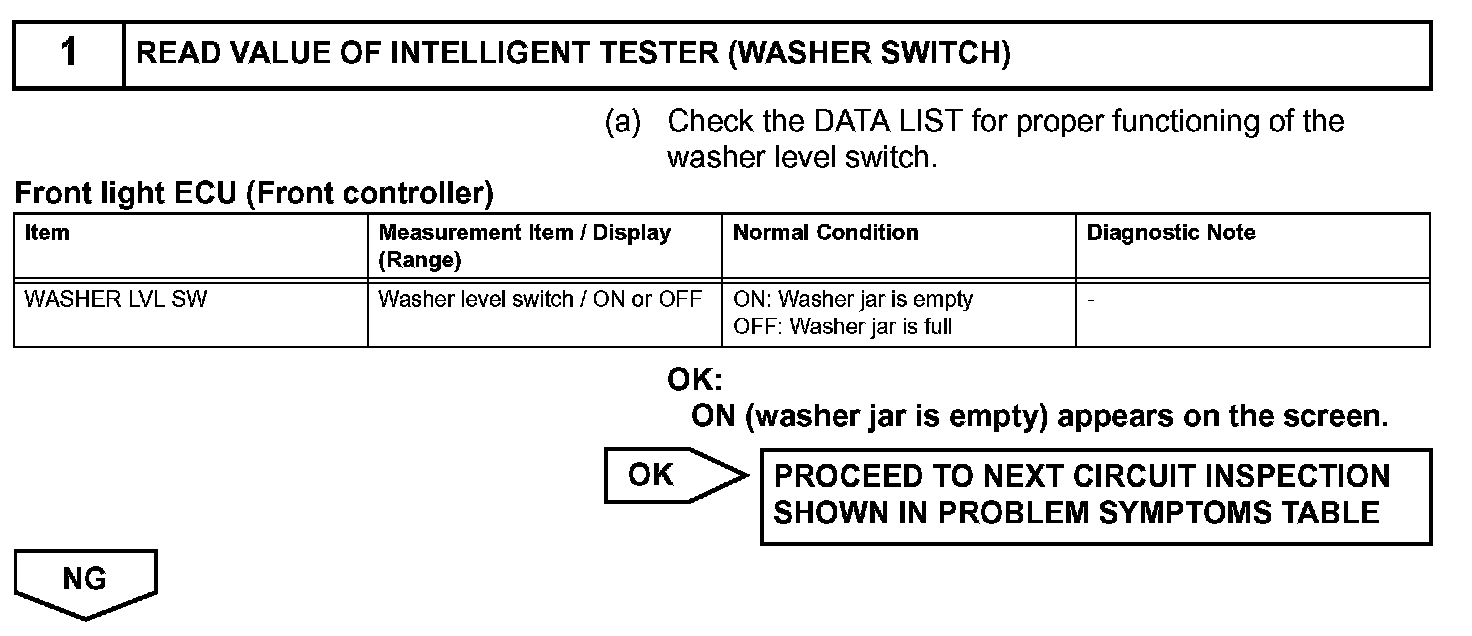

Step 1:

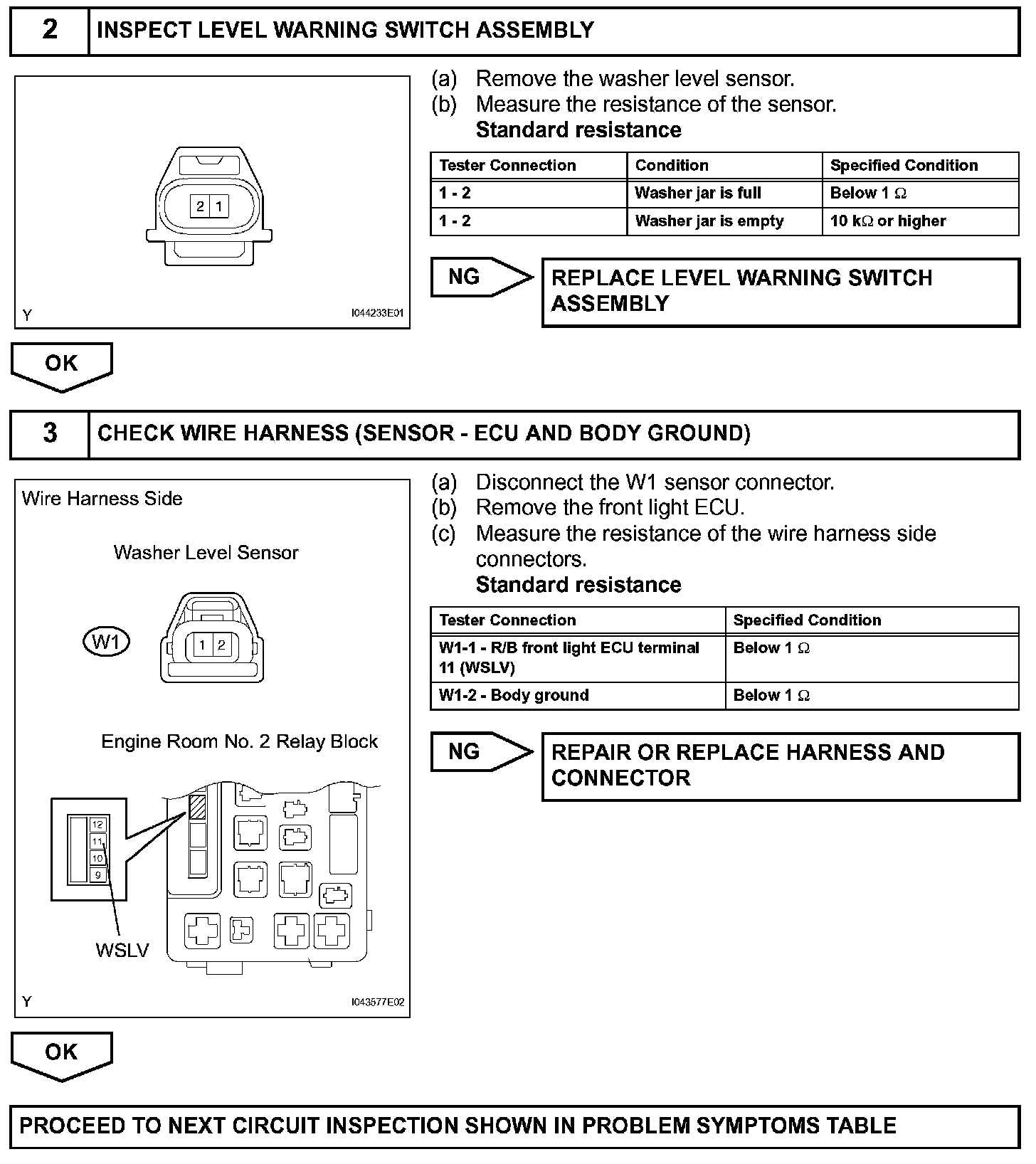

Step 2-3:
INSPECTION PROCEDURE
