Power Source Circuit

Power Source Circuit

DESCRIPTION

This circuit provides power to the combination switch.

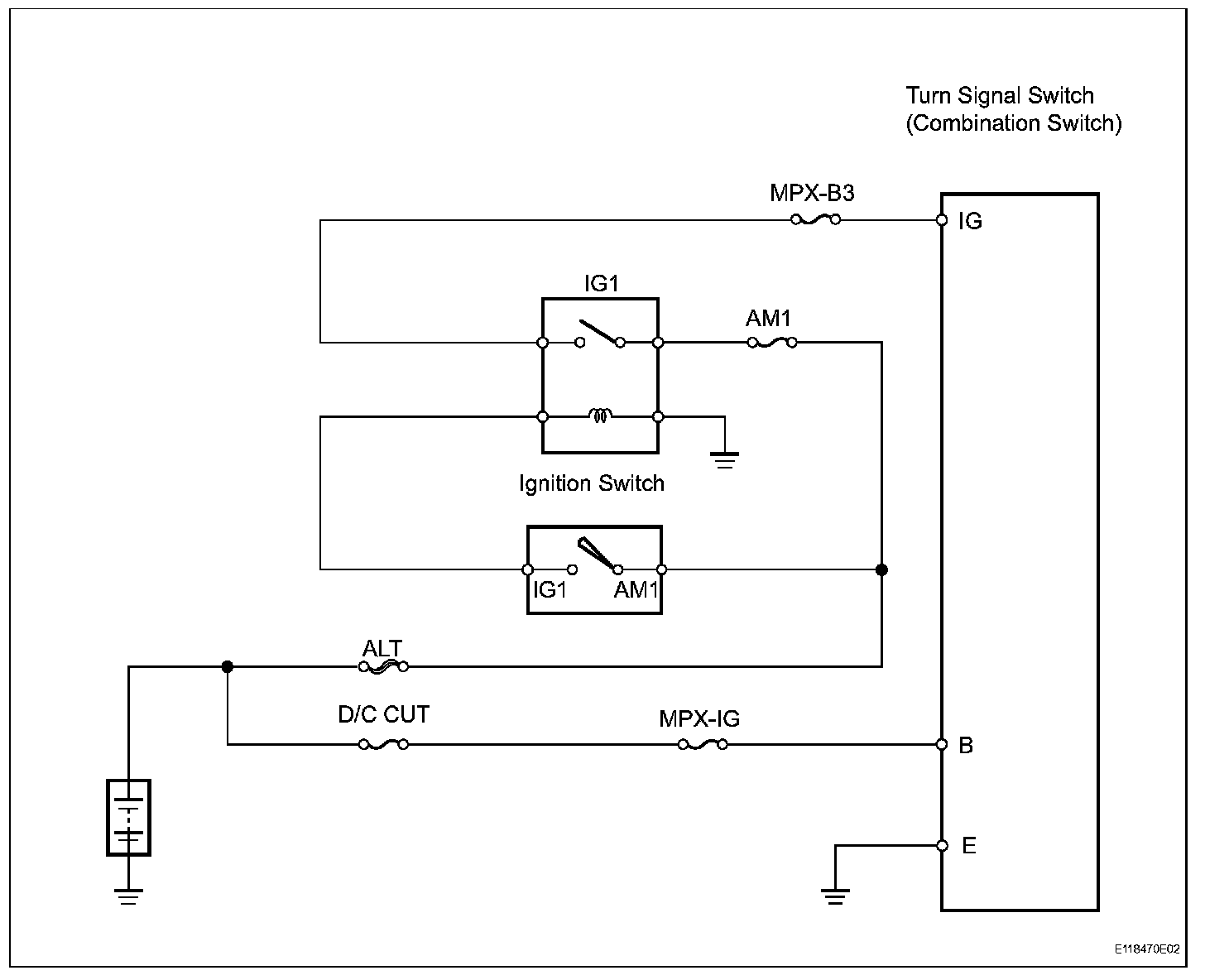

Wiring Diagram:






Step 1:

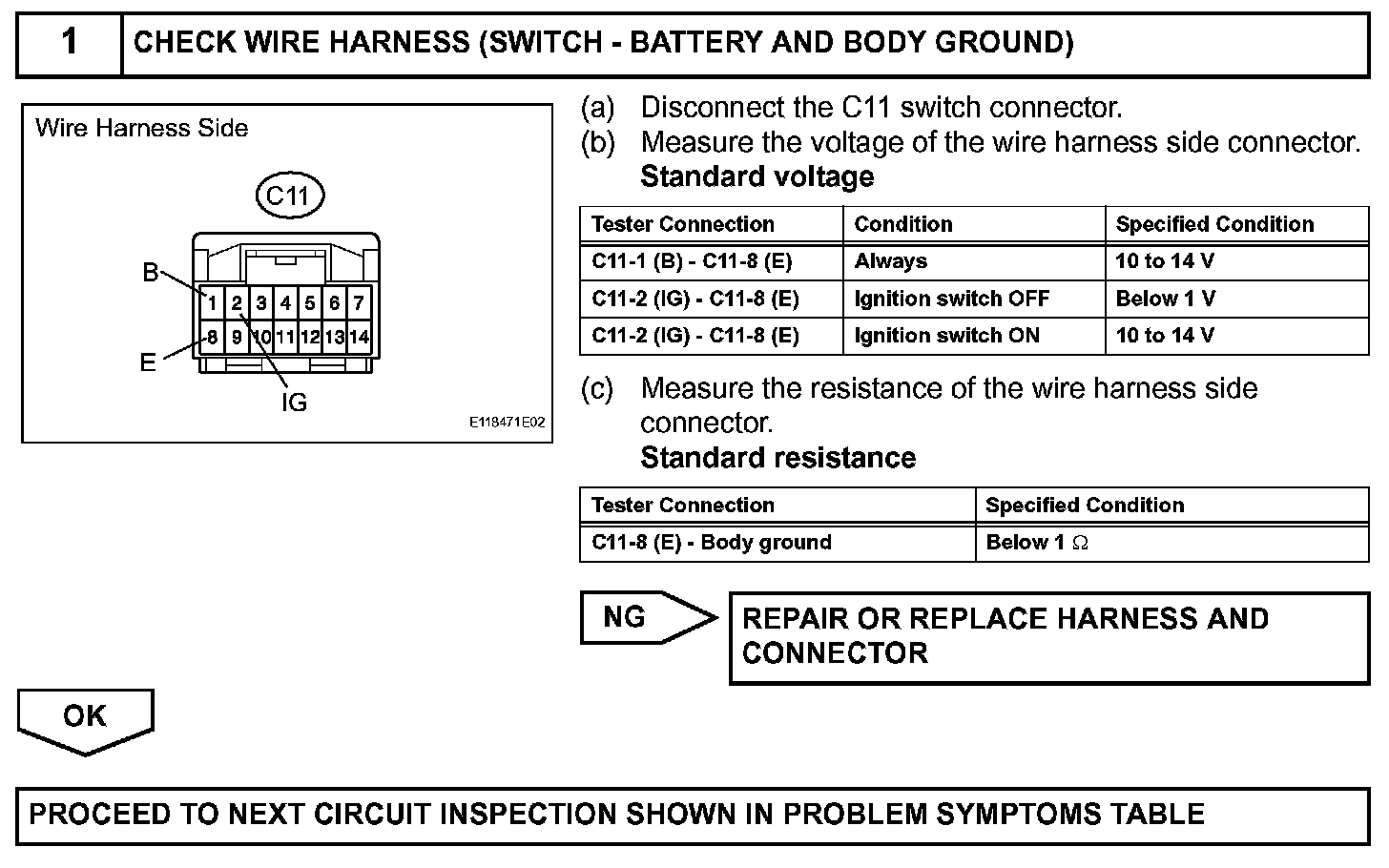

INSPECTION PROCEDURE
