Headlight Cleaner Motor and Relay Circuit

Headlight Cleaner Motor and Relay Circuit

DESCRIPTION

This circuit detects the conditions of the headlight cleaner motor.

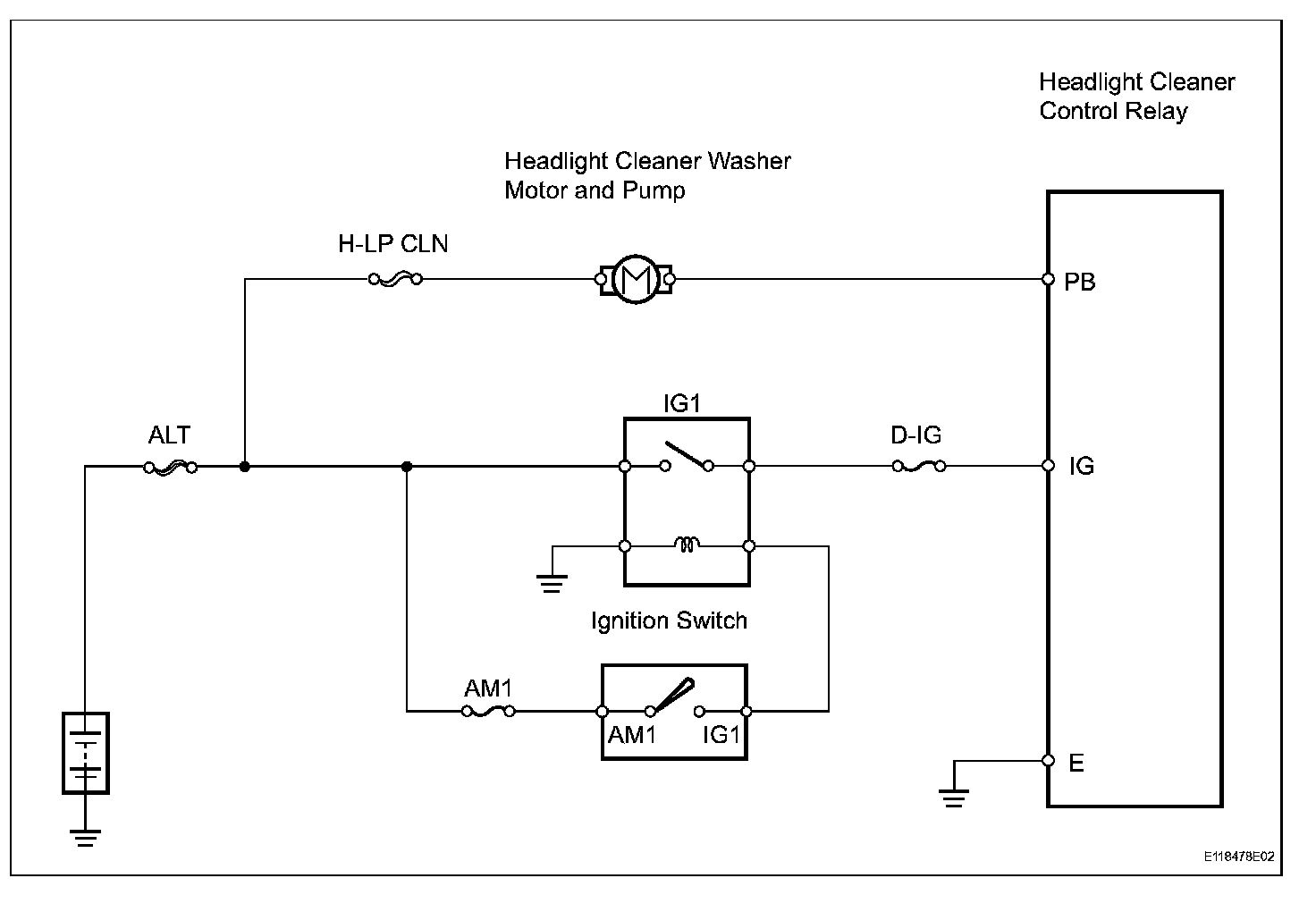

Wiring Diagram:

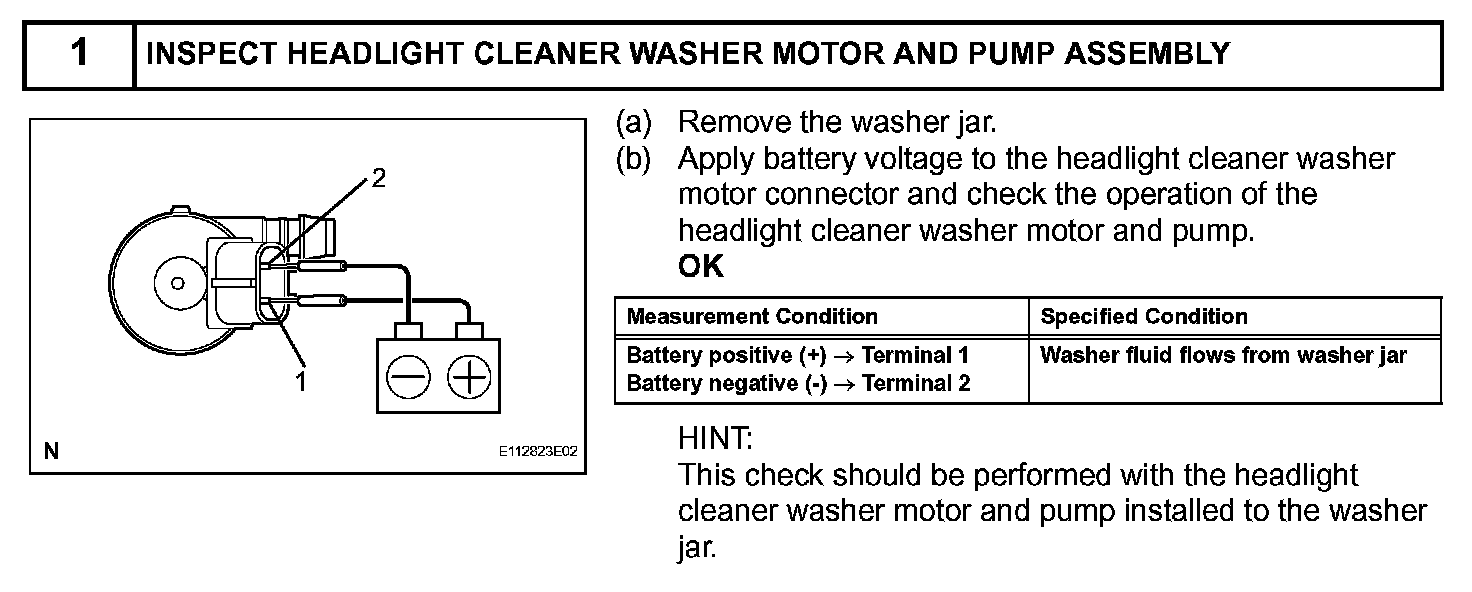

Step 1:

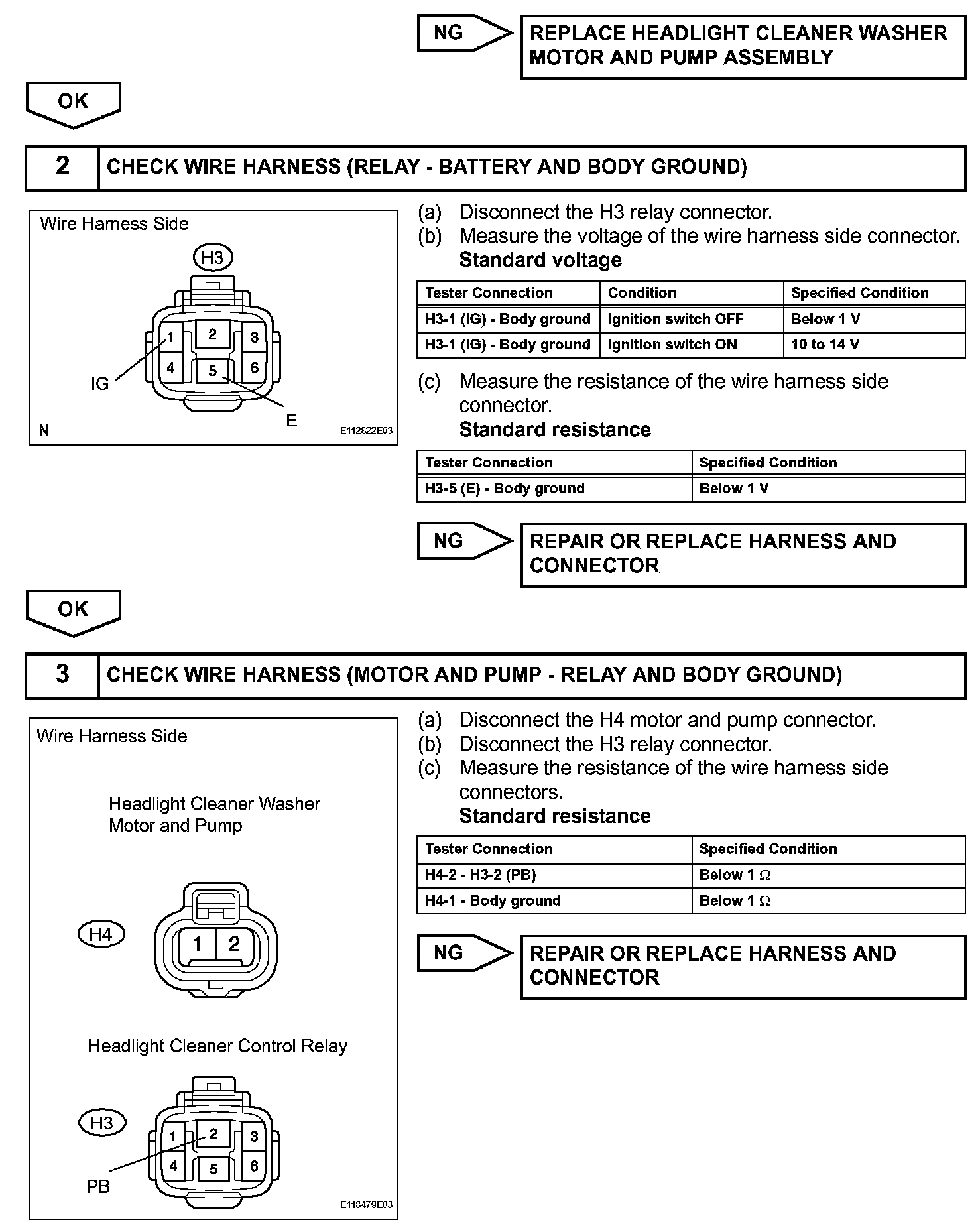

Step 1 (Continued)-3:

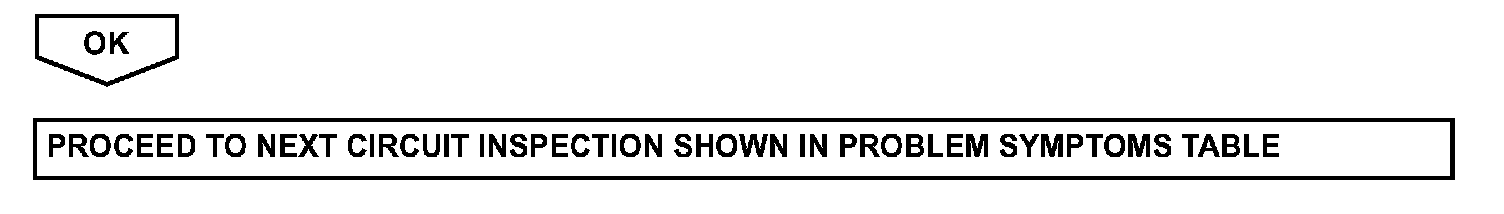

Step 3 (Continued):

INSPECTION PROCEDURE
