Front Wiper Motor Circuit

Front Wiper Motor Circuit

DESCRIPTION

The passenger side junction block ECU controls the wiper motor. Even if the ECU is malfunctioning, the wiper motor circuit is designed so that the wiper can still function in HI mode.

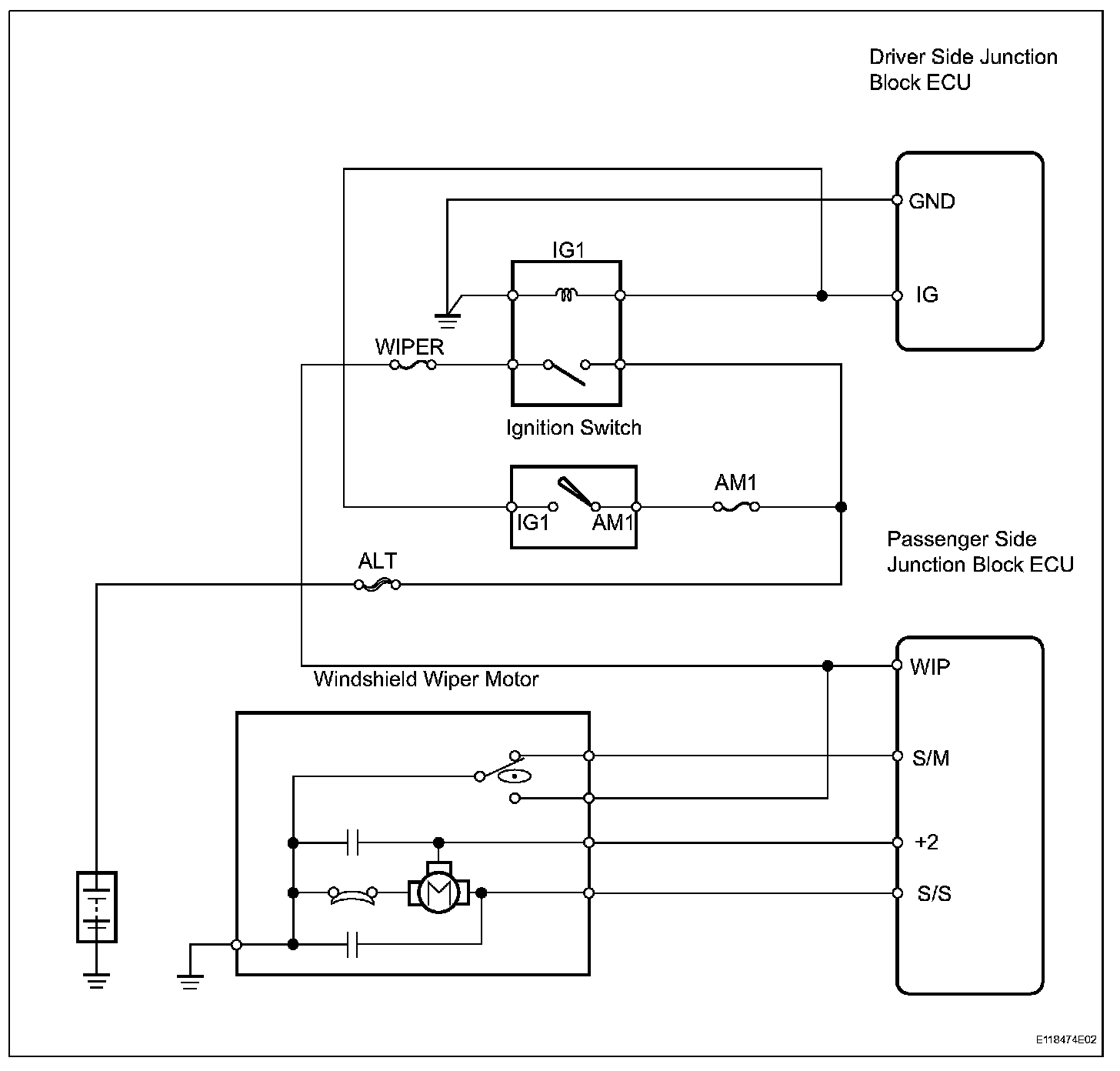

Wiring Diagram:

Step 1-2:

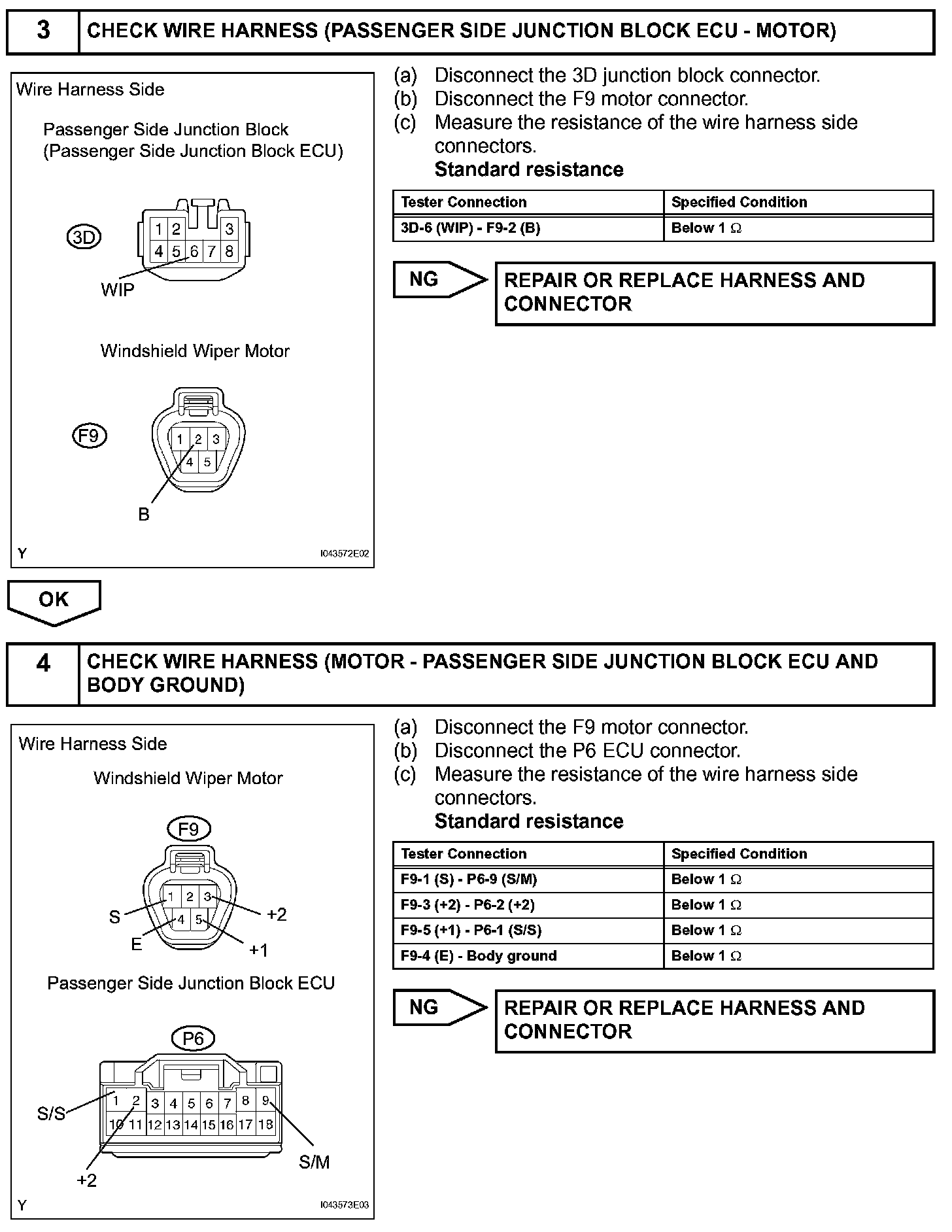

Step 3-4:

Step 4 (Continued):

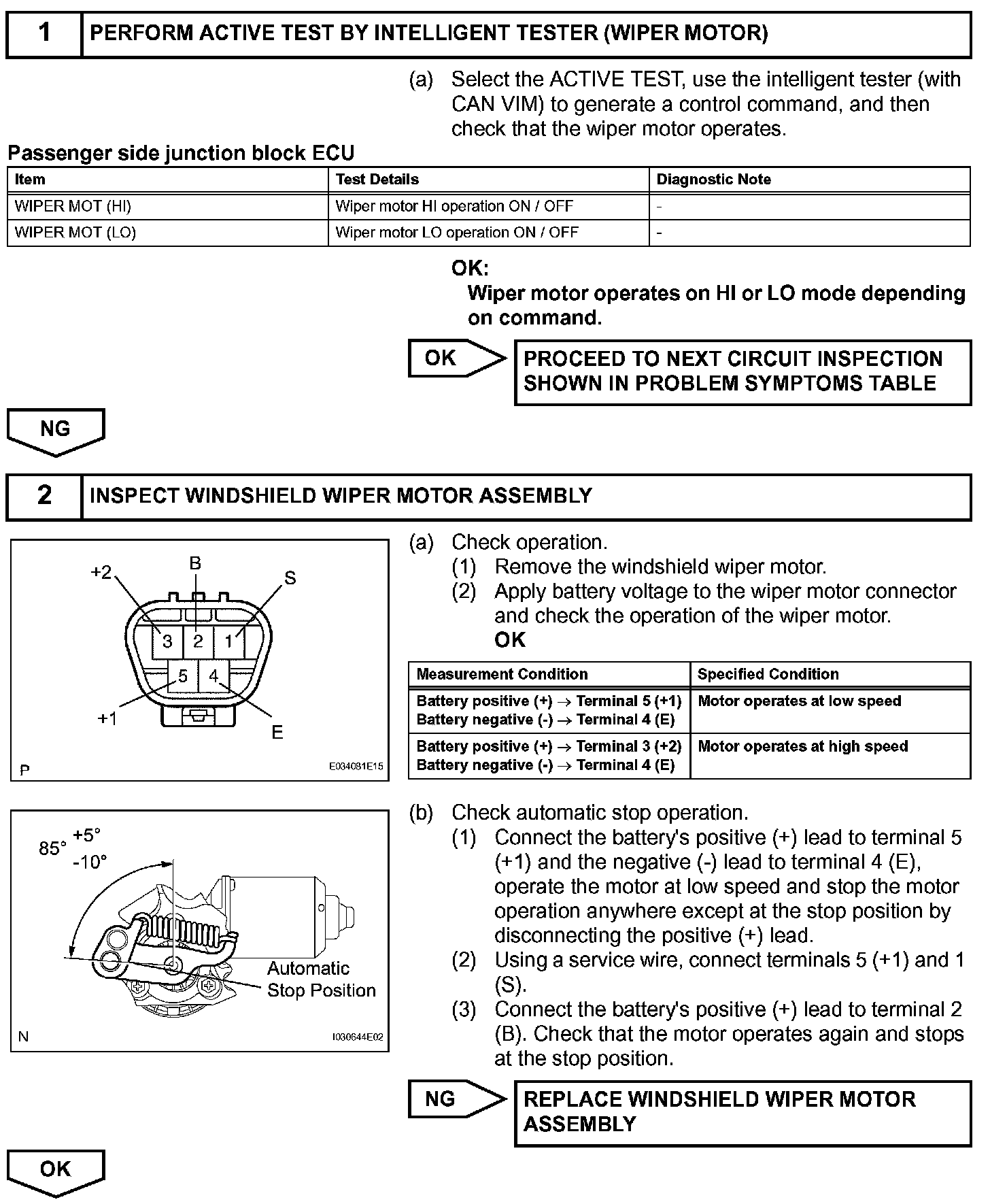

INSPECTION PROCEDURE
