Removal and Replacement

QUARTER WINDOW GLASS

Quarter Window Glass:

Quarter Window Glass:

Quarter Window Glass:

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side
- The procedures listed below are for the RH side.

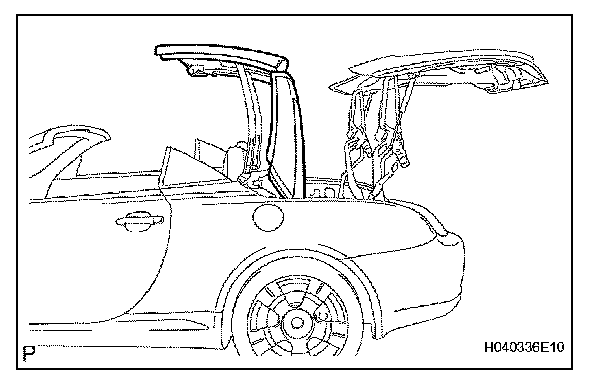

1. OPEN ROOF PANEL HALFWAY






a. Refer to the MANUAL OPERATING procedures half open the roof.

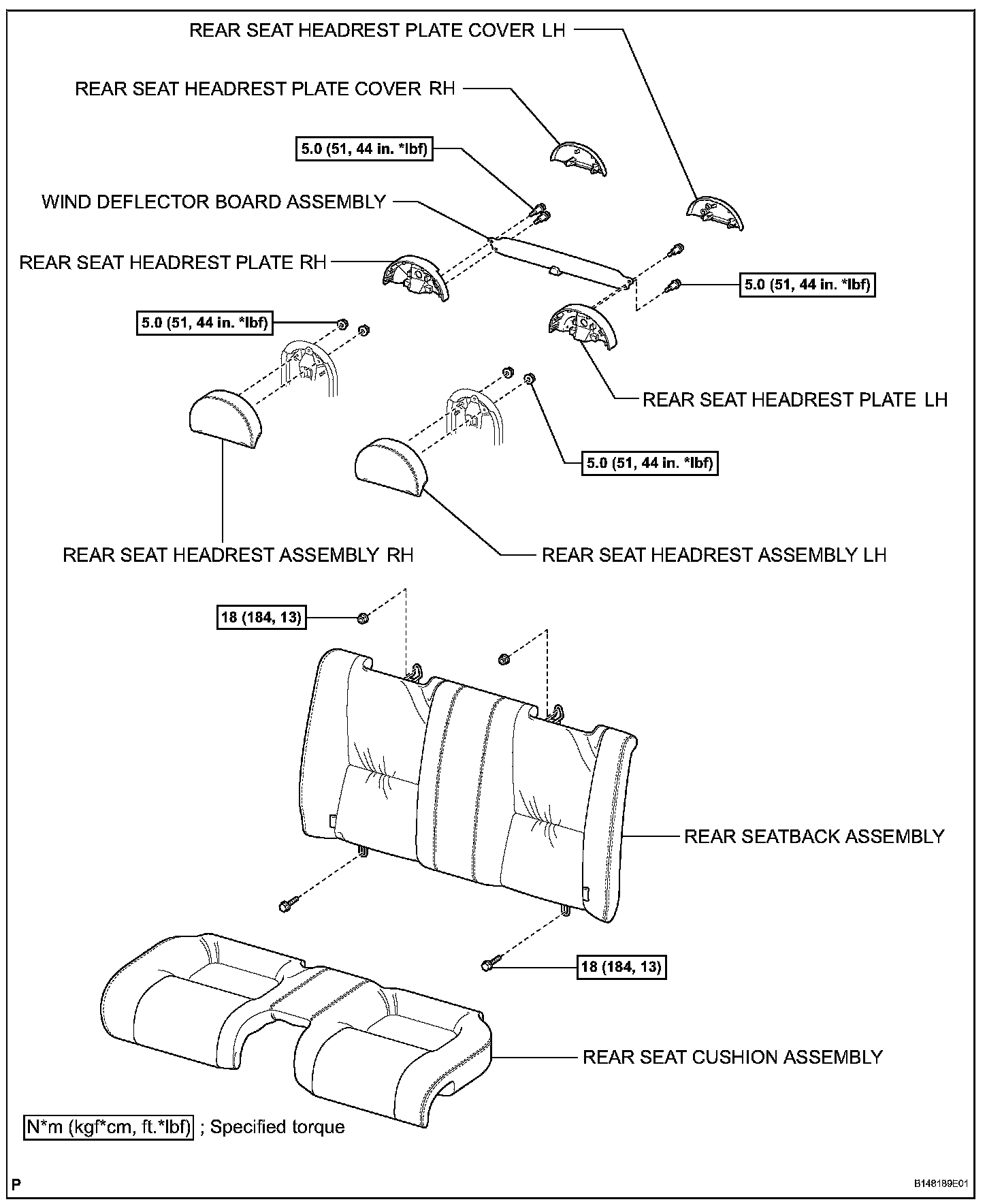

2. REMOVE REAR SEAT CUSHION ASSEMBLY
3. REMOVE REAR SEAT HEADREST PLATE COVER
4. REMOVE WIND DEFLECTOR BOARD ASSEMBLY
5. REMOVE REAR SEAT HEADREST PLATE
6. REMOVE REAR SEAT HEADREST ASSEMBLY
7. REMOVE REAR SEATBACK ASSEMBLY

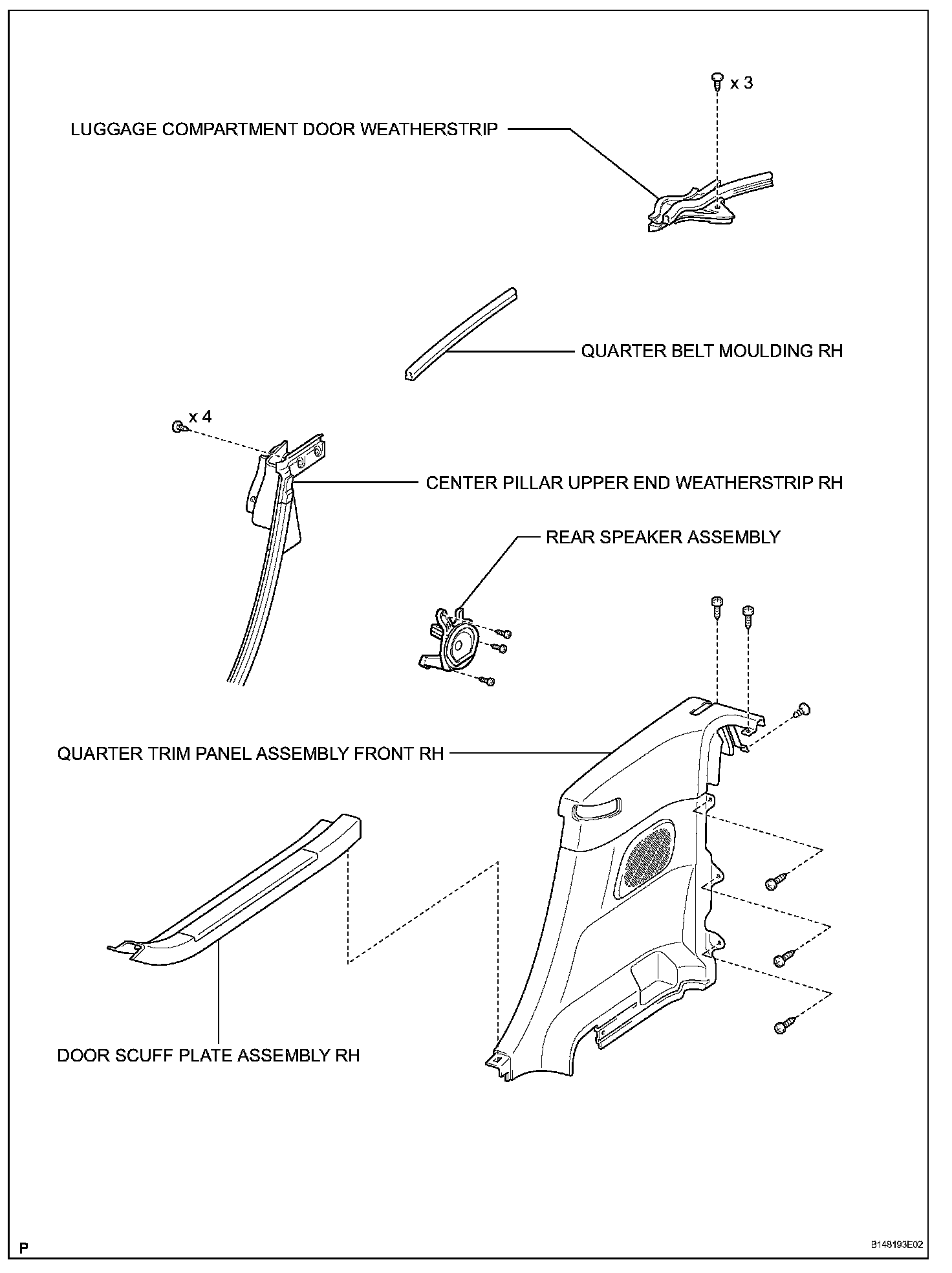

8. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
9. REMOVE QUARTER TRIM PANEL ASSEMBLY FRONT RH

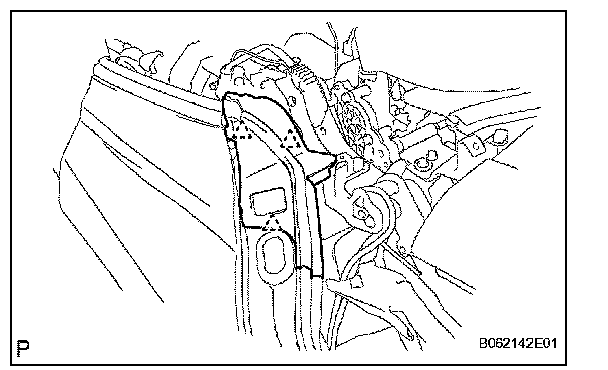

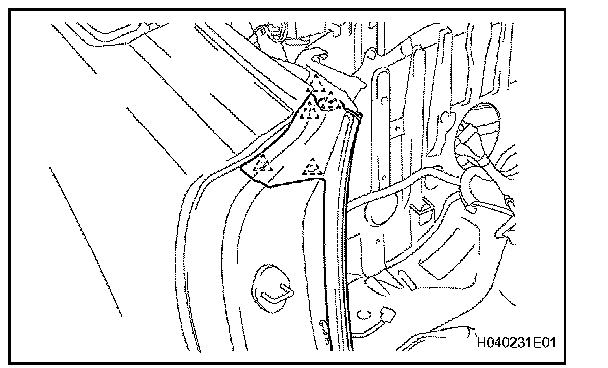

10. REMOVE CENTER PILLAR UPPER END WEATHERSTRIP RH






a. Using a clip remover, detach the 4 clips.
b. Remove the weatherstrip.

11. REMOVE QUARTER BELT MOULDING RH






a. Using a moulding remover, remove the moulding

12. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP






a. Using a clip remover, detach the 3 clips.
b. Remove the front part of the door weatherstrip.

13. REMOVE REAR SPEAKER ASSEMBLY

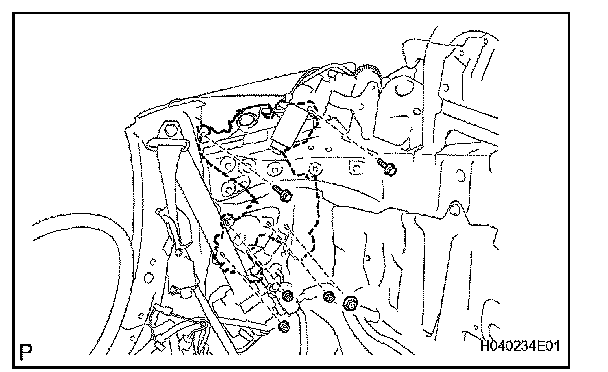

14. REMOVE QUARTER WINDOW ASSEMBLY RH






a. Remove the connector and grommet.
b. Remove the 2 bolts and 4 nuts.
c. Remove the quarter window.

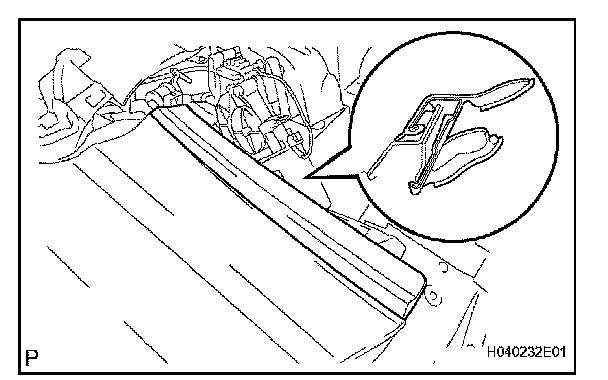

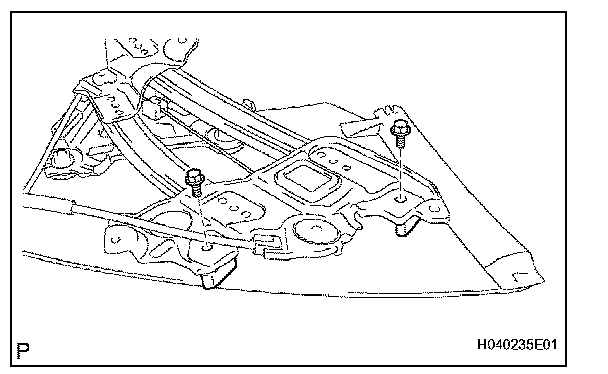

15. REMOVE QUARTER WINDOW STOP






a. Remove the 2 bolts and 2 window stops.

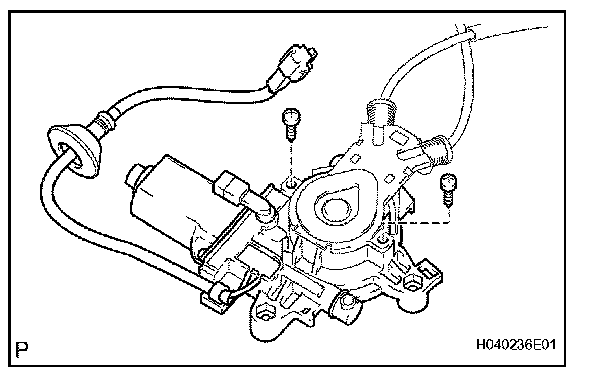

16. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH






a. Remove the 2 screws, regulator base plate and regulator motor.

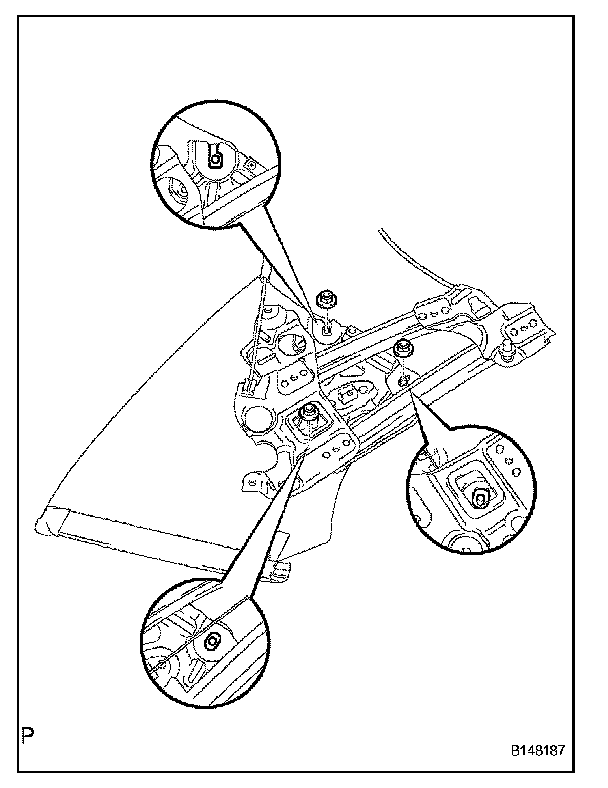

17. REMOVE QUARTER WINDOW ASSEMBLY RH

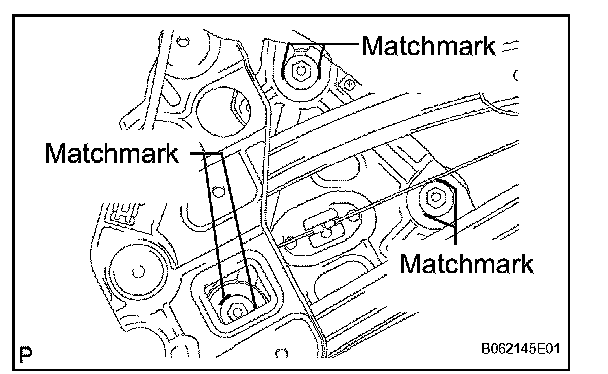

a. When reusing the regulator: Place matchmarks on the regulator to indicate the position of the nuts.

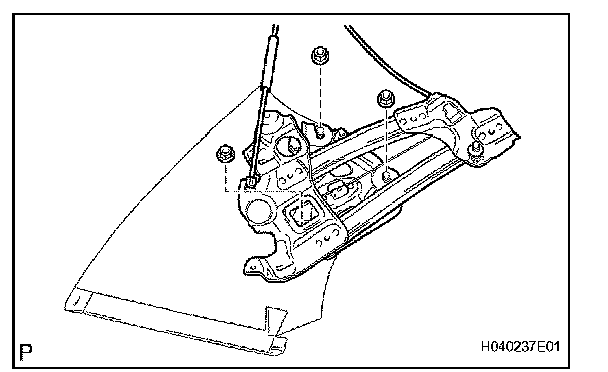

b. Remove the 3 nuts and quarter window.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the RH side.
- A bolt without a torque specification is shown in the standard bolt chart.

1. INSTALL QUARTER WINDOW ASSEMBLY RH
a. Install the quarter window.






1. When using a new regulator: Install the 3 nuts. Tighten the nuts as much as possible by hand.

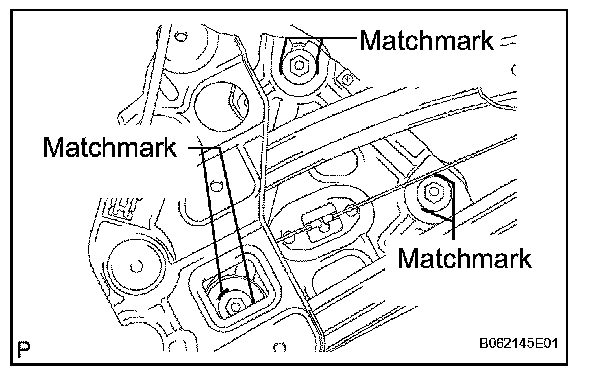

2. When reusing the regulator: Align the matchmarks and tighten the 3 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

2. INSTALL POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
a. Install the power window regulator and regulator base plate with the 2 screws.

3. INSTALL QUARTER WINDOW STOP
a. Install the 2 quarter window stops with the 2 bolts. Tighten the bolts as much as possible by hand.

4. INSTALL QUARTER WINDOW ASSEMBLY RH
a. Install the quarter window to the vehicle body.
1. Loosely install the regulator's 2 bolts and nut.
2. Tighten the motor's 3 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

5. ADJUST QUARTER WINDOW ASSEMBLY RH
6. INSTALL REAR SEATBACK ASSEMBLY
7. INSTALL REAR SEAT HEADREST ASSEMBLY
8. INSTALL WIND DEFLECTOR BOARD ASSEMBLY
9. INSTALL REAR SEAT HEADREST PLATE COVER
10. INSTALL REAR SEAT CUSHION ASSEMBLY
