Quarter Window Glass: Adjustments

ADJUSTMENT

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the RH side.

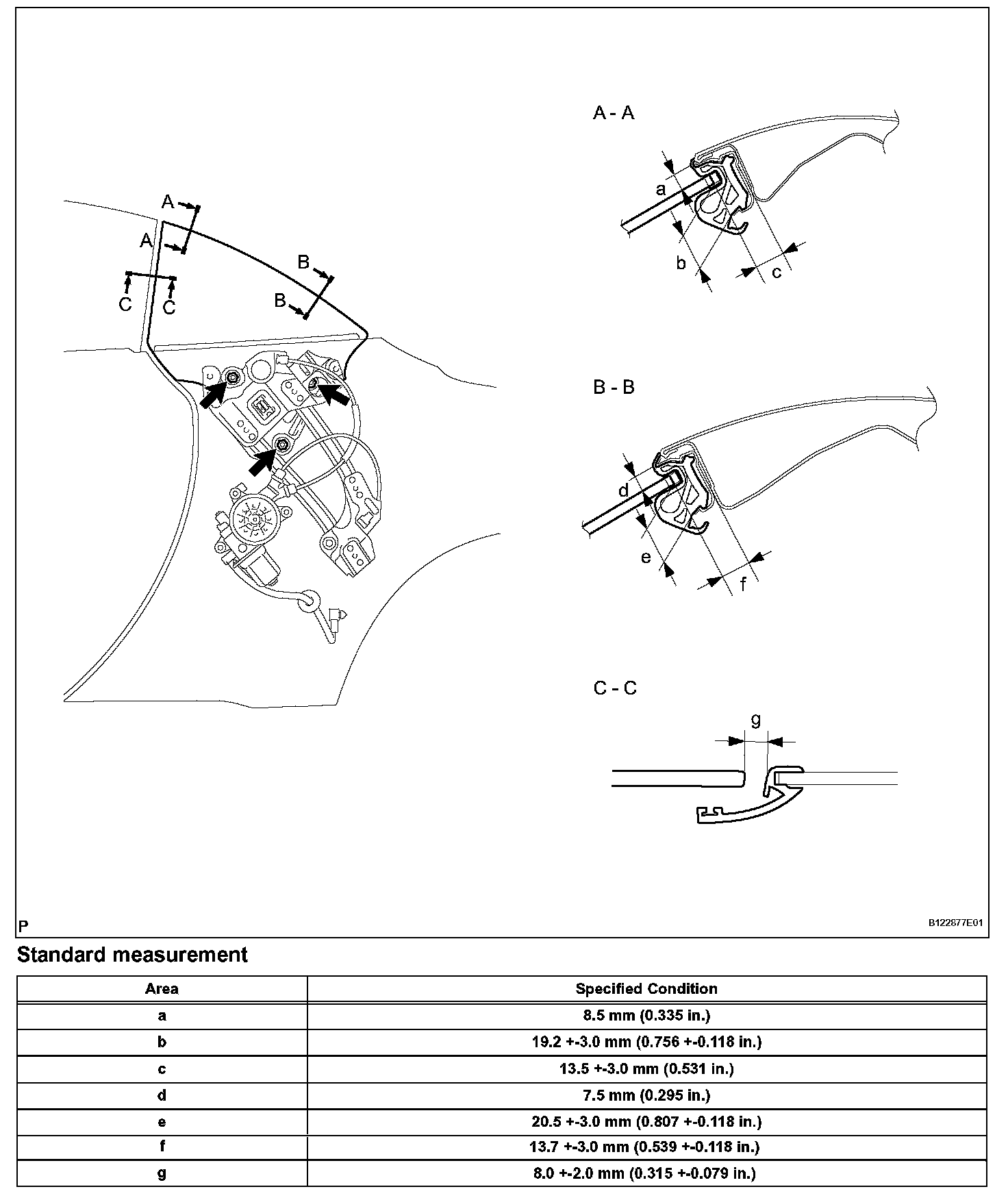

1. INSPECT QUARTER WINDOW ASSEMBLY RH






a. Check that the clearance is within the standard value.
