Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch

Front Passenger Side Power Window Does Not Operate With Front Passenger Side Power Window Switch

DESCRIPTION
The power window regulator switch sends signals to the multiplex network door ECU front RH (passenger door ECU). The ECU then activates the appropriate power window regulator motor.

WIRING DIAGRAM

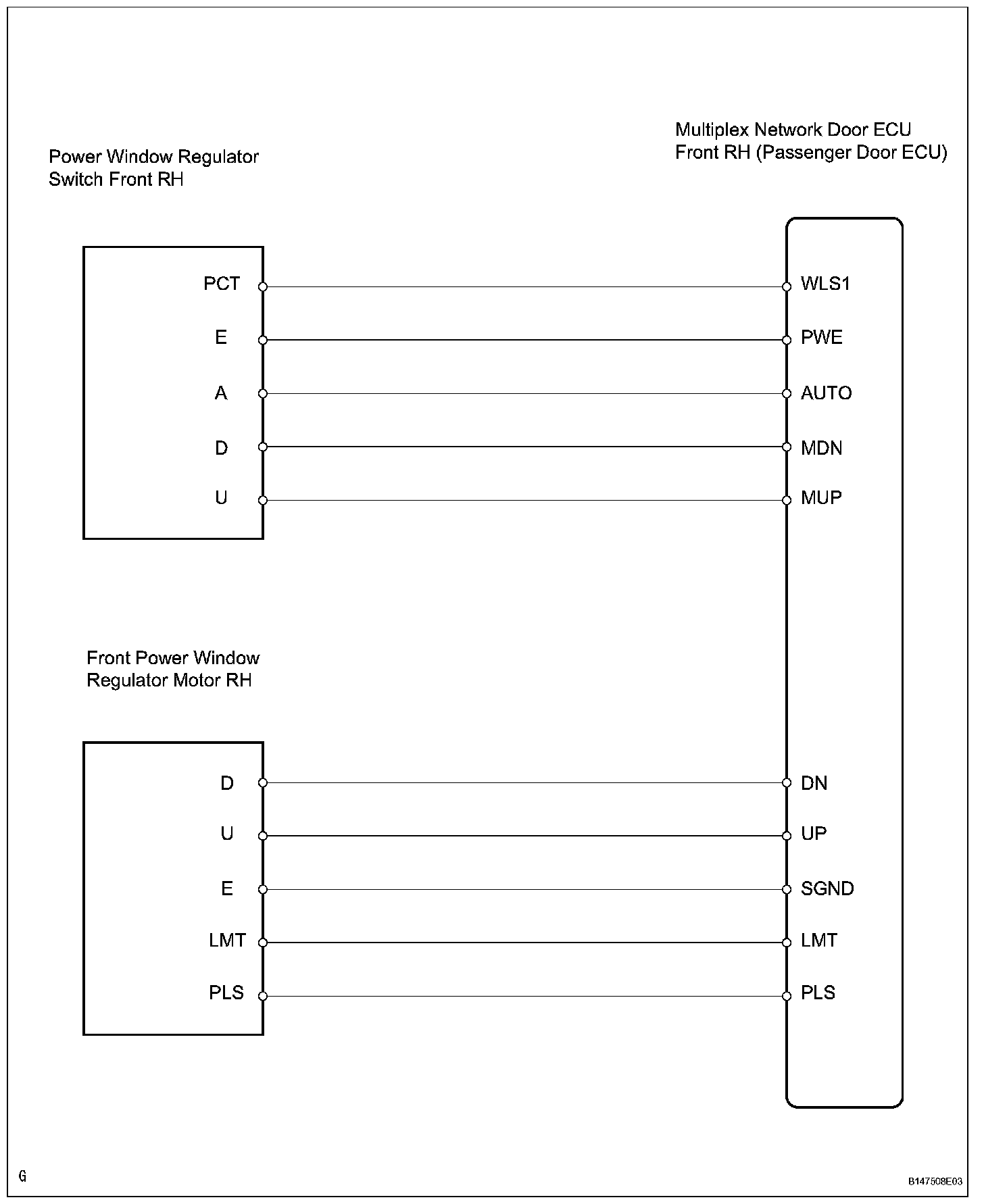

Wiring Diagram:

INSPECTION PROCEDURE

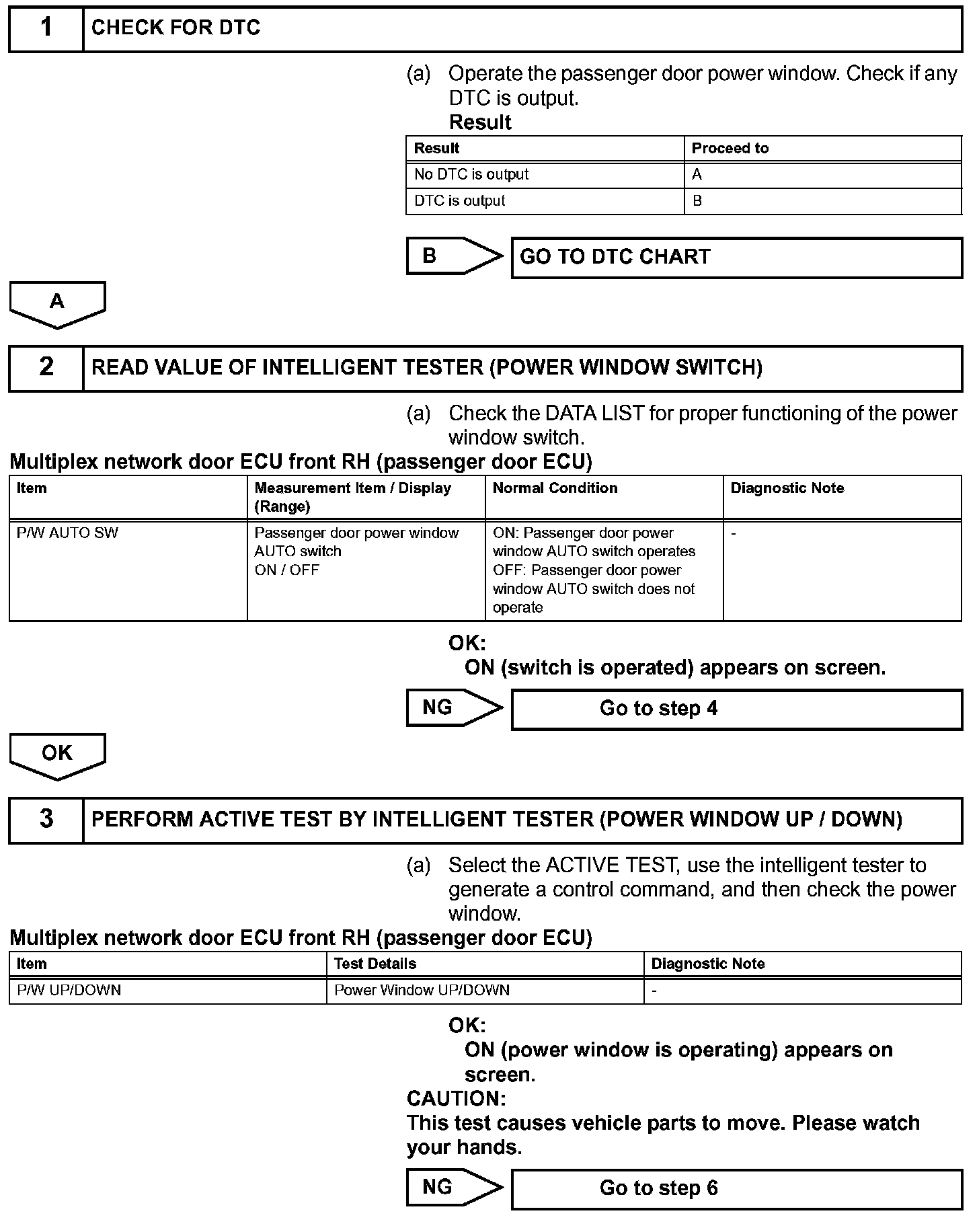

Step 1 - 3:

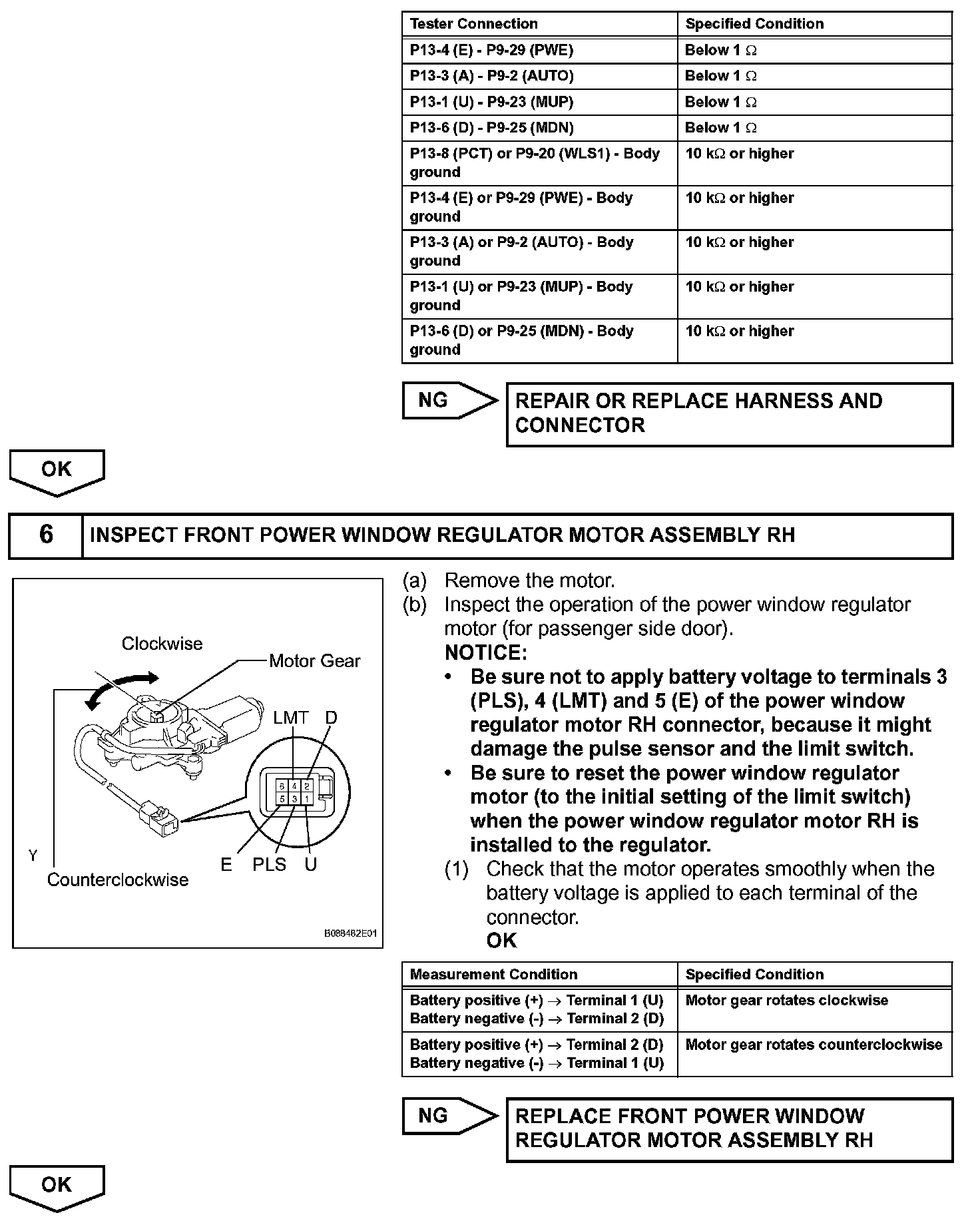

Step 3(Continued) - 5:

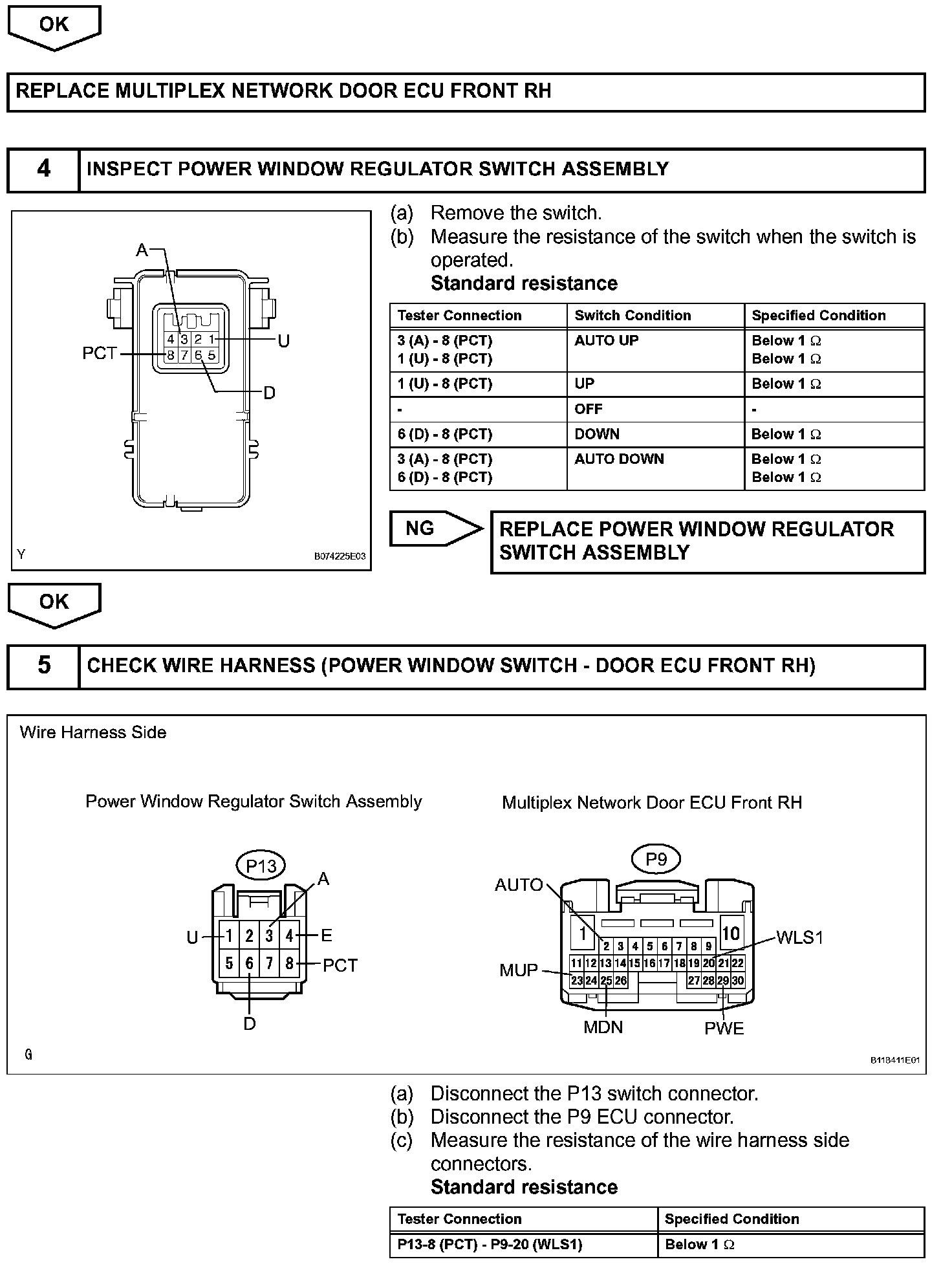

Step 5(Continued) - 6:

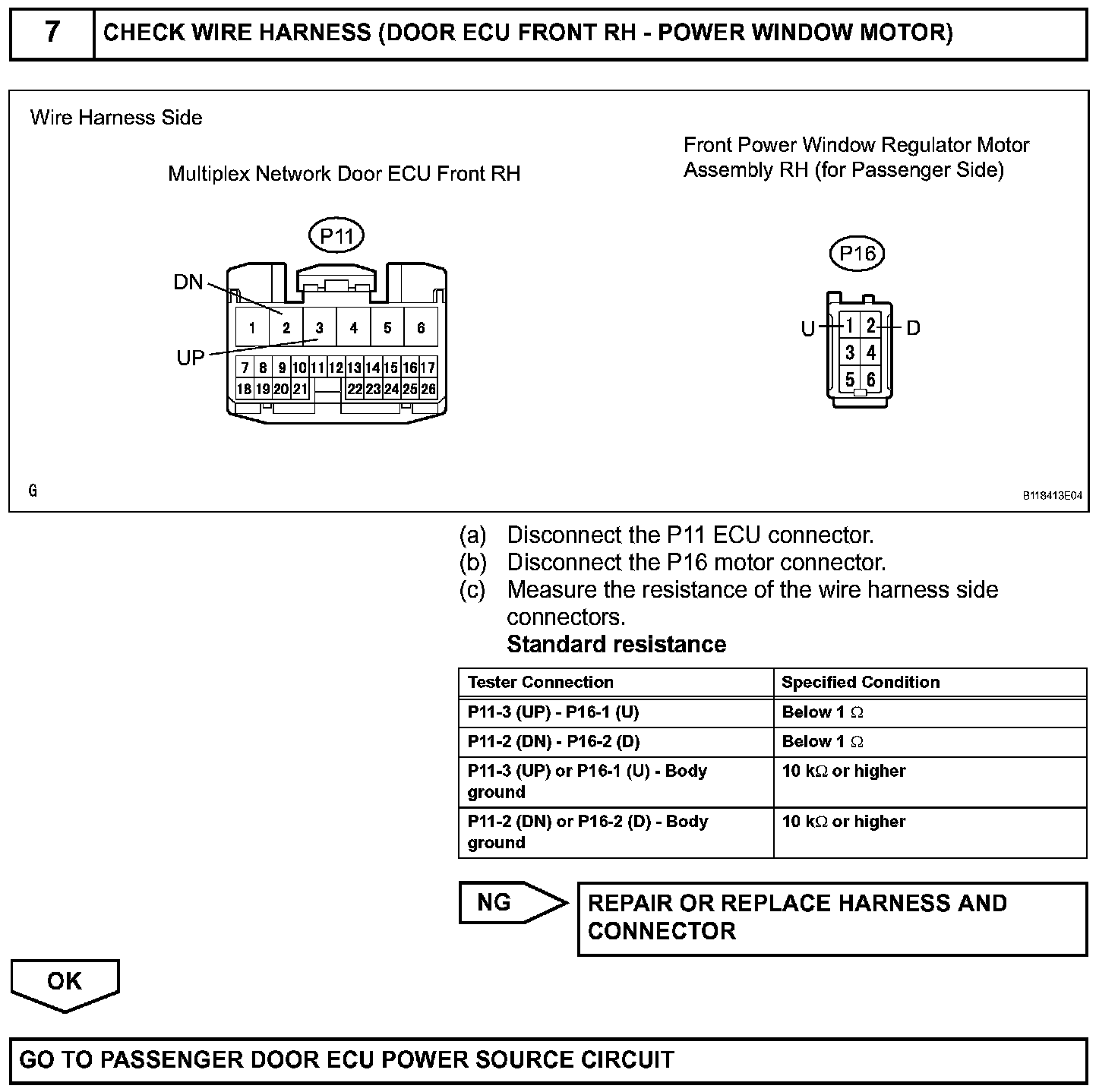

Step 7:
