Driver Side Power Window Does Not Operate With Power Window Master Switch

Driver Side Power Window Does Not Operate With Power Window Master Switch

DESCRIPTION
The power window regulator master switch sends signals to the multiplex network door ECU front LH (driver door ECU). The ECU then activates the appropriate power window regulator motor.

WIRING DIAGRAM

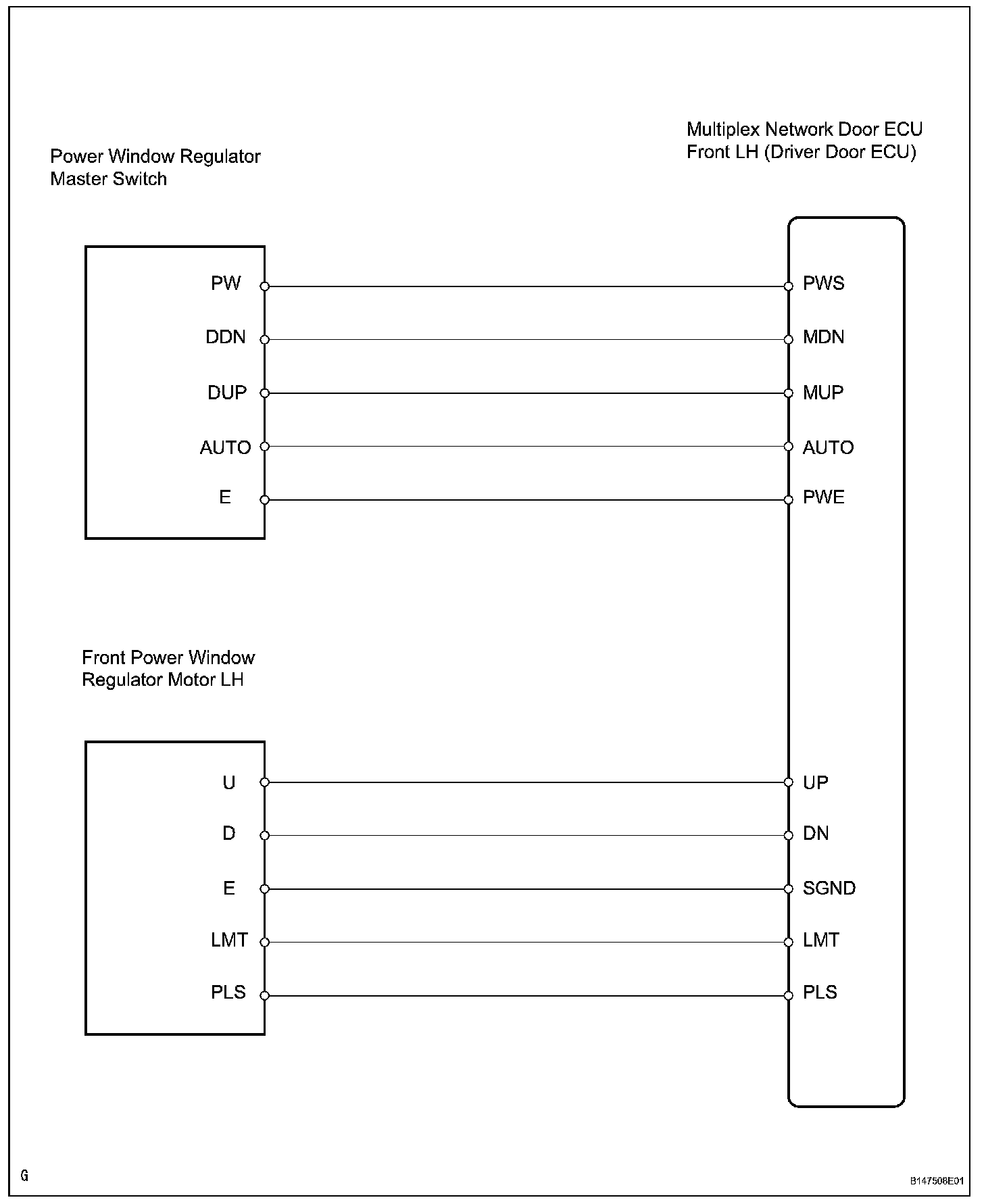

Wiring Diagram:

INSPECTION PROCEDURE

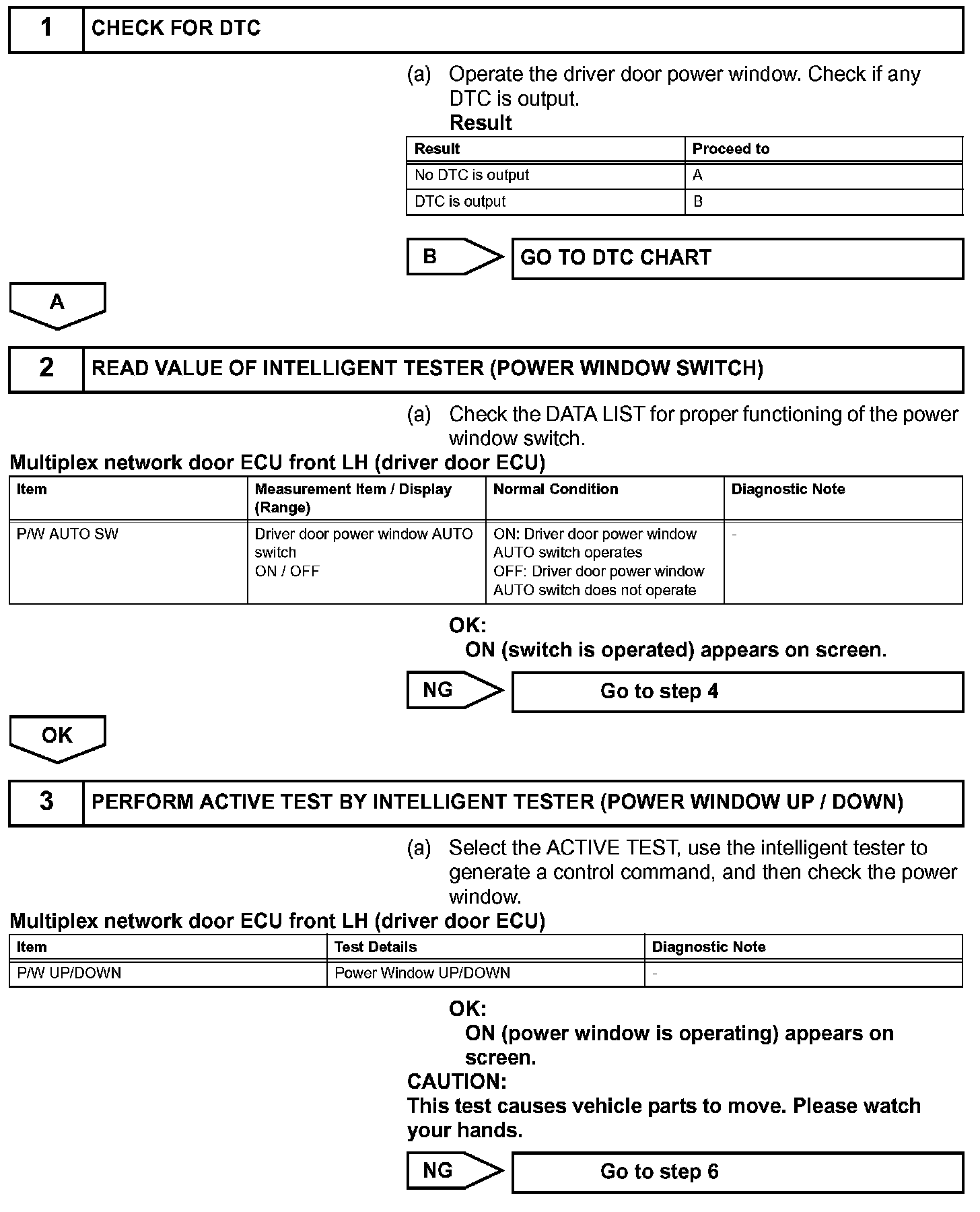

Step 1 - 3:

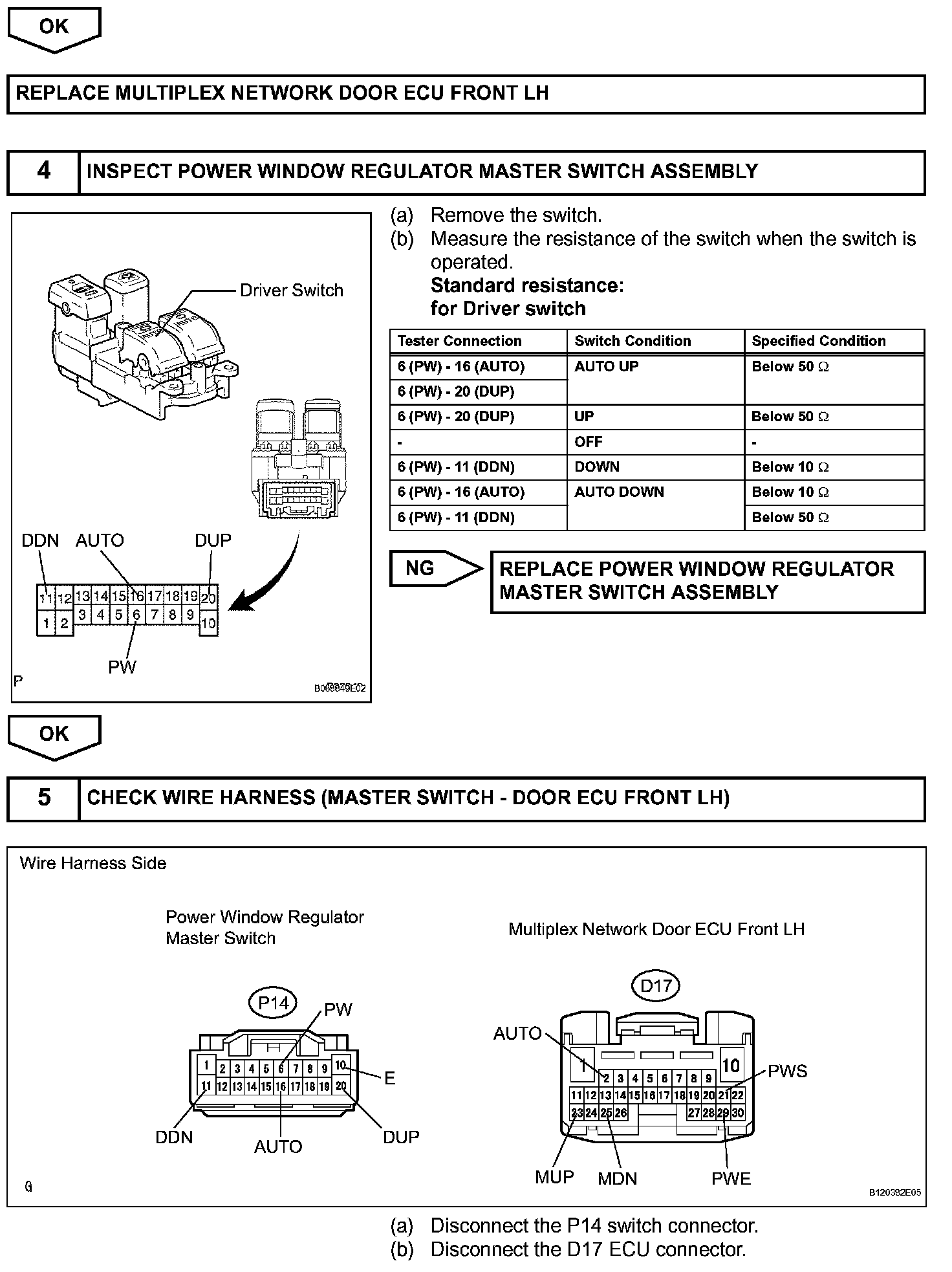

Step 3(Continued) - 5:

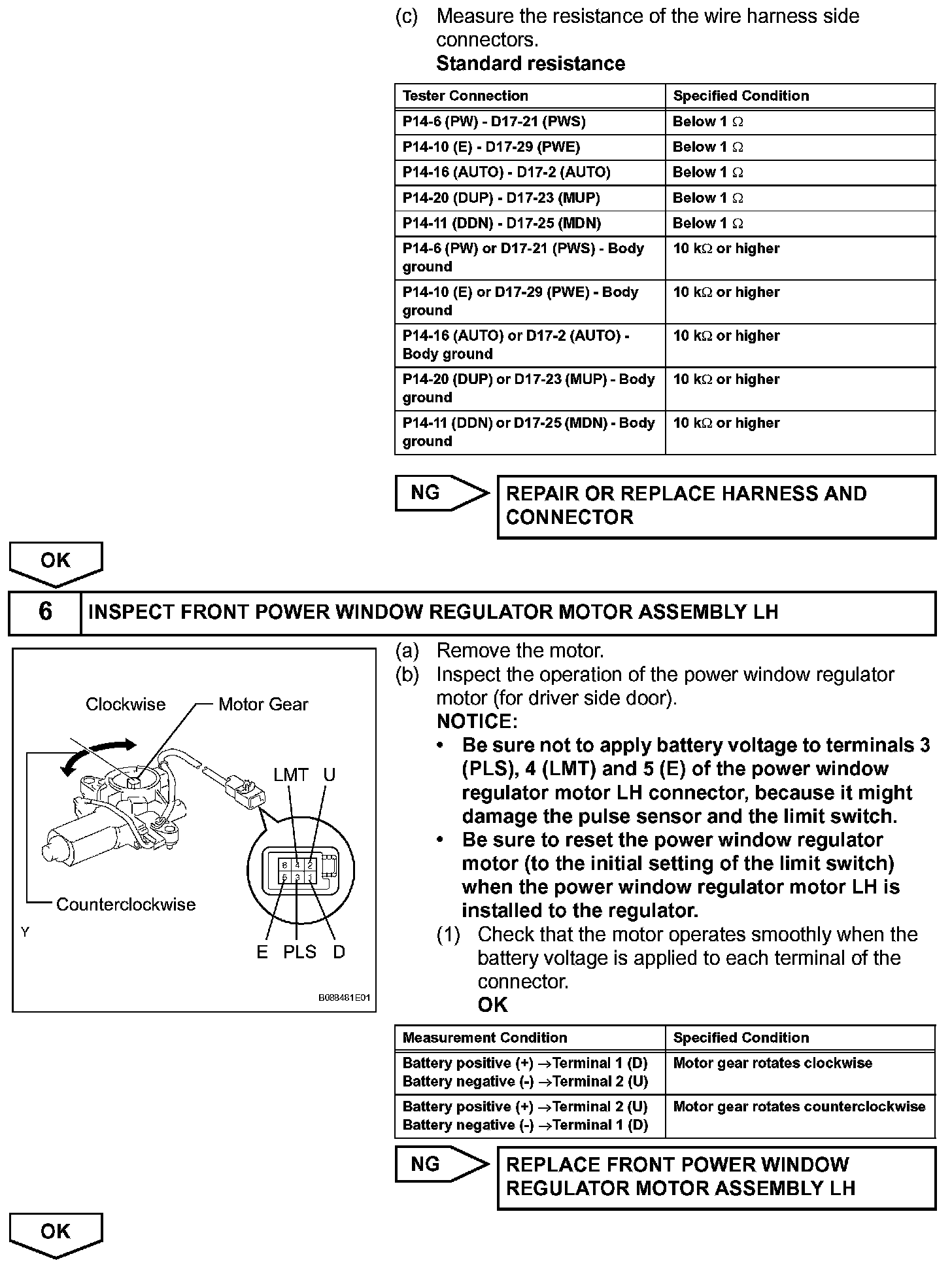

Step 5(Continued) - 6:

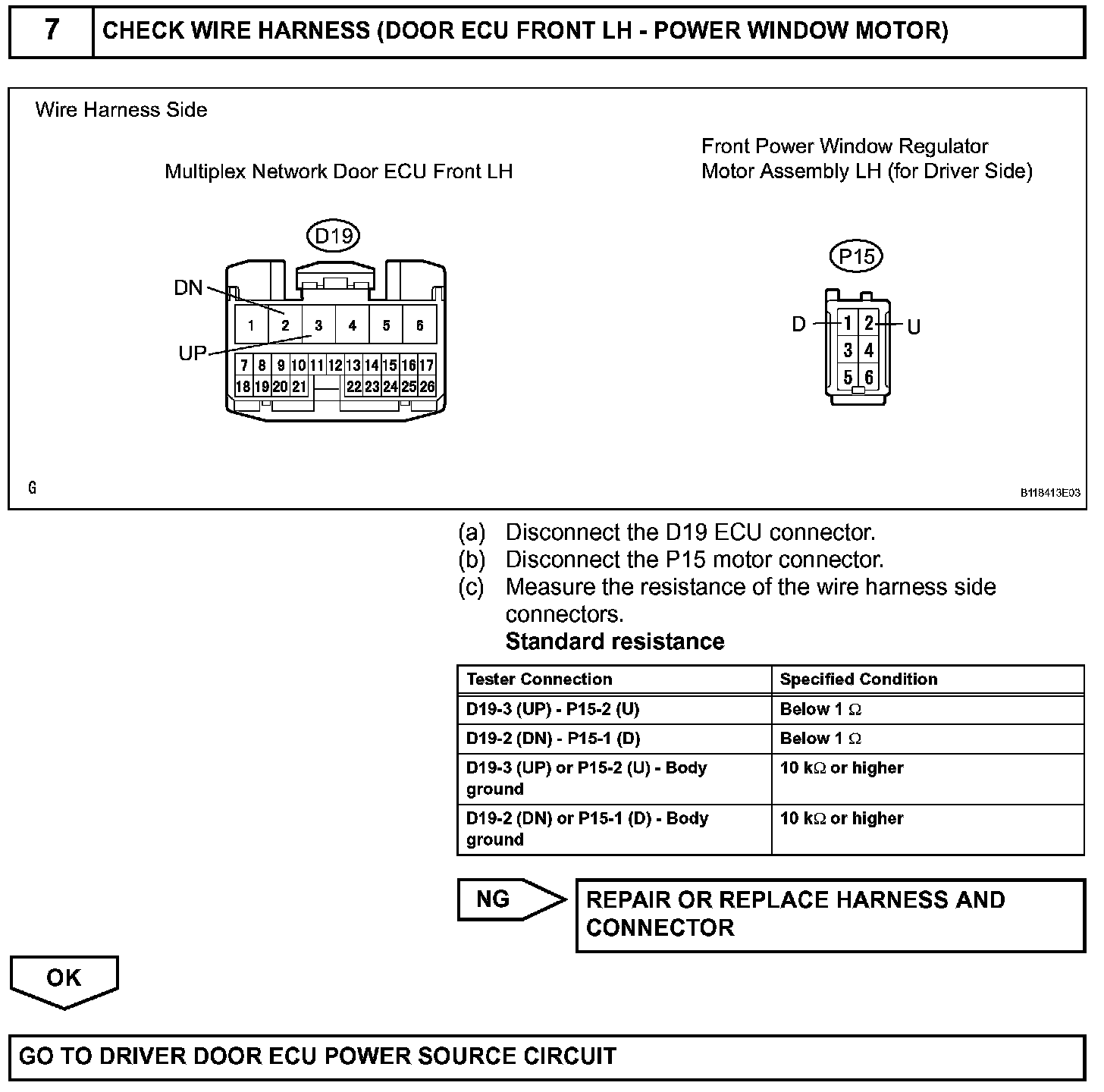

Step 7:
