All Power Windows Do Not Operate With Driver Side Door Key Cylinder or Wireless Transmitter
All Power Windows Do Not Operate With Driver Side Door Key Cylinder Or Wireless TransmitterDESCRIPTION
When a transmitter switch is pushed: 1) the door control receiver receives the transmitter's signal, 2) the multiplex network door ECUs receive the signal, and 3) the power window regulator motors are activated. When the driver door lock key cylinder is turned: 1) the door lock motor sends a signal to the multiplex network door ECU front LH (driver door ECU), and 2) the power window regulator motors are activated.

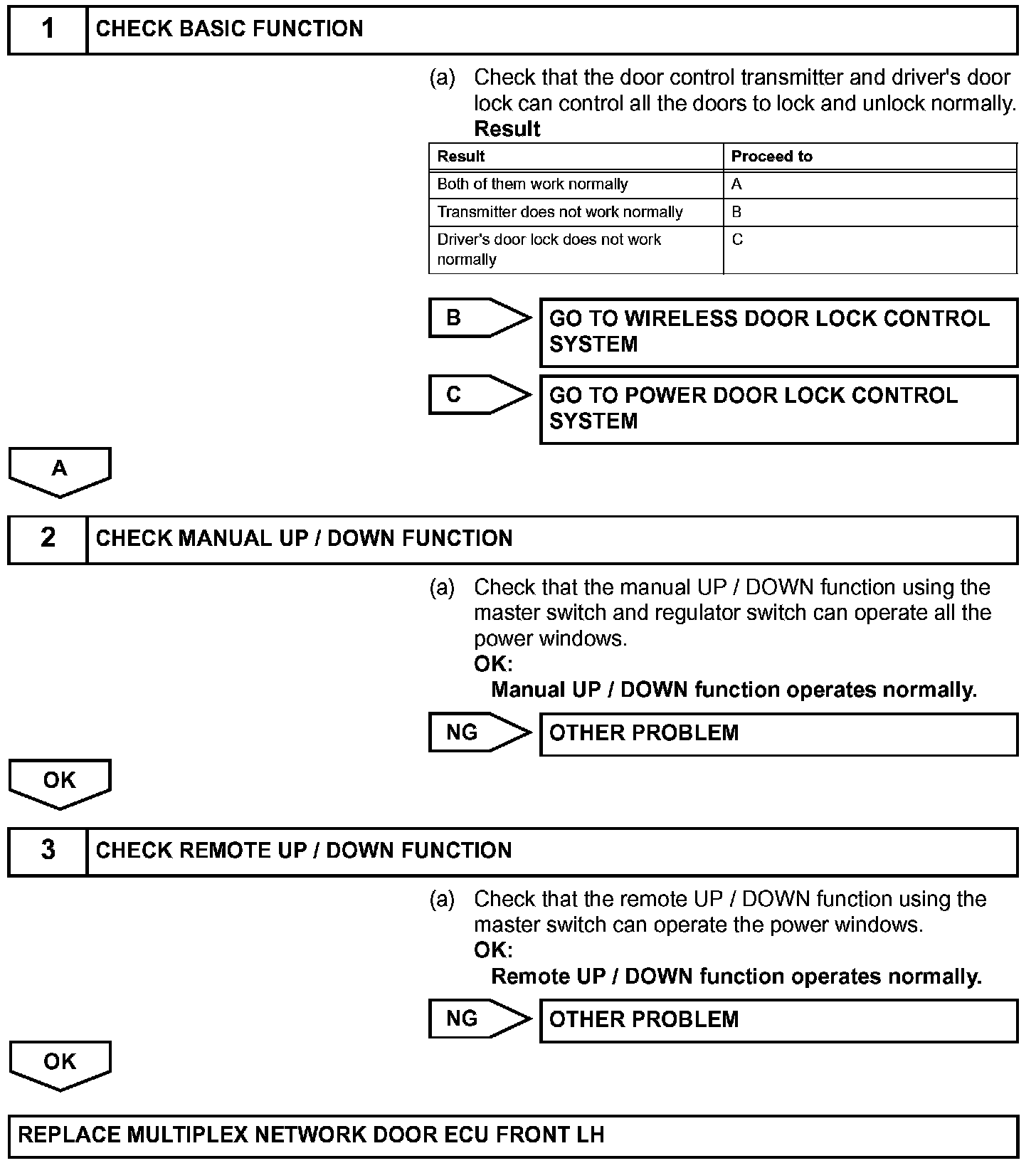

INSPECTION PROCEDURE
Step 1 - 3:
