Front Passenger Side Door ECU Power Source Circuit

Front Passenger Side Door ECU Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the multiplex network door ECU front RH (passenger door ECU).

WIRING DIAGRAM

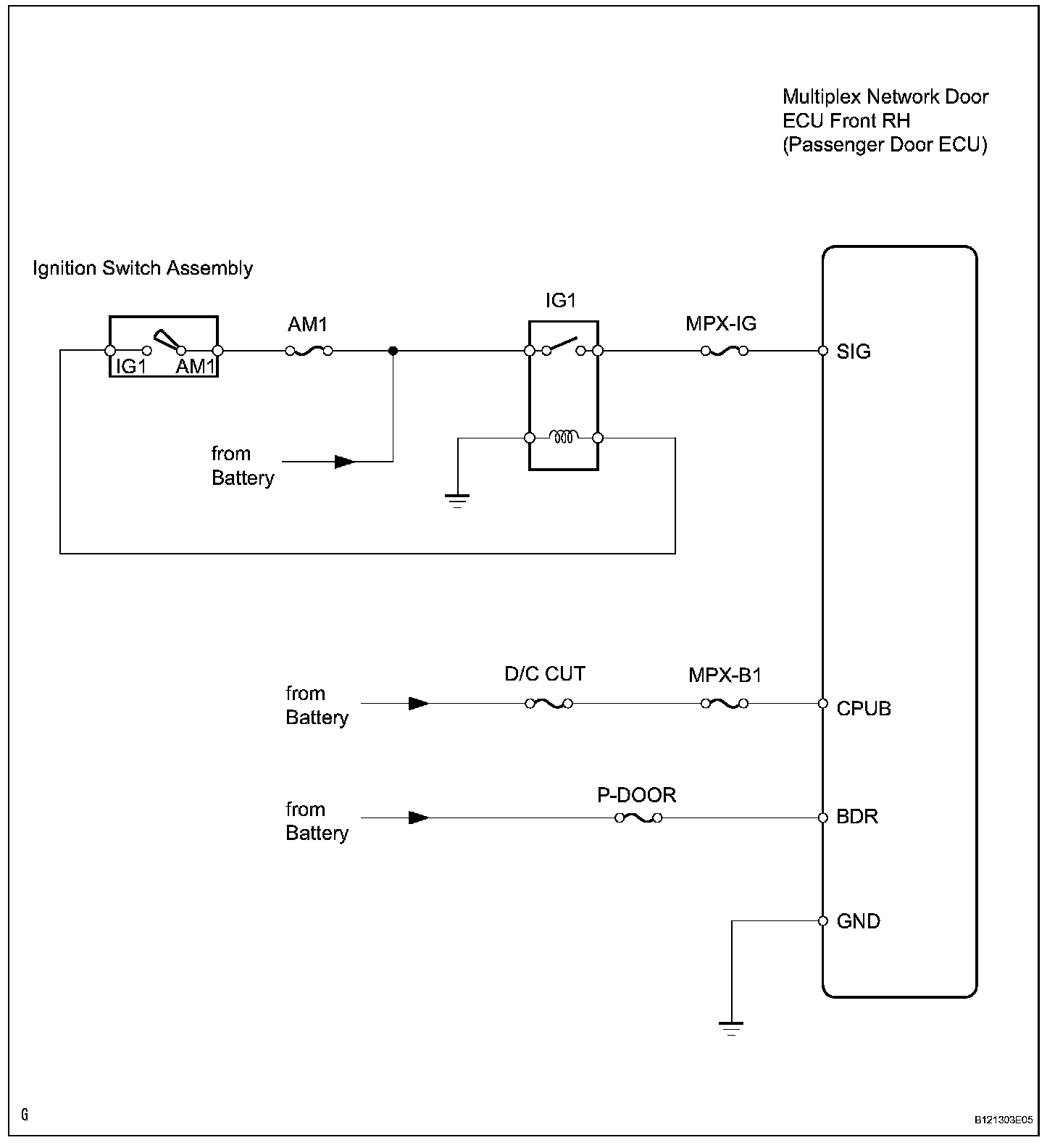

Wiring Diagram:






INSPECTION PROCEDURE

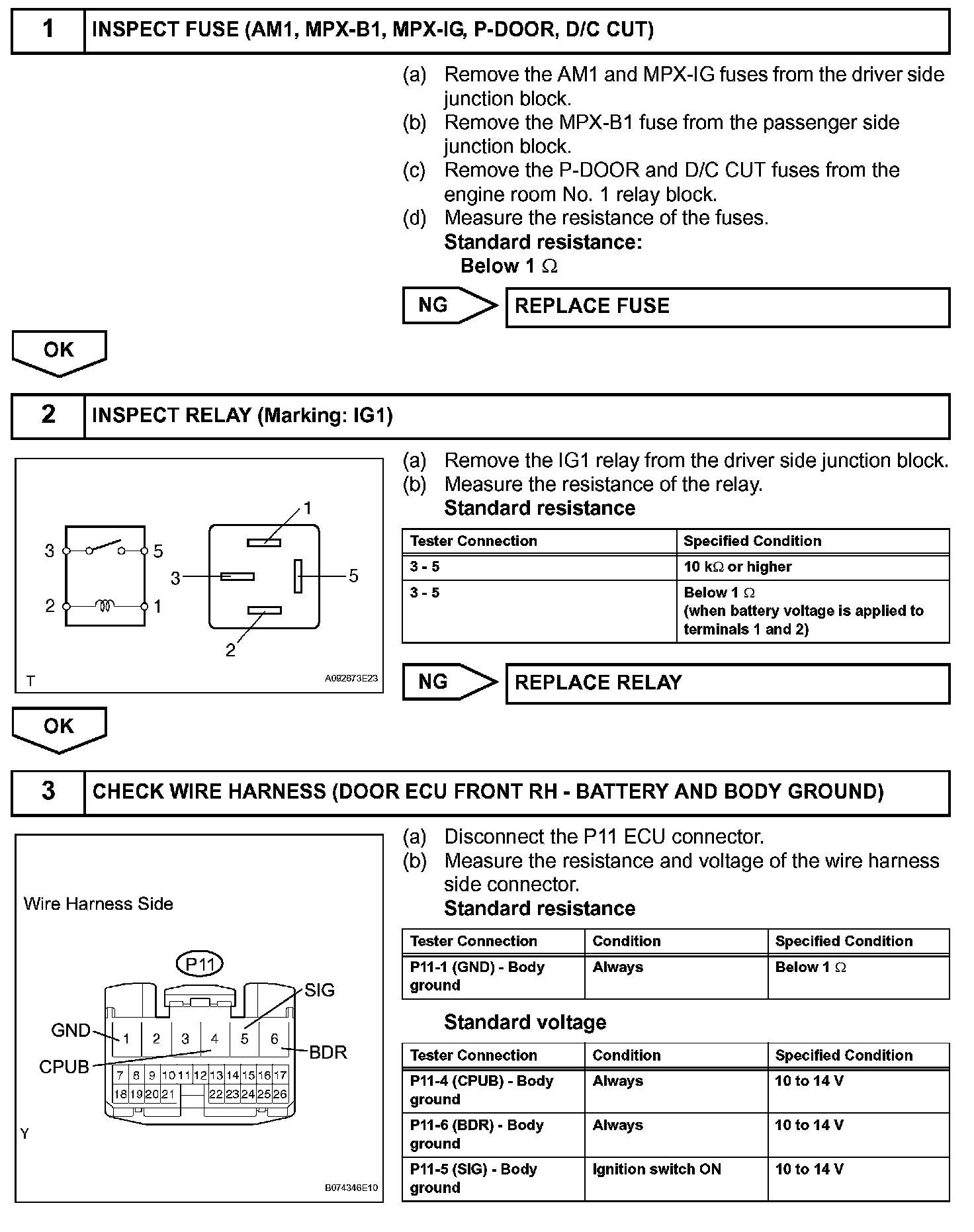

Step 1 - 3:

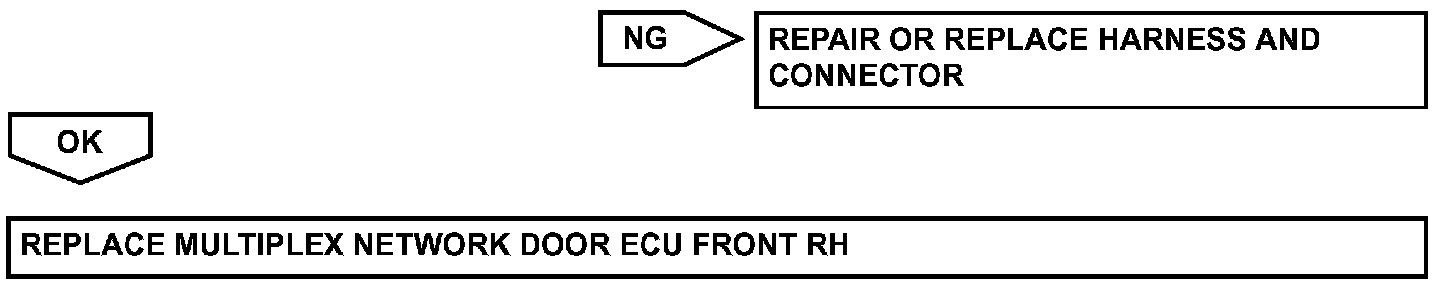

Step 3(Continued):
