Driver Door ECU Power Source Circuit

Driver Side Door ECU Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the multiplex network door ECU front LH (driver door ECU).

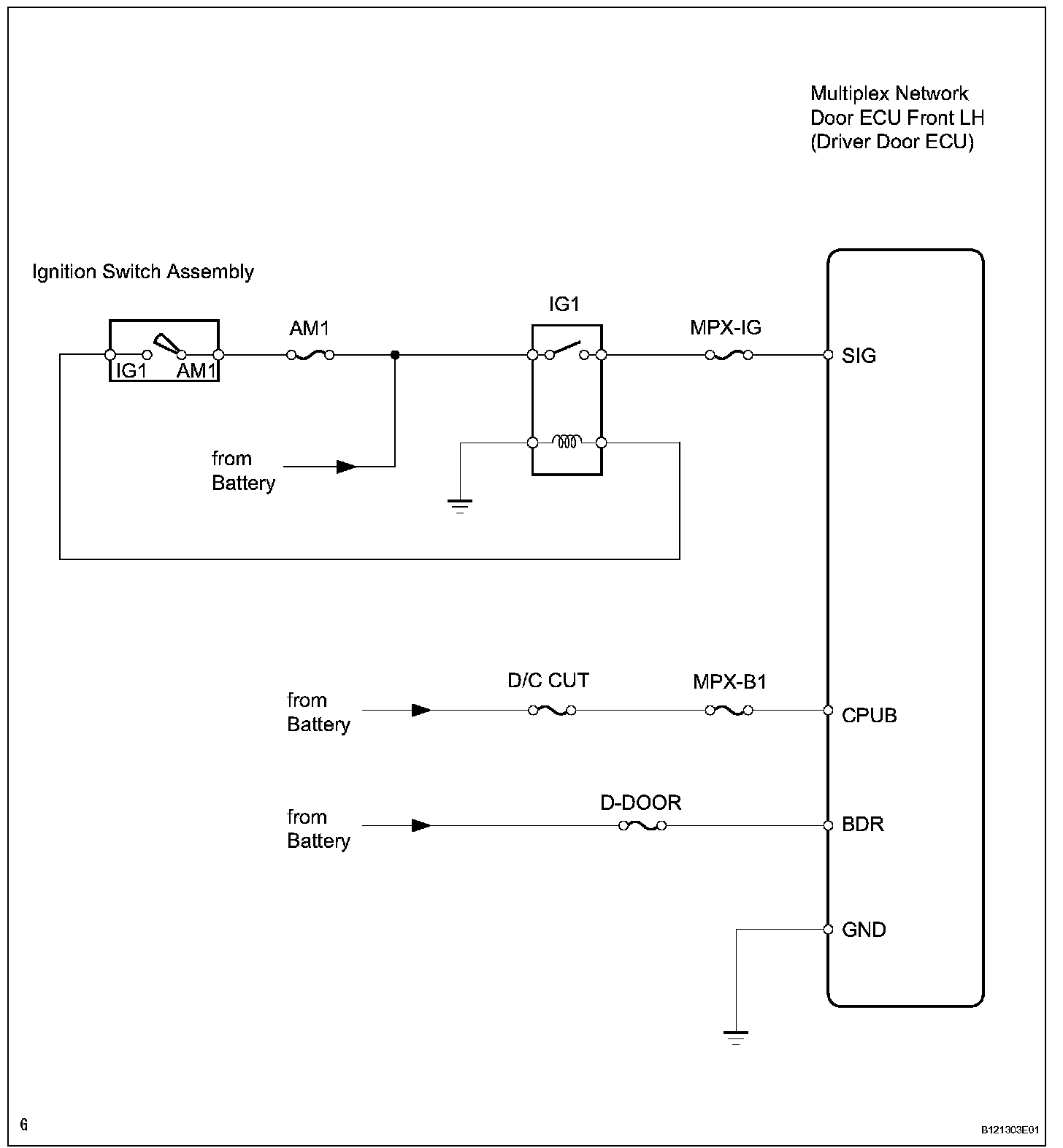

WIRING DIAGRAM

Wiring Diagram:






INSPECTION PROCEDURE

Step 1 - 3:

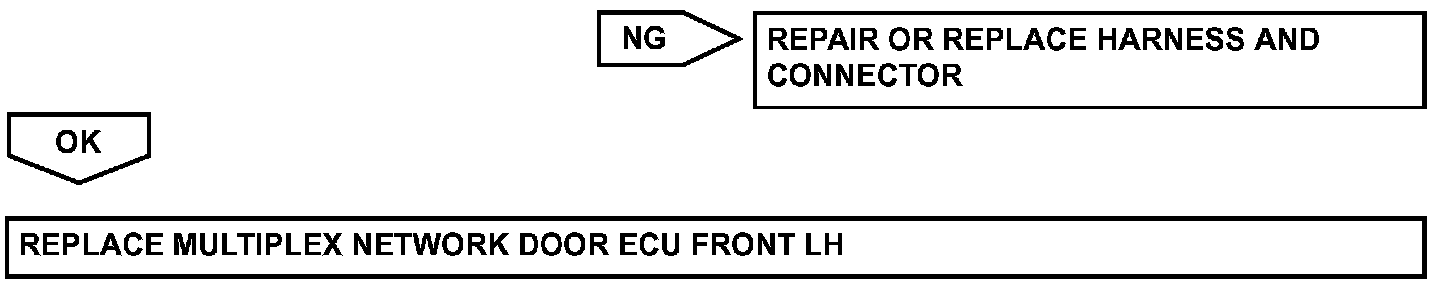

Step 3(Continued):
