Heated Glass Element Relay: Testing and Inspection

DEFOGGER RELAY

ON-VEHICLE INSPECTION

1. REMOVE DEFOGGER RELAY (Marking: DEFOG)
a. Remove the defogger relay from the luggage room junction block.

2. INSPECT DEFOGGER RELAY

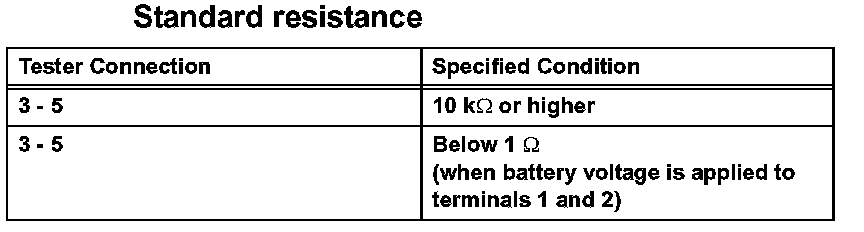

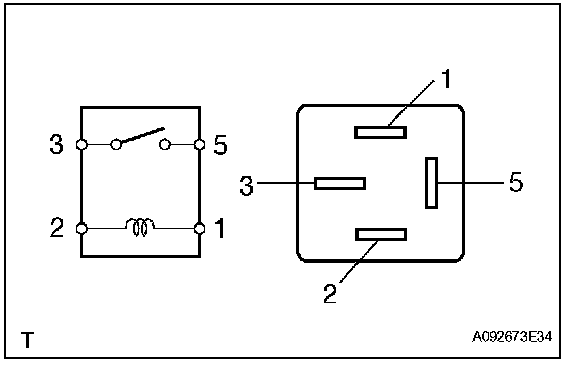

a. Measure the resistance of the relay.

If the result is not as specified, replace the relay.

3. INSTALL DEFOGGER RELAY
