Rear Window Defogger System Does Not Operate

Rear Window Defogger System Does Not Operate

DESCRIPTION
When the A/C amplifier defogger switch is pressed, a signal is sent via the BEAN line to the luggage room junction block ECU. Then the luggage room junction block ECU operates the rear window defogger.

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 3:

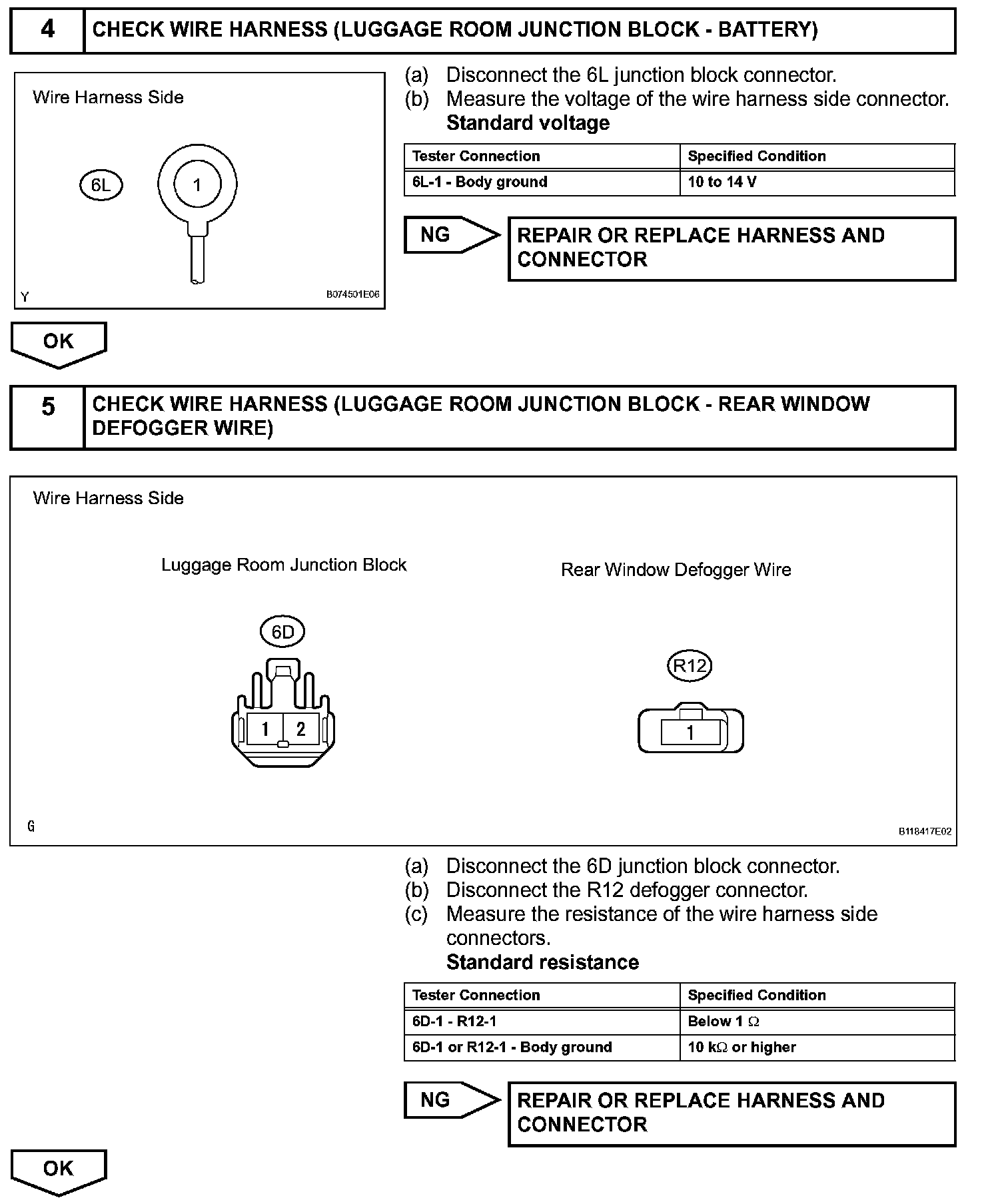

Step 4 - 5:

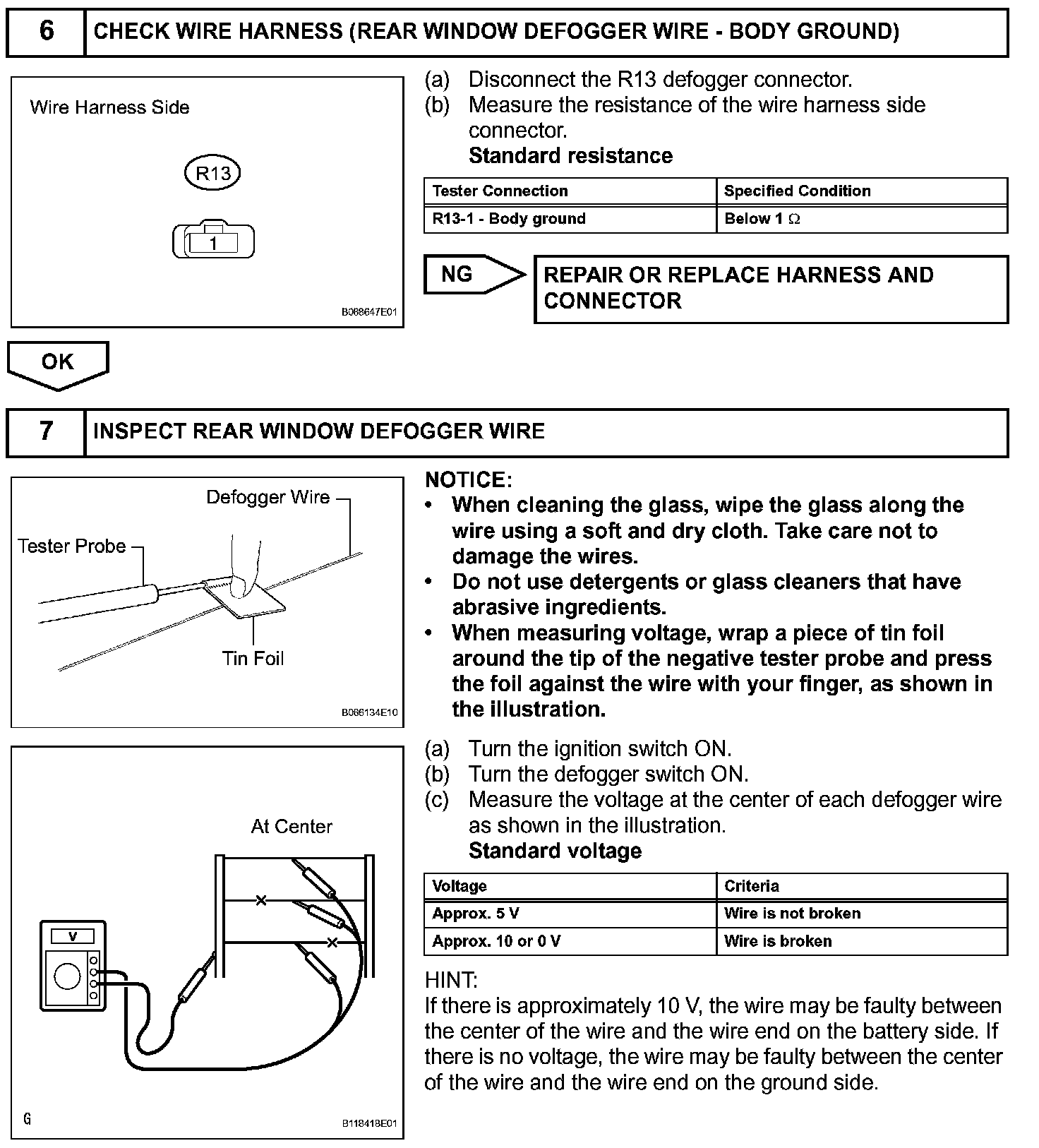

Step 6 - 7:

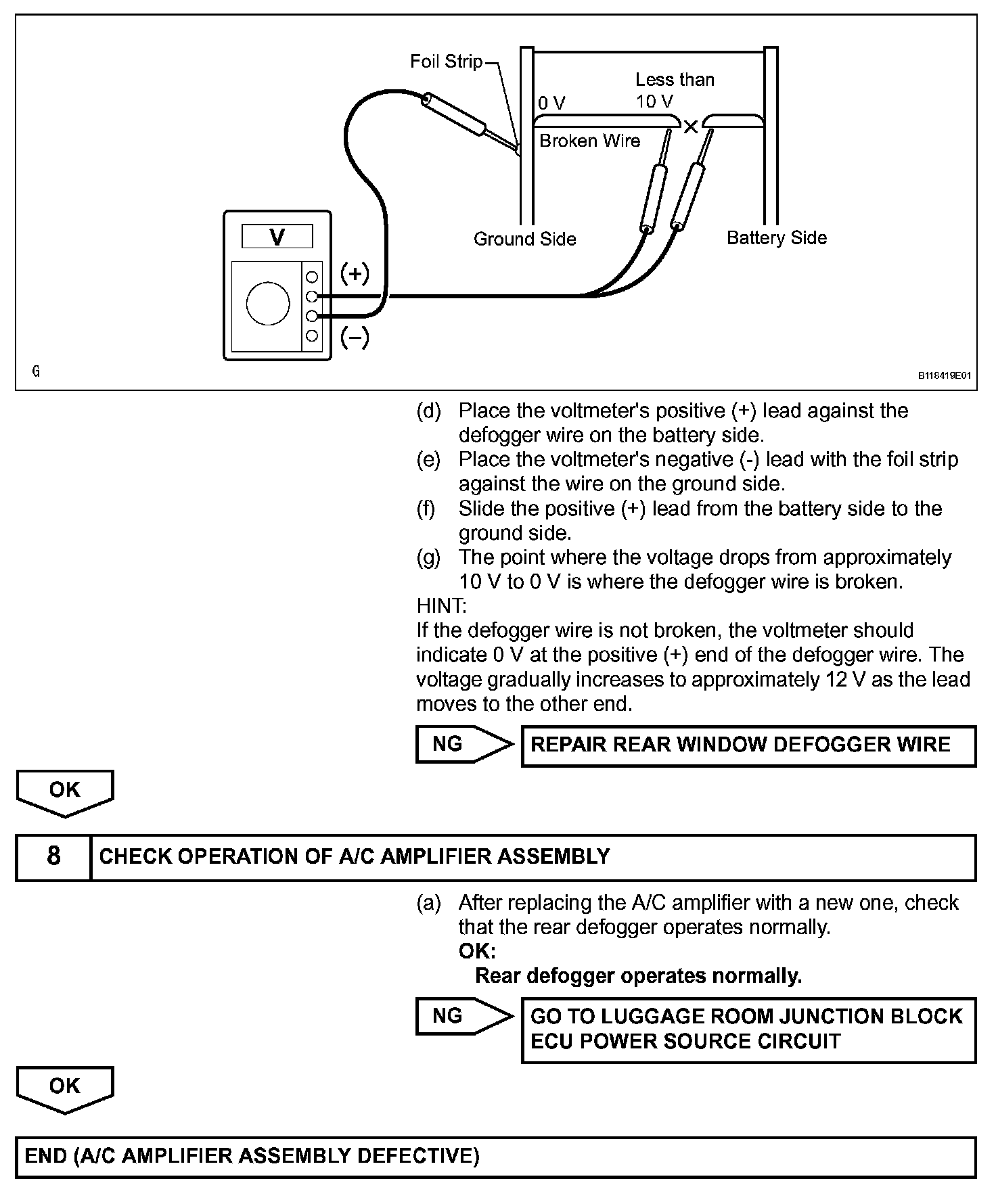

Step 7(Continued) - 8:
