Luggage Room J/B ECU Power Source Circuit

Luggage Room J/B ECU Power Source Circuit

DESCRIPTION
This circuit provides power to operate the luggage room junction block (luggage room junction block ECU).

WIRING DIAGRAM

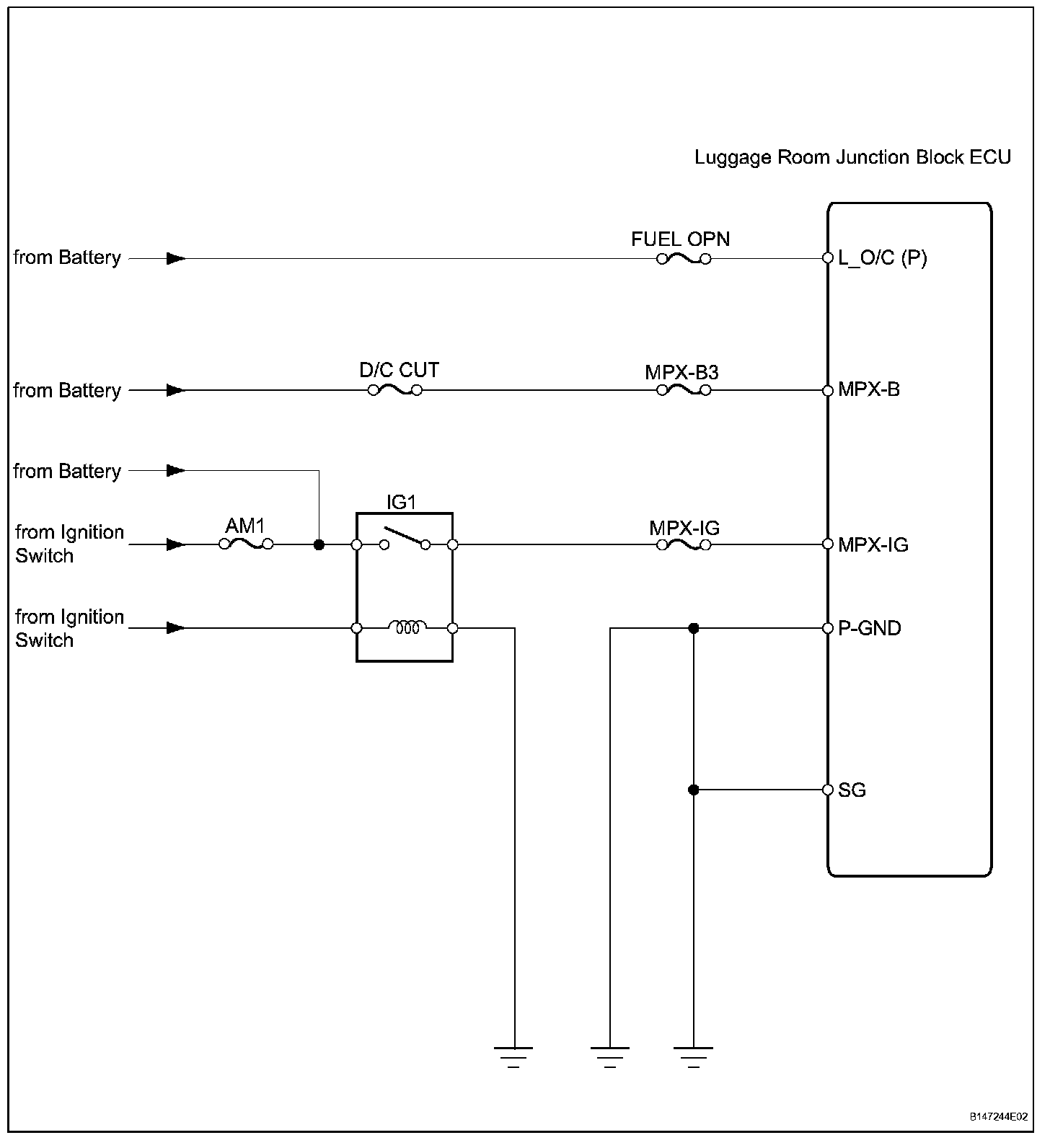

Wiring Diagram:






INSPECTION PROCEDURE

Step 1 - 2:

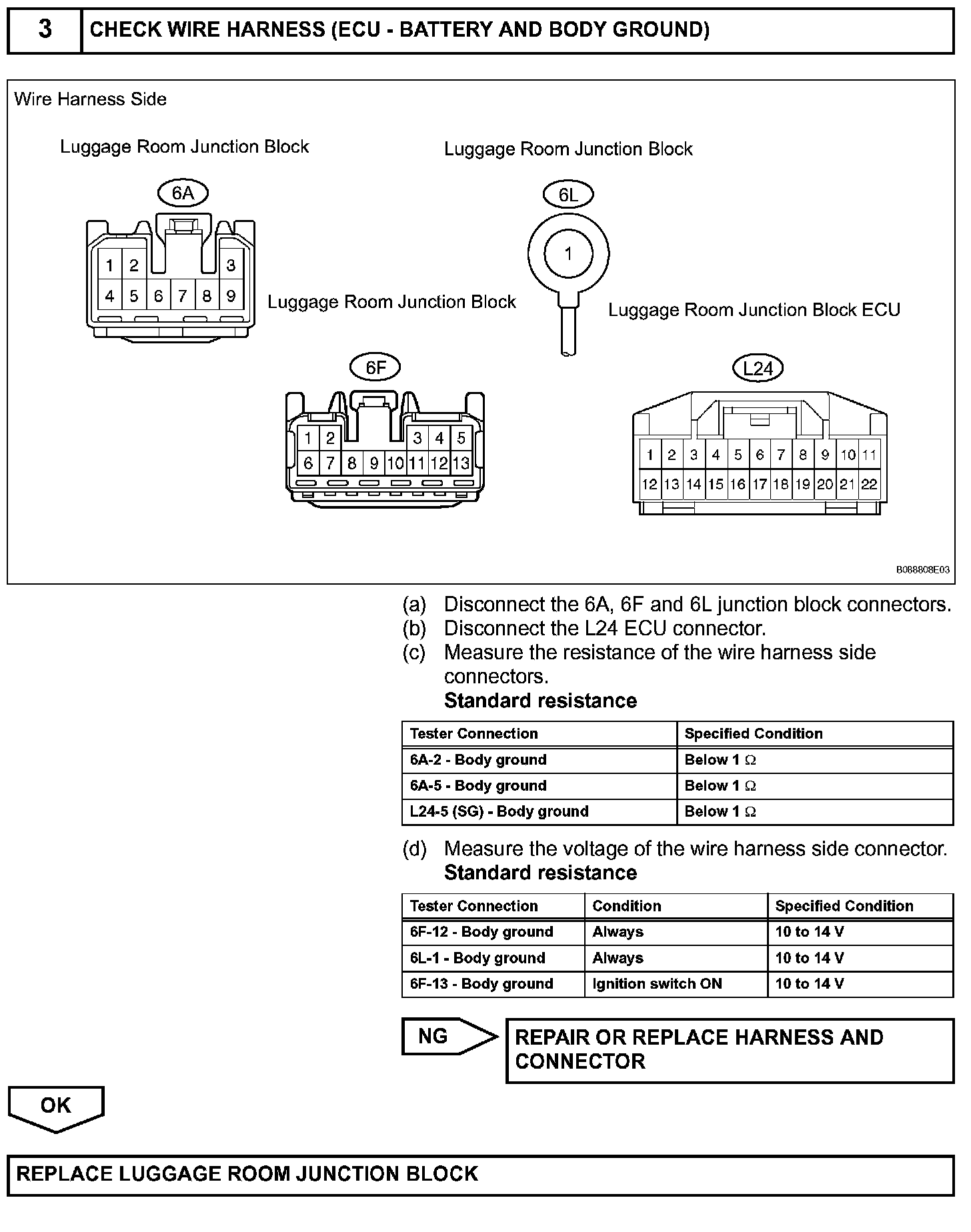

Step 3:
