Drive Axles, Bearings and Joints: Tools and Equipment

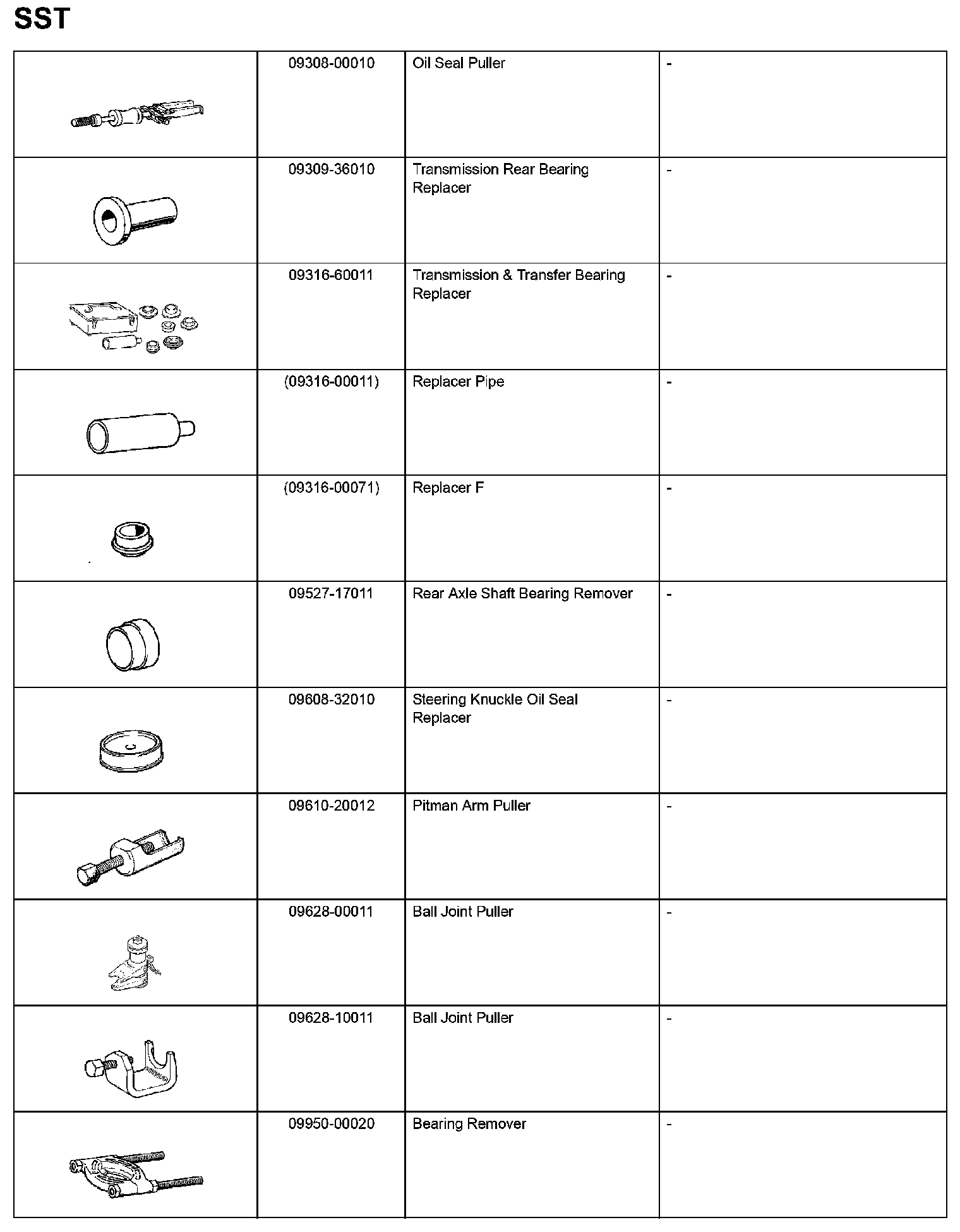

Axle - SST (Part 1):

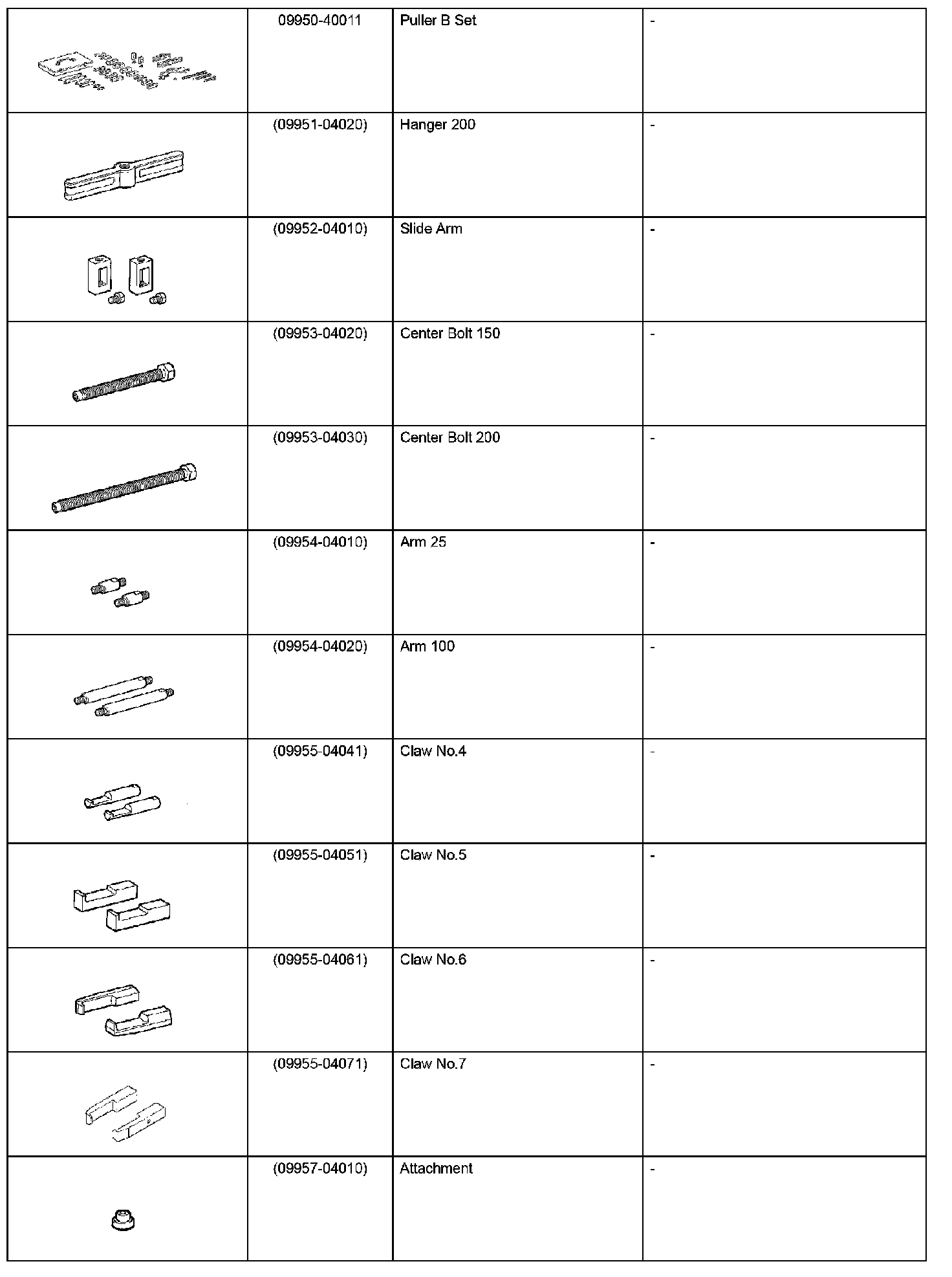

Axle - SST (Part 2):

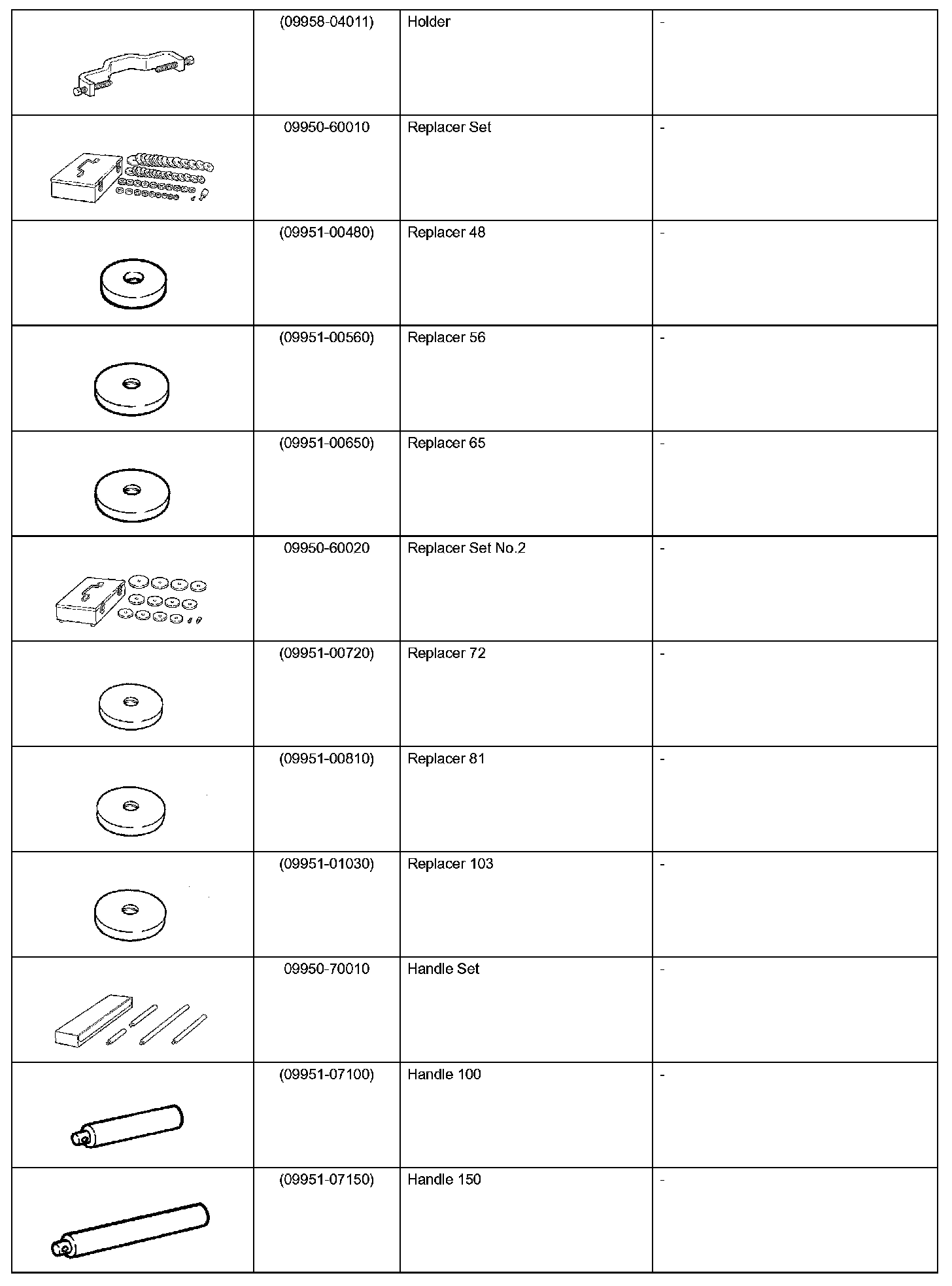

Axle - SST (Part 3):

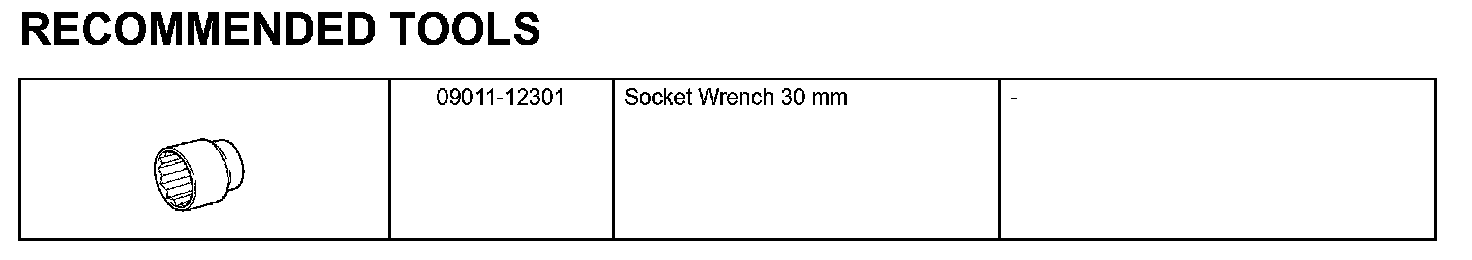

Axle - Recommended Tools:

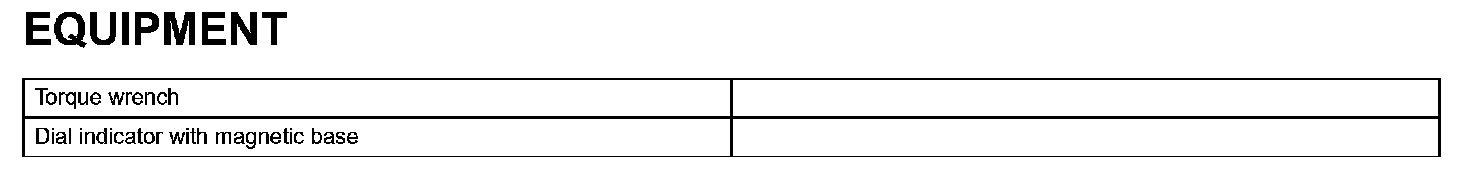

Axle - Equipment:
