How To Proceed With Troubleshooting
HOW TO PROCEED WITH TROUBLESHOOTINGHINT:
^ The ECM of this system is connected to the CAN and multiplex communication system. Therefore, before starting troubleshooting, make sure to check that there is no trouble in the CAN and multiplex communication systems.
^ *: Use the intelligent tester.

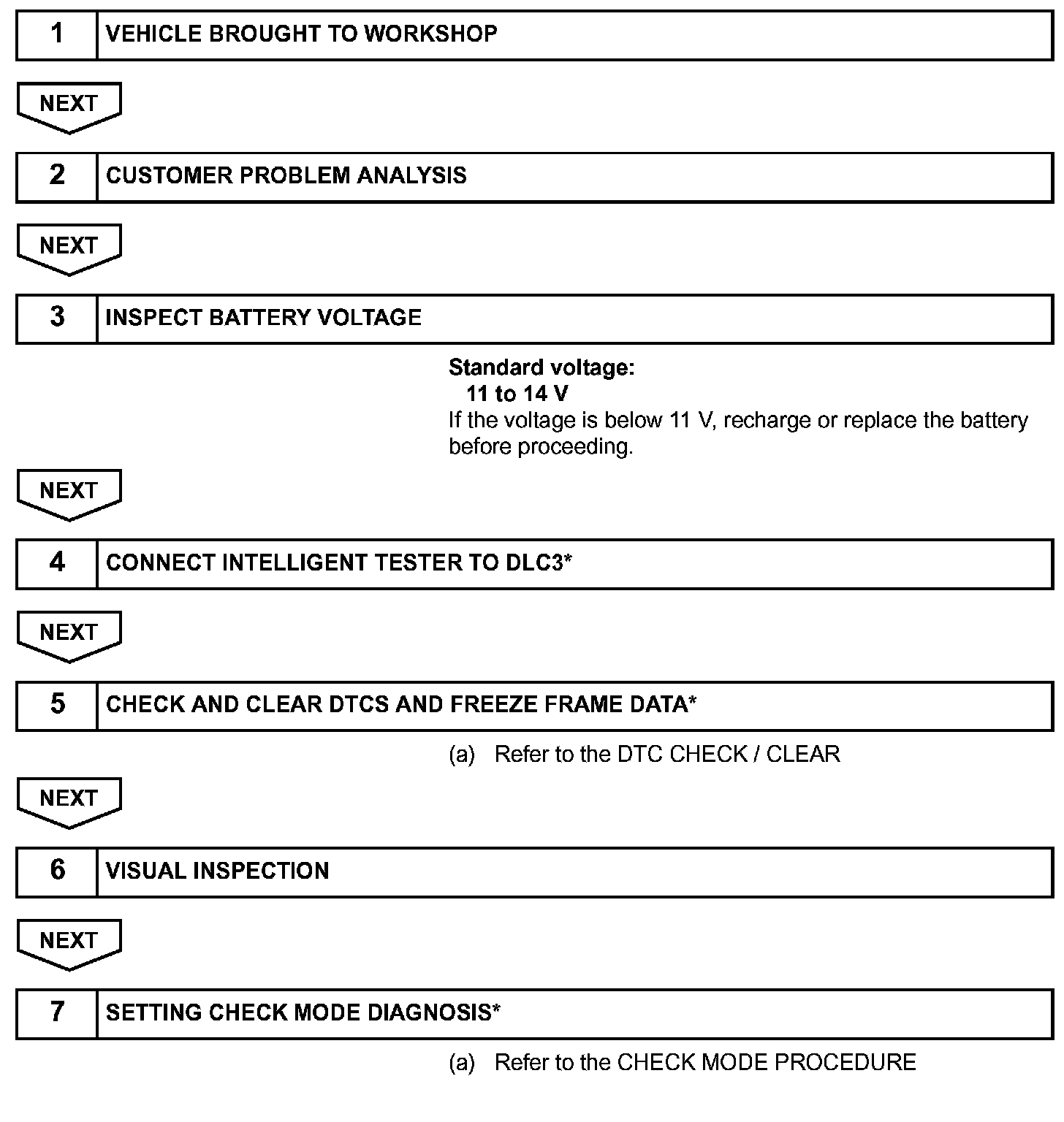

Steps 1-7(Part 1):

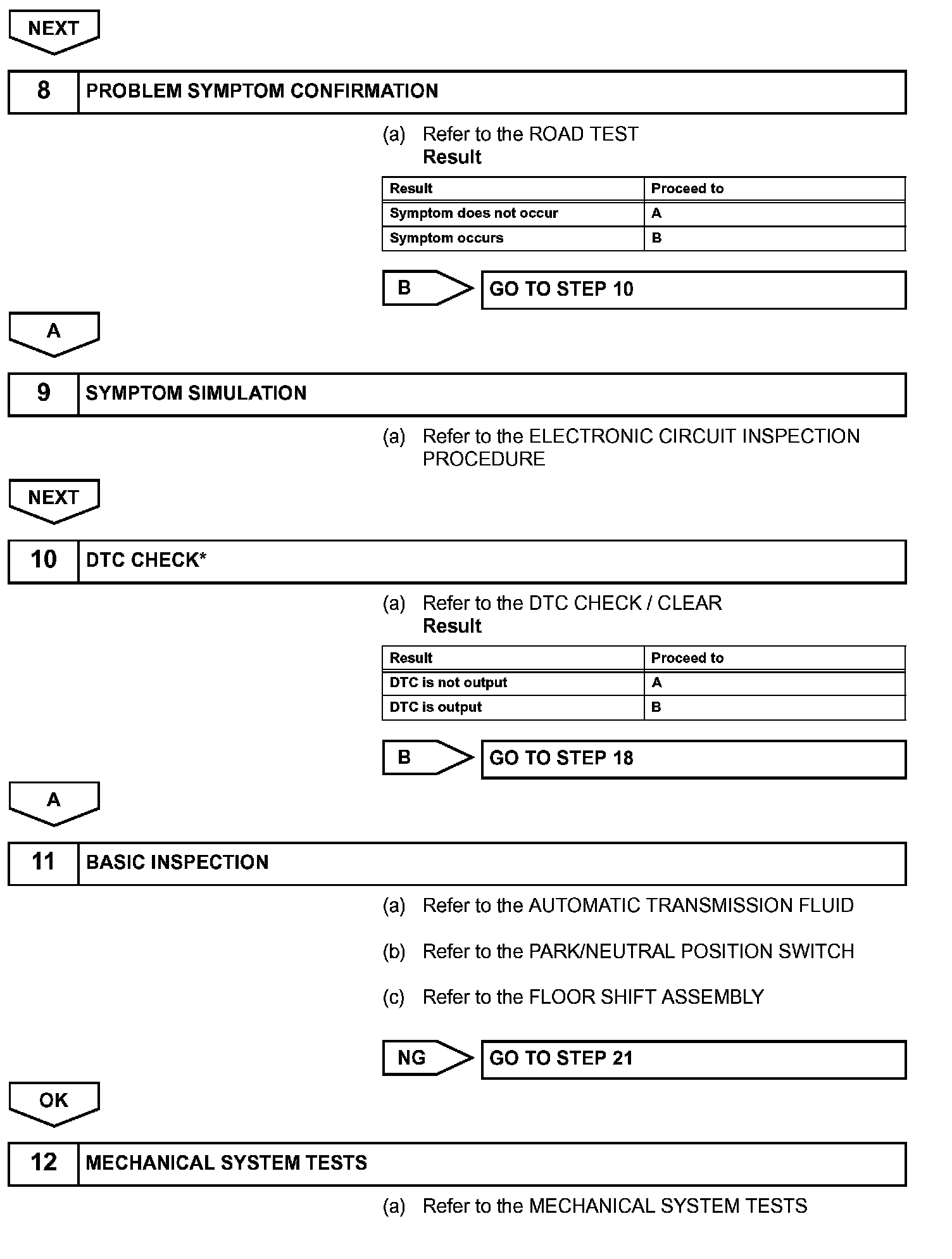

Steps 7(Part 2)-12(Part 1):
Steps 12(Part 2)-18:

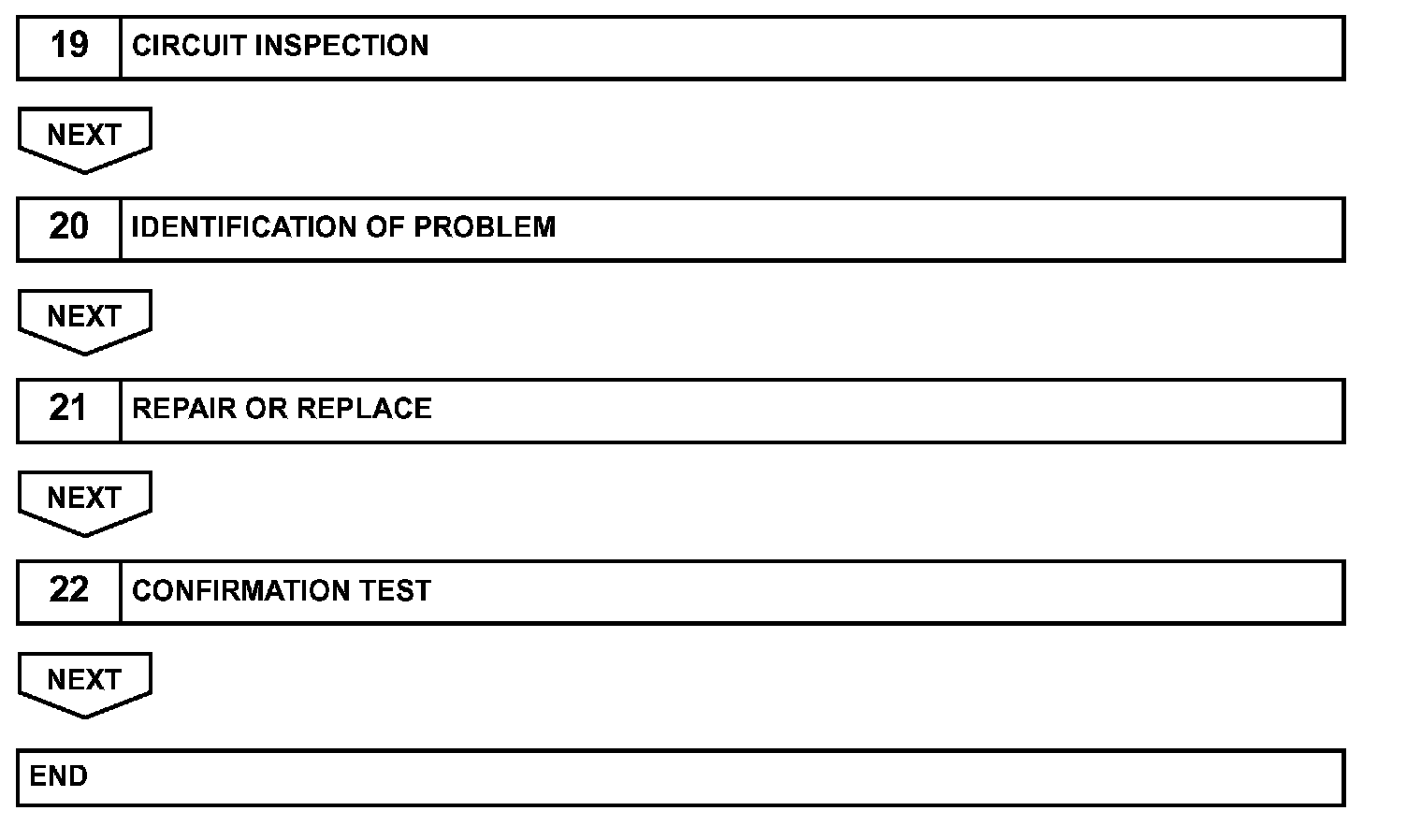

Steps 19-22:
