Transmission Control Switch Circuit

Transmission Control Switch Circuit

DESCRIPTION
When moving the shift lever into the S position using the transmission control switch, it is possible to switch the shift range position between "1" (1st range) and "6" (6th range).

Shifting to "+" once raises the shift range position by one, and shifting to "2 lowers the shift range position by one.

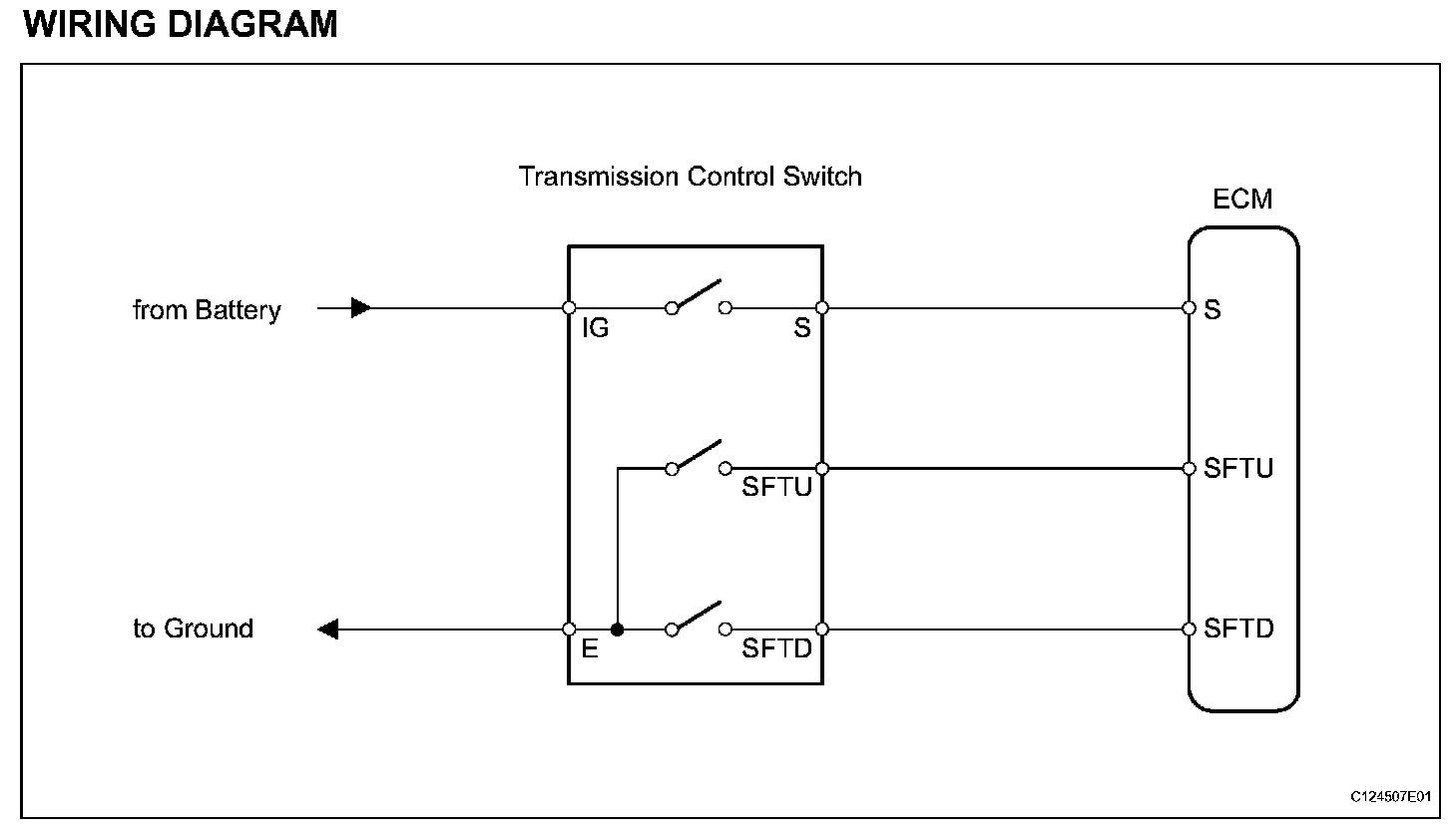

WIRING DIAGRAM:

INSPECTION PROCEDURE

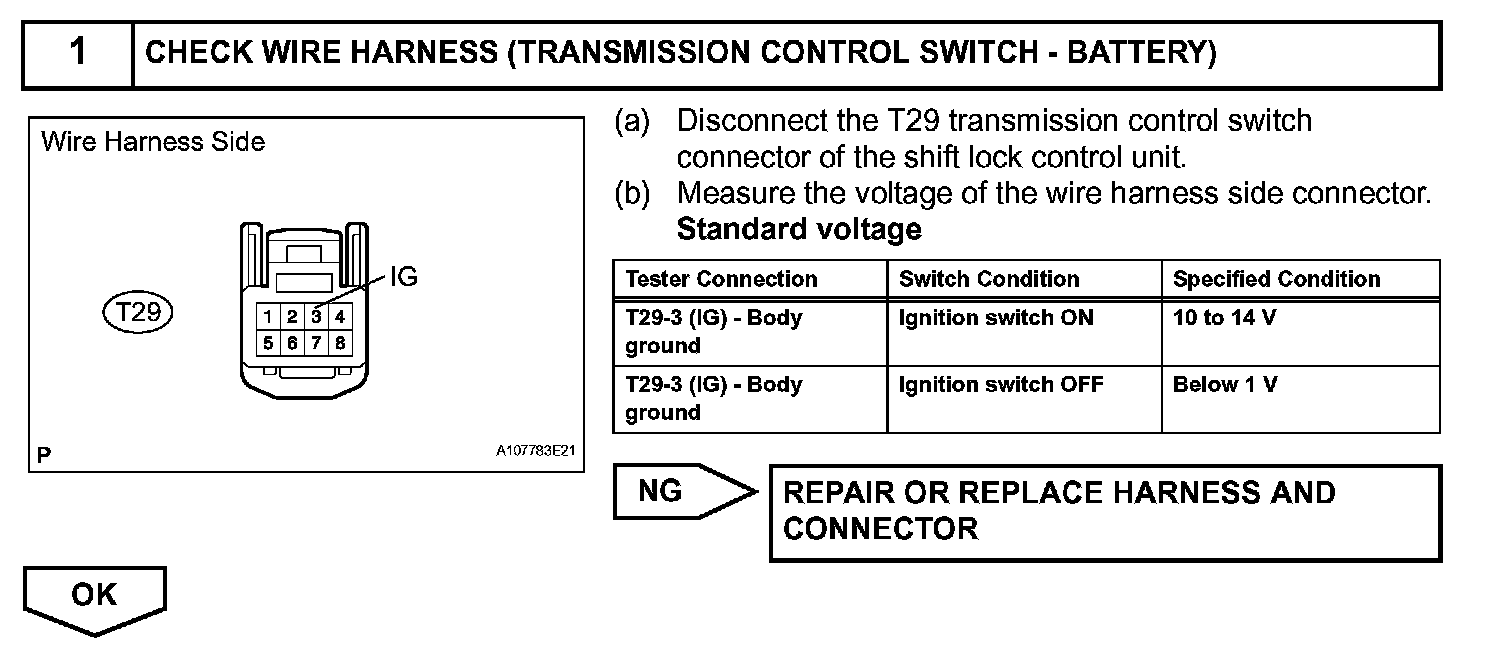

Step 1:

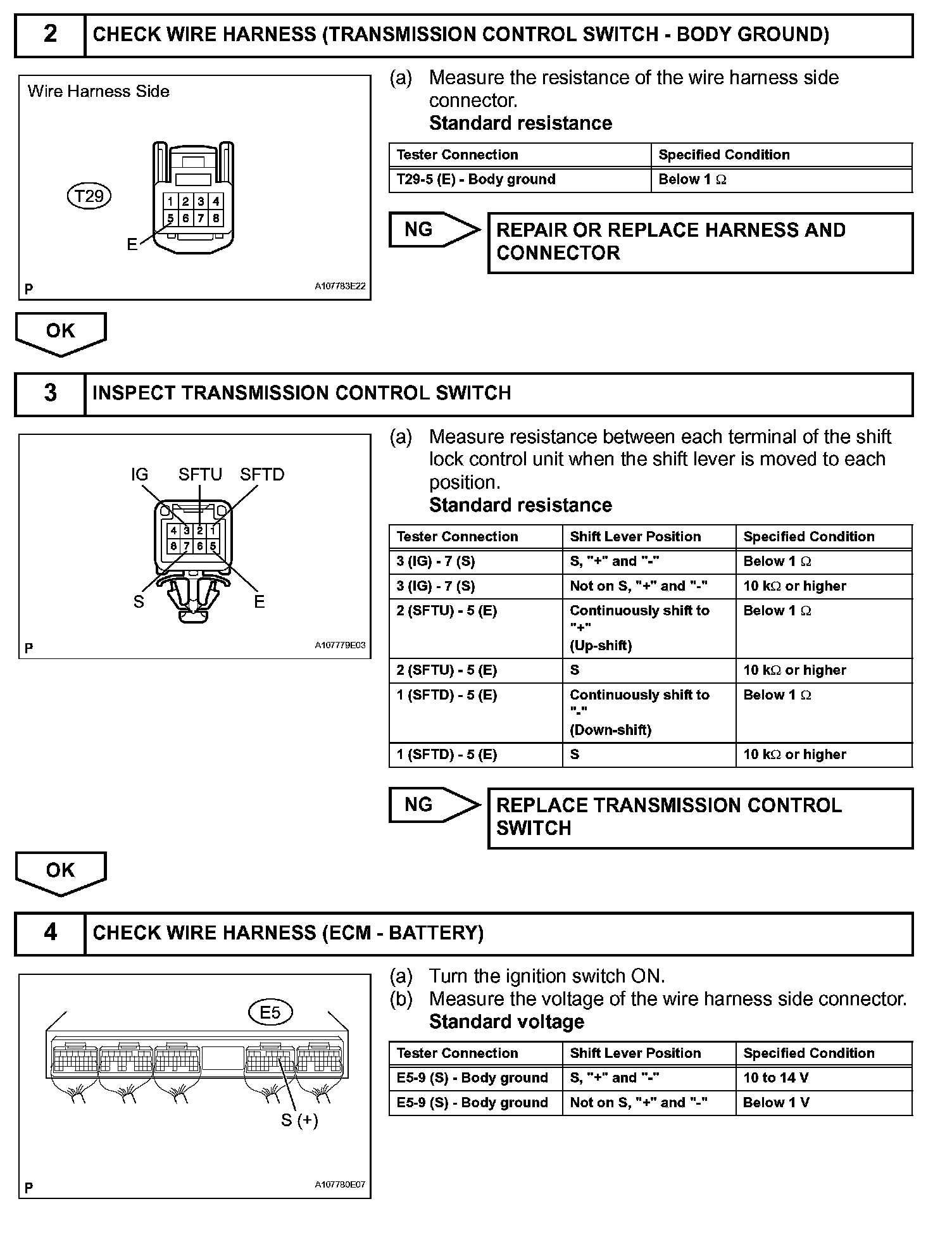

Steps 2-4(Part 1):

Step 4(Part 2):
