Pattern Select Switch Snow Mode Circuit
Pattern Select Switch Snow Mode CircuitDESCRIPTION
The passenger side junction block ECU receives pattern select switch information, and sends it through the multiplex communication system and CAN system to the ECM.
ECT SNOW is the system that operates the throttle motor to control engine output to reduce skidding of the driving wheels, and guarantee takeoff acceleration, driving straightness and turning stability.

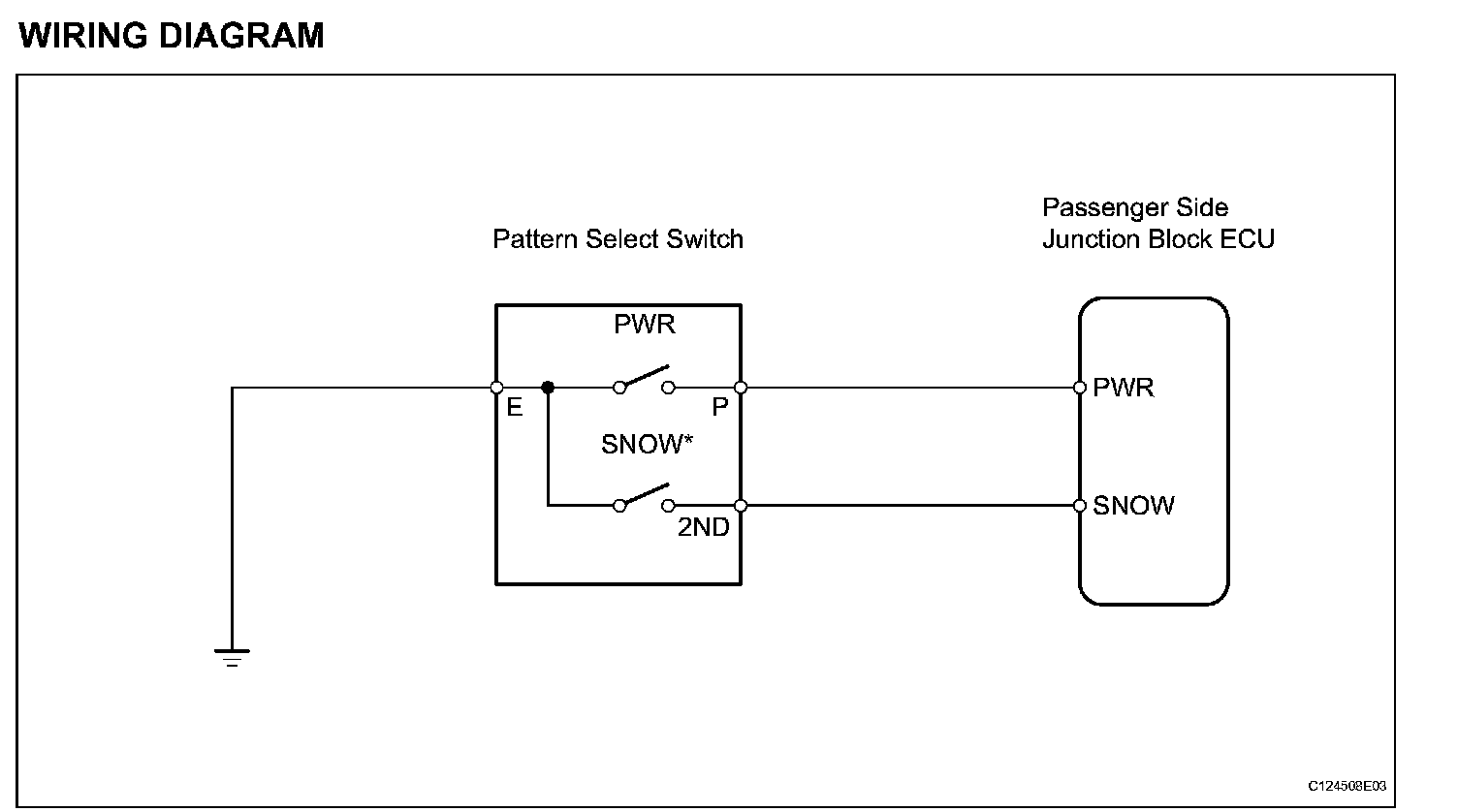

WIRING DIAGRAM:
HINT:
*: Pattern Select Switch (ECT SNOW Switch)
When the ECT SNOW switch is pushed, the switch contact is made and the ECT SNOW mode is selected.
To cancel the ECT SNOW mode, push the ECT SNOW switch again.
The ECT SNOW mode is automatically canceled when the ignition switch is turned OFF.
INSPECTION PROCEDURE

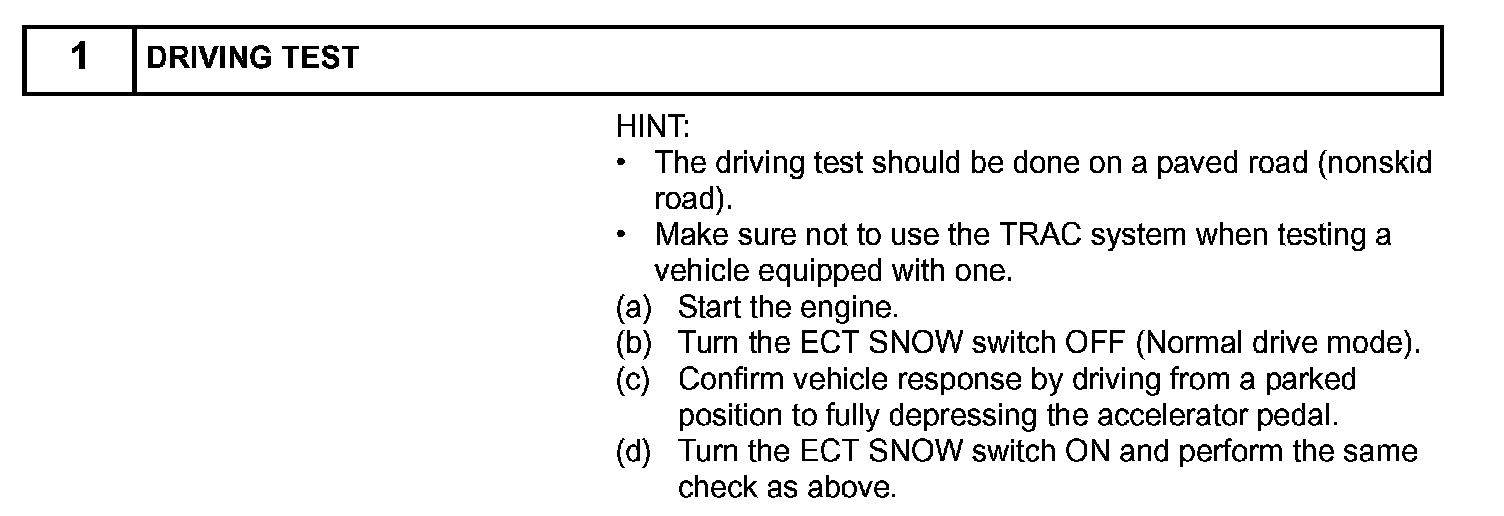

Step 1(Part 1):

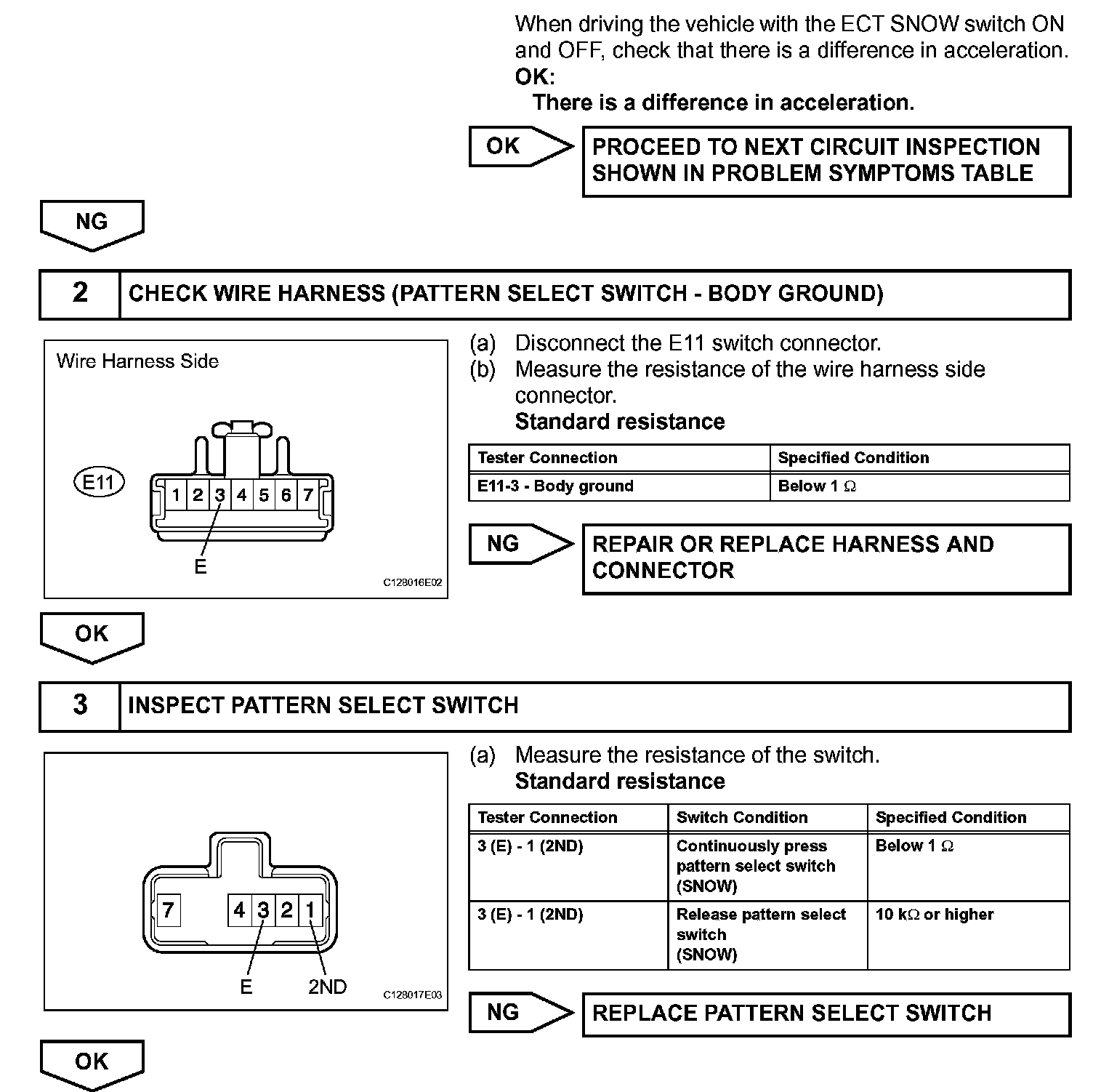

Steps 1(Part 2)-3:

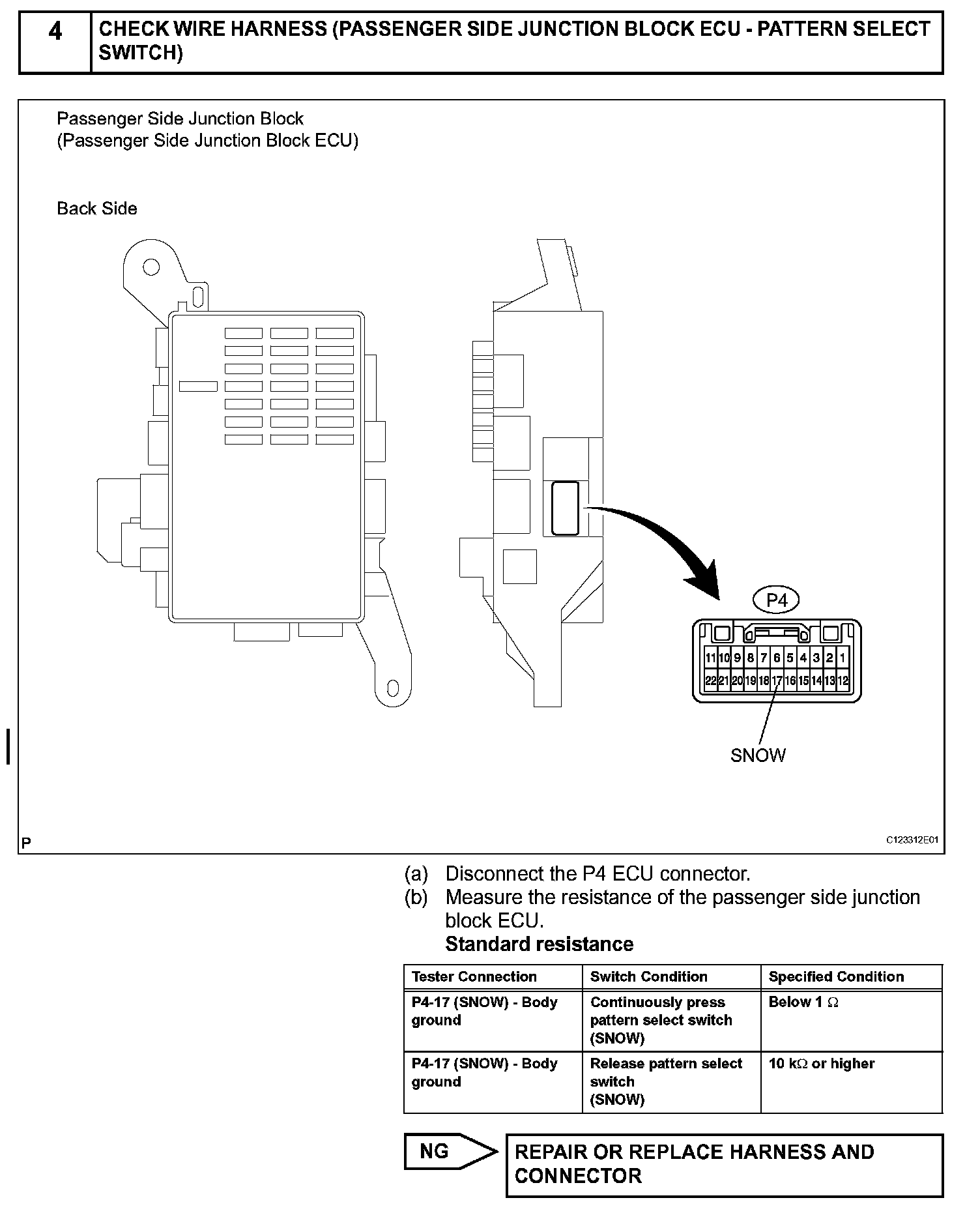

Step 4(Part 1):
