Park/Neutral Position Switch Inspection

INSPECTION

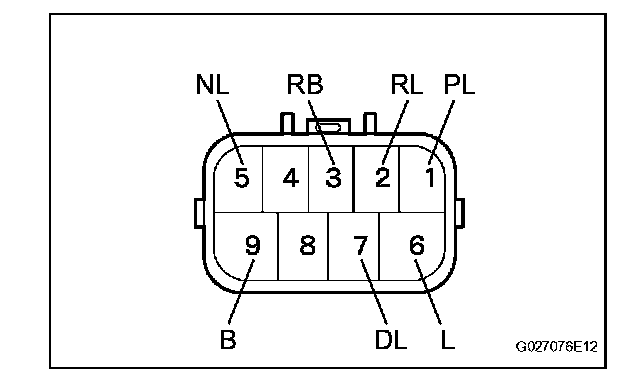

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
(a) Measure the resistance of the park/neutral position switch when the shift lever is moved to each position.

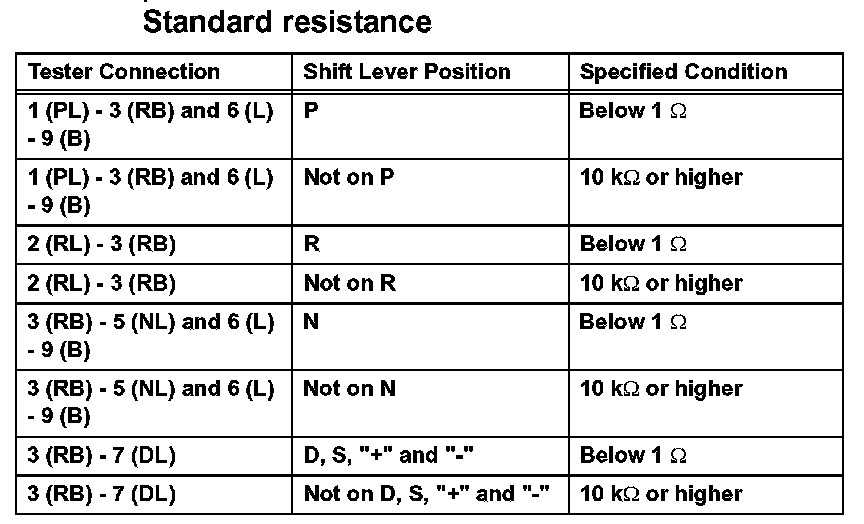

Standard resistance:
