Canada - A/T - A/T Fluid Level Inspection Temperature Ranges
BulletinL-TCI-2965
Issue Date
August 31, 2011
Title:
AUTOMATIC TRANSMISSION/TRANSAXLE FLUID LEVEL INSPECTION TEMPERATURE RANGES
Service Category
Drivetrain
Section
Automatic Transmission/Transaxle
Market
Canada

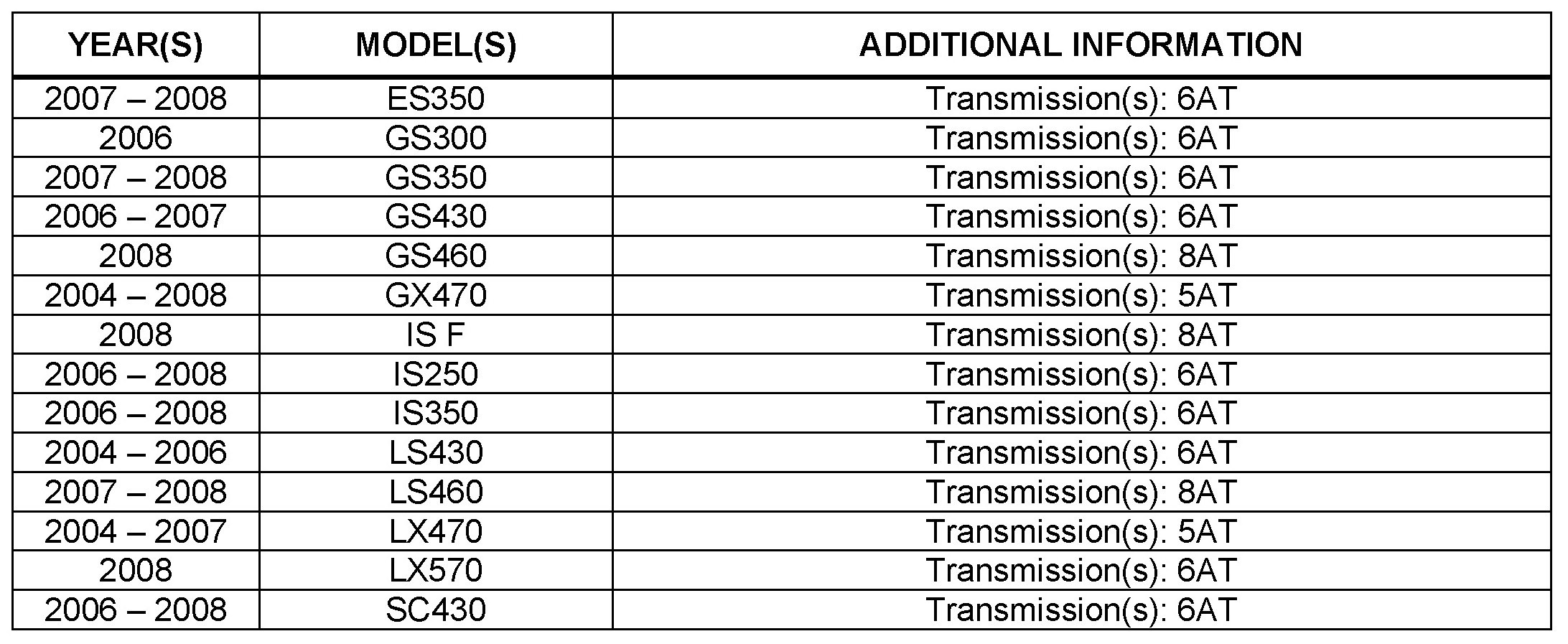

APPLICABILITY:
INTRODUCTION:
For vehicles equipped with a transmission requiring the use of the overflow type automatic transmission fluid (ATF) inspection process, the ATF must be within a specific temperature range for accurate fluid level inspection. Inspecting the ATF outside of the specified temperature range may result in incorrect ATF fluid levels and could lead to shift quality, M.I.L. "ON", and/or transmission damage issues. Please see the information in this bulletin for updated ATF level inspection temperature ranges.
HINT
For additional information including animations and video illustrations, please see the Technical Training course 0B1A-OL: "ATF Level Inspection".
NOTE
Please see TSB No. L-TCI-2955, "World Standard Automatic Transmission Fluid", for important tips when working with ATF WS.
PARTS INFORMATION:

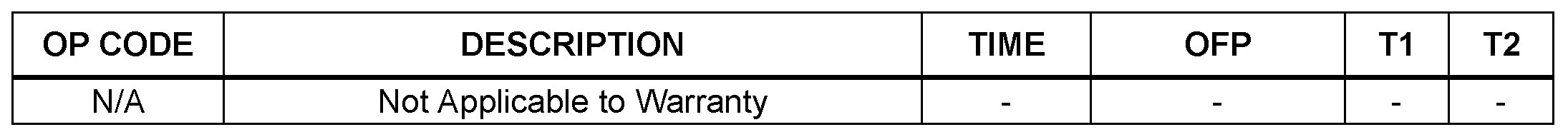

WARRANTY INFORMATION:
REQUIRED TOOLS & EQUIPMENT:

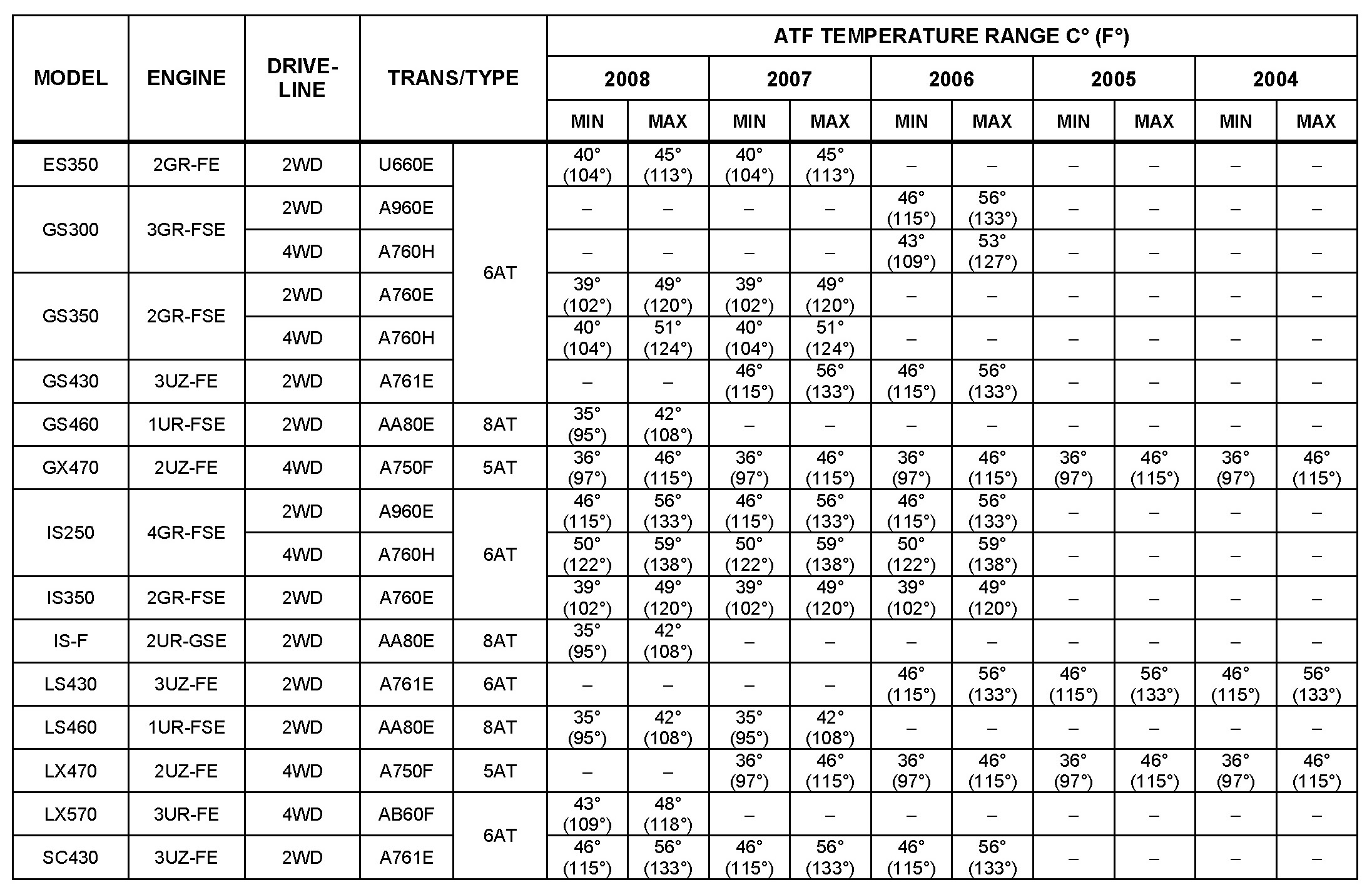

ATF LEVEL INSPECTION TEMPERATURE RANGE TABLE:
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available.
IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
