A/T - Fluid Level Inspection/Temperature Ranges
L-SB-0023-09March 4, 2009
Automatic Transmission/Transaxle Fluid Level Inspection Temperature Ranges
Service Category
Drivetrain
Section
Automatic Transmission/Transaxle
Market
USA

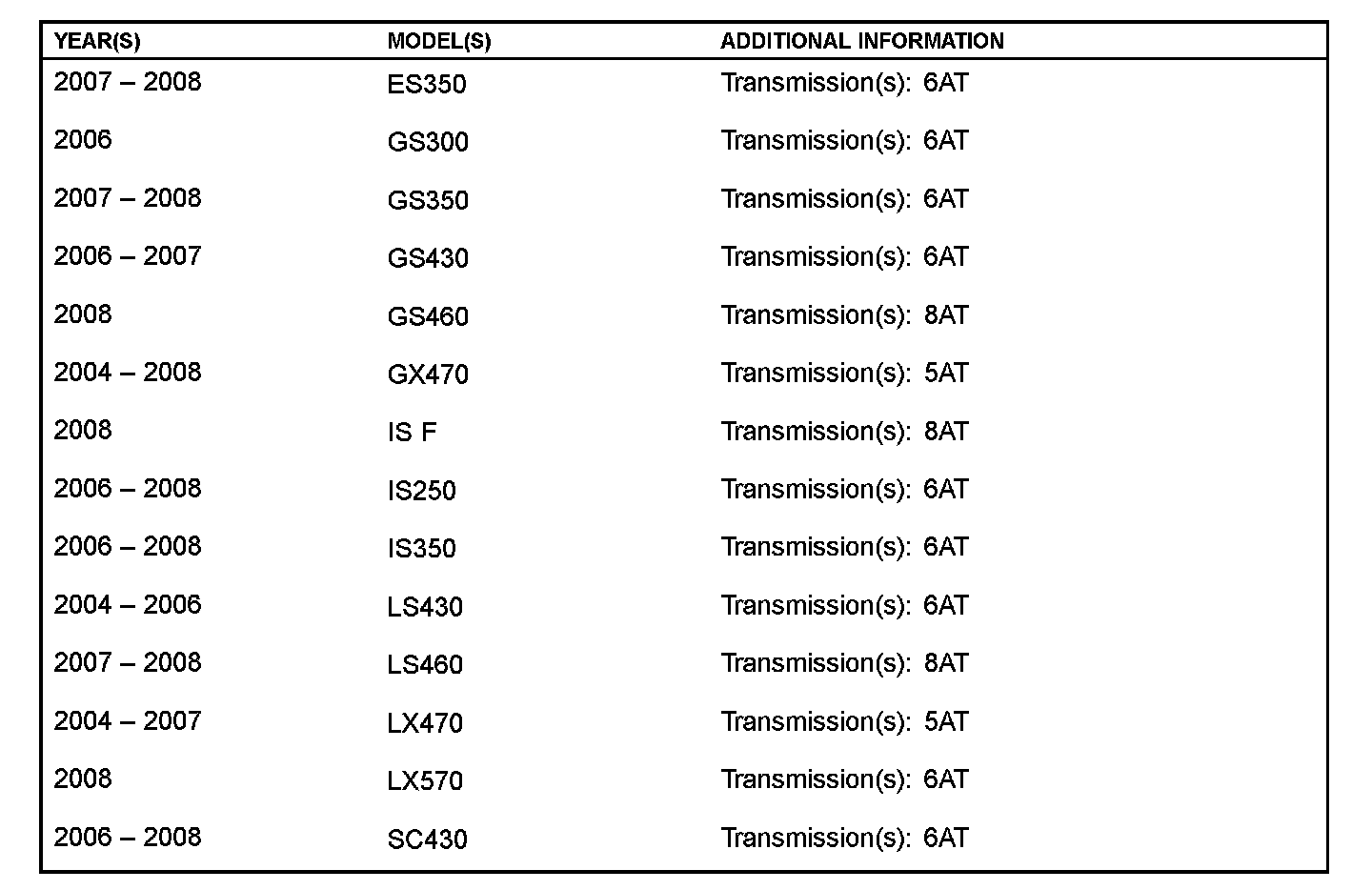

Applicability
Introduction
For vehicles equipped with a transmission requiring the use of the overflow type automatic transmission fluid (ATF) inspection process the ATF must be within a specific temperature range for accurate fluid level inspection. Inspecting the ATF outside of the specified temperature range may result in incorrect ATF fluid levels and could lead to shift quality M.I.L. "ON" and/or transmission damage issues. Please see the information in this bulletin for updated ATF level inspection temperature ranges.
HINT
For additional information including animations and video illustrations, please see the Technical Training course L076: "Lexus ATF Level Inspection".
NOTE
Please see TSIB No. TC008-07, "World Standard Automatic Transmission Fluid", for important tips when working with ATF WS.

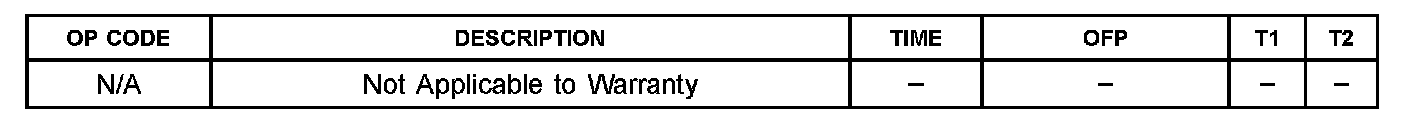

Warranty Information

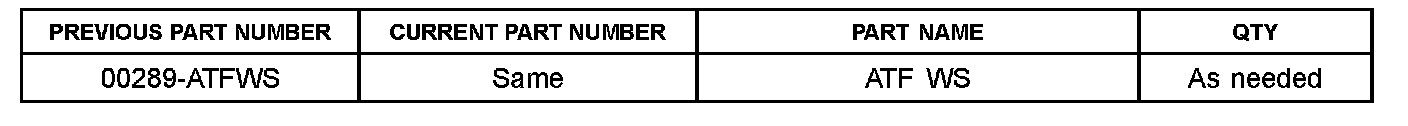

Parts Information

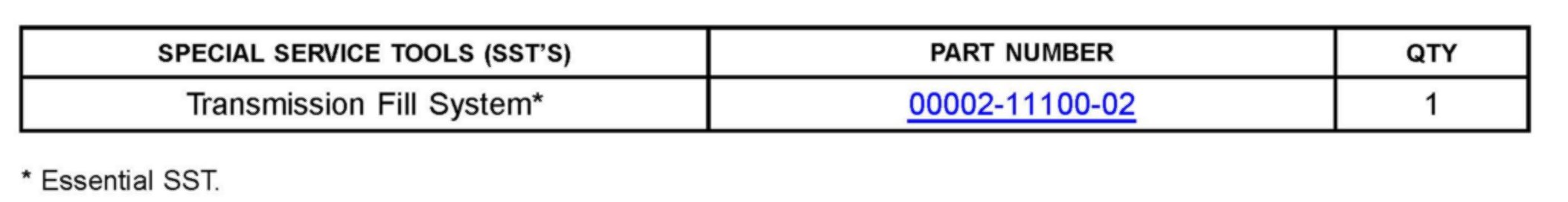

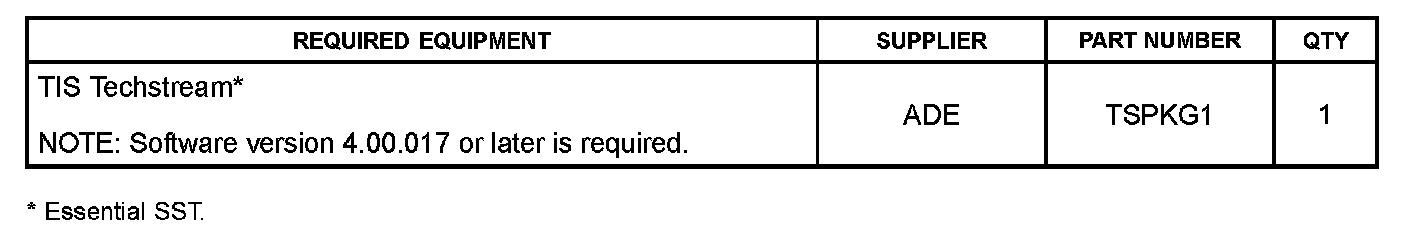

Required Tools & Equipment
Additional TIS Techstream units may be ordered by calling Approved Dealer Equipment (ADE).
NOTE
Additional SSTs may be ordered by calling 1-800-933-8335.

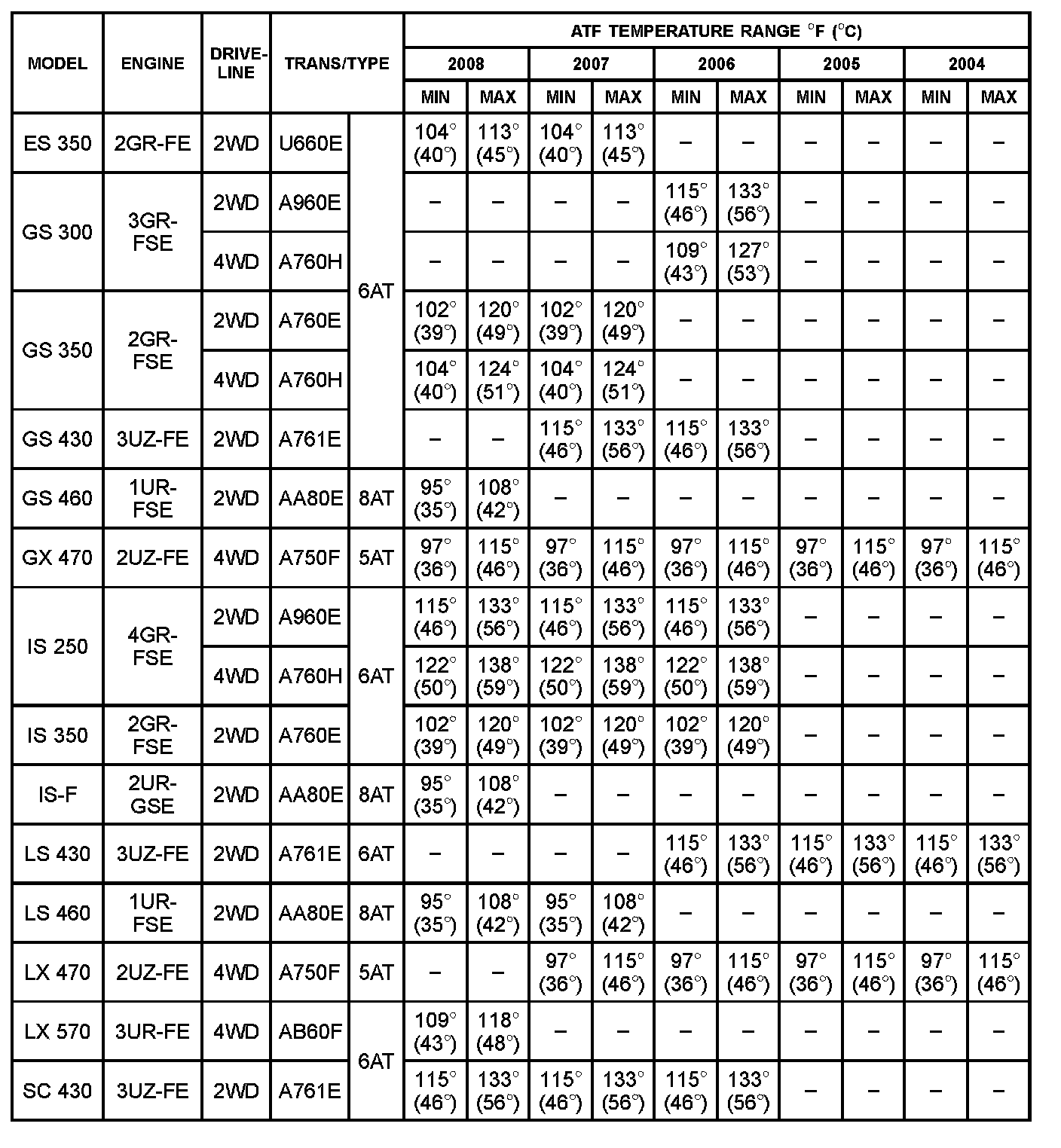

ATF Level Inspection Temperature Range Table
