Part 2

DISASSEMBLY(continued)

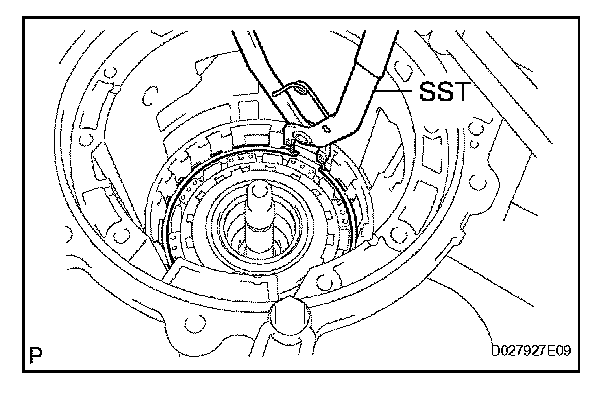

36. INSPECT 2ND BRAKE DISC SET

37. REMOVE 2ND BRAKE PISTON HOLE SNAP RING
(a) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)

38. REMOVE 1-WAY CLUTCH ASSEMBLY

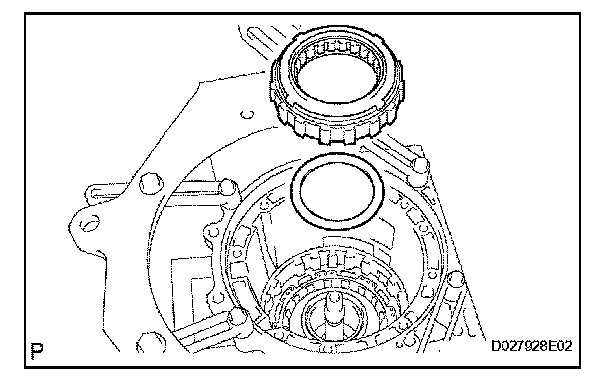

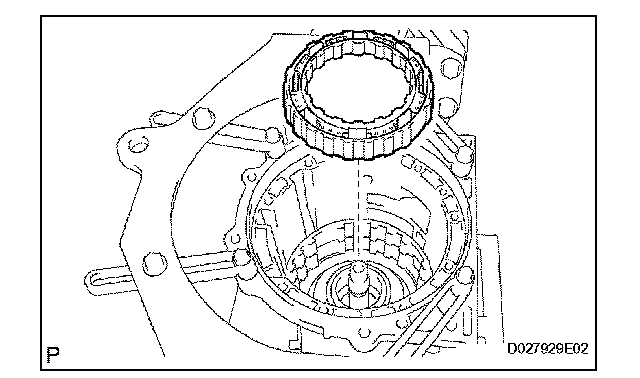

(a) Remove the 1-way clutch and planetary carrier thrust washer from the transmission case.

39. REMOVE 2ND BRAKE CYLINDER
(a) Remove the brake cylinder from the transmission case.

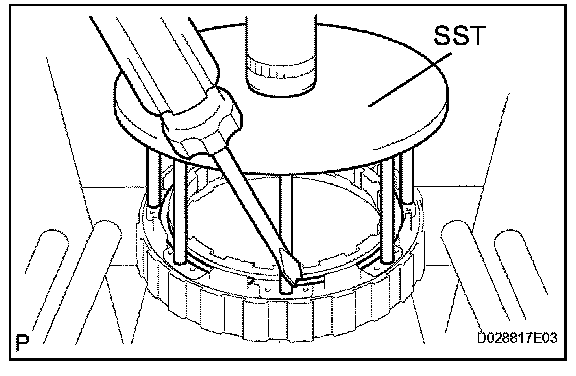

40. REMOVE 2ND BRAKE PISTON

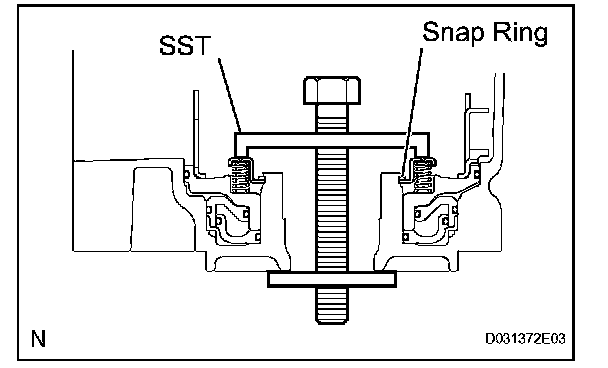

(a) Using SST and a press, compress the return spring and remove the brake piston snap ring.
SST 09351-40010 (09351-04060, 09351-04070)
(b) Remove the brake piston return spring.

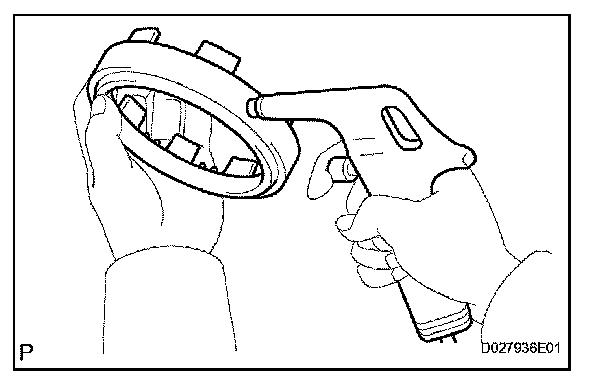

(c) Hold the 2nd brake piston and apply compressed air (392 kPa, 4.0 kgf/cm2, 57 psi) to the 2nd brake cylinder to remove the 2nd brake piston.

(d) Remove the 2 O-rings from the 2nd brake piston.
41. INSPECT NO. 3 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

42. REMOVE FRONT PLANETARY GEAR ASSEMBLY

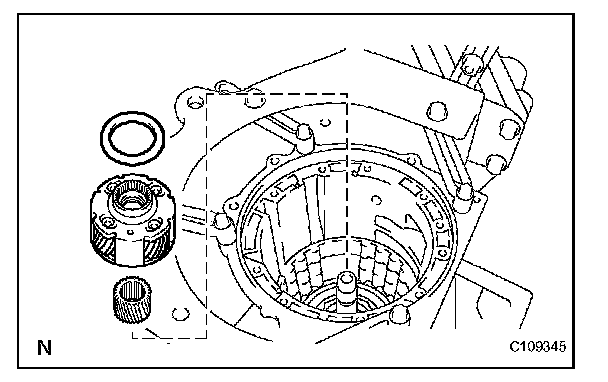

(a) Remove the front planetary gear and 1-way clutch inner race from the transmission case.

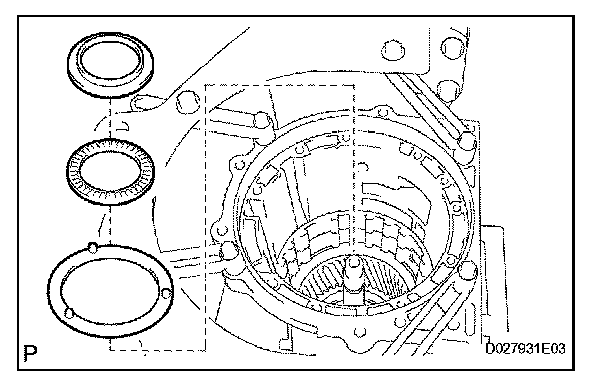

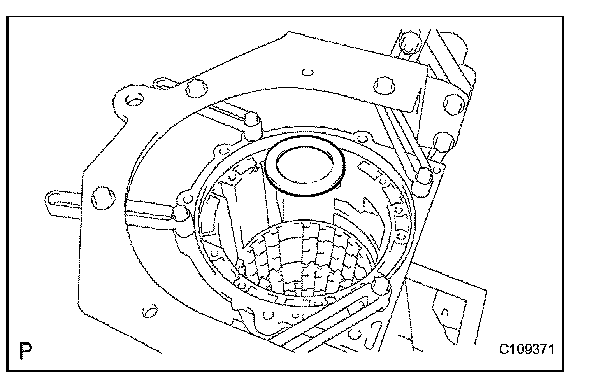

(b) Remove the thrust needle roller bearing, thrust bearing race and planetary carrier thrust washer from the transmission case.
43. INSPECT FRONT PLANETARY GEAR ASSEMBLY
44. INSPECT 1-WAY CLUTCH ASSEMBLY

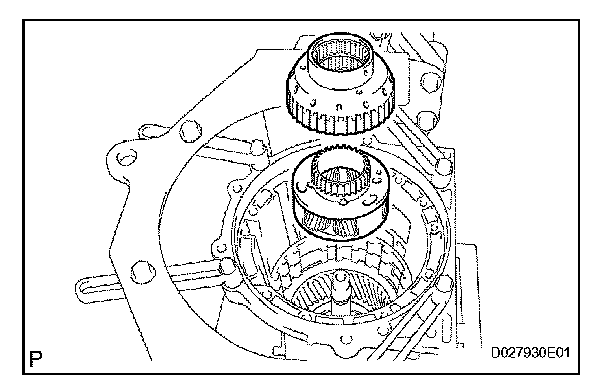

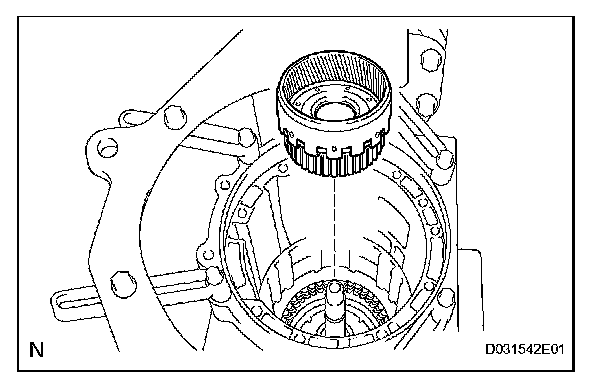

45. REMOVE FRONT PLANETARY RING GEAR
(a) Remove the front planetary ring gear from the transmission case.

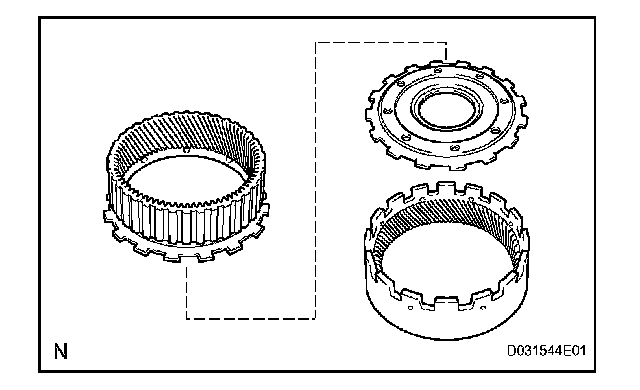

46. REMOVE CENTER PLANETARY RING GEAR

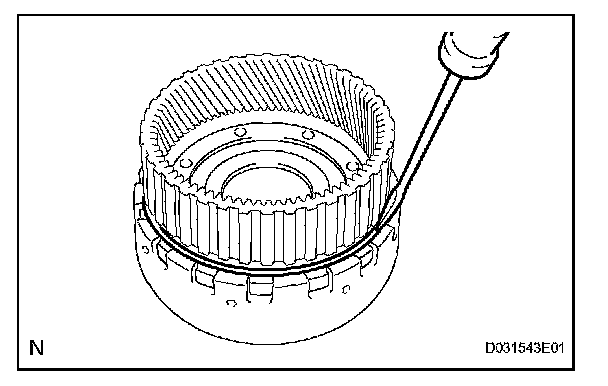

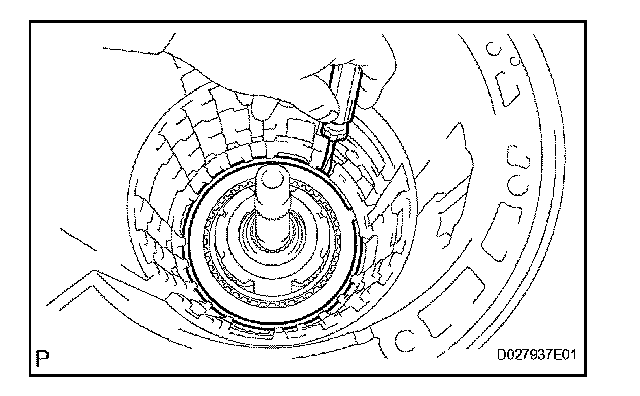

(a) Using a screwdriver, remove the snap ring.

(b) Remove the center planetary ring gear and front planetary ring gear flange from the front planetary ring gear.
(c) Remove the thrust needle roller bearing from the front planetary ring gear flange.

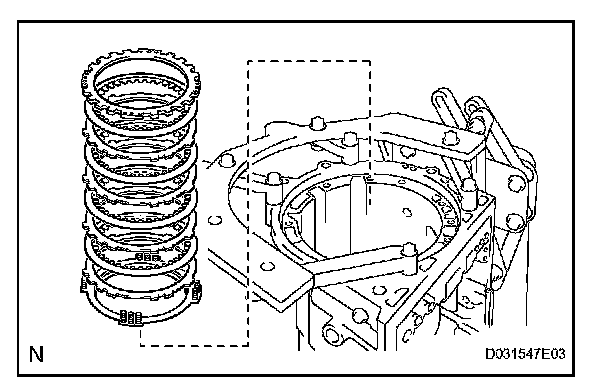

47. REMOVE NO. 1 BRAKE DISC
(a) Remove the flange, 3 discs and 3 plates from the transmission case.
48. INSPECT NO. 1 BRAKE DISC

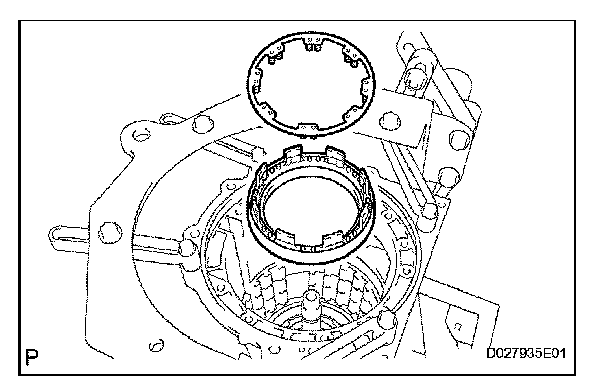

49. REMOVE BRAKE PISTON RETURN SPRING SNAP RING
(a) Using a screwdriver, remove the brake piston return spring snap ring from the transmission case.

50. REMOVE BRAKE PISTON RETURN SPRING SUB-ASSEMBLY
(a) Remove the brake piston return spring and brake piston with the brake cylinder from the transmission case.
51. INSPECT BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

52. REMOVE NO. 1 BRAKE PISTON
(a) Hold the No. 1 brake cylinder and apply compressed air (392 kPa, 4 kgf/cm2, 57 psi) to the brake cylinder to remove the brake piston.

HINT: If the piston does not pop out when applying compressed air, lift the piston out with needle-nose pliers.

(b) Remove the 2 O-rings from the brake piston.

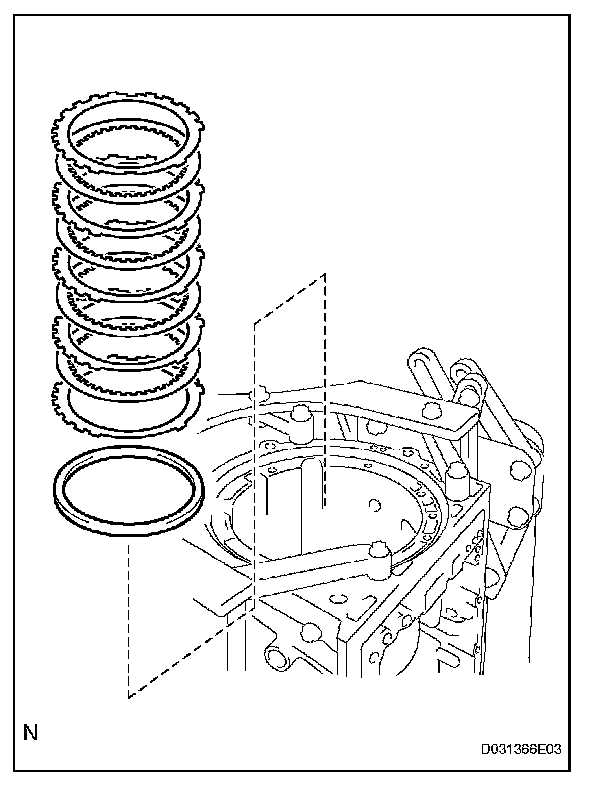

53. REMOVE NO. 2 BRAKE DISC

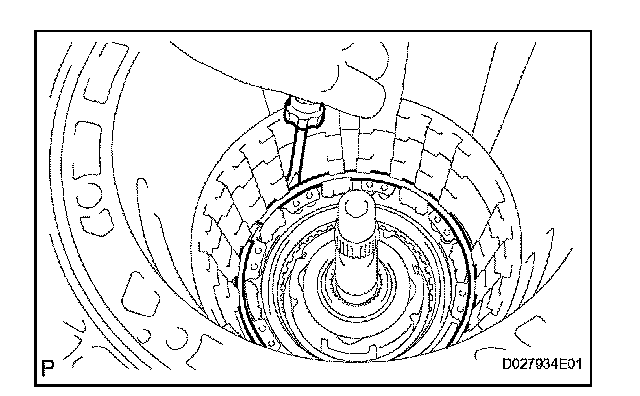

(a) Using a screwdriver, remove the brake snap ring from the transmission case.

(b) Remove the 2 flanges, brake piston return spring, 4 discs and 3 plates from the transmission case.
54. INSPECT NO. 2 BRAKE DISC
55. INSPECT NO. 2 BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

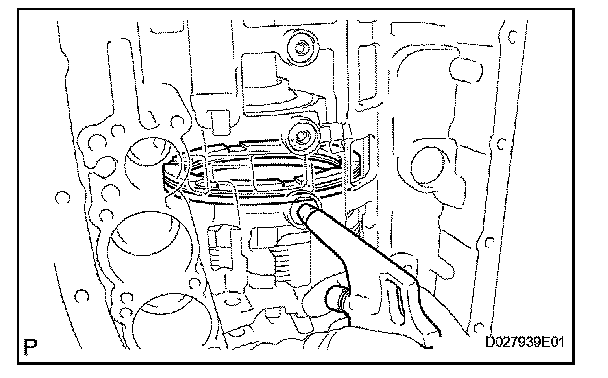

56. REMOVE NO. 2 BRAKE PISTON
(a) Hold the brake piston and apply compressed air (392 kPa, 4 kgf/cm2, 57 psi) to the transmission case to remove the brake piston with the cylinder.

HINT: If the piston does not pop out when applying compressed air, lift the piston out with needle-nose pliers.

(b) Remove the piston from the cylinder.
(c) Remove the 2 O-rings from the No. 2 brake piston.

57. REMOVE CENTER PLANETARY GEAR ASSEMBLY
(a) Remove the center planetary gear, planetary sun gear and No. 4 thrust bearing race from the transmission case.
58. INSPECT CENTER PLANETARY GEAR ASSEMBLY

59. REMOVE INTERMEDIATE SHAFT
(a) Using SST, remove the snap ring from the transmission case.
SST 09350-30020 (09350-07060)

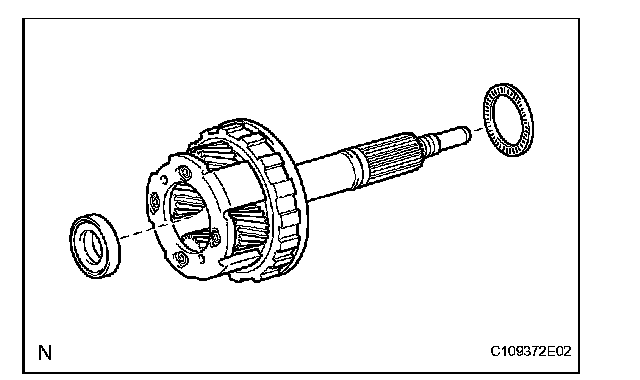

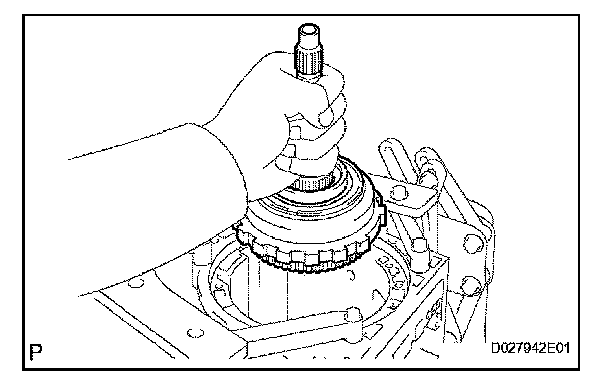

(b) Remove the intermediate shaft with the No. 3 1-way clutch assembly from the transmission case.
60. INSPECT NO. 3 1-WAY CLUTCH ASSEMBLY

61. REMOVE NO. 3 1-WAY CLUTCH ASSEMBLY

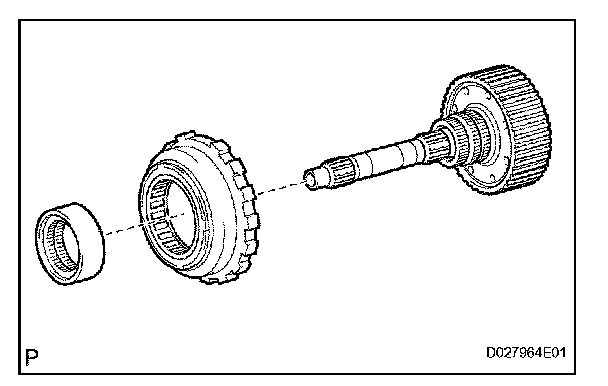

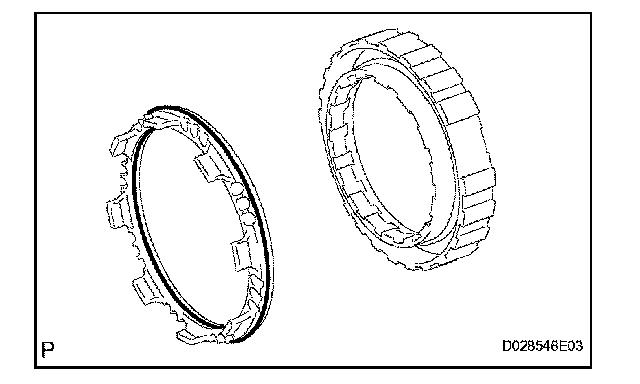

(a) Remove the 1-way clutch and 1-way clutch inner race from the intermediate shaft.

62. REMOVE REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY

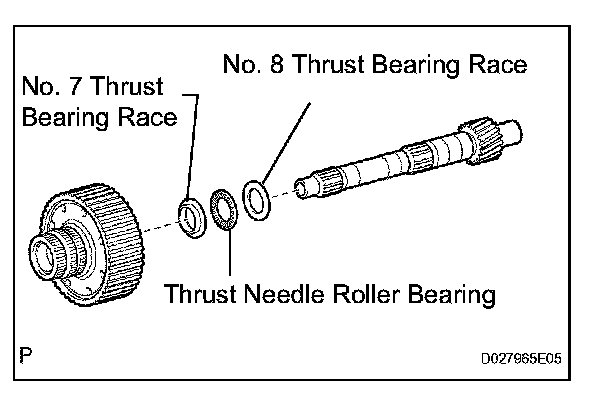

(a) Remove the No. 8 thrust bearing race, thrust needle roller bearing, No. 7 thrust bearing race and planetary ring gear flange from the intermediate shaft.
63. INSPECT REAR PLANETARY RING GEAR FLANGE SUB-ASSEMBLY
64. INSPECT INTERMEDIATE SHAFT

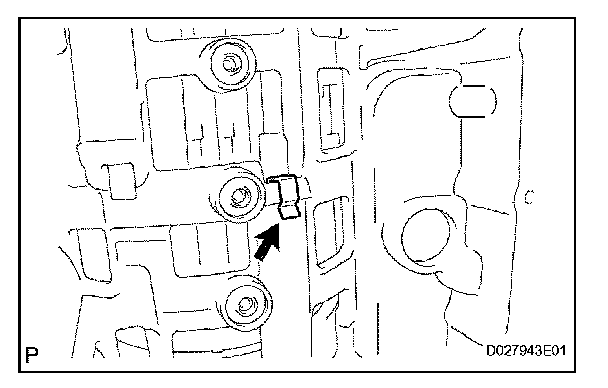

65. REMOVE BRAKE PLATE STOPPER SPRING
(a) Remove the brake plate stopper spring from the transmission case.

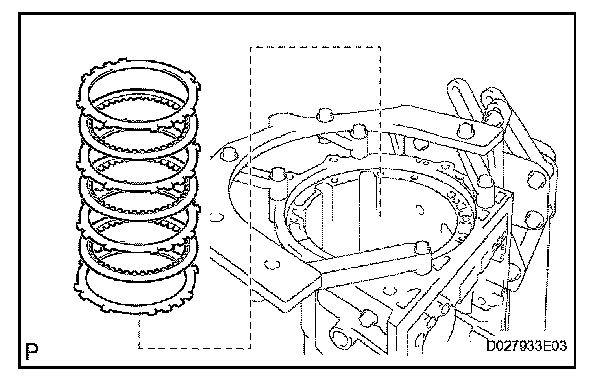

66. REMOVE NO. 4 BRAKE DISC
(a) Remove the sleeve, 4 plates, 4 discs and flange from the transmission case.
67. INSPECT NO. 4 BRAKE DISC

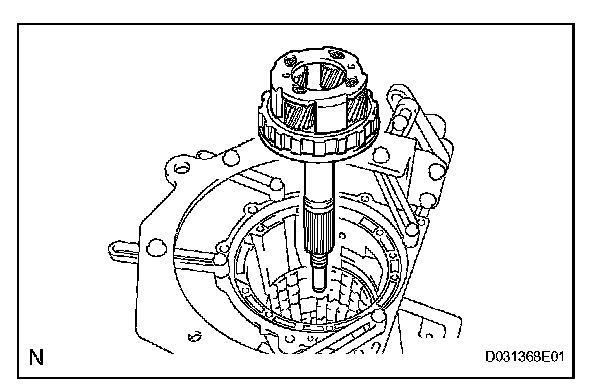

68. REMOVE REAR PLANETARY GEAR ASSEMBLY
(a) Remove the rear planetary gear from the transmission case.

(b) Remove the 2 thrust needle roller bearings from the rear planetary gear.

70. REMOVE 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
(a) Place SST on the 1st and reverse brake return spring and compress the brake return spring.
SST 09350-30020 (09350-07050)

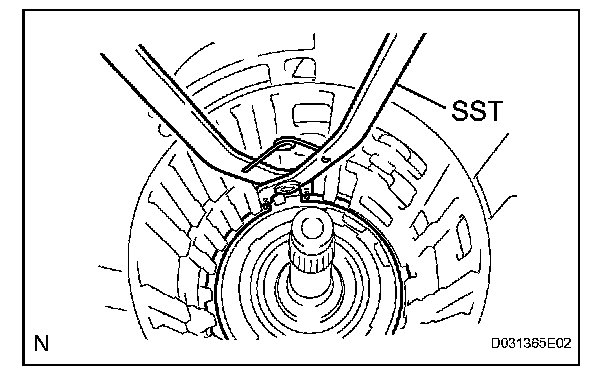

(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07070)
(c) Remove the brake return spring.
71. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

72. REMOVE 1ST AND REVERSE BRAKE PISTON
(a) Hold the 1st and reverse brake piston and apply compressed air (392 kPa, 4 kgf/cm2, 57 psi) to the transmission case to remove the brake piston.

HINT: If the piston does not pop out when applying compressed air, lift the piston out with needle-nose pliers.

(b) Remove the brake apply tube from the piston.
(c) Remove the O-ring from the brake piston.

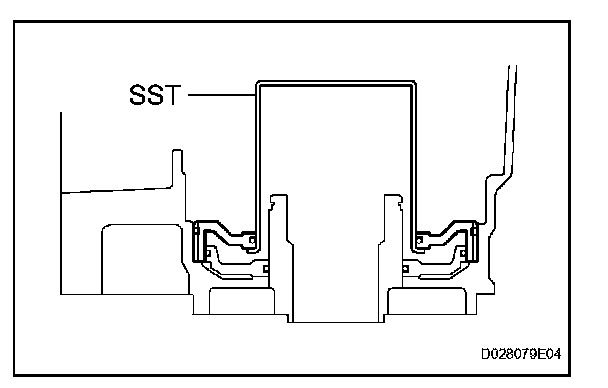

73. REMOVE BRAKE REACTION SLEEVE
(a) Using SST, remove the reaction sleeve.
SST 09350-30020 (09350-07080)
(b) Remove the 2 O-rings from the reaction sleeve.

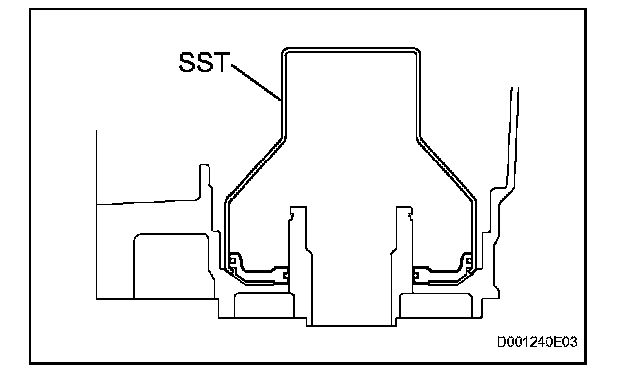

74. REMOVE NO. 4 BRAKE PISTON
(a) Using SST, remove the brake piston.
SST 09350-30020 (09350-07080)
(b) Remove the 2 O-rings from the brake piston.
