Rear No. 1 Suspension Arm

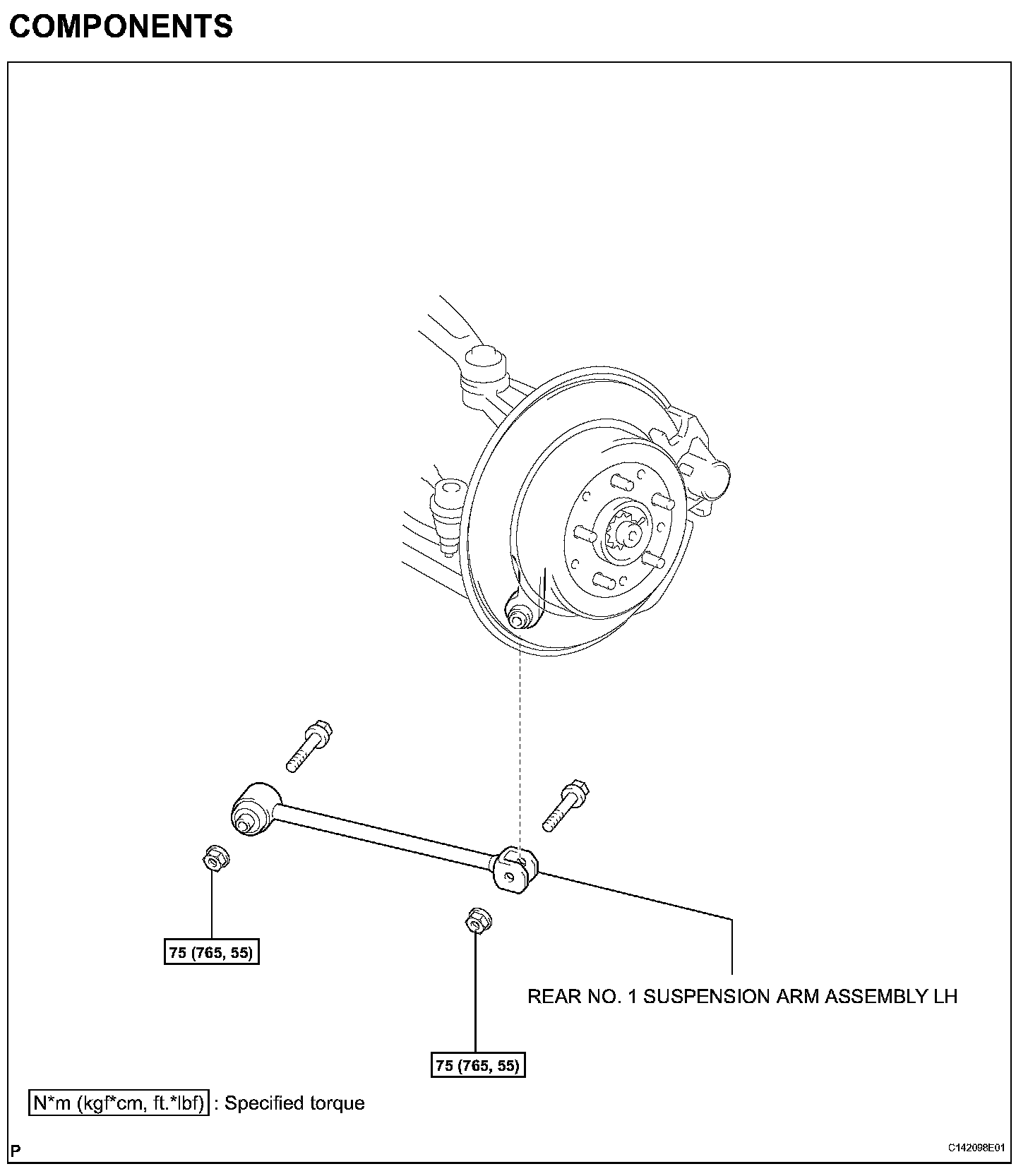

REAR NO. 1 SUSPENSION ARMCOMPONENTS:
REMOVAL
HINT:
^ Use the same procedures for the RH side and LH side.
^ The procedures listed below are for the LH side.
1. REMOVE WHEEL HUB ORNAMENT SUB-ASSEMBLY
(a) Remove the 10 bolts and ornament.
2. REMOVE REAR WHEEL
(a) Remove the 5 nuts and wheel.

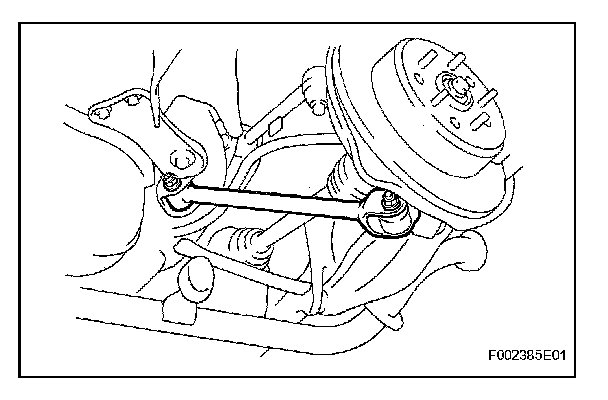

3. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
(a) Remove the 2 bolts, 2 nuts and suspension arm.
INSTALLATION
HINT:
^ Use the same procedures for the RH side and LH side.
^ The procedures listed below are for the LH side.
1. TEMPORARILY INSTALL REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
(a) Temporarily install the suspension arm with the 2 bolts and 2 nuts.
HINT: After stabilizing the suspension, tighten the nuts.
2. INSTALL REAR WHEEL
(a) Install the wheel with the 5 nuts.
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
3. STABILIZE SUSPENSION
4. TIGHTEN REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
(a) Tighten the 2 bolt and 2 nuts.
Torque: 75 N*m (765 kgf*cm, 55 ft.*lbf)
5. INSTALL WHEEL HUB ORNAMENT SUB-ASSEMBLY
(a) Install the ornament with the 10 bolts.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
