How to Proceed With Troubleshooting

HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
^ Use this procedure to troubleshoot the power steering system.
^ *: Use the intelligent tester.

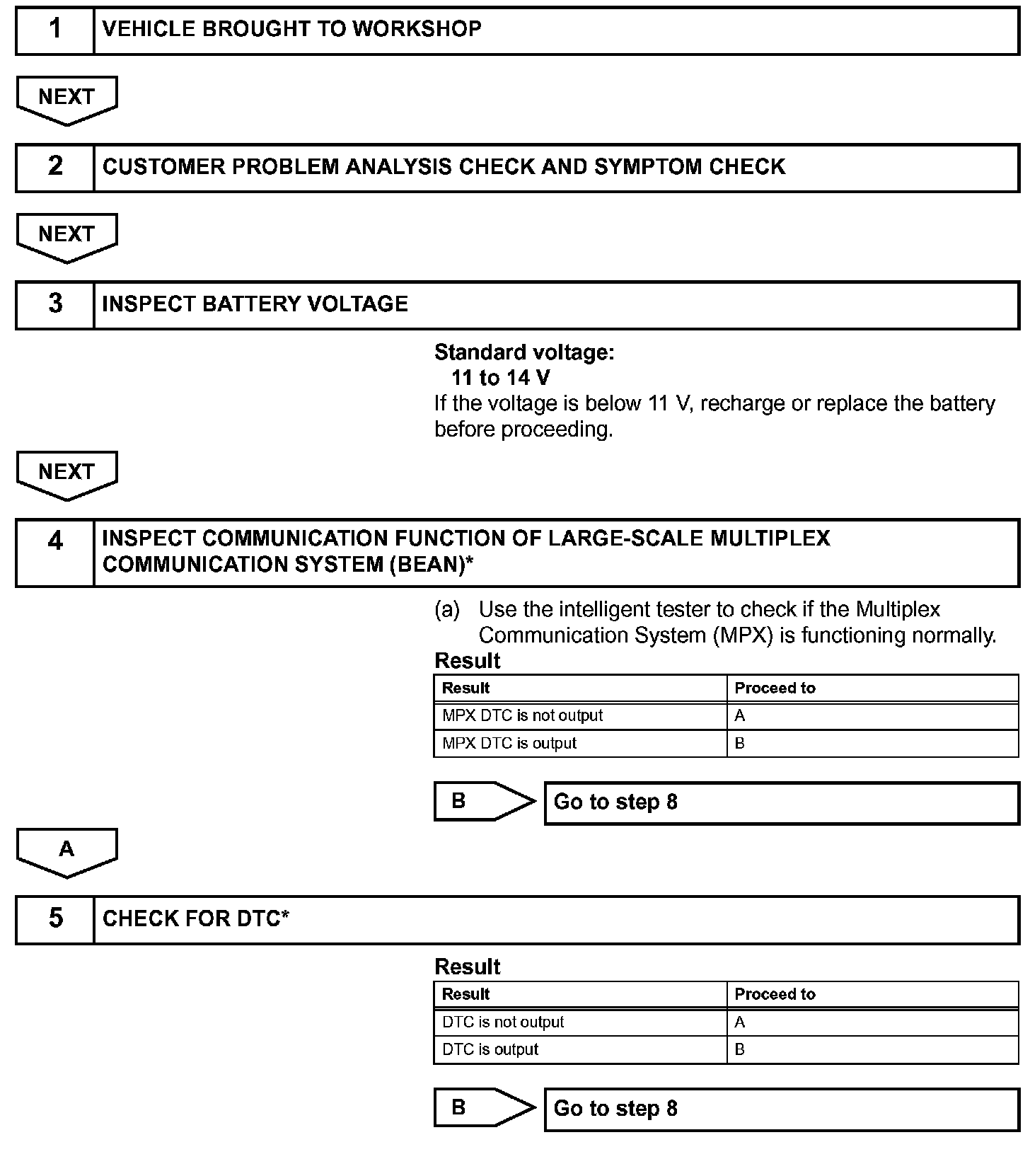

Steps 1-5(Part 1):

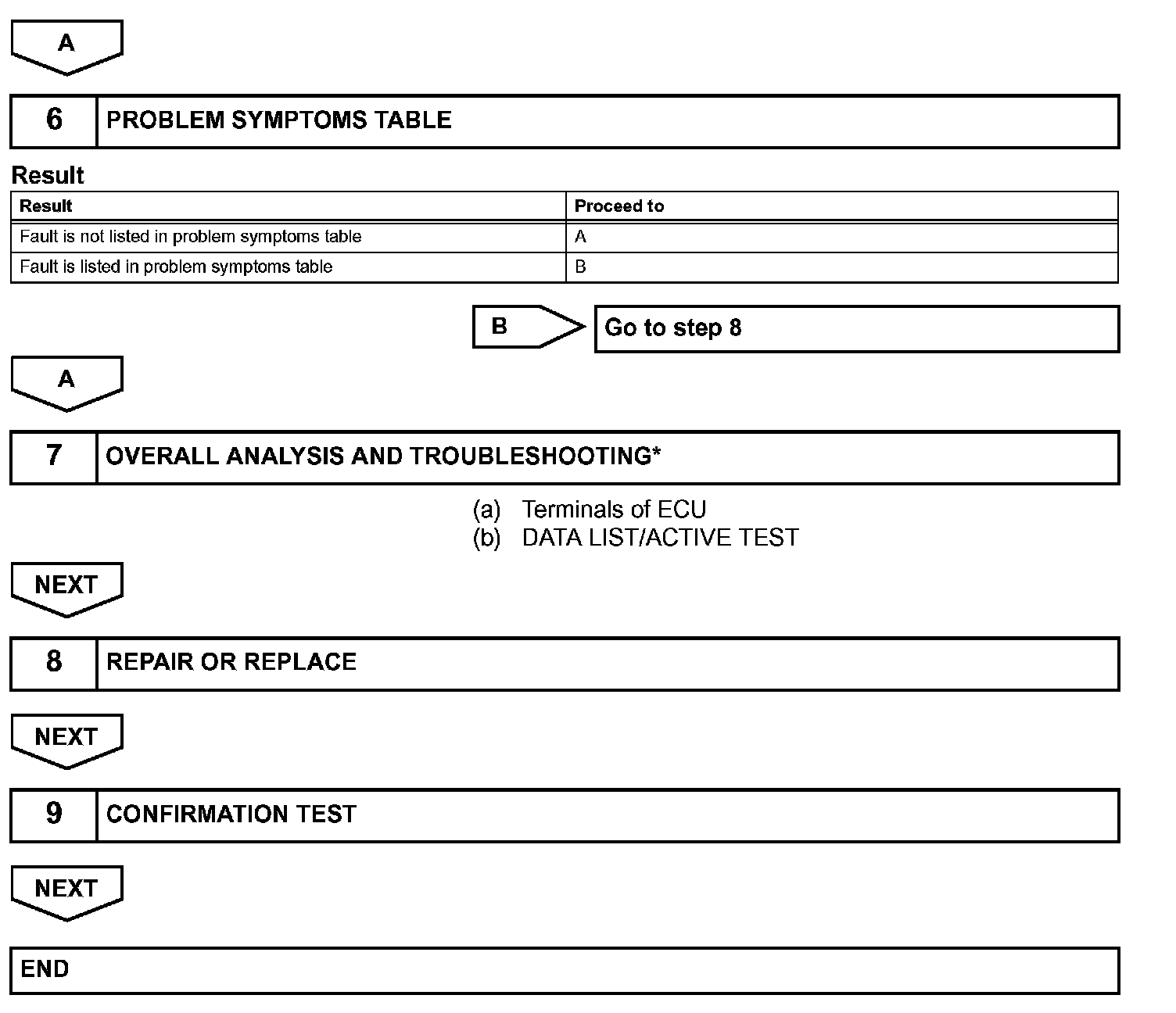

Steps 5(Part 2)-9:
