Data List/Active Test

DATA LIST / ACTIVE TEST
1. READ DATA LIST

HINT: Using the intelligent tester's DATA LIST allows switch, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to save time.

(a) Connect the intelligent tester (with CAN VIM) to the DLC3.
(b) Turn the ignition switch ON.
(c) Read the DATA LIST according to the display on the tester.

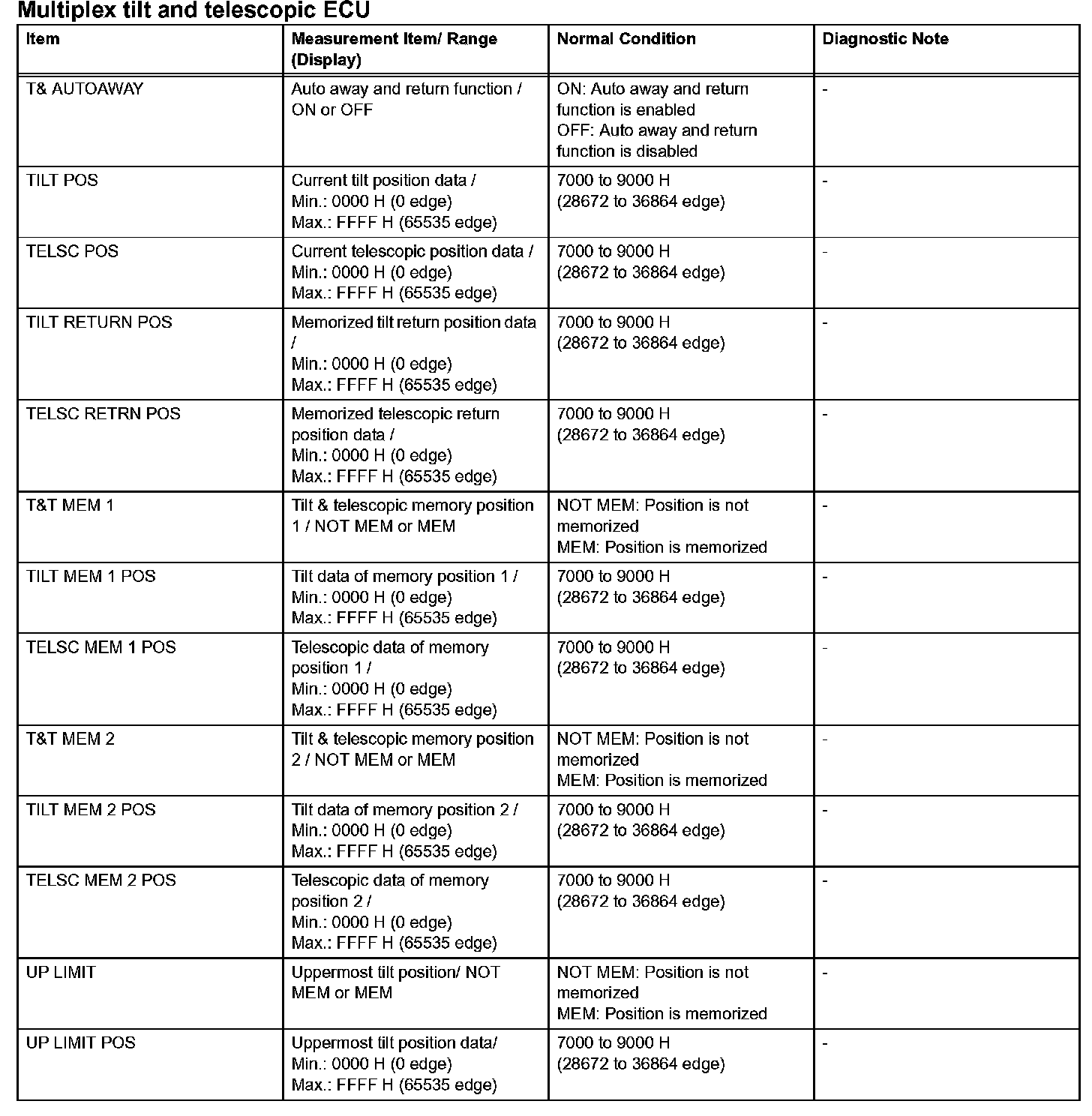

Multiplex tilt and telescopic ECU (Part 1):

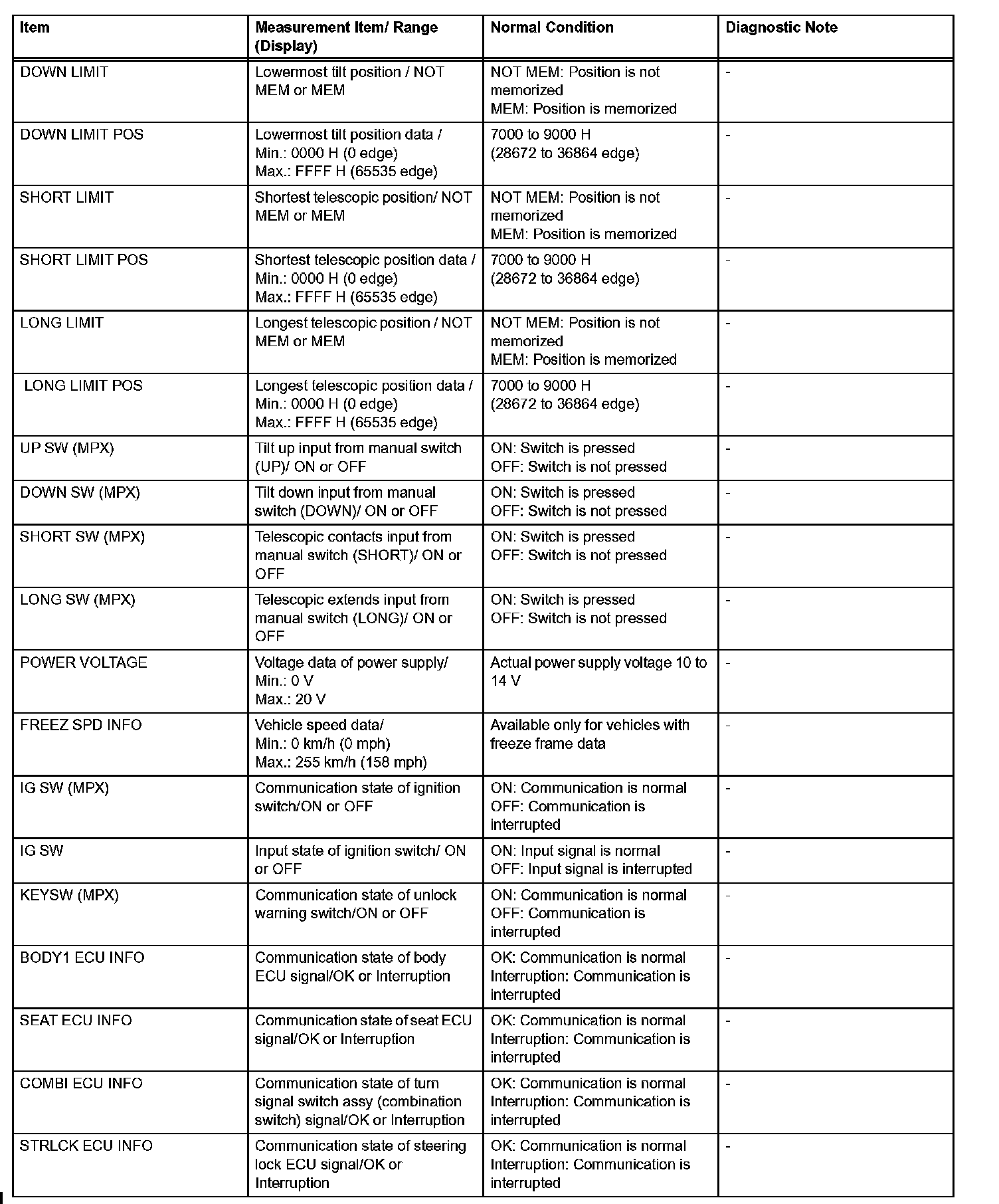

Multiplex tilt and telescopic ECU (Part 2):

2. POWER ACTIVE TEST

HINT:
Performing the intelligent tester's ACTIVE TEST allows relay, VSV, actuator, and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to save time.
The DATA LIST can be displayed during the ACTIVE TEST.

(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch ON.
(c) Perform the ACTIVE TEST according to the display on the tester.

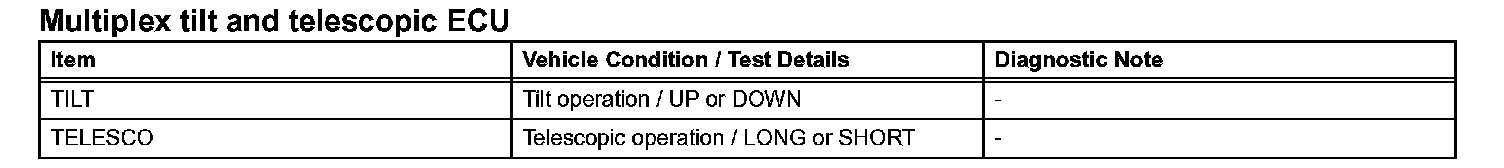

Multiplex tilt and telescopic ECU:
