Pinout Values and Diagnostic Parameters

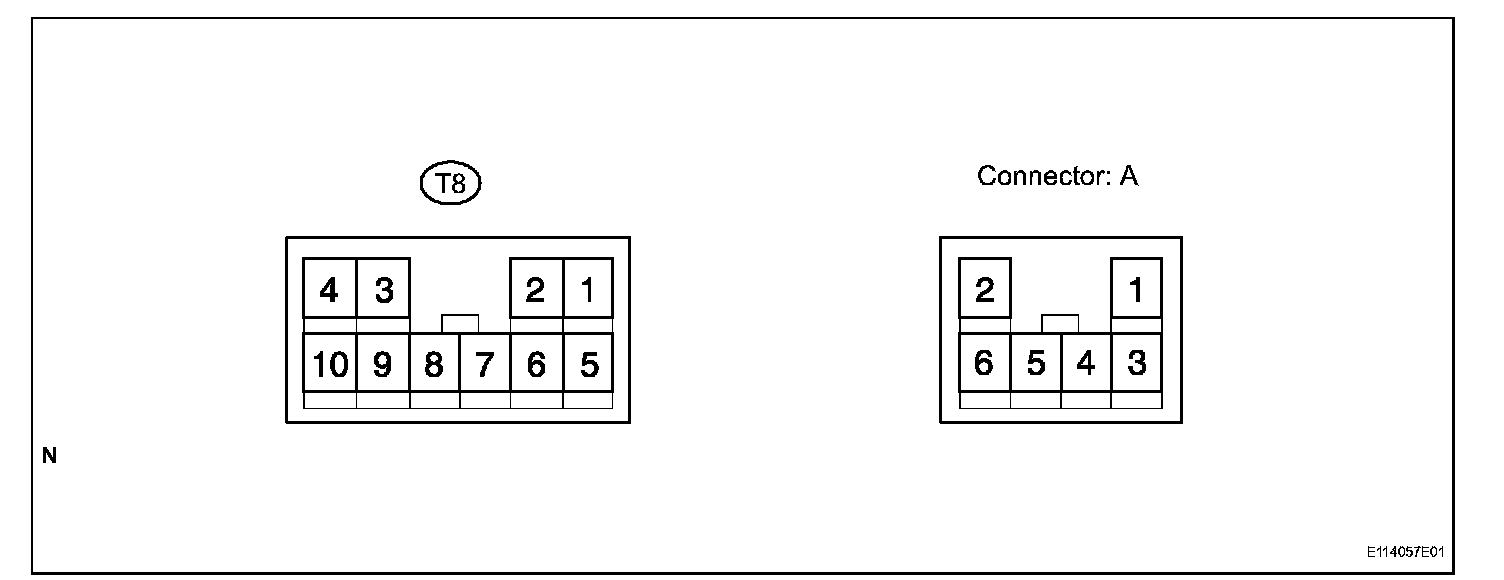

TERMINALS OF ECU1. CHECK MULTIPLEX NETWORK TILT AND TELESCOPIC ECU
(a) Disconnect the T8 ECU connector.
(b) Measure the resistance and voltage of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the T8 ECU connector.

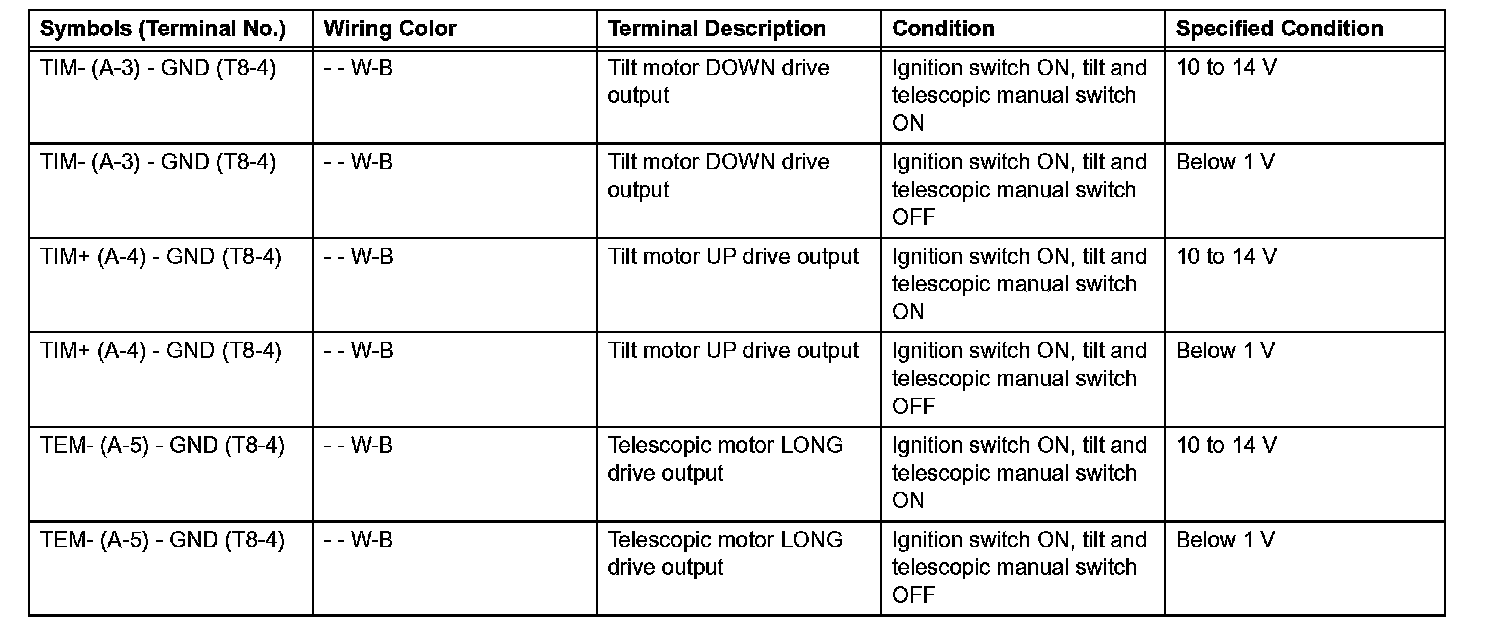

(d) Measure the voltage of the connectors.

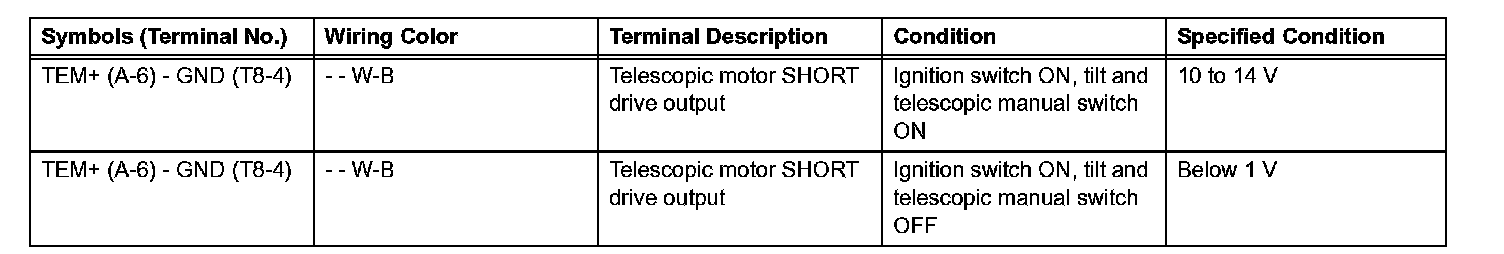

Part 1:

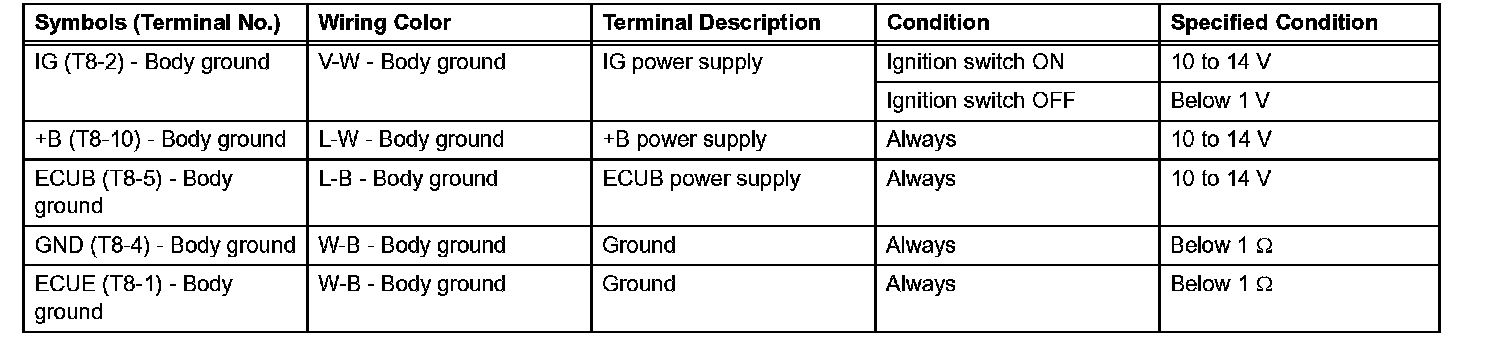

Part 2:
If the result is not as specified, the ECU may have a malfunction.
2. CHECK TRANSPONDER KEY ECU
(a) Disconnect the 113 ECU connector.

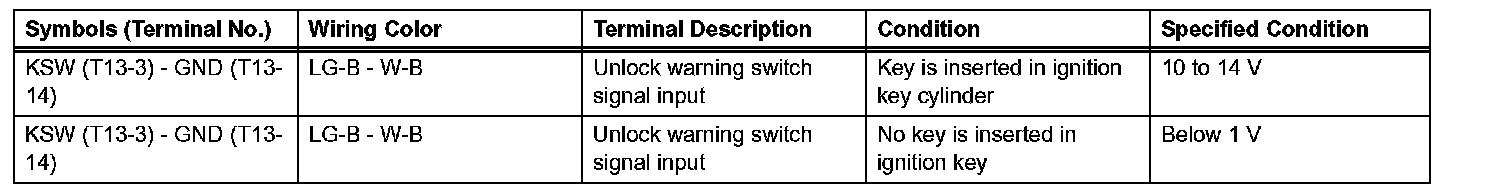

(b) Measure the resistance and voltage of the wire harness side connector.
If the result is not as specified, there may be a malfunction on the wire harness side.
(c) Reconnect the 113 ECU connector.

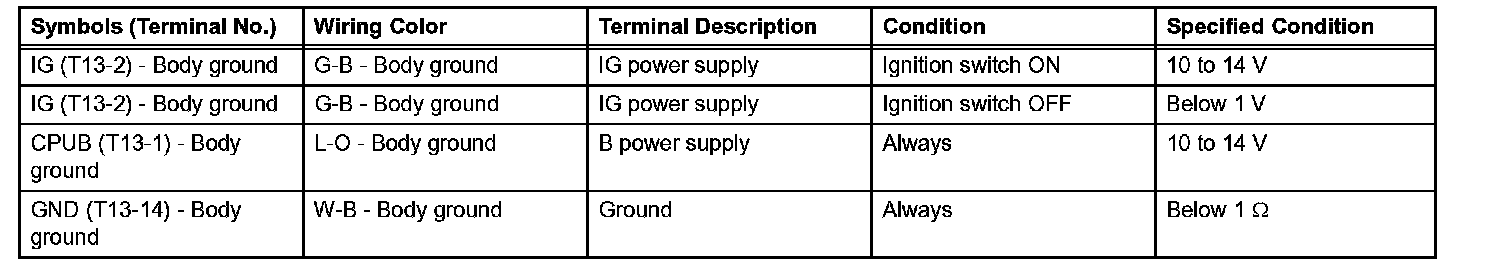

(d) Measure the voltage of the connector.
If the result is not as specified, the ECU may have a malfunction.
