Tilt and Telescopic Manual Switch Circuit

Tilt and Telescopic Manual Switch Circuit

DESCRIPTION
Operating the manual switch (turn signal switch) sends a signal through the communication bus to the multiplex tilt and telescopic ECU.

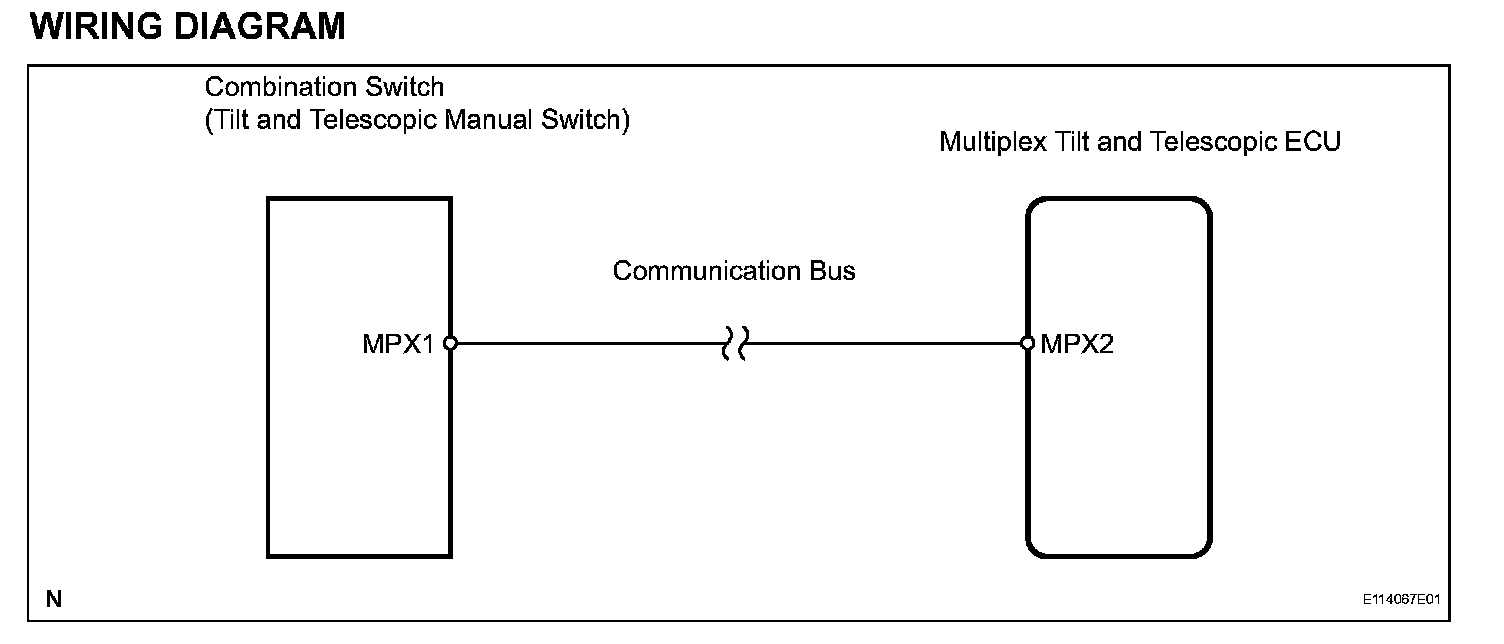

WIRING DIAGRAM:





INSPECTION PROCEDURE

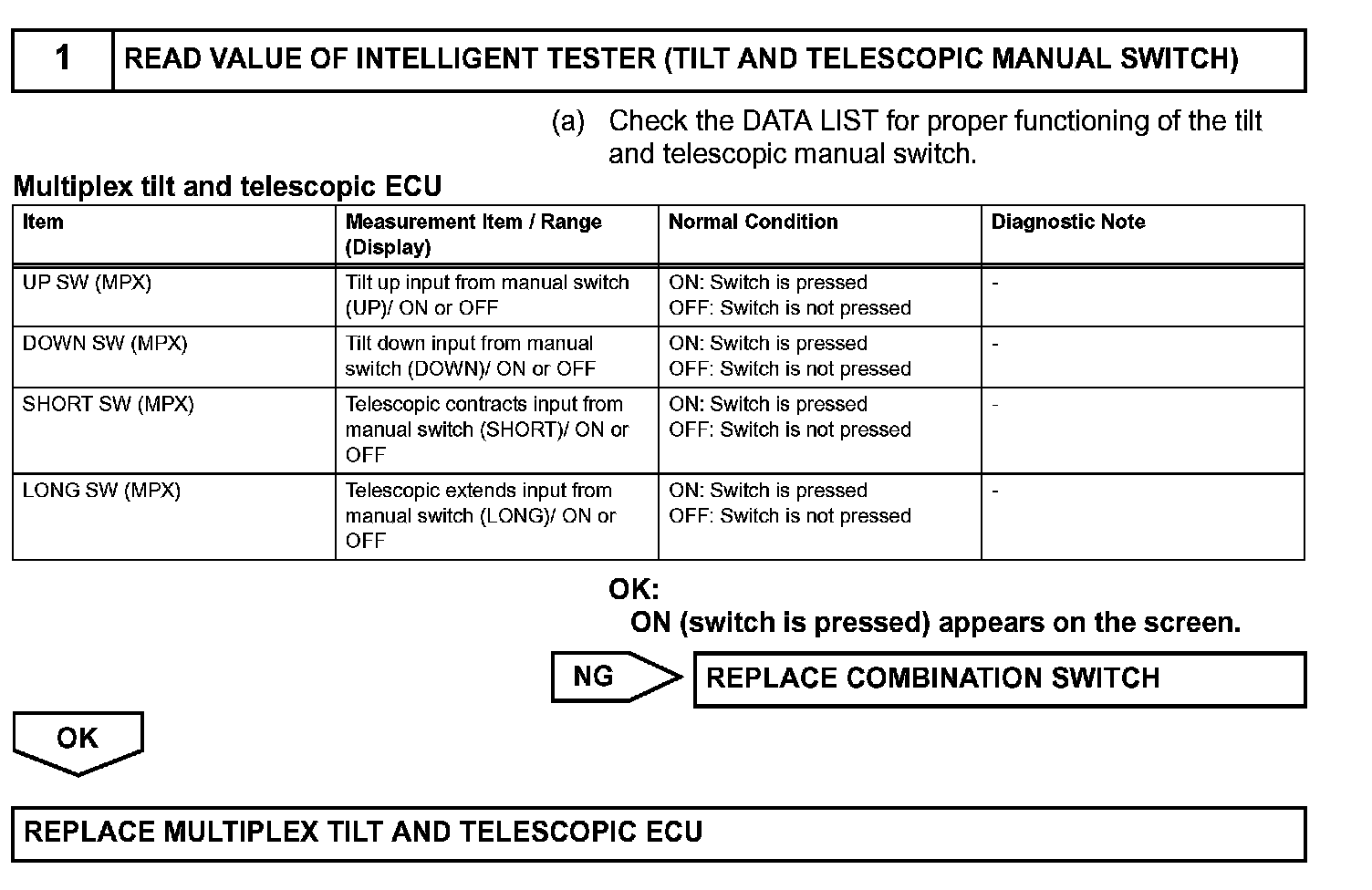

Step 1:
