Removal and Replacement
REMOVAL1. REMOVE INTAKE MANIFOLD SUB-ASSEMBLY
a. Remove the intake manifold.
2. REMOVE REAR WATER BY-PASS JOINT.
3. REMOVE WATER BY-PASS PIPE SUB-ASSEMBLY.

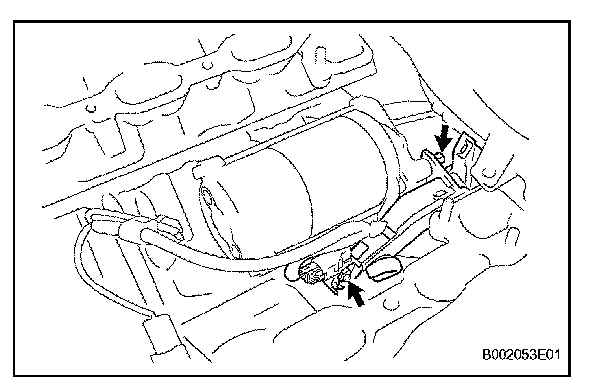

4. REMOVE STARTER ASSEMBLY
a. Disconnect the starter connector.
b. Remove the nut and disconnect the starter cable.
c. Remove the bolt and disconnect the engine wire protector.
d. Remove the 2 bolts and starter.
INSTALLATION

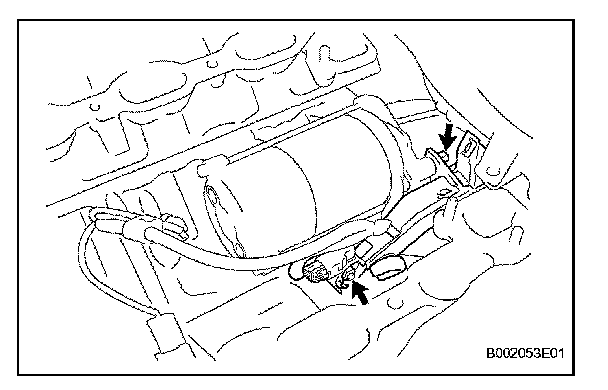

1. INSTALL STARTER ASSEMBLY
a. Install the wire clamp to the wire protector with the bolt.
Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
b. Connect the starter cable with the nut.
Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)
c. Connect the starter connector.
d. Install the starter with the 2 bolts.
Torque: 39 N.m (398 kgf.cm, 29 ft.lbf)
2. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY.
3. INSTALL REAR WATER BY-PASS JOINT.
4. INSTALL INTAKE MANIFOLD SUB-ASSEMBLY.
a. Install the intake manifold.
