Power Distribution Relay: Locations

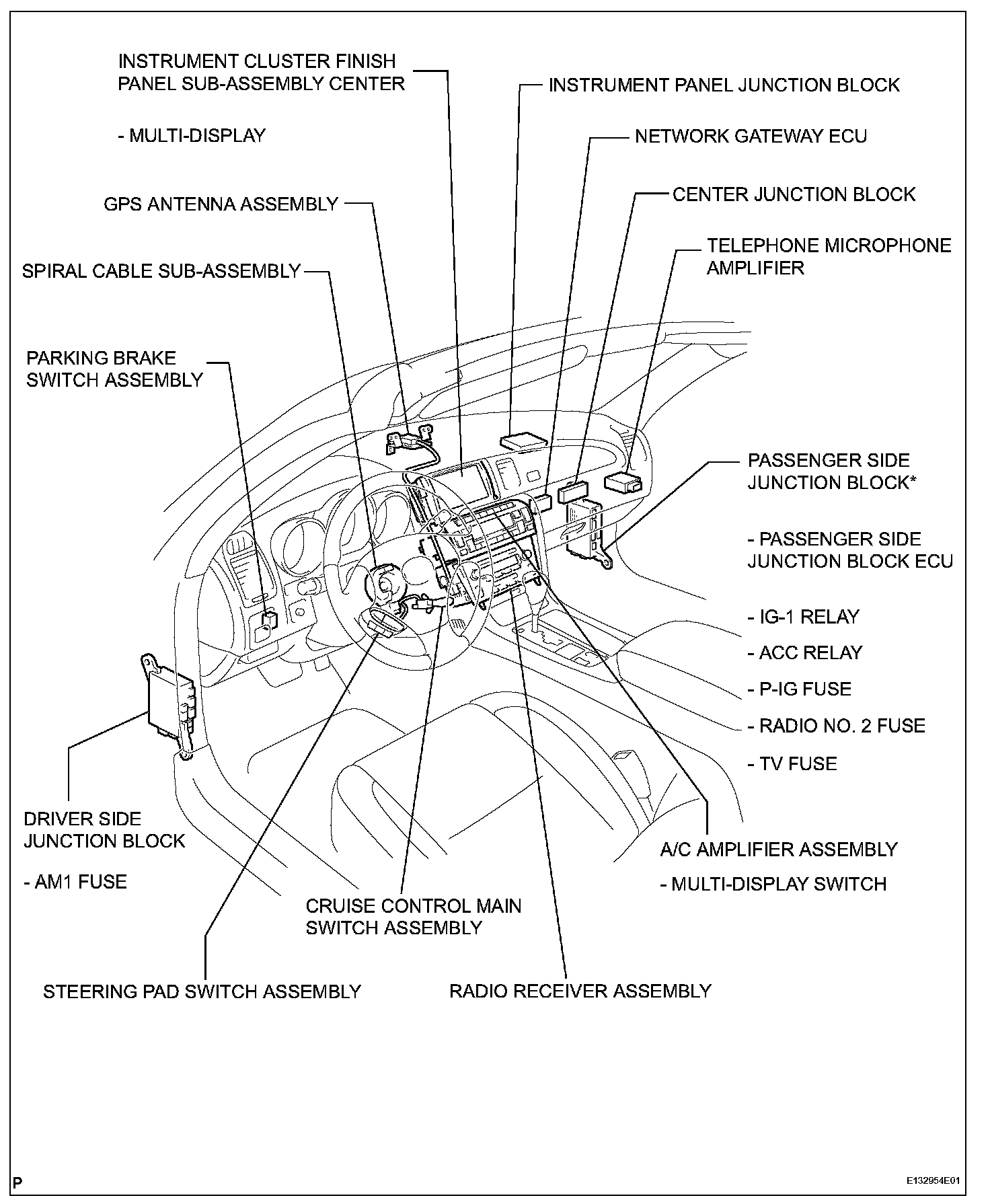

Driver Side J/B - Left Kick Panel:



Passenger Side J/B - Right Kick Panel:

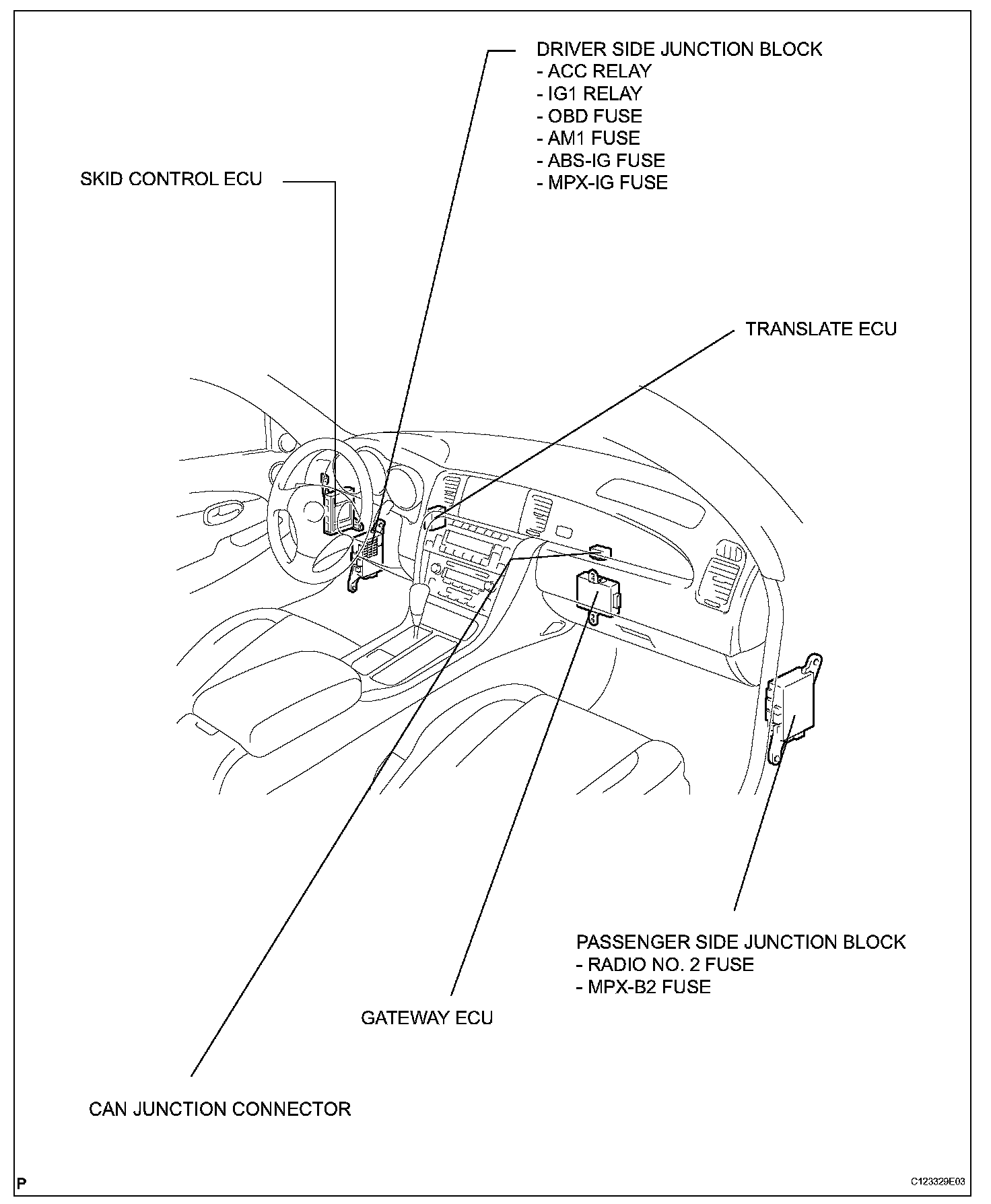

CAN Communication System:

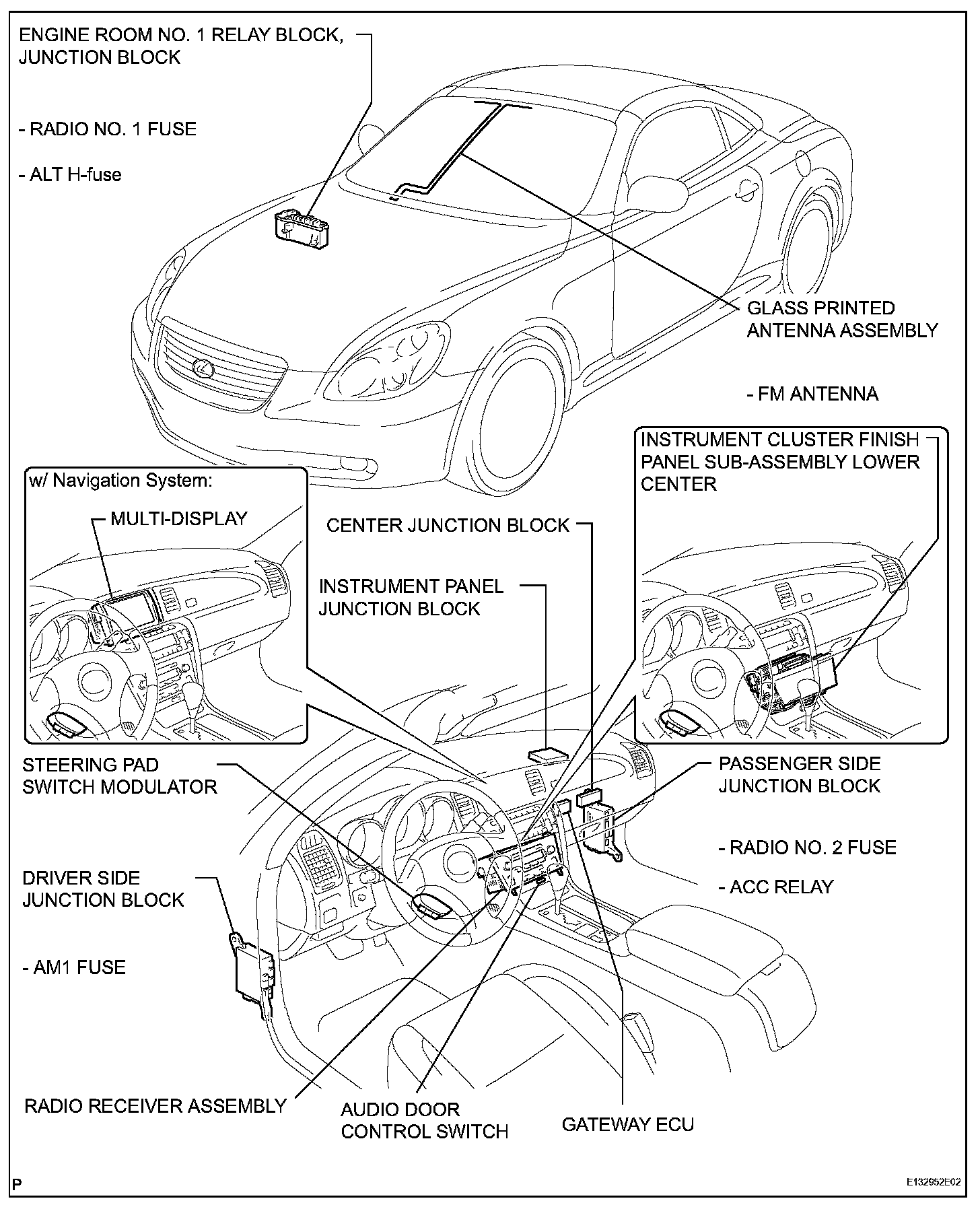

Audio And Visual System:



Air Conditioning System:



Navigation System:
