Fuse: Locations

Engine Compartment:

Driver's Side Kick Panel:

Passenger's Side Kick Panel:

Trunk Fuse Block:

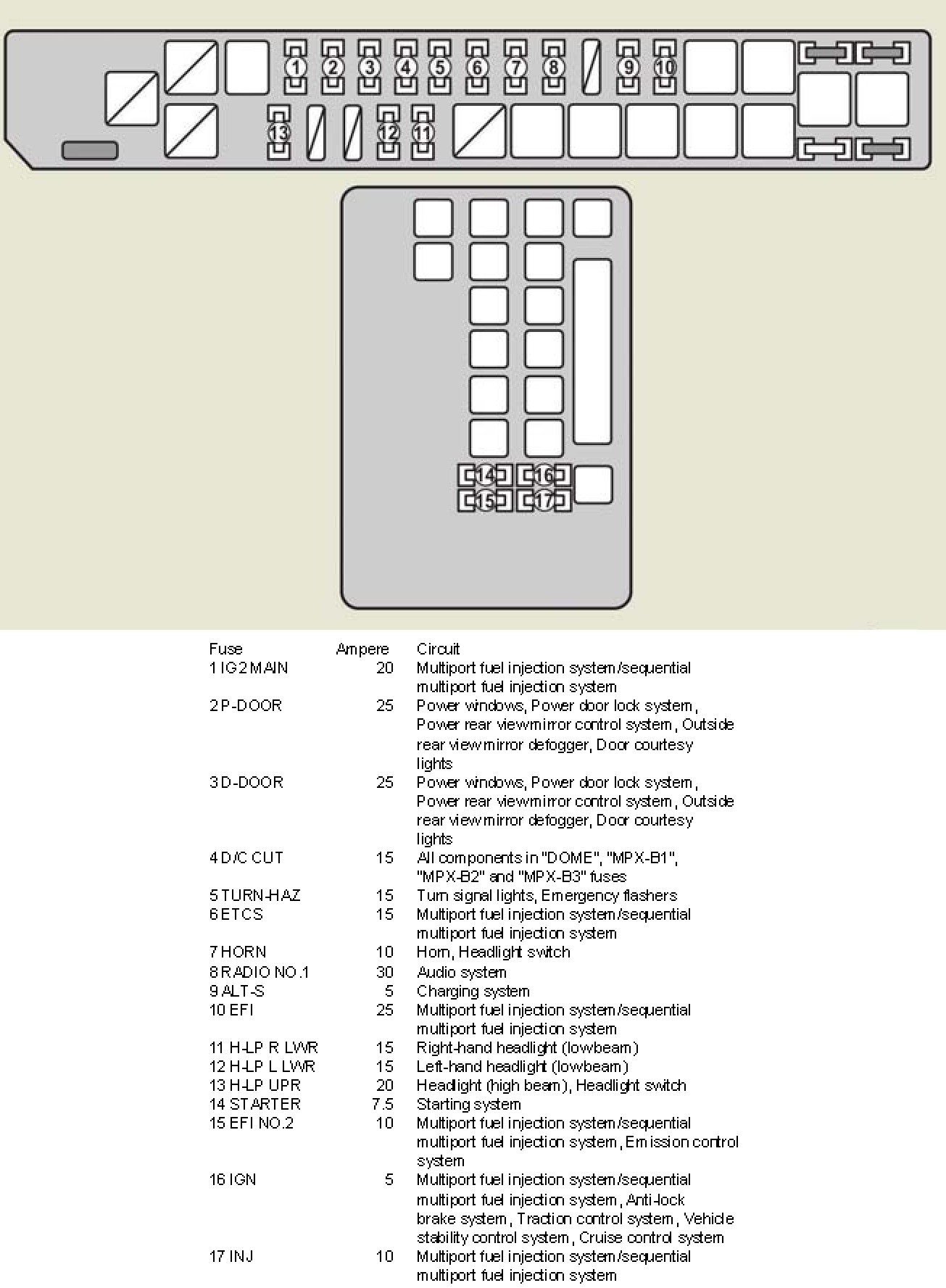

Engine Room No.1 R/B, J/B - Engine Compartment Right:

Engine Room No.2 R/B - Engine Compartment Left:

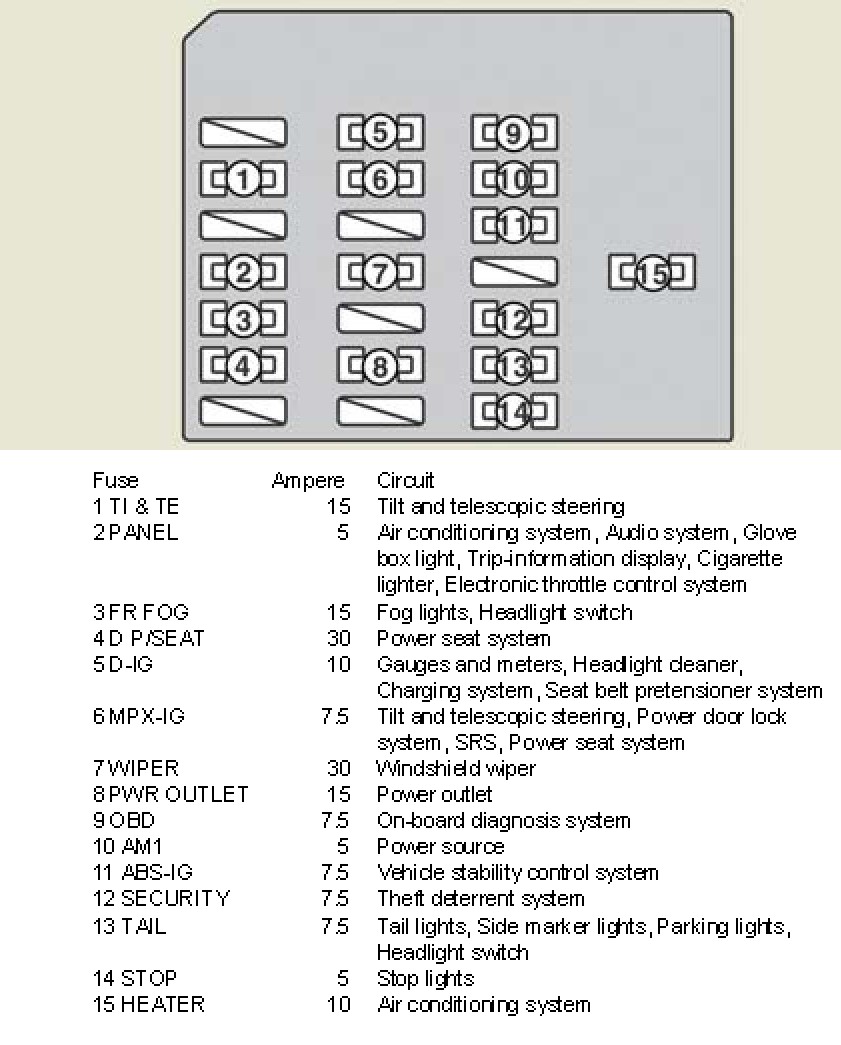

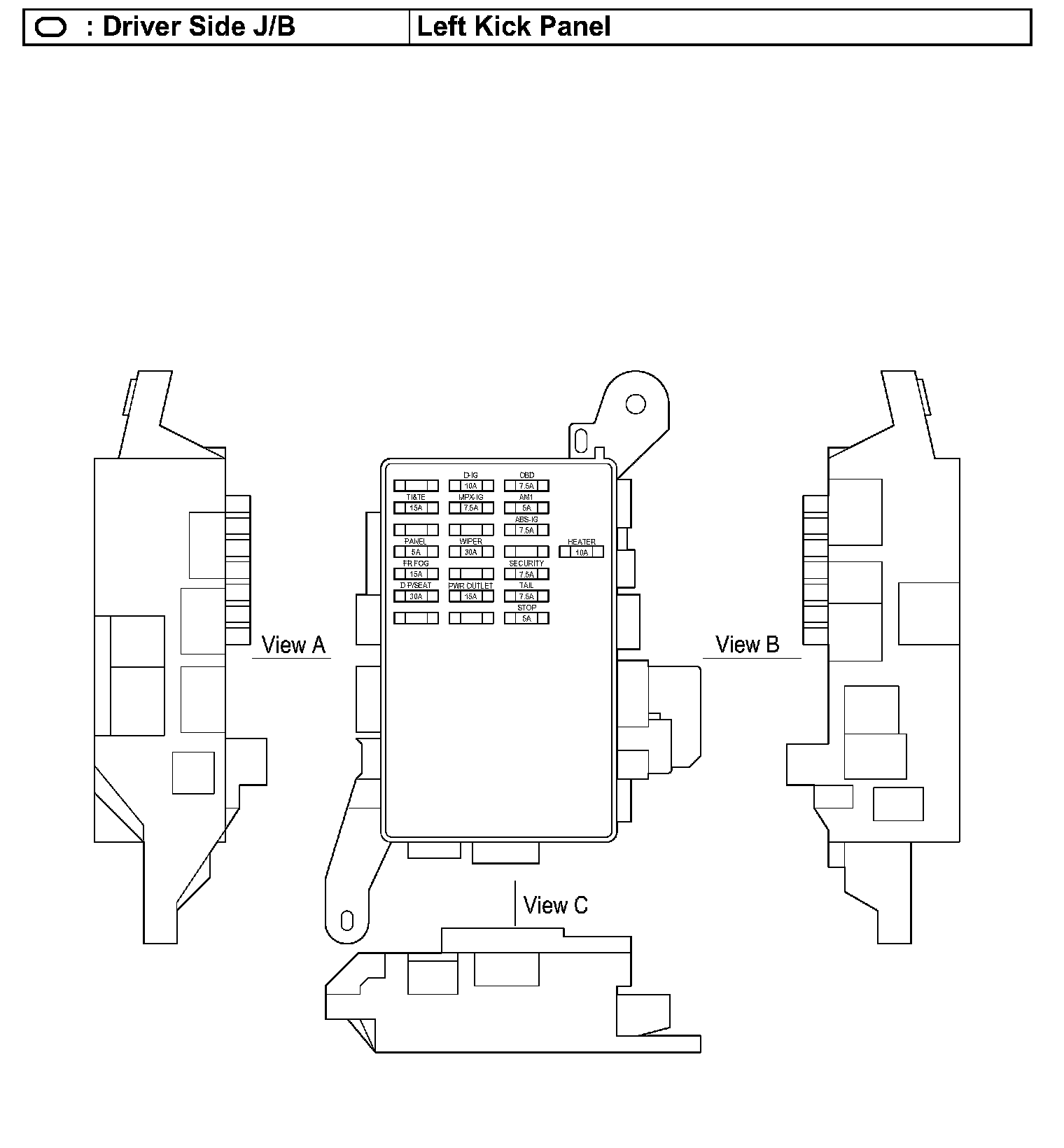

Driver Side J/B - Left Kick Panel:

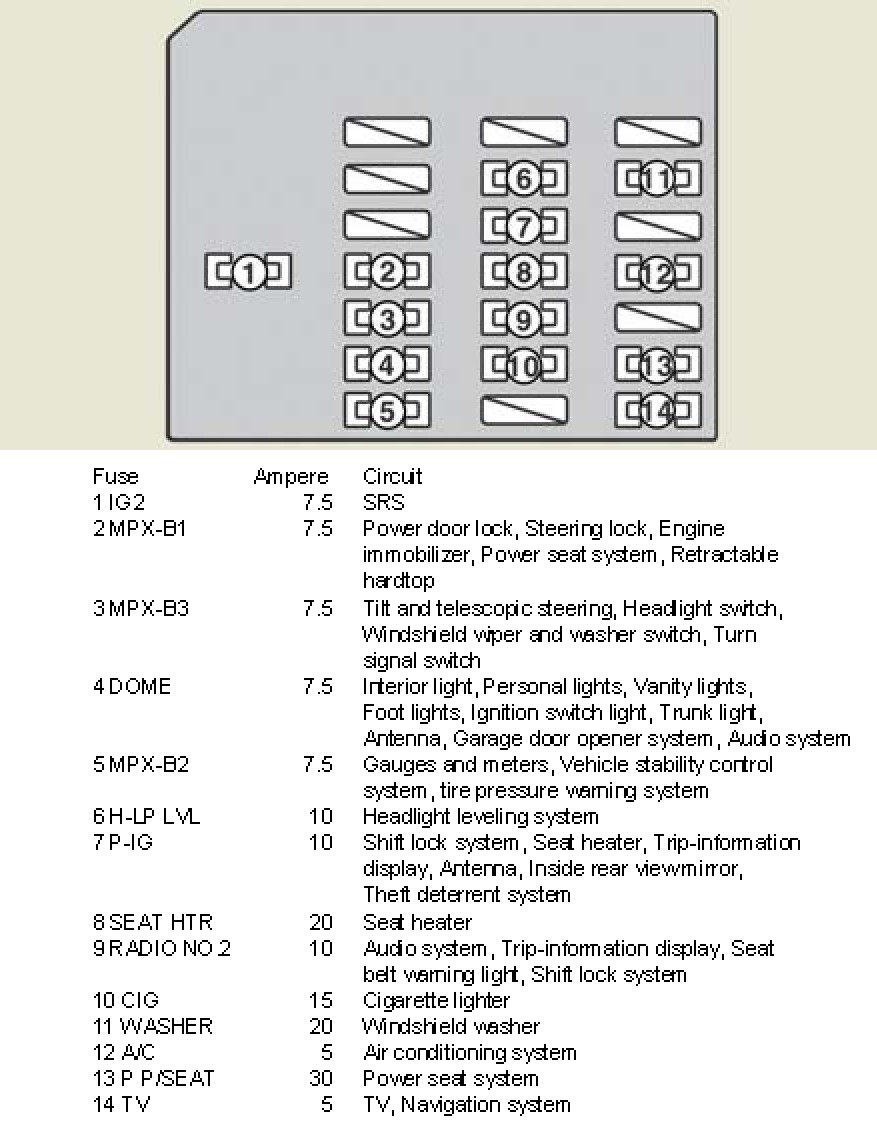

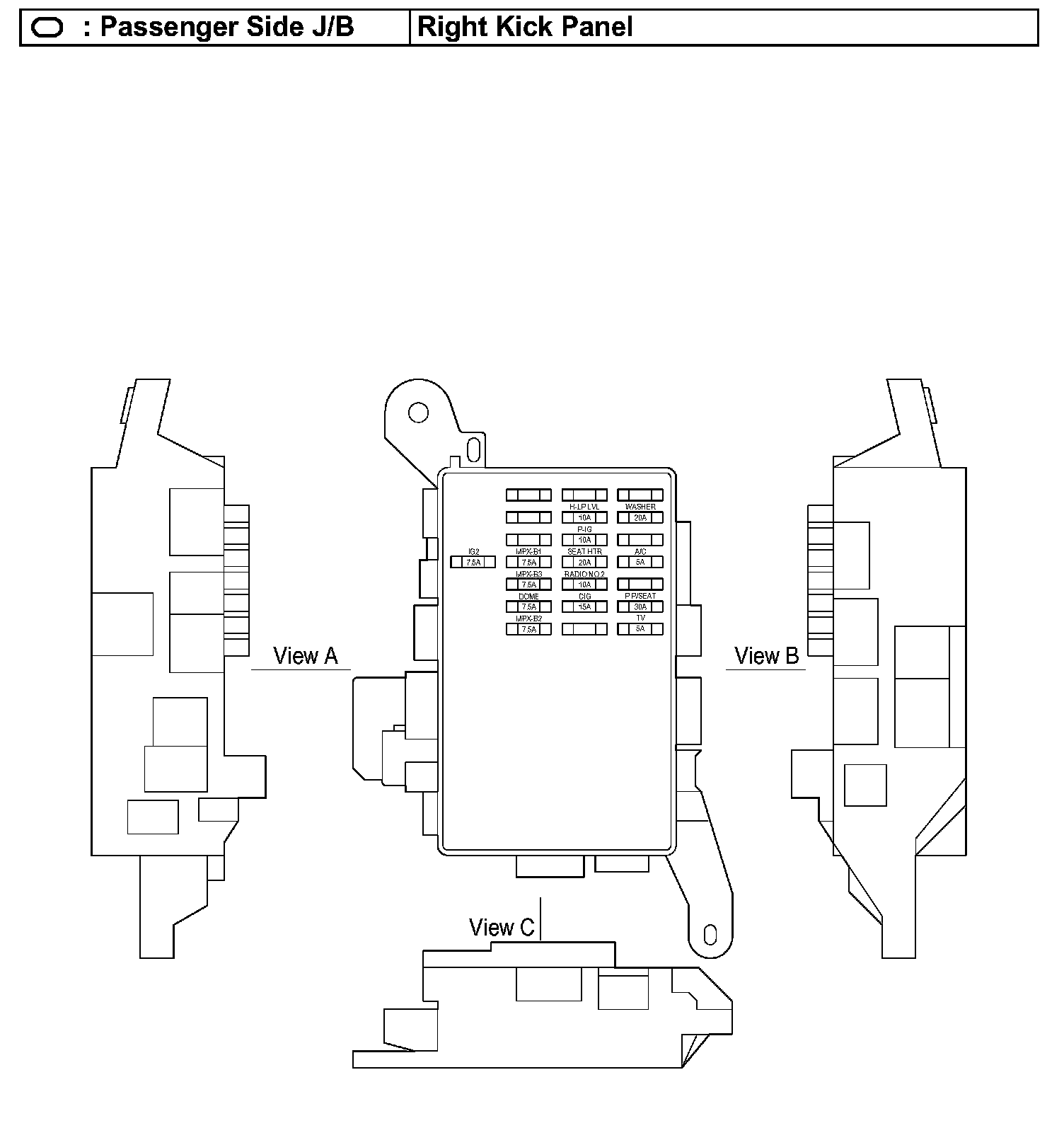

Passenger Side J/B - Right Kick Panel:

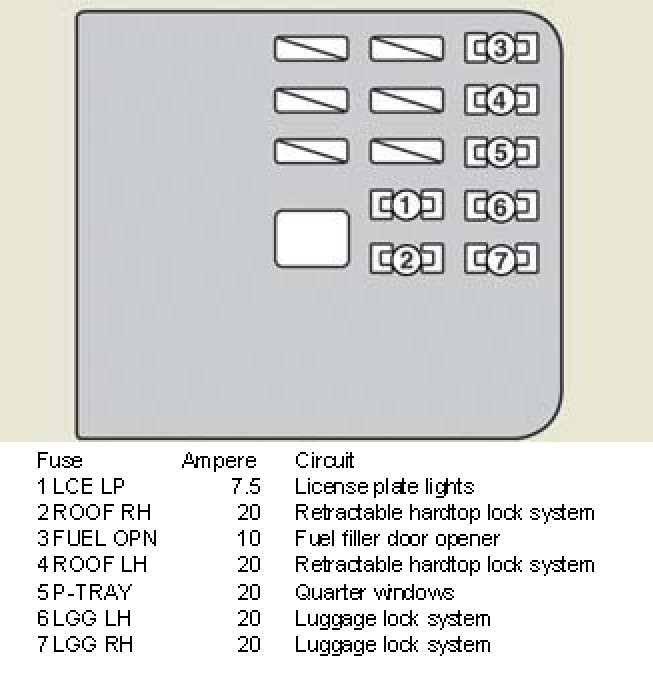

Luggage Room J/B - Luggage Room Left:
