Replacement

REPLACEMENT




1. REPLACE FRONT BEARING

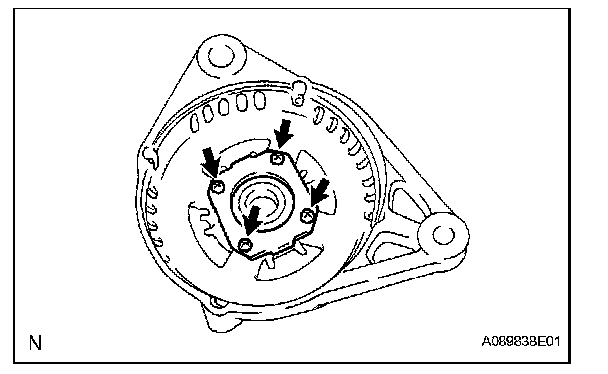

a. Remove the 4 screws and bearing retainer.

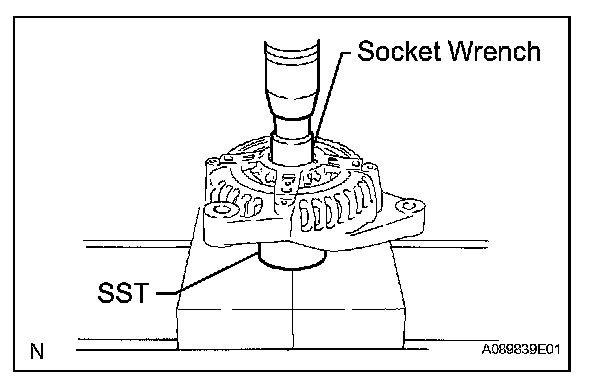

b. Using SST and a press, press out the bearing.

SST 09223-00010

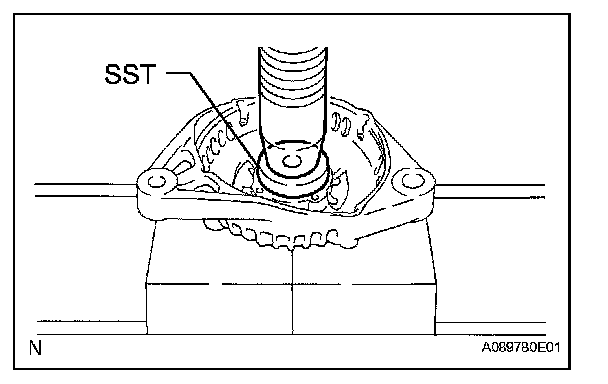

c. Using SST and a press, press in a new bearing.

SST 09950-60010

d. Install the bearing retainer with the 4 screws.

Torque: 2.3 N.m (24 kgf.cm, 20 in.lbf)




2. REPLACE REAR BEARING

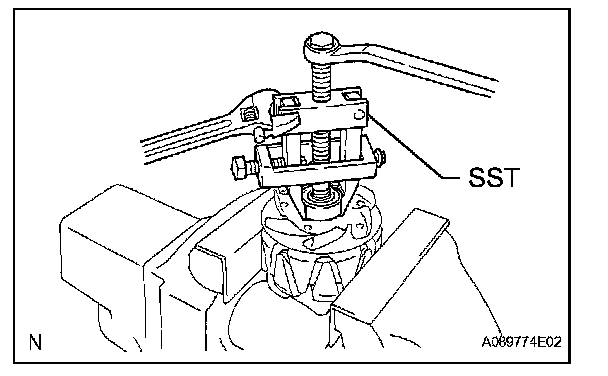

a. Using SST, remove the bearing cover (outside) and bearing.

SST 09820-00021

NOTE: Be careful not to damage the fan.

b. Remove the bearing cover (inside).

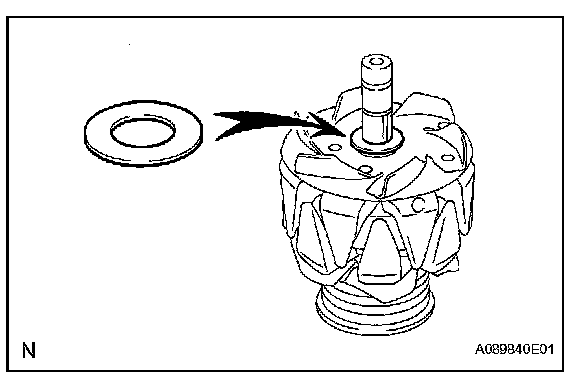

c. Place the bearing cover (inside) on the rotor.

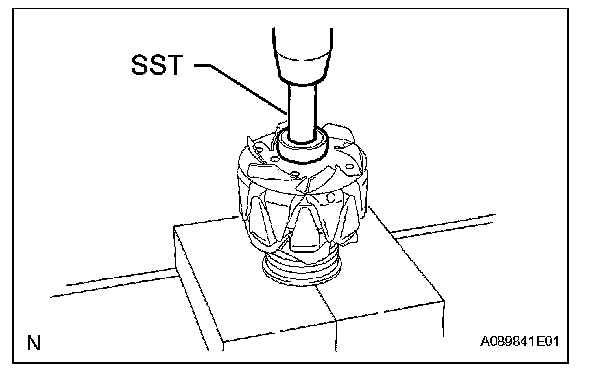

d. Using SST and a press, press in a new bearing.

SST 09820-00031

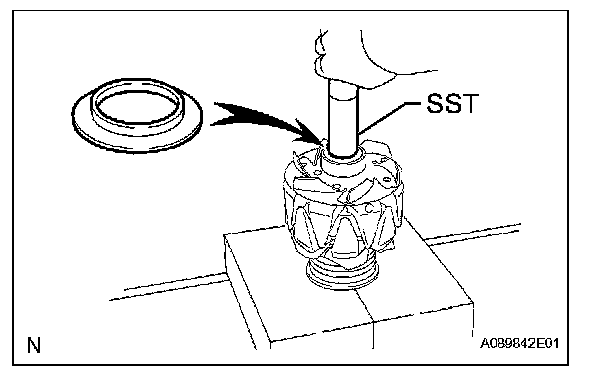

e. Using SST, push in the bearing cover (outside).

SST 09285-76010
