Center Airbag Sensor Assembly

Center Airbag Sensor Assembly:

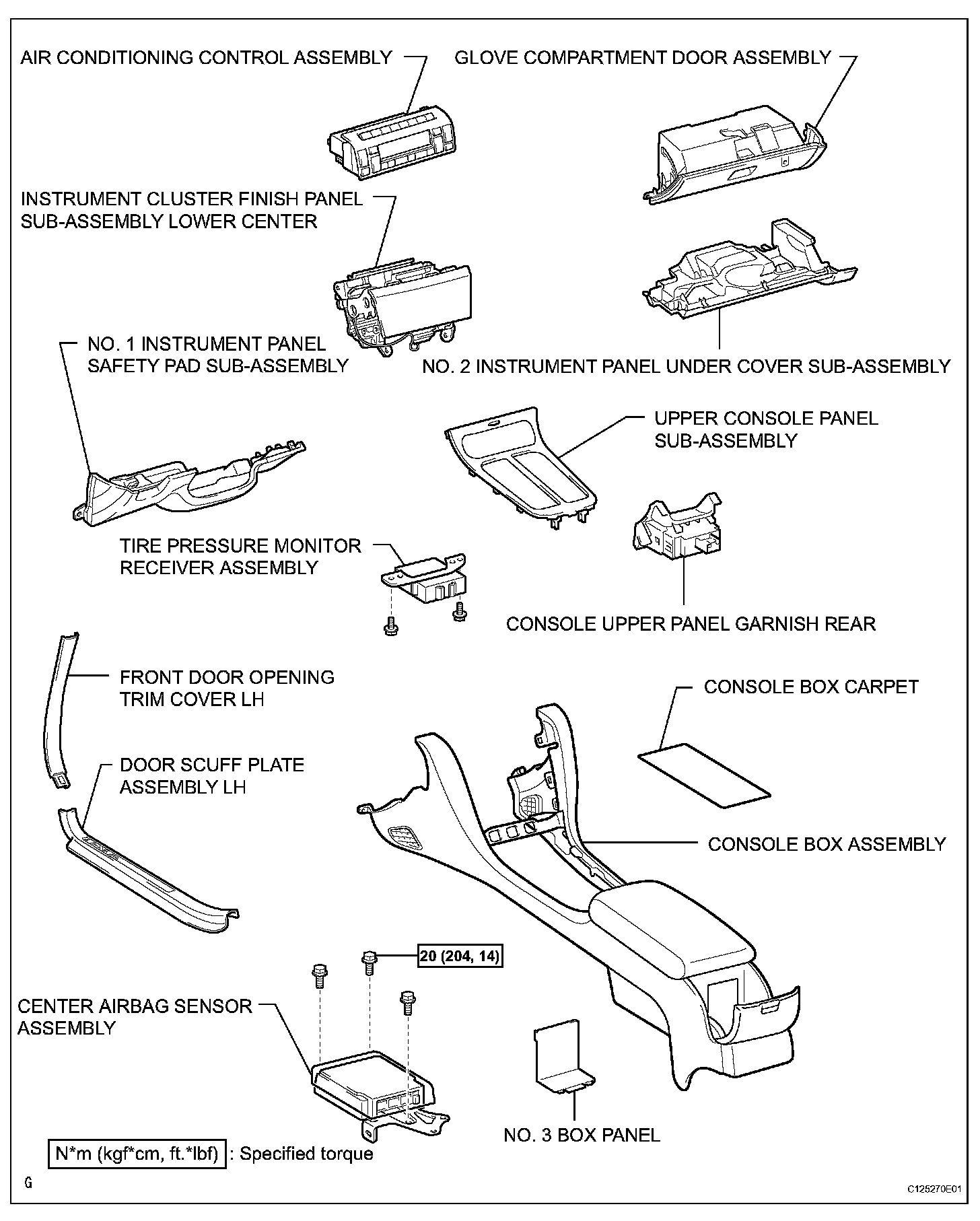

CENTER AIRBAG SENSOR ASSEMBLY

REMOVAL

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.

1. SHIP MODE SETTING
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

3. REMOVE DOOR SCUFF PLATE ASSEMBLY LH
4. REMOVE FRONT DOOR OPENING TRIM COVER LH
5. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
6. REMOVE CONSOLE UPPER PANEL GARNISH REAR
7. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY
8. REMOVE AIR CONDITIONING CONTROL ASSEMBLY
9. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
10. SHIP MODE CONFIRMATION
11. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
12. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
13. REMOVE CONSOLE BOX CARPET
14. REMOVE NO. 3 BOX PANEL
15. REMOVE CONSOLE BOX ASSEMBLY
16. REMOVE TIRE PRESSURE MONITOR RECEIVER ASSEMBLY

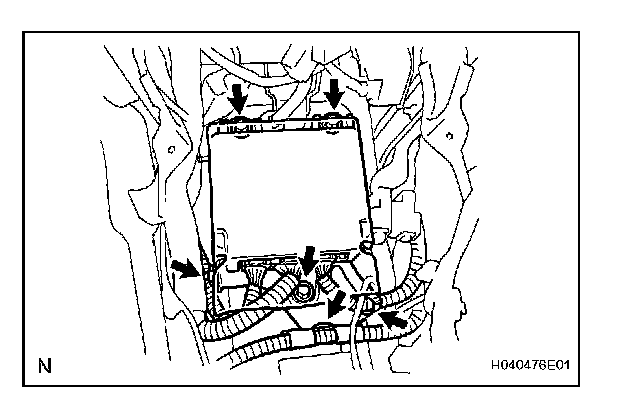

17. REMOVE CENTER AIRBAG SENSOR ASSEMBLY




a. Remove the 3 clamps from the airbag sensor.
b. Disconnect the 3 airbag sensor connectors.
c. Remove the 3 bolts and airbag

INSTALLATION

CAUTION: Be sure to read the precautionary notices concerning the SRS airbag system before servicing it.

1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY




a. Temporarily install the airbag sensor with the 3 bolts.

b. Tighten the 3 bolts to the specified torque.

Torque: 20 N.m (204 kgf.cm, 14 ft.lbf)

CAUTION:
- If the airbag sensor has been dropped, or there are any cracks, dents or other defects in the case, bracket or connector, replace it with a new one.
- When installing the airbag sensor, be careful that the SRS wiring does not interfere with other parts and that it is not pinched between other parts.

c. Connect the 3 airbag sensor connectors.
d. Install the 3 clamps to the airbag sensor.
e. Check that there is no free play.
f. Check that the waterproof sheet is properly set.

2. INSTALL TIRE PRESSURE MONITOR RECEIVER ASSEMBLY
3. INSTALL CONSOLE BOX ASSEMBLY
4. INSTALL NO. 3 BOX PANEL
5. INSTALL CONSOLE BOX CARPET
6. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
7. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
8. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
9. INSTALL AIR CONDITIONER CONTROL ASSEMBLY
10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY
11. INSTALL CONSOLE UPPER PANEL GARNISH REAR
12. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
13. INSTALL FRONT DOOR OPENING TRIM COVER LH
14. INSTALL DOOR SCUFF PLATE ASSEMBLY LH
15. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
16. PERFORM INITIALIZATION

a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

17. CHECK SRS WARNING LIGHT

a. Check the SRS warning light.
