Camshaft Position Sensor: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. DRAIN ENGINE COOLANT
3. REMOVE NO. 1 AIR CLEANER INLET
4. REMOVE V-BANK COVER
5. REMOVE RADIATOR HOSE INLET
6. REMOVE NO. 3 TIMING BELT COVER SUBASSEMBLY LH
7. REMOVE CAMSHAFT POSITION SENSOR

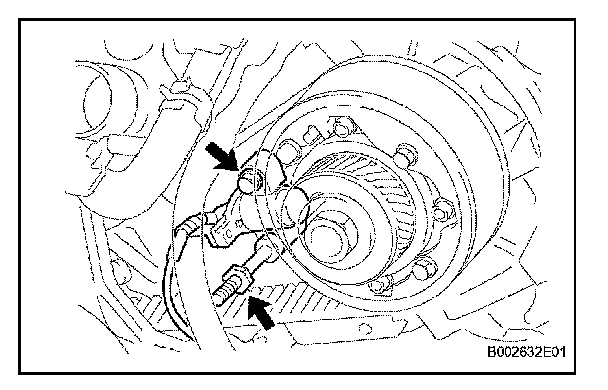

a. Remove the bolt, stud bolt and sensor.
INSTALLATION
1. INSTALL CAMSHAFT POSITION SENSOR

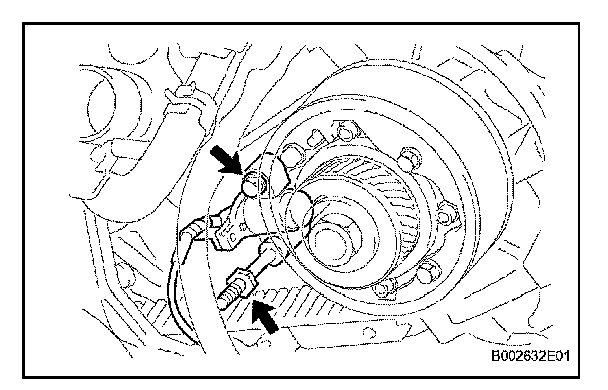

a. Install the sensor with the bolt and stud bolt.
Torque: 7.5 N.m(76 kgf.cm, 66 in.lbf)
2. INSTALL NO. 3 TIMING BELT COVER SUBASSEMBLY LH
3. INSTALL RADIATOR HOSE INLET
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION.
a. Perform initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
6. ADD ENGINE COOLANT
7. CHECK FOR ENGINE COOLANT LEAKS
a. Check for engine coolant leaks.
8. INSTALL NO. 1 AIR CLEANER INLET
9. INSTALL V-BANK COVER
