Turn Signal Switch: Service and Repair

Turn Signal Light Switch:

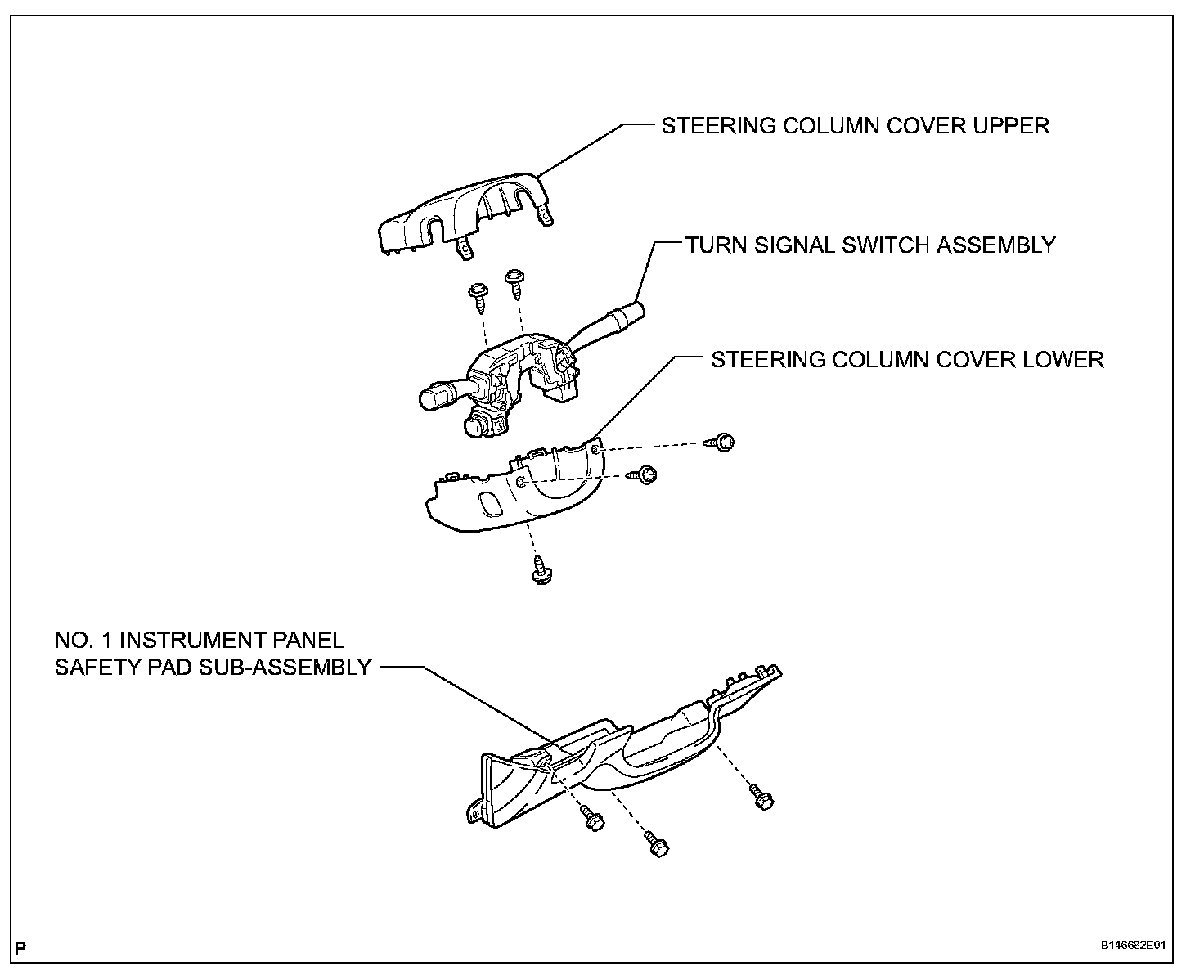

TURN SIGNAL LIGHT SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE NO.1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
4. REMOVE STEERING COLUMN COVER UPPER
5. REMOVE STEERING COLUMN COVER LOWER

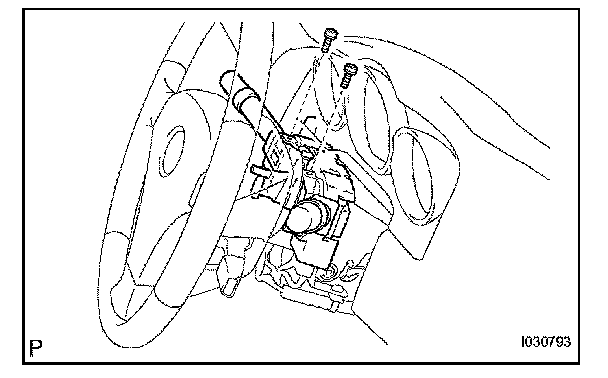

6. REMOVE TURN SIGNAL SWITCH ASSEMBLY
a. Disconnect the connector.
b. Remove the 2 screws and switch.

INSTALLATION

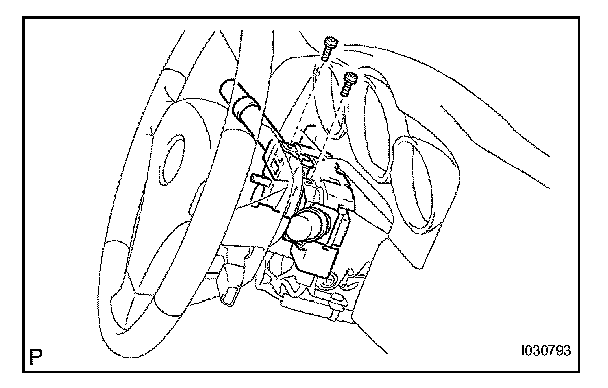

1. INSTALL TURN SIGNAL SWITCH ASSEMBLY
a. Install the switch with the 2 screws.
b. Connect the connector.

2. INSTALL STEERING COLUMN COVER LOWER
3. INSTALL STEERING COLUMN COVER UPPER
4. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
5. INSTALL NO.1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
